HM514101CLS-8 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> HM514101CLS-8

Preview

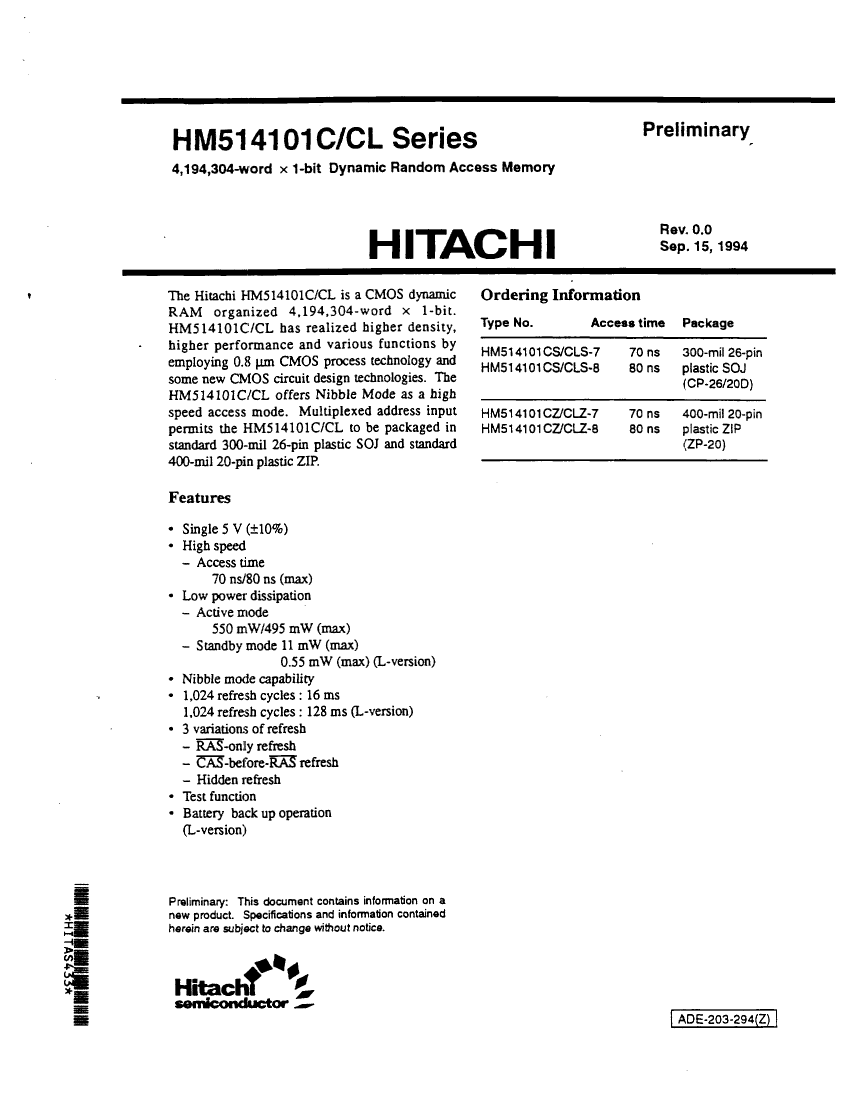

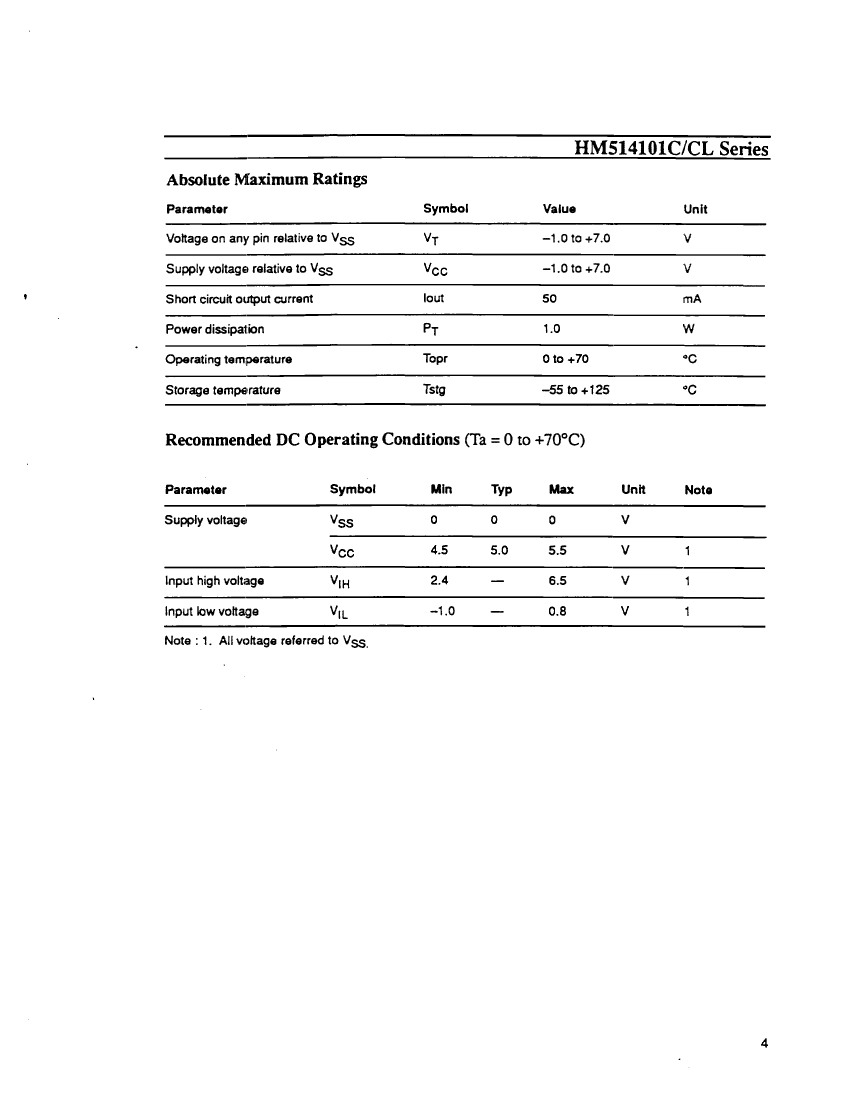

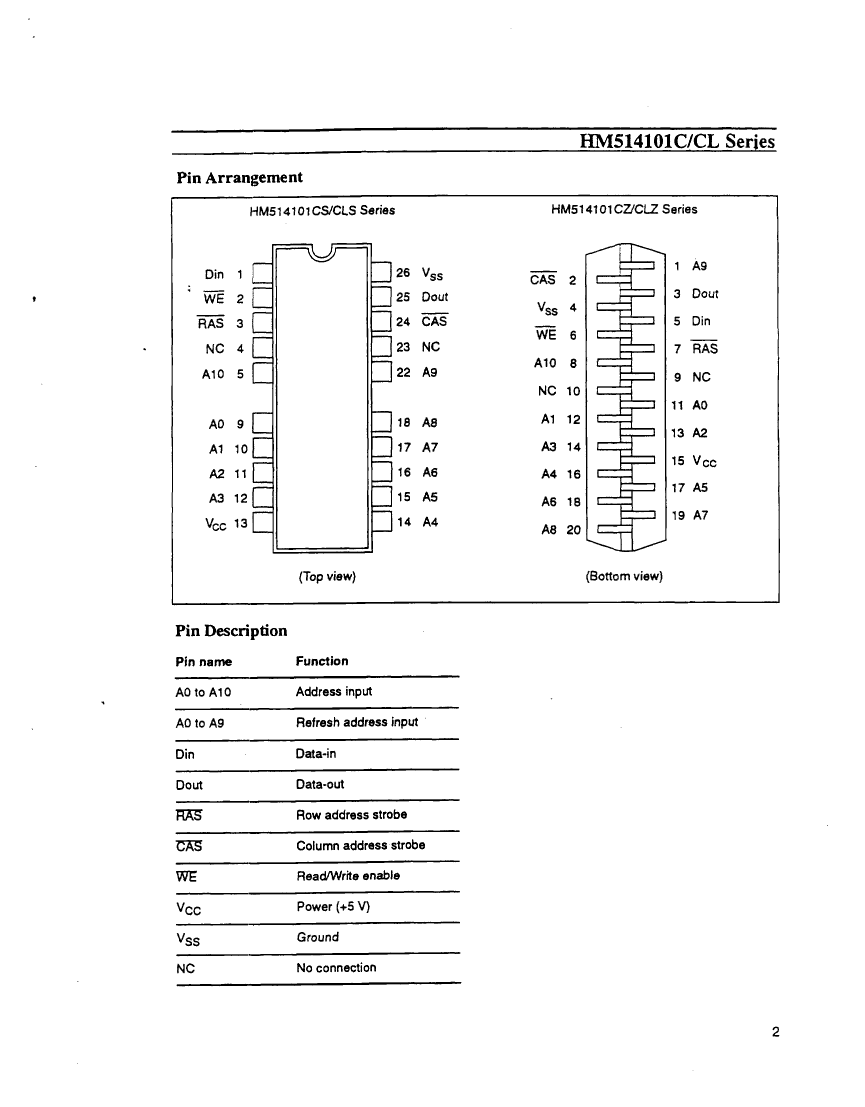

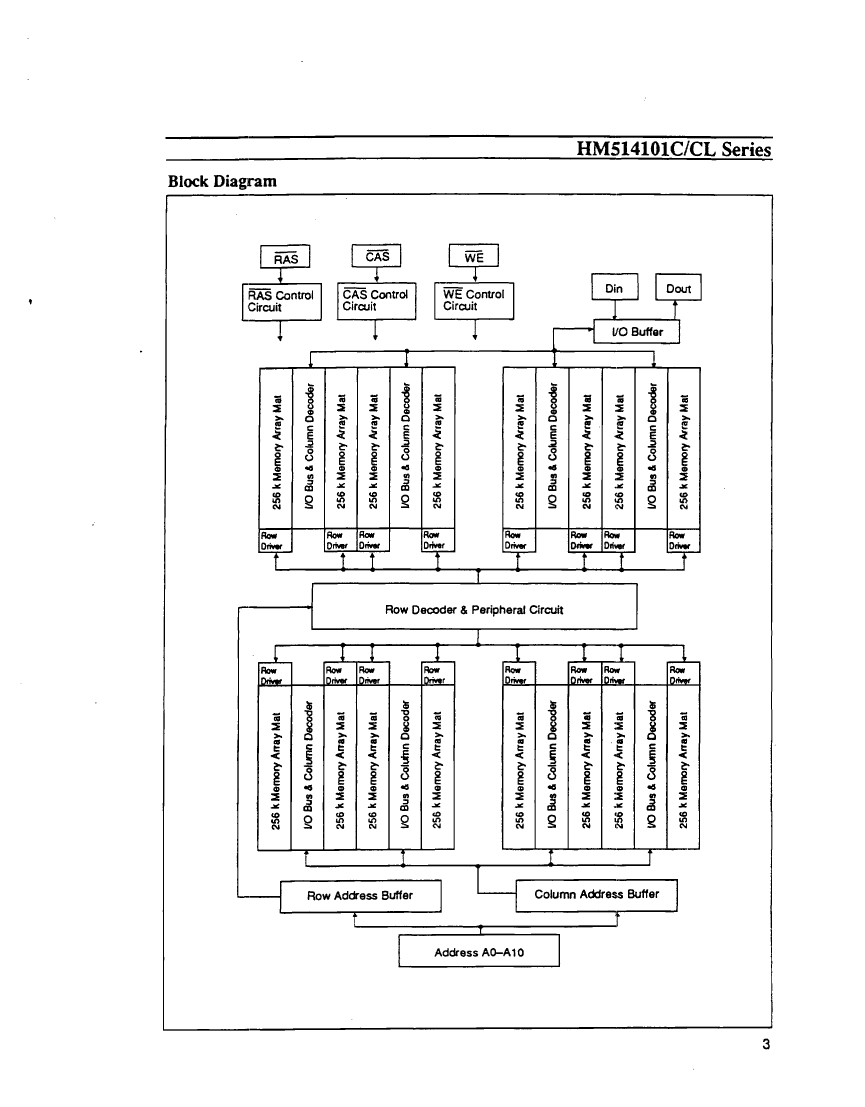

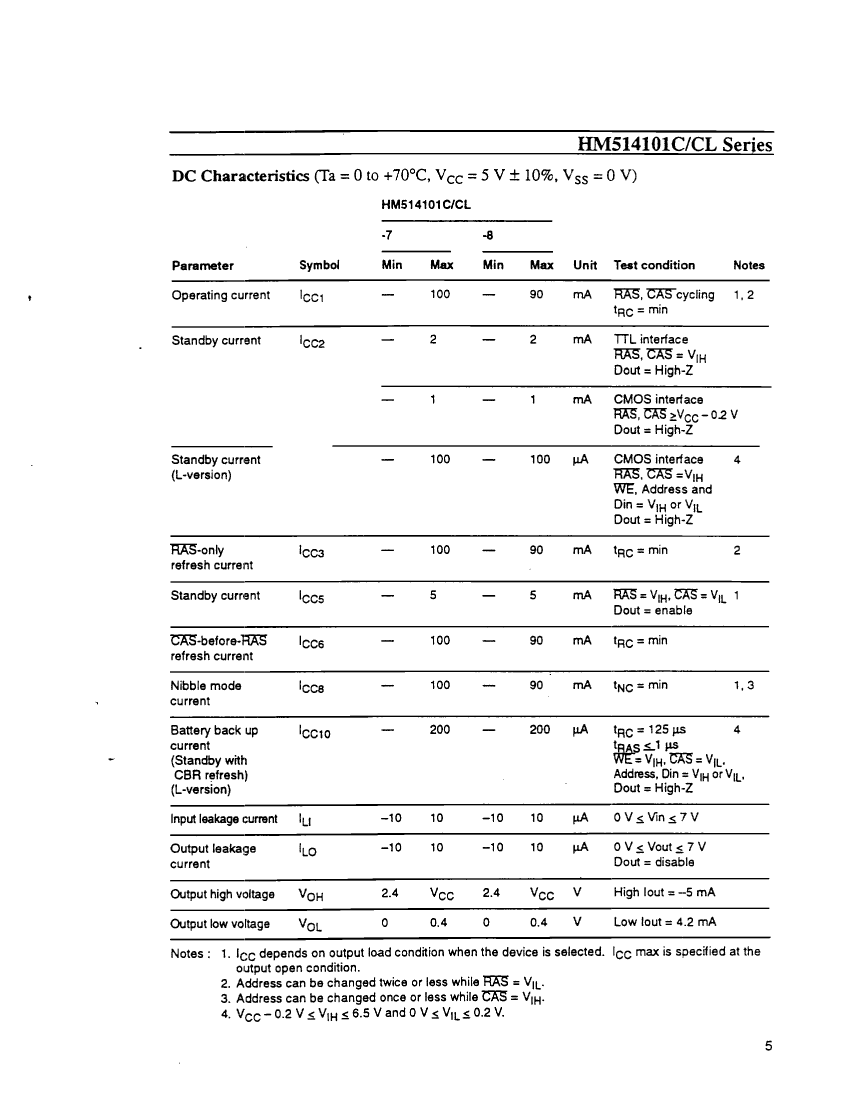

HM514101CLS-8: DescriptionNibble Mode DRAM, 4MX1, 80ns, CMOS, PDSO20, 0.300 INCH, PLASTIC, SOJ-26/20; Categorystorage storage; File Size595KB，27 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HM514101CLS-8 Overview

Nibble Mode DRAM, 4MX1, 80ns, CMOS, PDSO20, 0.300 INCH, PLASTIC, SOJ-26/20

HM514101CLS-8 Parametric

Parameter Name	Attribute value
Parts packaging code	SOJ
package instruction	0.300 INCH, PLASTIC, SOJ-26/20
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	NIBBLE
Maximum access time	80 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDSO-J20
length	16.9 mm
memory density	4194304 bit
Memory IC Type	NIBBLE MODE DRAM
memory width	1
Number of functions	1
Number of ports	1
Number of terminals	20
word count	4194304 words
character code	4000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4MX1
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
refresh cycle	1024
Maximum seat height	3.76 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

HM514101CLS-8 Related Products

	HM514101CLS-8	HM514101CLS-7	HM514101CZ-8	HM514101CZ-7	HM514101CLZ-7	HM514101CS-7	HM514101CLZ-8	HM514101CS-8
Description	Nibble Mode DRAM, 4MX1, 80ns, CMOS, PDSO20, 0.300 INCH, PLASTIC, SOJ-26/20	Nibble Mode DRAM, 4MX1, 70ns, CMOS, PDSO20, 0.300 INCH, PLASTIC, SOJ-26/20	Nibble Mode DRAM, 4MX1, 80ns, CMOS, PZIP20, 0.400 INCH, PLASTIC, ZIP-20	Nibble Mode DRAM, 4MX1, 70ns, CMOS, PZIP20, 0.400 INCH, PLASTIC, ZIP-20	Nibble Mode DRAM, 4MX1, 70ns, CMOS, PZIP20, 0.400 INCH, PLASTIC, ZIP-20	Nibble Mode DRAM, 4MX1, 70ns, CMOS, PDSO20, 0.300 INCH, PLASTIC, SOJ-26/20	Nibble Mode DRAM, 4MX1, 80ns, CMOS, PZIP20, 0.400 INCH, PLASTIC, ZIP-20	Nibble Mode DRAM, 4MX1, 80ns, CMOS, PDSO20, 0.300 INCH, PLASTIC, SOJ-26/20
Parts packaging code	SOJ	SOJ	ZIP	ZIP	ZIP	SOJ	ZIP	SOJ
package instruction	0.300 INCH, PLASTIC, SOJ-26/20	SOJ,	ZIP,	ZIP,	ZIP,	SOJ,	ZIP,	SOJ,
Contacts	20	20	20	20	20	20	20	20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	NIBBLE	NIBBLE	NIBBLE	NIBBLE	NIBBLE	NIBBLE	NIBBLE	NIBBLE
Maximum access time	80 ns	70 ns	80 ns	70 ns	70 ns	70 ns	80 ns	80 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDSO-J20	R-PDSO-J20	R-PZIP-T20	R-PZIP-T20	R-PZIP-T20	R-PDSO-J20	R-PZIP-T20	R-PDSO-J20
length	16.9 mm	16.9 mm	25.61 mm	25.61 mm	25.61 mm	16.9 mm	25.61 mm	16.9 mm
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	NIBBLE MODE DRAM	NIBBLE MODE DRAM	NIBBLE MODE DRAM	NIBBLE MODE DRAM	NIBBLE MODE DRAM	NIBBLE MODE DRAM	NIBBLE MODE DRAM	NIBBLE MODE DRAM
memory width	1	1	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20	20	20
word count	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words
character code	4000000	4000000	4000000	4000000	4000000	4000000	4000000	4000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	4MX1	4MX1	4MX1	4MX1	4MX1	4MX1	4MX1	4MX1
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	SOJ	ZIP	ZIP	ZIP	SOJ	ZIP	SOJ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	1024	1024	1024	1024	1024
Maximum seat height	3.76 mm	3.76 mm	10.16 mm	10.16 mm	10.16 mm	3.76 mm	10.16 mm	3.76 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	J BEND	THROUGH-HOLE	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	ZIG-ZAG	ZIG-ZAG	ZIG-ZAG	DUAL	ZIG-ZAG	DUAL
width	7.62 mm	7.62 mm	2.85 mm	2.85 mm	2.85 mm	7.62 mm	2.85 mm	7.62 mm
Maker	-	Hitachi （Renesas ）	-	-	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）
