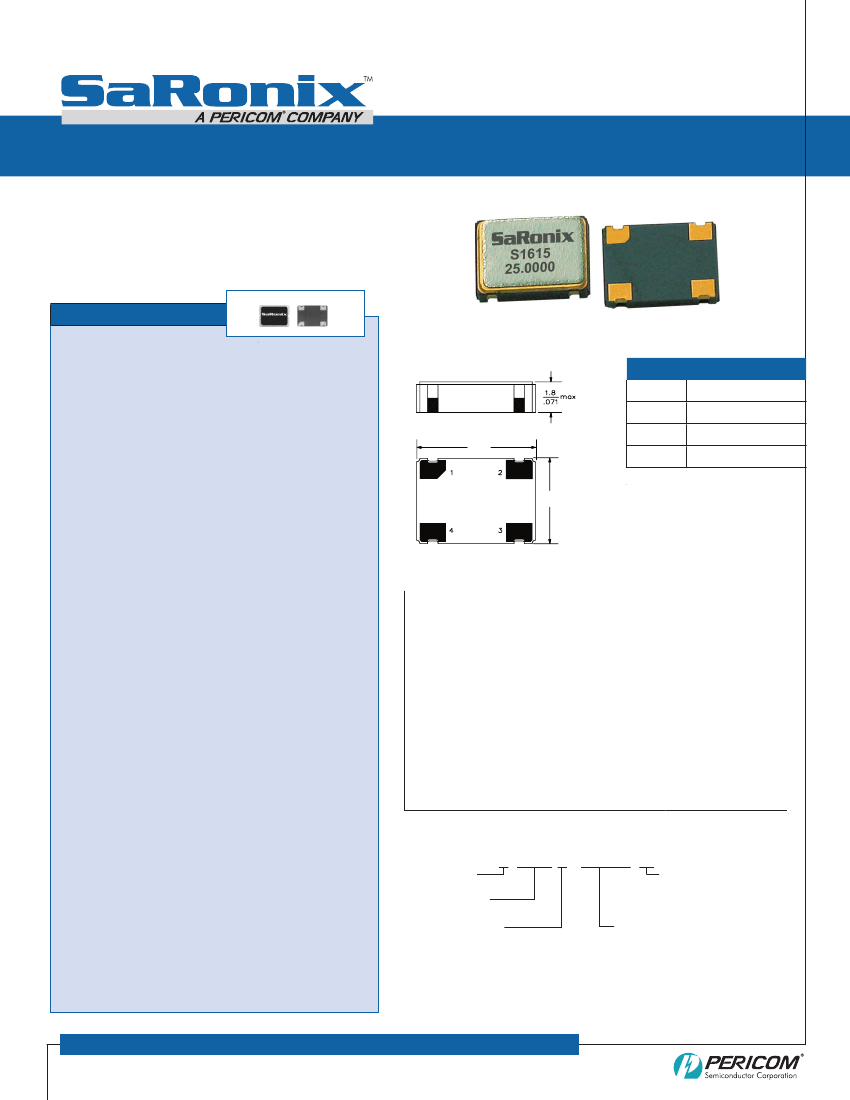

S1615 Series
5V CMOS Low Jitter
Crystal Clock Oscillator (XO)
Actual Size = 5 x 7mm
Product Features
• 5V CMOS/TTL compatible logic levels
• Pin-compatible with standard 5x7mm packages
• Designed for standard reflow and washing
techniques
• Output Tri-state function
• Pb-free and RoHS/Green compliant
Packaging Outline
Pin Functions
Pin
Function
1
2
7mm
OE Function
Ground
Clock Output
V
DD
3
4
5mm
Product Description
The S1615 Series is a 5V crystal clock oscillator
that achieves superb jitter and stability over a broad
range of operating conditions and frequencies. The
output clock signal, generated internally with a non-
PLL oscillator design, is compatible with CMOS/TTL
logic levels. The device, available on tape and reel,
is contained in a 5x7mm surface-mount ceramic
package.
Common Frequencies
Contact SaRonix for additional frequencies
Applications
The S1615 Series is an ideal reference clock for
applications requiring low jitter or tight stability,
including:
• Ethernet
• FibreChannel
• Serial Attached SCSI (SAS)
• Server & Storage platforms
• SONET/SDH linecards
• T1/E1, T3/E3 linecards
• DSLAM
• 802.11a/b/g WiFi
1.5440 Mhz
2.0480 MHz
3.6864 MHz
8.0000 MHz
10.0000 MHz
14.3181 MHz
16.0000 MHz
16.3840 MHz
18.4320 MHz
19.4400 MHz
20.0000 MHz
22.0000 MHz
24.5760 MHz
25.0000 MHz
32.0000 MHz
32.7680 MHz
33.0000 MHz
34.3680 MHz
35.3280 MHz
38.8800 MHz
40.0000 MHz
44.0000 MHz
44.7360 MHz
48.0000 MHz
50.0000 MHz
60.0000 MHz
66.0000 MHz
66.6667 MHz
74.2500 MHz
75.0000 MHz
77.7600 MHz
80.0000 MHz
90.0000 MHz
Ordering Information
½½½½½½½
½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½
½ ½½½½ ½½½½½½½½½½½½½½½½½½
½½½½½½½½½
½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½
* Availability varies by frequency.
Pericom Semiconductor Corporation • 1-800-435-2336 • http://www.pericom.com/saronix
1
All specifications are subject to change without notice.
DS 196 Rev C | 04/13/05
S1615 Series
5V CMOS Low Jitter
Crystal Clock Oscillator (XO)
Electrical Performance
Parameter
Min.
Typ.
Max.
Units
Notes
Output frequency
Supply voltage
Supply current, output enabled
Frequency stability
Operating temperature
Output logic 0, VOL
Output logic 1, VOH
1.544
+4.5
+5.0
106.25
+5.5
27
50
65
±20 to ±50
MHz
V
As specified
1.544 to 32 MHz
mA
ppM
°C
V
V
V
V
>32 to 50 MHz
>50 to 106.25 MHz
See Note 1 below
As specified
HCMOS
TTL
HCMOS
TTL
HCMOS up to <50 MHz
HCMOS 50 to <70 MHz
HCMOS 70 to 106.25 MHz
TTL
-40 to +85°C measured 50%VDD
-10 to +70°C measured 50%VDD
-40 to +85°C measured 50%VDD
-40 to +85°C measured 1.5V
measured 20/80% of waveform
-40
+85
10% V
DD
+0.4
90% V
DD
+3.9
50
30
15
10
pF
pF
pF
TTL
%
%
%
%
ns
ns
ns
ns
ns
Output load
1.544 to 80 MHz
Duty cycle
>80 to 106.25 MHz
1.544 to 106.25 MHz
1.544 up to <50 MHz
Rise and fall
time
50 to <70 MHz
70 to 106.25 MHz
1.544 to <70 MHz
70 to 106.25 MHz
45
45
40
40
55
55
60
60
8
5
3
5
2
measured 0.4V to 2.4V
Notes:
1. As specified. Stability includes all combinations of operating temperature, load changes, rated input (supply) voltage changes, initial calibration tolerance (25°C),
aging (1 year at 25°C average effective ambient temperature), shock and vibration.
Output Enable / Disable Function
Parameter
Min.
Typ.
Max.
Units
Notes
Input Voltage (pin 1), Output
Enable
Input voltage (pin 1), Output
Disable (low power standby)
Internal pullup resistance
Output disable delay
Output enable delay
2.2
0.8
50
100
100
V
V
kΩ
ns
ns
or open
Output is Hi-Z
Pericom Semiconductor Corporation • 1-800-435-2336 • http://www.pericom.com/saronix
2
All specifications are subject to change without notice.
DS 196 Rev C | 04/13/05
S1615 Series
5V CMOS Low Jitter
Crystal Clock Oscillator (XO)

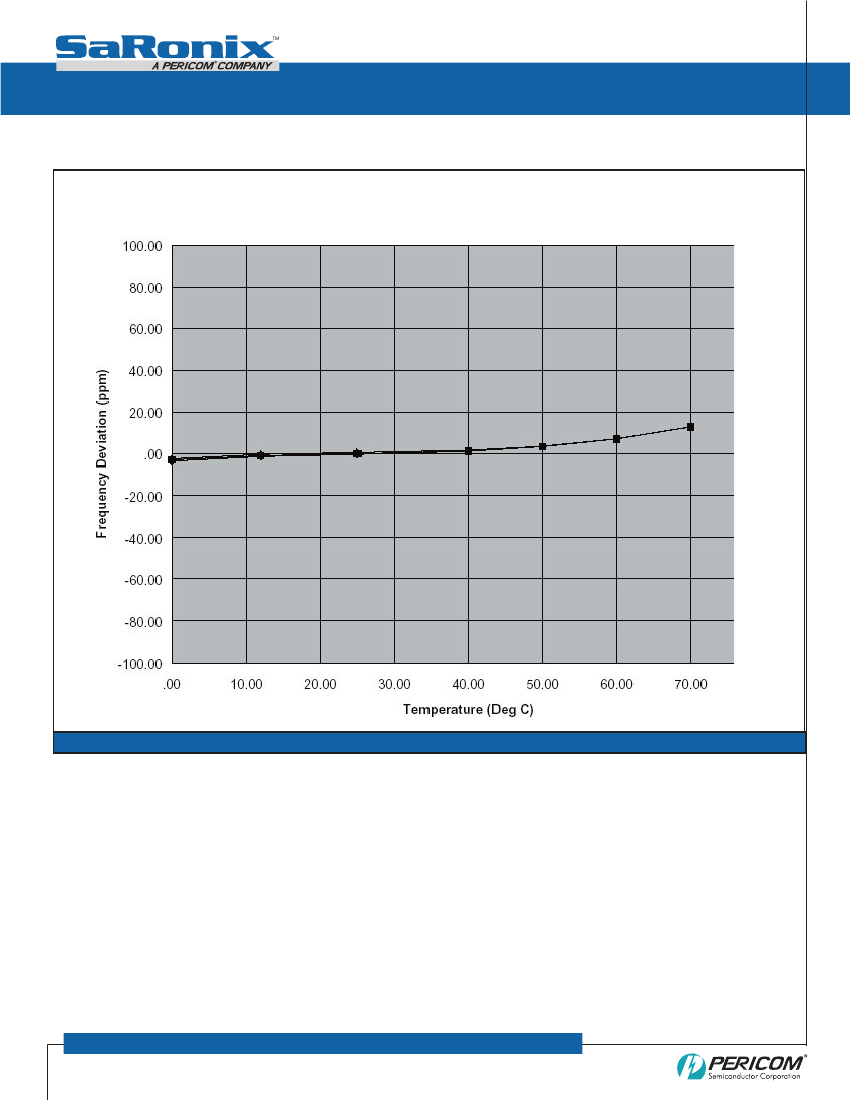

Typical Frequency Stability
Pericom Semiconductor Corporation • 1-800-435-2336 • http://www.pericom.com/saronix
3
All specifications are subject to change without notice.
DS 196 Rev C | 04/13/05
S1615 Series
5V CMOS Low Jitter
Crystal Clock Oscillator (XO)
Absolute Maximum Ratings
Parameter
Min.
Typ.
Max.
Units
Notes
Storage temperature
-55
+125
°C
Test Circuit
½½½½½½½½½½
½
½½½½½
½½
½½½½½½
½
½½½½½
½½½½½½
½
½
½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½
½½½½½½½½½½½
½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Reliability Test Ratings
This product is rated to meet the following test conditions:
Type
Parameter
Test Condition
Mechanical
Mechanical
Mechanical
Mechanical
Mechanical
Mechanical
Environmental
Environmental
Environmental
Environmental
Shock
Solderability
Terminal strength
Gross leak
Fine leak
Solvent resistance
Thermal shock
Moisture resistance
Vibration
Resistance to soldering heat
MIL-STD-883, Method 2002, Condition B
JESD22-B102-D Method 2 (Preconditioning E)
MIL-STD-883, Method 2004, Condition D
MIL-STD-883, Method 1014, Condition C
MIL-STD-883, Method 1014, Condition A2 (R
1
= 2x10
-8
atm cc/s)
MIL-STD-202, Method 215
MIL-STD-883, Method 1011, Condition A
MIL-STD-883, Method 1004
MIL-STD-883, Method 2007, Condition A
J-STD-020C Table 5-2 Pb-free devices (2 cycles max)
Pericom Semiconductor Corporation • 1-800-435-2336 • http://www.pericom.com/saronix
4
All specifications are subject to change without notice.
DS 196 Rev C | 04/13/05
S1615 Series
5V CMOS Low Jitter
Crystal Clock Oscillator (XO)
Output Waveform
t
f
t
r
VOH
80%
50%
20%
VOL
t
A
Duty cycle = 100%
x
(t
A
)
/
(t
A
+ t
B
)
t
B
Reflow Soldering Profile
As per IPC/JEDEC J-STD-020C
260
217
1 to 3°C/sec max
Peak 260°C for 10 sec max
1 to 3°C/sec
Temperature – °C
Time
60 to 90 sec
4 to 6 minutes max
Pericom Semiconductor Corporation • 1-800-435-2336 • http://www.pericom.com/saronix
5
All specifications are subject to change without notice.
DS 196 Rev C | 04/13/05
