China Electronics Technology Group Corporation
No.26 Research Institute
95MHz SAW Filter
24.1MHz Bandwidth
Part Number:
LBN09505
www.sipatsaw.com
SIPAT Co., Ltd.

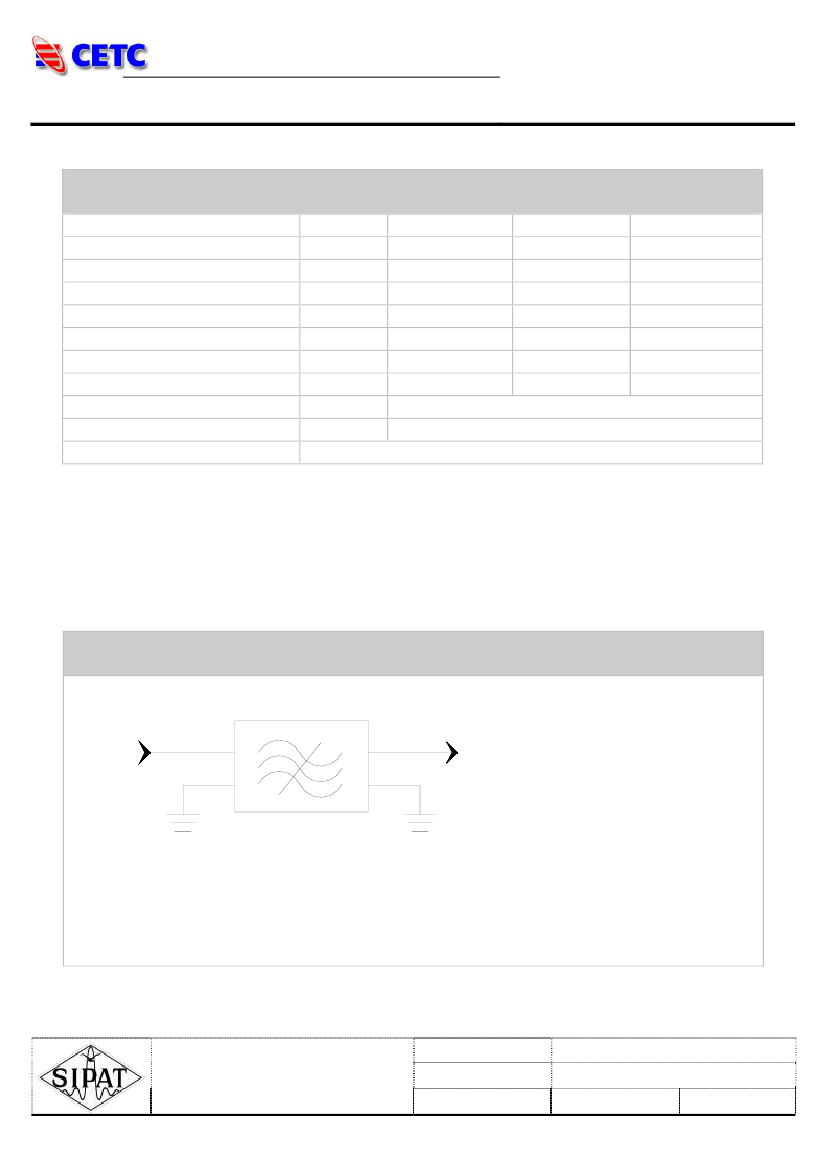

Specifications
Parameter
Center Frequency
Insertion Loss
1.5 dB Bandwidth(marker f0)
24 dB Bandwidth
Passband Variation
Ultimate Rejection
Absolute Delay
Material Temperature coefficient
Ambient Temperature
Package Size
Unit
MHz
dB
MHz
MHz
dB
dB
Minimum
94.875
Typical
95
28.5
Maximum
95.125
30
24.1
24.15
25.15
1
25.2
1.3
35
40
2.12
-7.79
25
2.4
usec
KHz/°C
°C
DIP3512 (35.0x12.8x4.7mm
3
)
Notes:
1. All specifications are based on the test circuit shown
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure
electrical compliance over temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift
and manufacturing tolerances
4. This is the optimum impedance in order to achieve the performance show
Matching Configuration
Source/Load Impedance=50 ohm
Notes - Component values may change depending
on board layout.
SIPAT Co., Ltd.
( CETC No. 26 Research Institute )
Nanping Huayuan Road No. 14
Chongqing, China, 400060
Part Number
Rev. Date
Rev.
SP LBN09505
2005-7-26
1.0
Page
1/3
Phone: +86-23-62920684
Fax: +86-23-62805284
www.sipatsaw.com / sawmkt@sipat.com
China Electronics Technology Group Corporation
No.26 Research Institute
95MHz SAW Filter
24.1MHz Bandwidth
Part Number:
LBN09505
www.sipatsaw.com
SIPAT Co., Ltd.

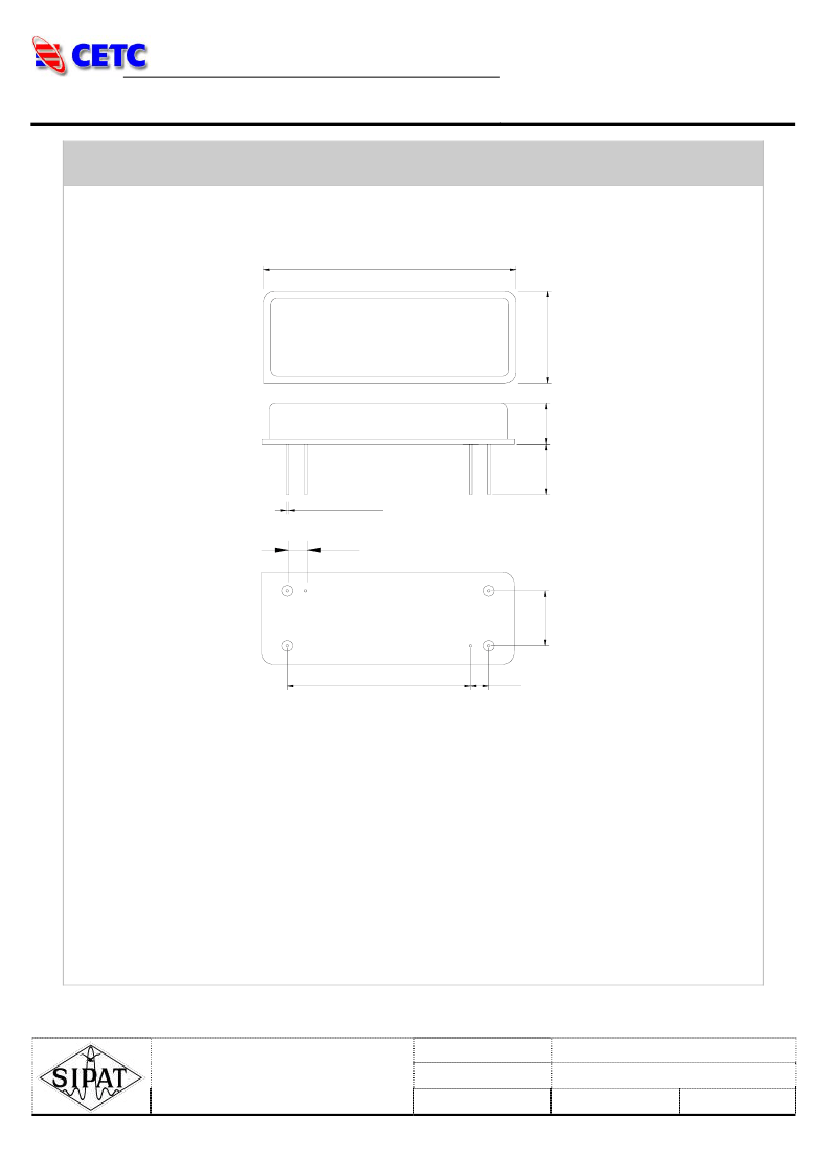

Package Dimension
35.00
±
0.5
12.80
±
0.5
4.7
4.5
0.45
±
0.05
2.54
±
0.2
7.62
±
0.2
3
6
2
1
4
5
25.40
±
0.2
2.54
±
0.2
Input:1
Output:5
SIPAT Co., Ltd.
( CETC No. 26 Research Institute )
Nanping Huayuan Road No. 14
Chongqing, China, 400060
Part Number
Rev. Date
Rev.
SP LBN09505
2005-7-26
1.0
Page
2/3
Phone: +86-23-62920684
Fax: +86-23-62805284
www.sipatsaw.com / sawmkt@sipat.com
China Electronics Technology Group Corporation
No.26 Research Institute
95MHz SAW Filter
24.1MHz Bandwidth
Part Number:
LBN09505
www.sipatsaw.com
SIPAT Co., Ltd.

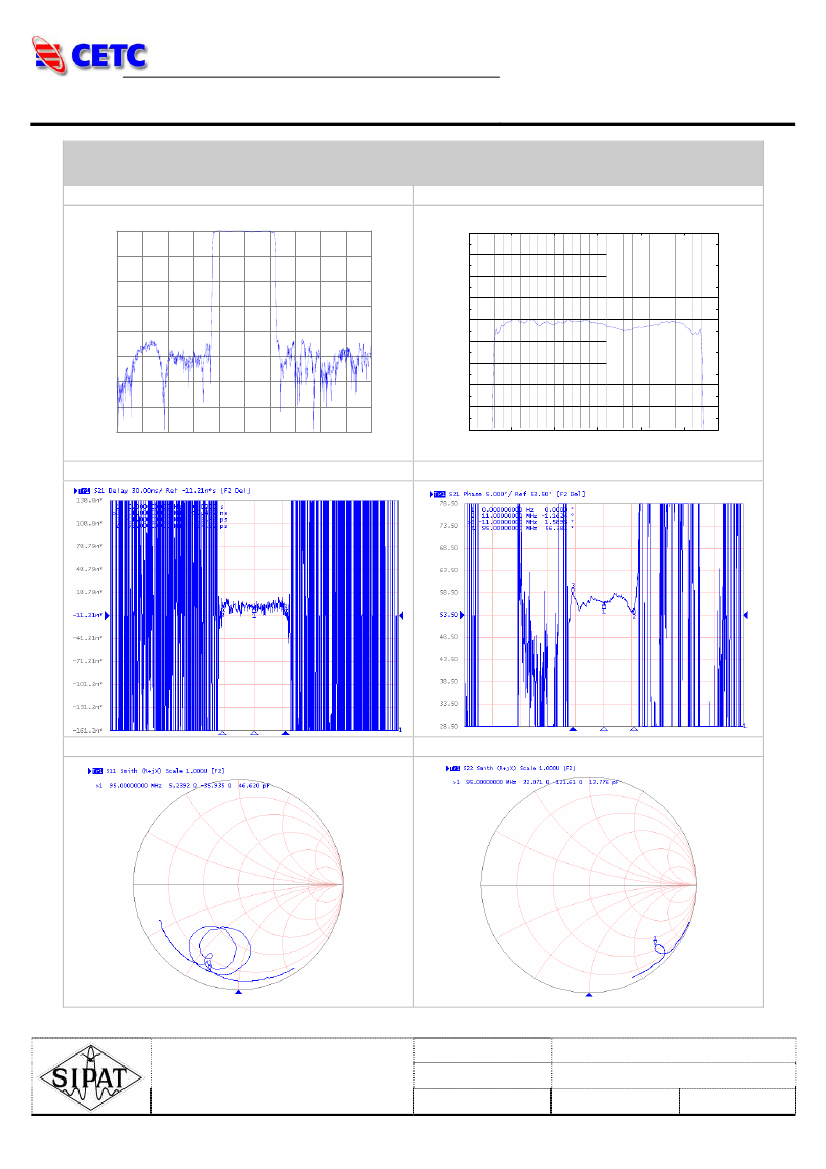

Typical Performance
Frequency Respond
Type performance
-28.4568
-25
Passband Respond
-38.4568
-26
-48.4568
-27
-58.4568
Magnitude(dB)
-28
-68.4568
-29
-78.4568
-30
-31
-88.4568
-32
-98.4568
-33
-108.4568
55
65
75
85
95
105
Frequency(MHz)
115
125
135
8.5
9
9.5
f scale=1MHz
10
10.5
x 10
7
Group delay Variation（F
0
±11MHz）
Phase Linearity（F
0
±11MHz）
Simth Chart S11
Simth Chart S22
SIPAT Co., Ltd.
( CETC No. 26 Research Institute )
Nanping Huayuan Road No. 14
Chongqing, China, 400060
Part Number
Rev. Date
Rev.
SP LBN09505
2005-7-26
1.0
Page
3/3
Phone: +86-23-62920684
Fax: +86-23-62805284
www.sipatsaw.com / sawmkt@sipat.com
