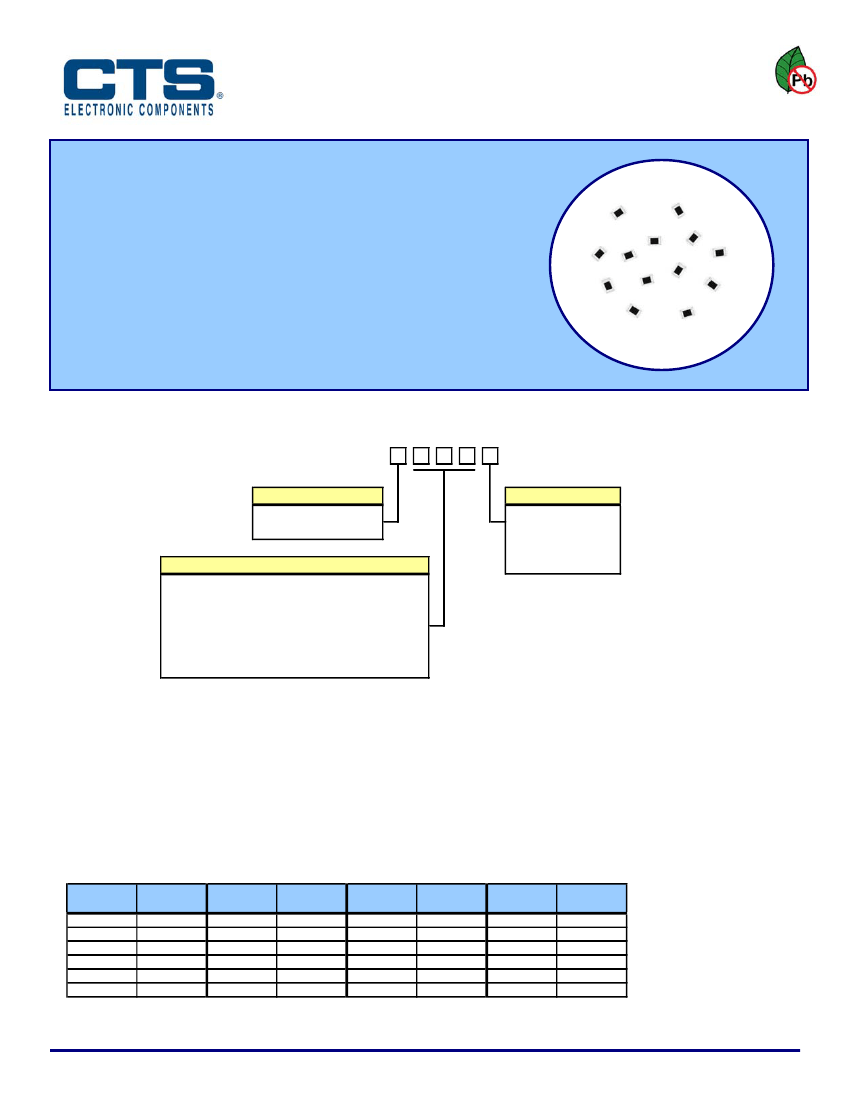

Ultra High Resistance Chip Resistors
FEATURES
•
Ultra High Resistance [≤ 100GΩ]
•
Suitable for Use in High Input Impedance Quartz Amplifiers,
Low Temperature Sensing Applications and Testing Devices
•
Good Electrical Characteristics
•
Surface Mount Package
•
Nickel Barrier Solder-Coated Pads [e3]
•
Reflow capable per JEDEC J-STD-020, 260°C maximum
•
Tape and Reel Packaging
•
RoHS Compliant in Accordance with EU Directive 2005/95/EC
- Lead-Free Termination Finish
- Exemption 5 for Pb in glass material and resistor elements
Series 73Ux
ORDERING INFORMATION
73U
PACKAGE CODE
3 = 0805
TOLERANCE
K = ±10%
M = ±20%
N = ±30%
H = ±50%
RESISTOR CODE
3-Digit Resistor Code
First two digits are significant
Last digit represents number of trailing zeros
Ex.
336 = 33 Mega Ohms
109 = 10 Giga Ohms
Notes:
1. No dashes or spaces to appear in part number.
2. Example Part Numbers:
73U3109H [0805 pkg., 10 Giga Ohms, ±50]
73U3477K [0805 pkg., 470 Mega Ohms, ±10%]
Not all performance combinations and resistor values may be available.
Contact your local CTS Representative or CTS Customer Service for availability.
STANDARD RESISTOR VALUES [Based on EIA E6 Sequence]
Resistor
Value
33 MΩ
47 MΩ
68 MΩ
100 MΩ
150 MΩ
220 MΩ
Resistor
Code
336
476
686
107
157
227
Resistor
Value
330 MΩ
470 MΩ
680 MΩ
1.0 GΩ
1.5 GΩ
2.2 GΩ
Resistor
Code
337
477
687
108
158
228
Resistor
Value
3.3 GΩ
4.7 GΩ
6.8 GΩ
10 GΩ
15 GΩ
22 GΩ
Resistor
Code
338
478
688
109
159
229
Resistor
Value
33 GΩ
47 GΩ
68 GΩ
100 GΩ
Resistor
Code
339
479
689
10A

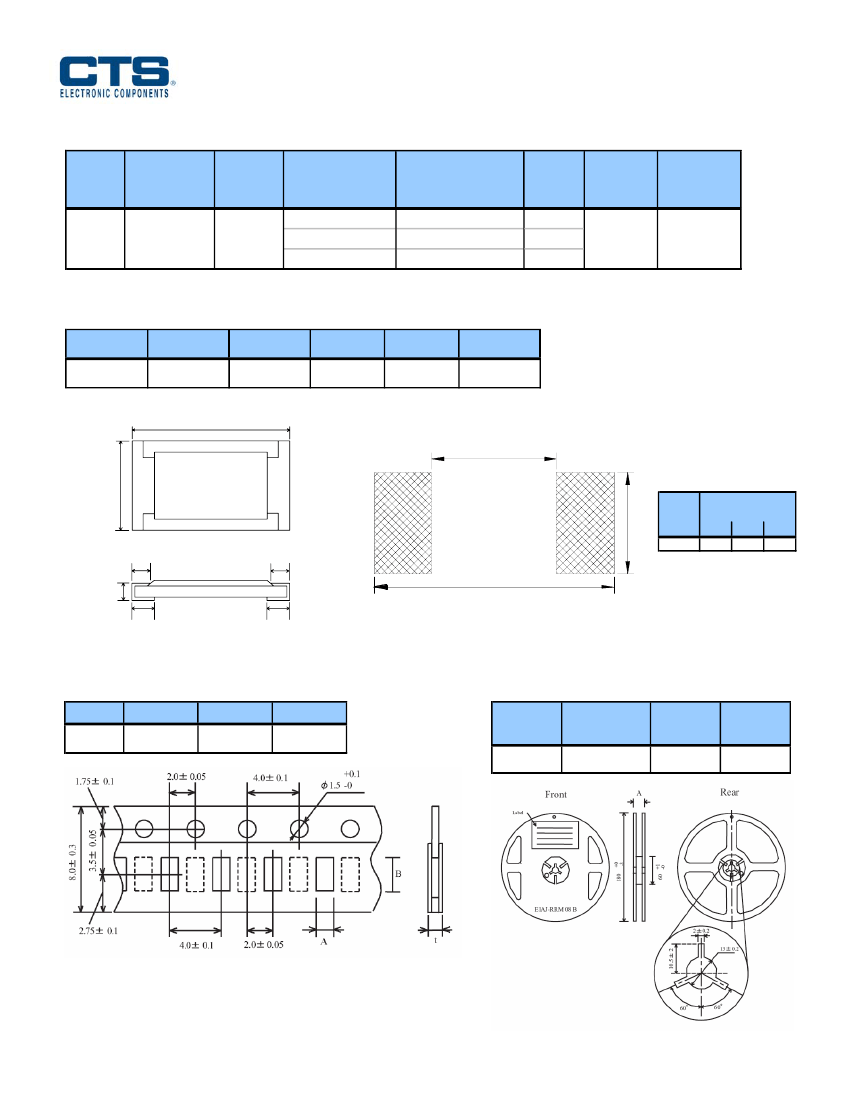

Document No. 008-0338-0
Page 1 - 2
Rev. A
www.ctscorp.com
