LBN12018: Description120MHz SAW Filter 24MHz Bandwidth; File Size136KB，3 Pages; ManufacturerSIPAT; Websitehttp://www.sipatsaw.com/

Download Datasheet View All

LBN12018 Overview

120MHz SAW Filter 24MHz Bandwidth

Preview

Download Datasheet

View All

China Electronics Technology Group Corporation

No.26 Research Institute

120MHz SAW Filter

24MHz Bandwidth

Part Number:

LBN12018

www.sipatsaw.com

SIPAT Co., Ltd.

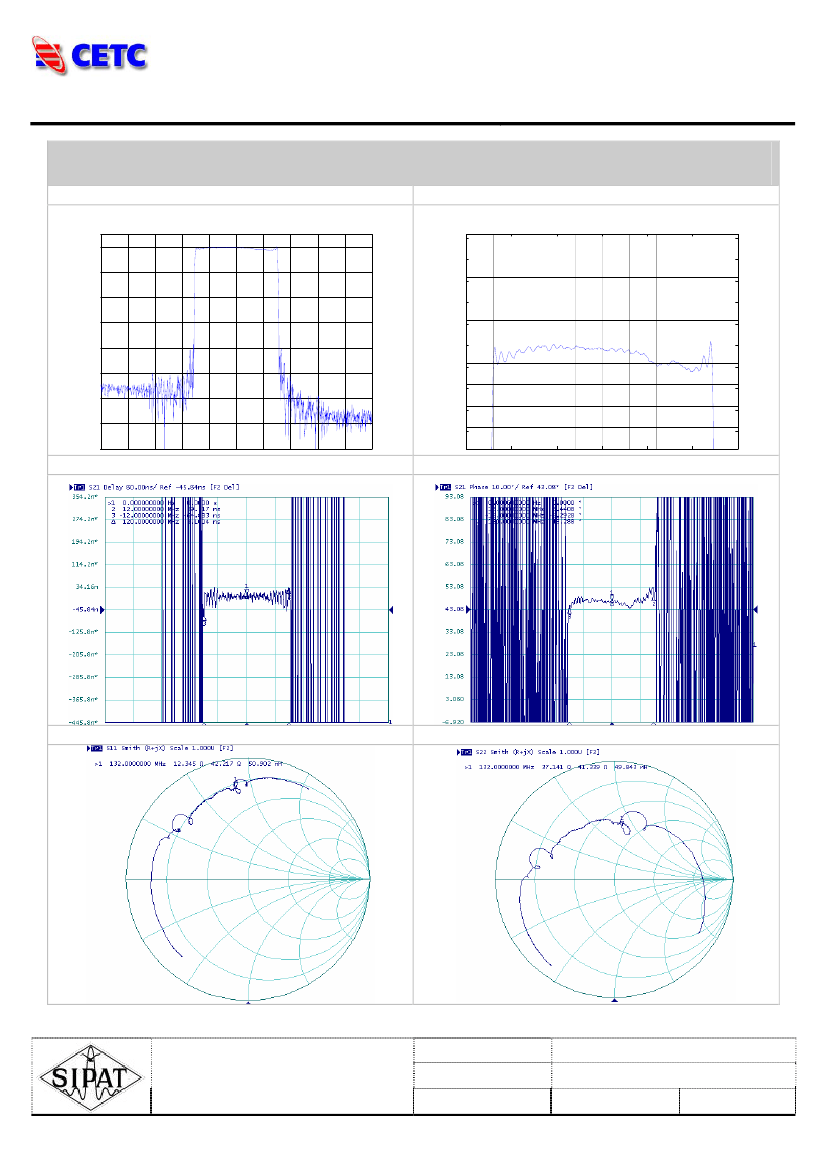

Specifications

Parameter

Center Frequency

Insertion Loss

1.5 dB Bandwidth

20dB Bandwidth

30 dB Bandwidth

35 dB Bandwidth

40 dB Bandwidth

Passband Variation

Absolute Delay

Ultimate Rejection

(outside f0±14MHz)

Material Temperature coefficient

Ambient Temperature

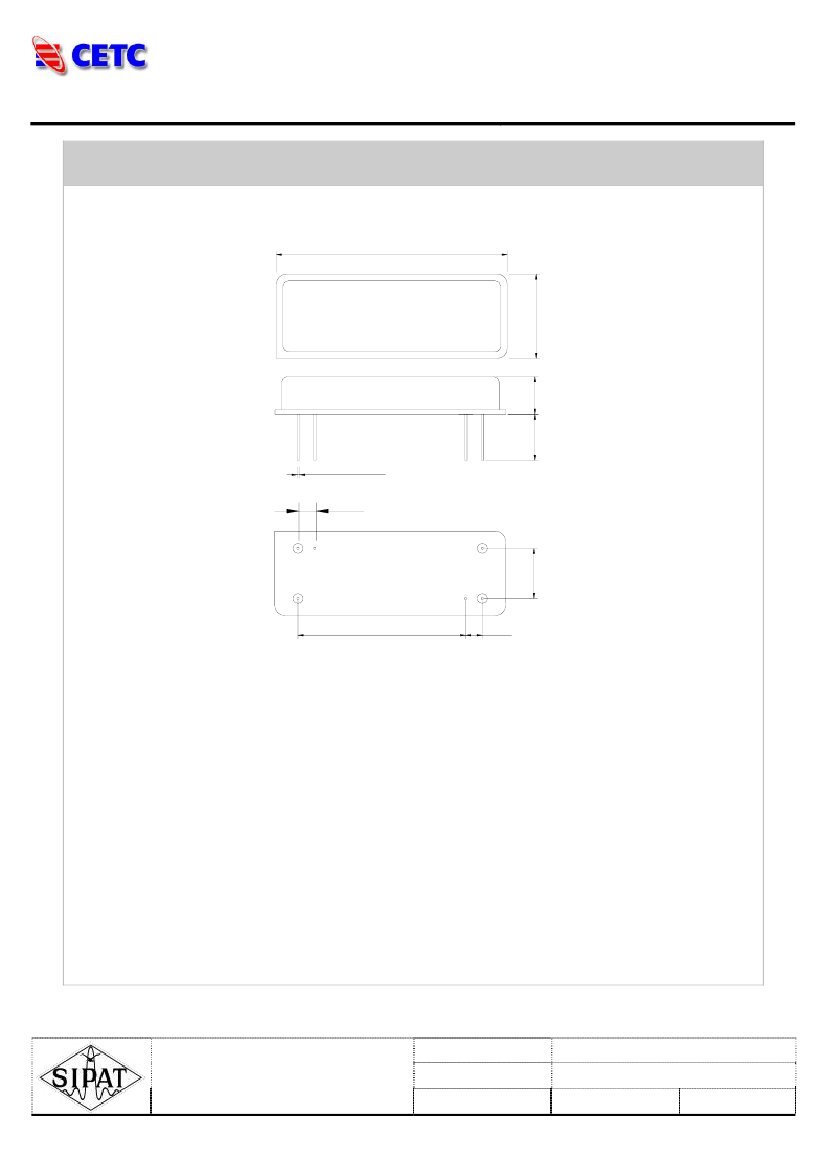

Package Size

KHz/°C

°C

-11.28

DIP3512 (35.0x12.8x4.7mm3)

Unit

MHz

usec

Minimum

119.875

24.1

Typical

120

25.8

24.2

24.84

24.97

25.07

1.4

2.73

Maximum

120.125

24.85

25.2

25.8

1.5

2.75

Notes:

1. All specifications are based on the test circuit shown

2. In production, devices will be tested at room temperature to a guardbanded specification to ensure

electrical compliance over temperature

3. Electrical margin has been built into the design to account for the variations due to temperature drift

and manufacturing tolerances

4. This is the optimum impedance in order to achieve the performance show

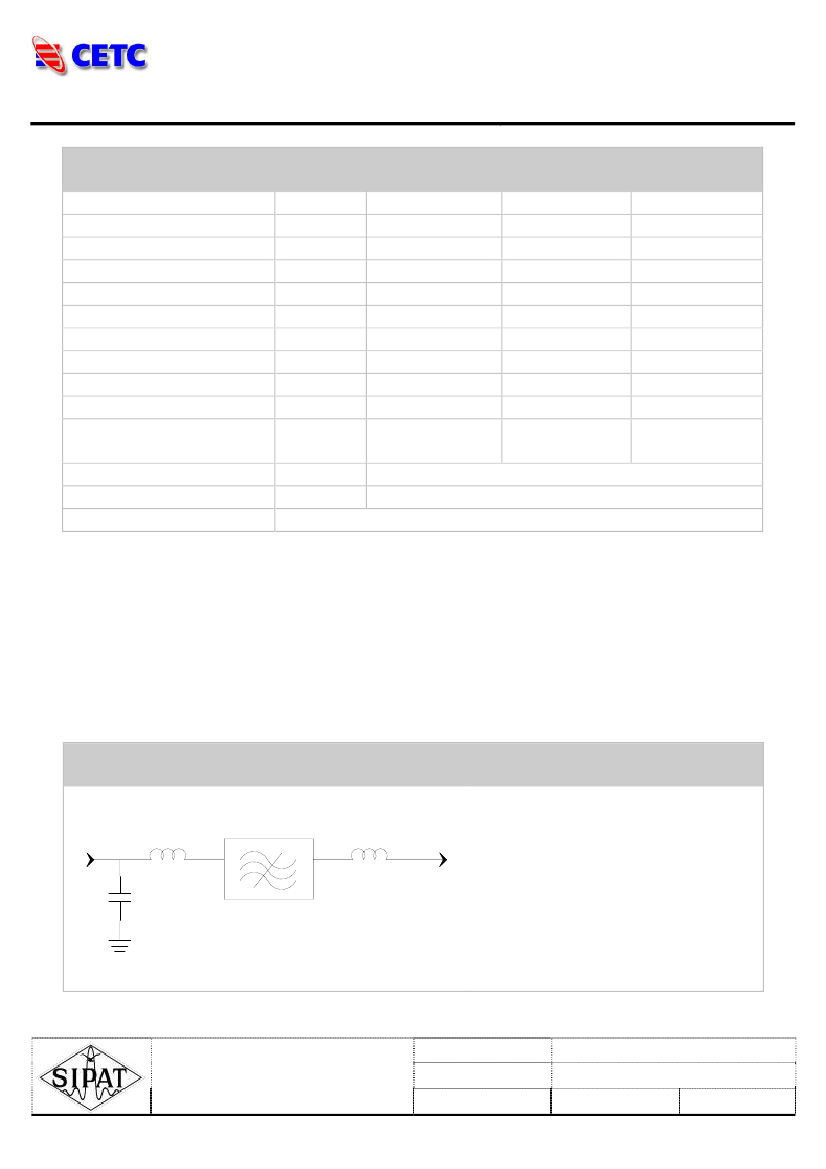

Matching Configuration

L1=L2=82nH

C1=22pF

Source/Load Impedance=50 ohm

Notes - Component values may change depending

on board layout.

SIPAT Co., Ltd.

( CETC No. 26 Research Institute )

Nanping Huayuan Road No. 14

Chongqing, China, 400060

Part Number

Rev. Date

Rev.

LBN12018

2005-11-21

2.0

Page

1/3

Phone: +86-23-62920684

Fax: +86-23-62805284

www.sipatsaw.com / sawmkt@sipat.com
