T-1 3/4 (
φ
5mm) PACAKGE
HIGH POWER AlInGaP LED LAMPs
Description
The MVL-504SO utilizes the latest absorbing
substrate Aluminum Indium Gallium Phosphide
(AlInGaP) LED technology. This LED material
has outstanding light output efficiency over a
wide range of drive current.
The package is T-1 3/4 (5mm) water clear standard type.
MVL-504SO
Package Dimensions
Unit: mm ( inches )
Features
l
l
l
l
Ultra - brightness
Low power consumption
TTL compatible
Reliable
Notes :
1. Tolerance is ± 0.25 mm (.010") unless otherwise noted.
2. Protruded resin under flange is 1.5 mm (.059") max.
3. Lead spacing is measured where the leads emerge from the package.
Absolute Maximum Ratings
@ T
A
=25
o
C
Parameter
Power Dissipation
Peak Forward Current(1/10 Duty Cycle100ms pulse width)
Continuous Forward Current
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Symbol
P
ad
I
pf
I
af
V
R
T
opr
T
stg
Maximum Rating
125
100
50
5
-40
o
C to +100
o
C
-40
o
C to +100
o
C
Unit
mW
mA
mA
V
Lead Soldering Temperature 1.6 mm from body for 5 seconds at 260
o
C
Unity Opto Technology Co., Ltd.
01/09/2002
MVL-504SO
Optical-Electrical Characteristics
@ T
A
=25
o
C
Parameter
Luminous Intensity
Forward Voltage
Reverse Current
Dominant Wavelength
Spectral Line Half Width
Viewing Angle
Test Conditions
I
F
=20mA
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
Symbol
I
V
V
F
I
R
λd
∆λ
2θ
1/2
Min .
1100
-
-
-
-
-
Typ .
2300
2.0
-
605
20
15
Max .
-
2.6
100
-
-
-
Unit .
mcd
V
µA
nm
nm
deg.

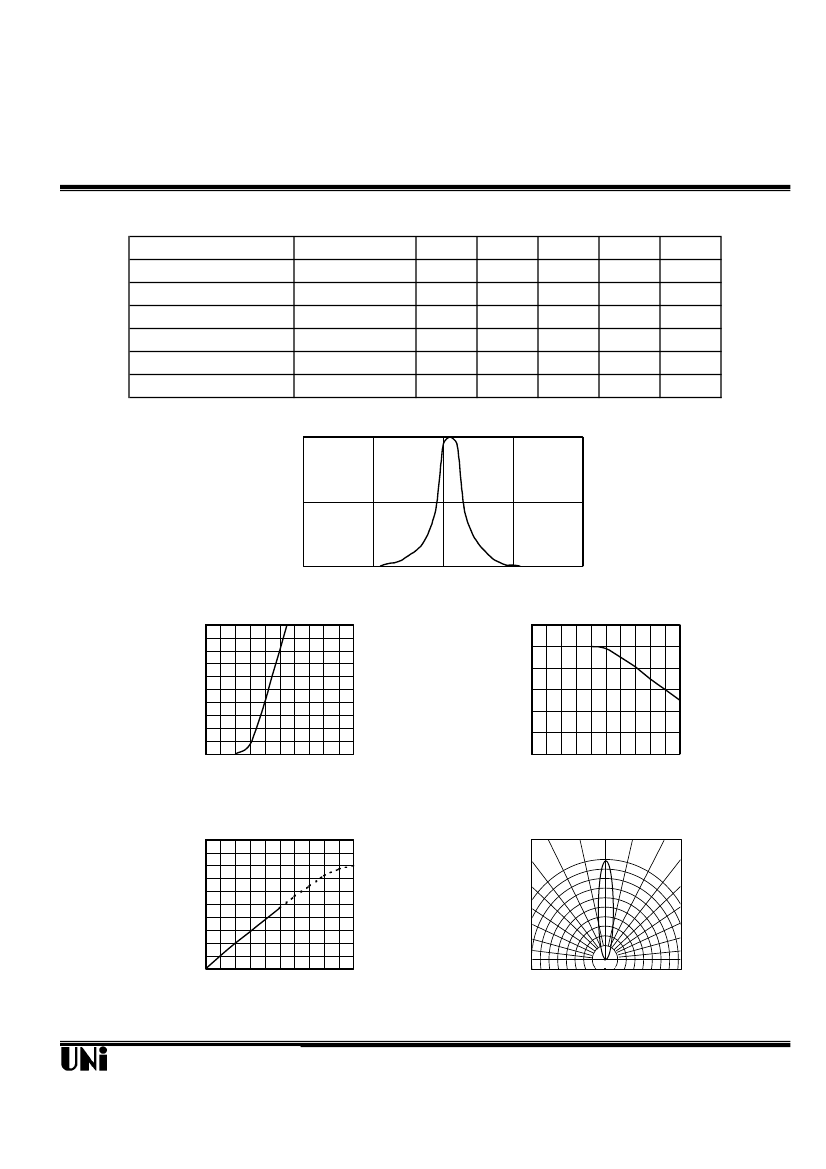

Typical Optical-Electrical Characteristic Curves
Relative Luminous Intensity
1
0.5
0
500
550
600
650
700
Wavelength (nm)
FIG.1 SPECTRAL DISTRIBUTION
50
60
Forward Current I
F
(mA)
Forward Current I
F
(mA)
40
30
20
10
0
1.2
1.6
2.0
2.4
2.8
3.2
50
40
30
20
10
0
Forward Voltage V
F
(V)
FIG.2 FORWARD CURRENT
VS. FORWARD VOLTAGE
Relative Luminous Intensity
Relative Luminous Intensity
5
4
3
2
1
0
0
20
40
60
80
100
Ambient Temperature T
A
(
o
C
)
FIG.3 FORWARD CURRENT
VS. AMBIENT TEMPERATURE
0°
10°
20°
30°
40°
1.0
0.9
0.8
0.5 0.3 0.1
0.2 0.4 0.6
50°
60°
70°
80°
90°
0
20
40
60
80
100
Forward Current I
F
(mA)
FIG.4 RELATIVE LUMINOUS INTENSITY
VS. FORWARD CURRENT
FIG.5 RADIATION DIAGRAM
Unity Opto Technology Co., Ltd.
01/09/2002
