The RF MOSFET Line
RF Power Field Effect Transistors
Designed for PCN and PCS base station applications with frequencies from
2.1 to 2.2 GHz. Suitable for W - CDMA, CDMA, TDMA, GSM and multicarrier
amplifier applications.
•
Typical W - CDMA Performance: 2140 MHz, 28 Volts
5 MHz Offset @ 4.096 MHz BW, 15 DTCH
Output Power — 6.0 Watts
Power Gain — 12.5 dB
Drain Efficiency — 15%
•
Internally Matched, Controlled Q, for Ease of Use
•
High Gain, High Efficiency and High Linearity
•
Integrated ESD Protection
•
Designed for Maximum Gain and Insertion Phase Flatness
•
Capable of Handling 10:1 VSWR, @ 28 Vdc, 2.11 GHz, 60 Watts CW
Output Power
•
Excellent Thermal Stability
•
Characterized with Series Equivalent Large - Signal Impedance Parameters
•
In Tape and Reel. R3 Suffix = 250 Units per 56 mm, 13 Inch Reel.
N - Channel Enhancement - Mode Lateral MOSFETs
MRF21060R3
MRF21060SR3
2170 MHz, 60 W, 28 V
LATERAL N - CHANNEL
RF POWER MOSFETs
Freescale Semiconductor, Inc...
CASE 465 - 06, STYLE 1
NI - 780
MRF21060R3
CASE 465A - 06, STYLE 1
NI - 780S
MRF21060SR3
MAXIMUM RATINGS
Rating
Drain - Source Voltage
Gate - Source Voltage
Total Device Dissipation @ T
C
= 25°C
Derate above 25°C
Storage Temperature Range
Operating Junction Temperature
Symbol
V
DSS
V
GS
P
D
T
stg
T
J
Value
65
- 0.5, +15
180
0.98
- 65 to +150
200
Unit
Vdc
Vdc
Watts
W/°C
°C
°C
THERMAL CHARACTERISTICS
Characteristic
Thermal Resistance, Junction to Case
Symbol
R
θJC
Value
1.02
Unit
°C/W
ESD PROTECTION CHARACTERISTICS
Test Conditions
Human Body Model
Machine Model
Class
2 (Minimum)
M3 (Minimum)
NOTE -
CAUTION
- MOS devices are susceptible to damage from electrostatic charge. Reasonable precautions in handling and
packaging MOS devices should be observed.
REV 6
MOTOROLA RF
Motorola, Inc. 2004
DEVICE DATA
For More Information On This Product,
Go to: www.freescale.com
MRF21060R3 MRF21060SR3
1
Freescale Semiconductor, Inc.
ELECTRICAL CHARACTERISTICS
(T
C
= 25°C unless otherwise noted)
Characteristic
OFF CHARACTERISTICS
Drain - Source Breakdown Voltage
(V
GS
= 0 Vdc, I
D
= 10
µAdc)
Zero Gate Voltage Drain Current
(V
DS
= 28 Vdc, V
GS
= 0 Vdc)
Gate - Source Leakage Current
(V
GS
= 5 Vdc, V
DS
= 0 Vdc)
ON CHARACTERISTICS
Gate Threshold Voltage
(V
DS
= 10 Vdc, I
D
= 300
µAdc)
Gate Quiescent Voltage
(V
DS
= 28 Vdc, I
D
= 500 mAdc)
V
GS(th)
V
GS(Q)
V
DS(on)
g
fs
2
2.5
—
—
—
3.9
0.27
4.7
4
4.5
—
—
Vdc
Vdc
Vdc
S
V
(BR)DSS
I
DSS
I
GSS
65
—
—
—
—
—
—
6
1
Vdc
µAdc
µAdc
Symbol
Min
Typ
Max
Unit
Freescale Semiconductor, Inc...
Drain - Source On - Voltage
(V
GS
= 10 Vdc, I
D
= 2 Adc)
Forward Transconductance
(V
DS
= 10 Vdc, I
D
= 2 Adc)
DYNAMIC CHARACTERISTICS
Reverse Transfer Capacitance (1)
(V
DS
= 28 Vdc, V
GS
= 0, f = 1 MHz)
FUNCTIONAL TESTS
(In Motorola Test Fixture, 50 ohm system)
Two - Tone Common - Source Amplifier Power Gain
(V
DD
= 28 Vdc, P
out
= 60 W PEP, I
DQ
= 500 mA,
f = 2110 MHz and 2170 MHz, Tone Spacing = 100 kHz)
Two - Tone Drain Efficiency
(V
DD
= 28 Vdc, P
out
= 60 W PEP, I
DQ
= 500 mA,
f = 2110 MHz and 2170 MHz, Tone Spacing = 100 kHz)
3rd Order Intermodulation Distortion
(V
DD
= 28 Vdc, P
out
= 60 W PEP, I
DQ
= 500 mA,
f = 2110 MHz and 2170 MHz, Tone Spacing = 100 kHz)
Input Return Loss
(V
DD
= 28 Vdc, P
out
= 60 W PEP, I
DQ
= 500 mA,
f = 2110 MHz and 2170 MHz, Tone Spacing = 100 kHz)
P
out
, 1 dB Compression Point
(V
DD
= 28 Vdc, P
out
= 60 W CW, f = 2170 MHz)
Output Mismatch Stress
(V
DD
= 28 Vdc, P
out
= 60 W CW, I
DQ
= 500 mA,
f = 2110 MHz, VSWR = 10:1, All Phase Angles at Frequency of Tests)
(1) Part is internally matched both on input and output.
C
rss
—
2.7
—
pF
G
ps
11
12.5
—
dB
η
31
34
—
%
IMD
—
- 30
- 28
dBc
IRL
—
- 12
—
dB
P1dB
Ψ
—
60
—
W
No Degradation In Output Power
Before and After Test
MRF21060R3 MRF21060SR3
2
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA RF DEVICE DATA
Freescale Semiconductor, Inc.
R4
V
GG
+
+
C1
R2
C2
C3
C4
C5
R1
R3
+
C6
C7
C8
B2
B3
V
DD
+
Z8
Z9
Z10
RF
INPUT
Z1
C9
Z2
Z3
Z4
Z5
Z6
Z7
Z11
Z12
Z13
Z14
C11
C12
Z15
RF
OUTPUT
Freescale Semiconductor, Inc...
C10
DUT
B2 - B3
C1
C2, C7
C3, C8
C4, C5
C6
C9, C11
C10
C12
R1
R2
R3
R4
Z1
Z2
Ferrite Beads, Fair Rite #2743019447
10
µF,
50 V Electrolytic Chip Capacitor, Panasonic #ECEV1HV100R
1000 pF Chip Capacitors, ATC #100B102JCA500X
0.10
µF
Chip Capacitors, Kemet #CDR33BX104AKWS
4.7 pF Chip Capacitors, ATC #100B4R7JCA500X
22
µF,
35 V Tantalum Surface Mount Chip Capacitor, Sprague
9.1 pF Chip Capacitors, ATC #100B9R1JCA500X
0.8 pF - 8.0 pF Variable Capacitor, Johanson Gigatrim
0.4 pF - 4.5 pF Variable Capacitor, Johanson Gigatrim
1 kΩ, 1/4 W Fixed Film Chip Resistor, 0.08″ x 0.13″
560 kΩ, 1/4 W Fixed Film Chip Resistor, 0.08″ x 0.13″
10
Ω,
1/4 W Fixed Film Chip Resistor, 0.08″ x 0.13″
10
Ω,
1/4 W Fixed Film Chip Resistor, 0.08″ x 0.13″
0.743″ x 0.080″ Microstrip
0.070″ x 0.100″ Microstrip
Z3
Z4
Z5
Z6
Z7
Z8
Z9
Z10
Z11
Z12
Z13
Z14
Z15
Board
0.180″ x 0.100″ Microstrip
0.152″ x 0.293″ Microstrip
0.216″ x 0.100″ Microstrip
0.114″ x 0.410″ Microstrip
0.626″ x 0.872″ Microstrip
1.050″ x 0.050″ Microstrip
0.830″ x 0.050″ Microstrip
0.596″ x 1.040″ Microstrip
0.186″ x 0.315″ Microstrip
0.097″ x 0.525″ Microstrip
0.353″ x 0.138″ Microstrip
0.112″ x 0.080″ Microstrip
0.722″ x 0.080″ Microstrip
0.030″ Glass Teflon
, Arlon
GX - 0300 - 55 - 22, 2 oz Cu
Figure 1. MRF21060 Test Circuit Schematic
MOTOROLA RF DEVICE DATA
For More Information On This Product,
Go to: www.freescale.com
MRF21060R3 MRF21060SR3
3
Freescale Semiconductor, Inc.
TO DRAIN
BIAS
FEEDTHRU
B2
B3
C7
C8
TO GATE
BIAS
FEEDTHRU
C1 R1
C2 C3 C4
R2
R3
C5
C6
R4
C9
C11
C10
C12
Freescale Semiconductor, Inc...
MRF21060

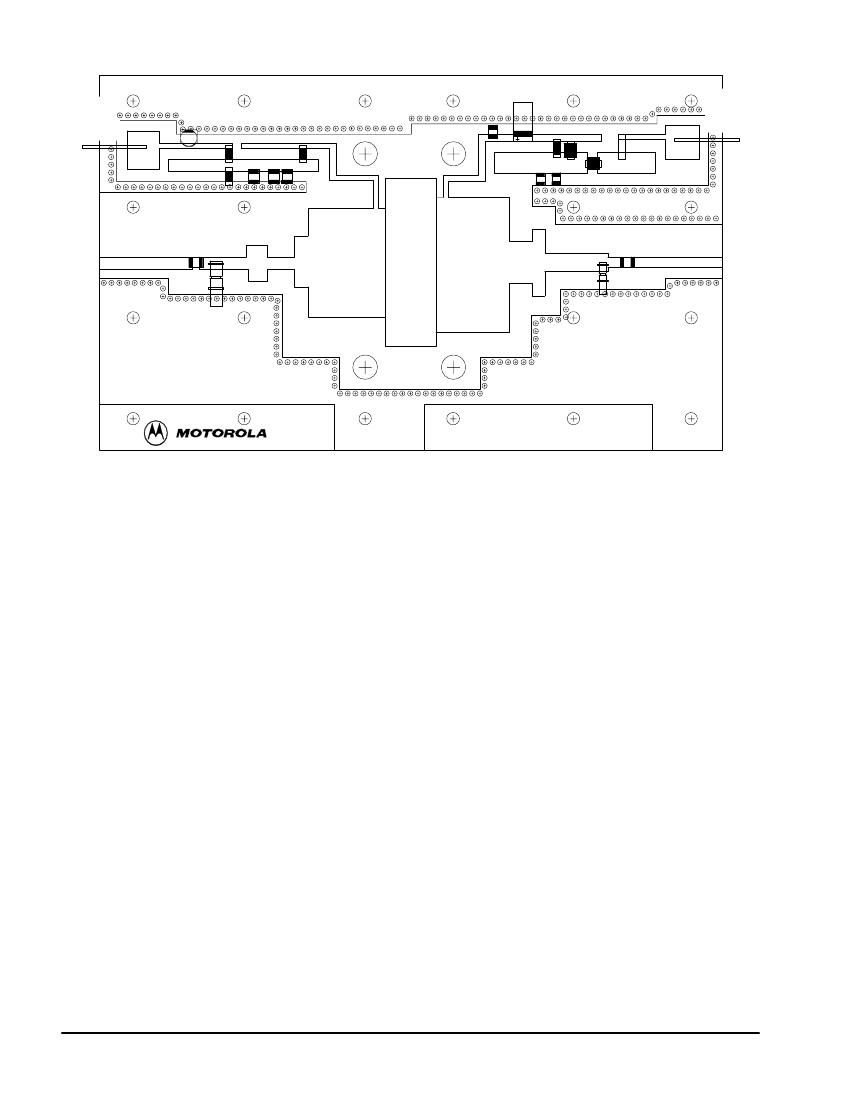

Figure 2. MRF21060 Test Circuit Component Layout
MRF21060R3 MRF21060SR3
4
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA RF DEVICE DATA
Freescale Semiconductor, Inc.
TYPICAL CHARACTERISTICS
η
, DRAIN EFFICIENCY (%),G ps , POWER GAIN (dB)
IRL, INPUT RETURN LOSS (dB)
IMD, INTERMODULATION DISTORTION (dBc)
V
DD
= 28 Vdc
I
DQ
= 700 mA, f = 2140 MHz, Channel Spacing
(Channel Bandwidth): 5 MHz @ 4.096 MHz BW
15 DTCH
ADJACENT CHANNEL POWER RATIO (dB)
IMD, INTERMODULATION DISTORTION (dBc)
40
35
30
25
20
15
10
5
0
2080
2100
2120
2140
2160
f, FREQUENCY (MHz)
2180
IRL
V
DD
= 28 Vdc
P
out
= 60 W (PEP), I
DQ
= 500 mA
Two−Tone Measurement, 100 kHz Tone Spacing
G
ps
IMD
−35
−40
2200
η
0
−5
−10
−15
−20
−25
−30
η
, DRAIN EFFICIENCY (%),G ps , POWER GAIN (dB)
45
40
35
30
25
ACPR
20
15
10
5
2
4
6
8
10
12
14
P
out
, OUTPUT POWER (WATTS Avg.) W−CDMA
η
G
ps
−20
−25
−30
−35
−40
−45
−50
−55
−60
16
Freescale Semiconductor, Inc...

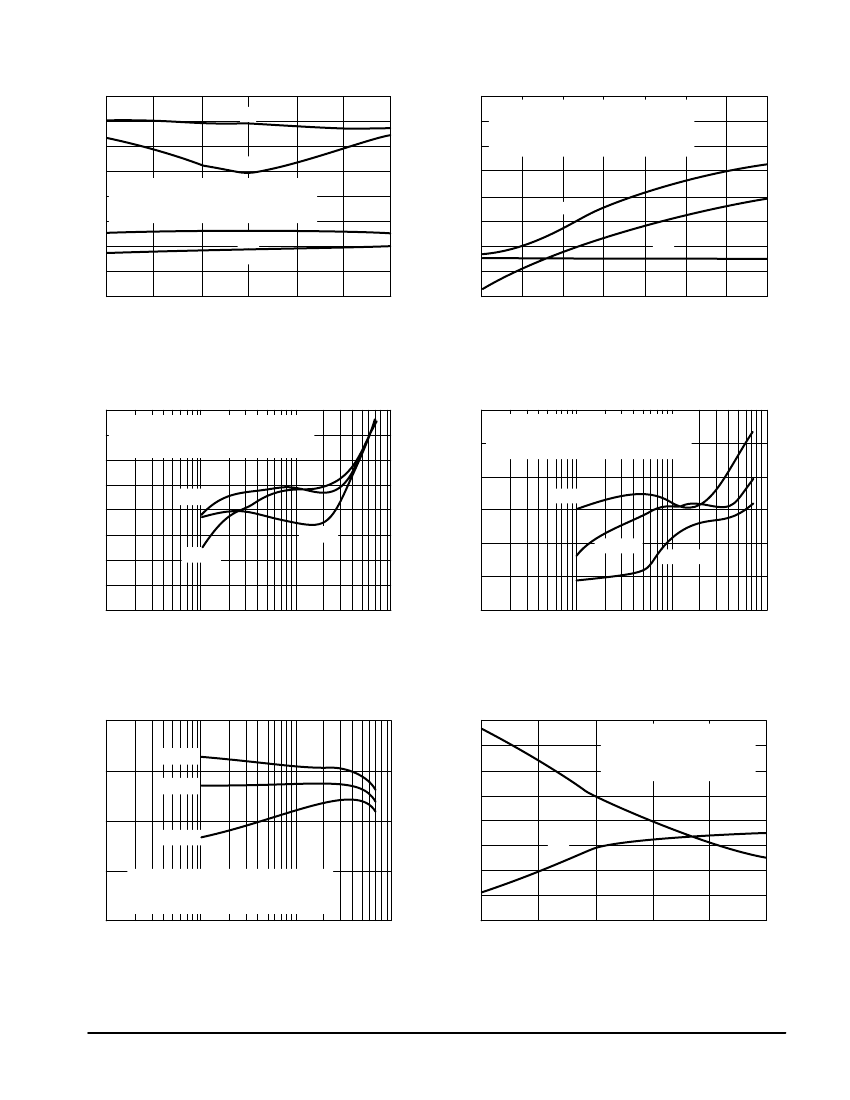

Figure 3. Class AB Broadband Circuit Performance
Figure 4. W - CDMA ACPR, Power Gain and
Drain Efficiency versus Output Power
−25
IMD, INTERMODULATION DISTORTION (dBc)
IMD, INTERMODULATION DISTORTION (dBc)
−30
−35
−40
900 mA
−45
−50
−55
−60
−65
0.1
1.0
10
P
out
, OUTPUT POWER (WATTS) PEP
100
500 mA
700 mA
V
DD
= 28 Vdc
f = 2140 MHz
Two−Tone Measurement, 100 kHz Tone Spacing
−20
−30
−40
3rd Order
−50
−60
−70
−80
0.1
5th Order
7th Order
V
DD
= 28 Vdc
I
DQ
= 700 mA, f = 2140 MHz
Two−Tone Measurement, 100 kHz Tone Spacing
1.0
10
P
out
, OUTPUT POWER (WATTS) PEP
100
Figure 5. Intermodulation Distortion
versus Output Power
Figure 6. Intermodulation Distortion Products
versus Output Power
14
900 mA
G ps , POWER GAIN (dB)
G ps , POWER GAIN (dB)
13
700 mA
12
500 mA
11
14
P
out
= 60 W (PEP), I
DQ
= 500 mA
f = 2140 MHz
Two−Tone Measurement,
100 kHz Tone Spacing
IMD
13
G
ps
12.5
−22
−24
−26
−28
−30
−32
−34
−36
13.5
V
DD
= 28 Vdc
f = 2140 MHz
Two−Tone Measurement, 100 kHz Tone Spacing
1.0
10
100
10
0.1
12
22
24
26
28
30
−38
32
P
out
, OUTPUT POWER (WATTS) PEP
V
DD
, DRAIN VOLTAGE (VOLTS)
Figure 7. Power Gain versus Output Power
Figure 8. Power Gain and
Intermodulation Distortion versus Supply Voltage
MOTOROLA RF DEVICE DATA
For More Information On This Product,
Go to: www.freescale.com
MRF21060R3 MRF21060SR3
5
