Unity Opto Technology Co., Ltd.
MVL-974HUOLC
MVL-974UOLC
MVL-974HUYLC
MVL-974UYLC
MVL-974TUOLC
MVL-974TUYLC
MVL-974MTGC / 974HTGC
MVL-974MSGC / 974HSGC
MVL-974MBC / 974HBC
MVL-974MW / 974HW
Technical Data
JACK LEDs
11/19/2003
Benefits
l
l

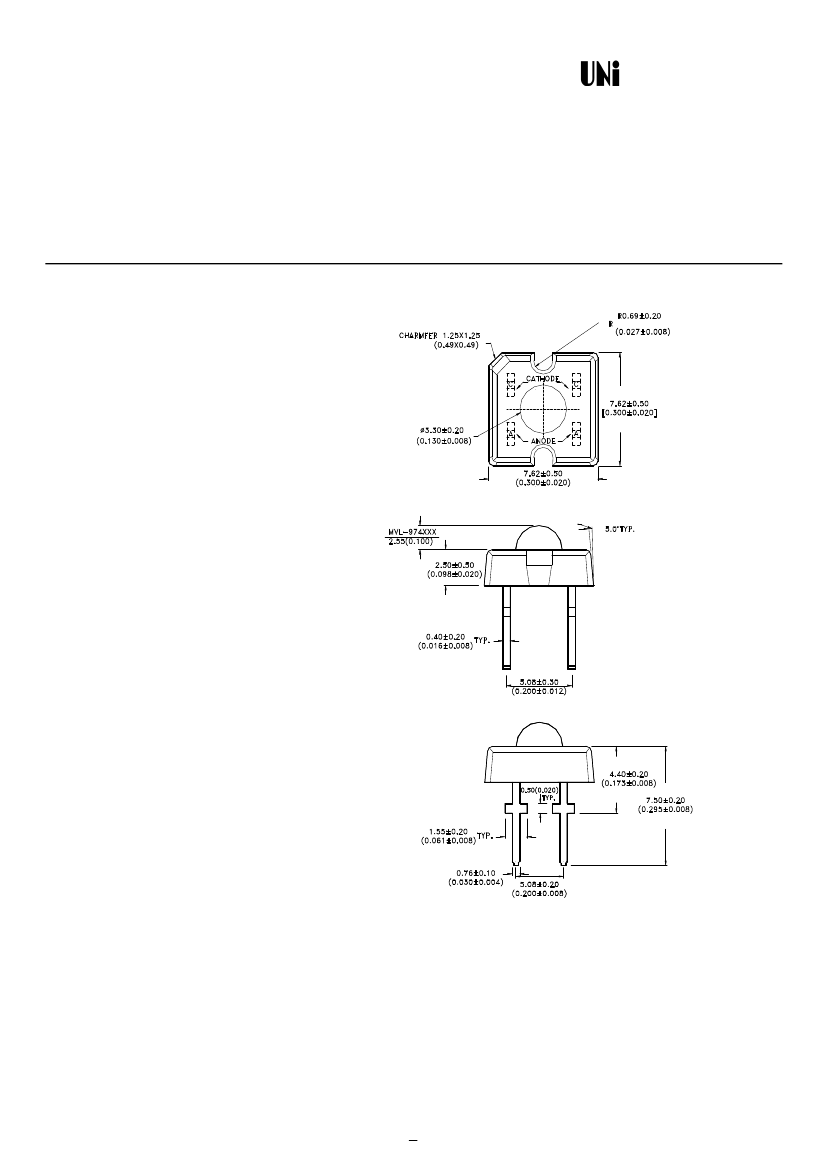

Outline Drawing
Fewer LEDs Required
Lowers Lighting System Cost
Features
l
l
l
l
l
l
High Flux Output
Designed for High Current Operation
Low Thermal Resistance
Low Profile
Reliable
Packaged in Tubes for Use with
Automatic Insertion Equipment
Applications
l
l
l
l
Automotive Exterior Lighting
Electronic Signs and Signals
Traffic Signal
Sign
NOTES: 1.DIMENSIONS ARE IN MILLIMETERS (INCHES).
2.DIMENSIONS WITHOUT TOLERANCES ARE NOMINAL.
1
Device Selection Guide
Part Number
MVL-974HUOLC
AS AlInGaP Red-Orange
MVL-974UOLC
MVL-974HUYLC
AS AlInGaP Amber
MVL-974UYLC
MVL-974TUOLC
MVL-974TUYLC
MVL-974MTGC
MVL-974MSGC
MVL-974MBC
MVL-974MW
MVL-974HTGC
MVL-974HSGC
MVL-974HBC
MVL-974HW
TS AlInGaP Red
TS AlInGaP Amber
InGaN True Green
InGaN Signal Green
InGaN Blue
White
InGaN True Green
InGaN Signal Green
InGaN Blue
White
1700 @I
F
=50mA
3500 @I
F
=70mA
3500 @I
F
=70mA
2000 @I
F
=40mA
1900 @I
F
=40mA
1500 @I
F
=40mA
4000 @I
F
=40mA
1500 @I
F
=20mA
1200 @I
F
=20mA
800 @I
F
=20mA
2000 @I
F
=20mA
30
35
35
35
35
35
35
25
25
25
35
1700 @I
F
=50mA
2500 @I
F
=70mA
30
30
LED Color
Total Flux
θv(mlm)
Typ.
2500 @I
F
=70mA
View Angle 2θ1/2
(Degrees) Typ.
30
Absolute Maximum Ratings at T
A
=25
o
C
Device Type
MVL-9X4HUOLC
MVL-9X4HUYLC
MVL-9X4TUOLC
MVL-9X4TUYLC
70
182
10
125
MVL-9X4UOLC
MVL-9X4UYLC
50
120
10
125
-20 to +80
-30 to +100
100
o
C for 30 seconds
260
o
C for 5 seconds
[ 1.5mm ( 0.06 in. ) below seating plane ]
MVL-9X4MTGC
MVL-9X4MSGC
MVL-9X4MBC
MVL-9X4MW
70
150
10
125
40
140
5
125
MVL-9X4HTGC
MVL-9X4HSGC
MVL-9X4HBC
MVL-9X4HW
20
74
5
125
Units
Parameter
DC Forward Current
Power Dissipation
Reverse Voltage (I
R
=100µA)
LED Junction Temperature
Operating Temp Range
Storage Temp
Solder Conditions
Preheat Temperature
Solder Temperature
mA
mW
V
o
o
o
C
C
C
2
Optical Characteristics at T
A
=25
o
C
Part Number
Min.
MVL-974HUOLC
MVL-974HUYLC
MVL-974TUOLC
MVL-974TUYLC
MVL-974UOLC
MVL-974UYLC
MVL-974MTGC
MVL-974MSGC
MVL-974MBC
MVL-974HTGC
MVL-974HSGC
MVL-974HBC
600@I
F
=70mA
600@I
F
=70mA
600@I
F
=70mA
600@I
F
=70mA
600@I
F
=70mA
600@I
F
=70mA
1000 @I
F
=40mA
900 @I
F
=40mA
900 @I
F
=40mA
200 @I
F
=20mA
200 @I
F
=20mA
200 @I
F
=20mA
Total Flux
φ
v
(mlm)
Typ.
2500 @I
F
=70mA
2500 @I
F
=70mA
3500 @I
F
=70mA
3500 @I
F
=70mA
1700 @I
F
=50mA
1700 @I
F
=50mA
2000 @I
F
=40mA
1900 @I
F
=40mA
1500 @I
F
=40mA
1500 @I
F
=20mA
1200 @I
F
=20mA
800 @I
F
=20mA
Peak
Wavelength
λpeak
(nm)
Typ.
630
592
640
594
630
592
523
502
468
523
502
468
Color,
Dominant
Wavelength
λd
(nm)
Typ.
625
590
630
592
625
590
525
505
470
525
505
470
Viewing
Angle
2θ 1/2
(Degrees)
Typ.
30
30
35
35
30
30
35
35
35
25
25
25
Part Number
Min.
MVL-974MW
MVL-974HW
600 @I
F
=40mA
300 @I
F
=20mA
Total Flux
φ
v
(mlm)
Typ.
4000 @I
F
=40mA
2000 @I
F
=20mA
Chromaticity Coordinates (Typ.)
X
0.33
0.33
0.31
0.31
Y
Electrical Characteristics at T
A
=25
o
C
Device Type
Min.
MVL-9X4HUOLC
MVL-9X4HUYLC
MVL-9X4UOLC
MVL-9X4UYLC
MVL-9X4TUOLC
MVL-9X4TUYLC
MVL-9X4(U)TGC
MVL-9X4(M)(U)SGC
MVL-9X4(M)(U)BC
MVL-9X4(M)(U)W
MVL-9X4HTGC
MVL-9X4HSGC
MVL-9X4HBC
MVL-9X4HW
1.83
1.83
2.07
3
Forward
Voltage
V
F
(Volts)
Typ.
2.2
@I
F
=70mA
2.15
@I
F
=50mA
2.5
@I
F=
70mA
3.7
@I
F
=40mA
Max
2.79
2.79
3.15
5.2
Reverse
Breakdown
V
R
(Volts)
@I
R
=100mA
Min.
Typ.
10
10
10
20
20
20
Thermal
Resistance
R
θJ-PIN
(
o
C/W)
Typ.
120
120
125
Thermal
Resistance
R
θJ-A
(
o
C/W)
Typ.
250
250
250
5
10
90
180
3
3.7
@I
F
=20mA
4.0
5
10
90
180
3
1
MVL-9X4MSGC
MVL-9X4HSGC
MVL-9X4MBC
MVL-9X4HGC
MVL-9X4UYLC
MVL-9X4HUYLC
MVL-9X4TUYLC
MVL-9X4MTGC
MVL-9X4HTGC
MVL-9X4UOLC
MVL-9X4HUOLC
MVL-9X4TUOLC
RELATIVE INTENSITY
0.5
0
400
425
450
475
500
525
550
575
595
620
645
670
695
WAVELENGTH(nm)
Figure 1.Relative Intensity vs.Wavelength.
RELATIVE LUMINOUS FLUX(mA)
70
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
MVL-9X4UOLC
MVL-9X4UYLC
MVL-9X4TUOLC
MVL-9X4TUYLC
MVL-9X4HUOLC
MVL-9X4HUYLC
MVL-9X4MTGC
MVL-9X4MSGC
MVL-9X4HTGC
MVL-9X4MBC
MVL-9X4HSGC
MVL-9X4MW
MVL-9X4HBC
MVL-9X4HW
FORWARD CURRENT(mA)
60
50
40
30
20
10
0
MVL-9X4TUOLC
MVL-9X4TUYLC
MVL-9X4HUOLC
MVL-9X4HUYLC
MVL-9X4UOLC
MVL-9X4UYLC
MVL-9X4MBC
MVL-9X4MSGC
MVL-9X4MTGC
MVL-9X4MW
MVL-9X4HTGC
MVL-9X4HSGC
MVL-9X4HBC
MVL-9X4HW
1.2 1.6 2.0 2.4 2.8 3.2 3.6 4.0
0 10 20 30 40 50 60 70 80
FORWARD VOLTAGE (V)
Figure 2.Forward Current vs.
Forwaard Voltage.
MAXIMUM DC CURRENT(mA)
MAXIMUM DC CURRENT(mA)
80
70
60
50
40
30
20
10
0
0
20
40
60
80
100 120
o
MVL-9X4UOLC
MVL-9X4UYLC
MVL-9X4HUOLC
MVL-9X4HUYLC
FORWARD CURRENT(mA)
Figure 3. RelativeLuminous Flux vs.
Forward Current.
80
70
60
50
40
30
20
10
0
0
MVL-9X4MTGC
MVL-9X4MSGC
MVL-9X4MBC
MVL-9X4MW
MVL-9X4HTGC
MVL-9X4HSGC
MVL-9X4HBC
MVL-9X4HW
MVL-9X4TUOLC
MVL-9X4TUYLC
MBIENT TEMPERTURE (
C
)
Figure 4a. Maximum DC Forward Current
vs. Ambient Temperature.
MBIENT TEMPERTURE (
o
C
)
Figure 4b. Maximum DC Forward Current
vs. Ambient Temperature.
20
40
60
80
100 120
4
RELATIVE LUMINOUS INTENSITY
RELATIVE LUMINOUS INTENSITY
1
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
-100 -80 -60 -40 -20 0 20 40 60 80 100
OFF AXIS ANGLE (DEGREES)
Figure 5. MVL-974HUOLC/MVL-974HUYLC/
MVL-974UOLC/MVL-974UYLC
Relative Luminous Intensity vs. Off Axis Angle.
1
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
-100 -80 -60 -40 -20
0
20
40
60
80 100
OFF AXIS ANGLE (DEGREES)
Figure 6. MVL-974HTGC/MVL-974HSGC/MVL-974HBC
Relative Luminous Intensity vs. Off Axis Angle.
RELATIVE LUMINOUS INTENSITY
1
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
-100 -80 -60 -40 -20
0
20
40
60
80 100
OFF AXIS ANGLE (DEGREES)
Figure 7. MVL-974TUOLC/MVL-974TUYLC/MVL-974MTGC
MVL-974MSGC/MVL-974MBC/MVL-974MW/MVL-974HW
Relative Luminous Intensity vs. Off Axis Angle.
5
