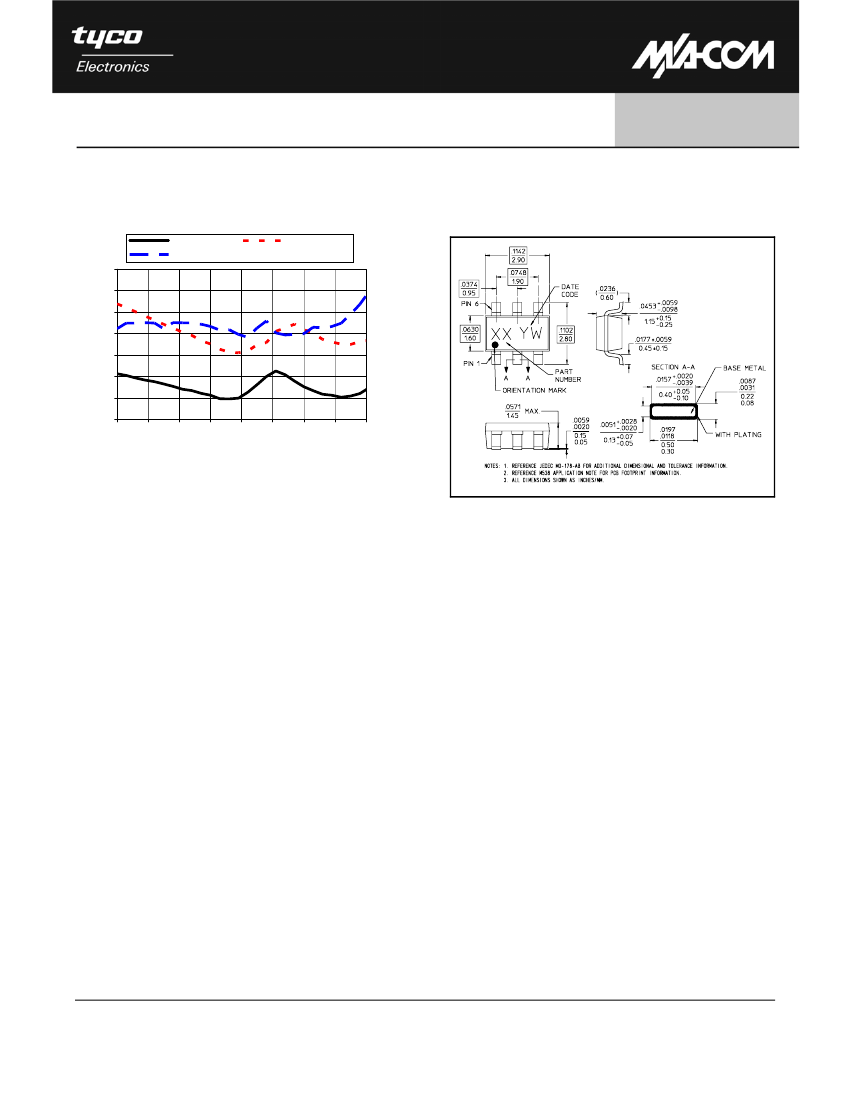

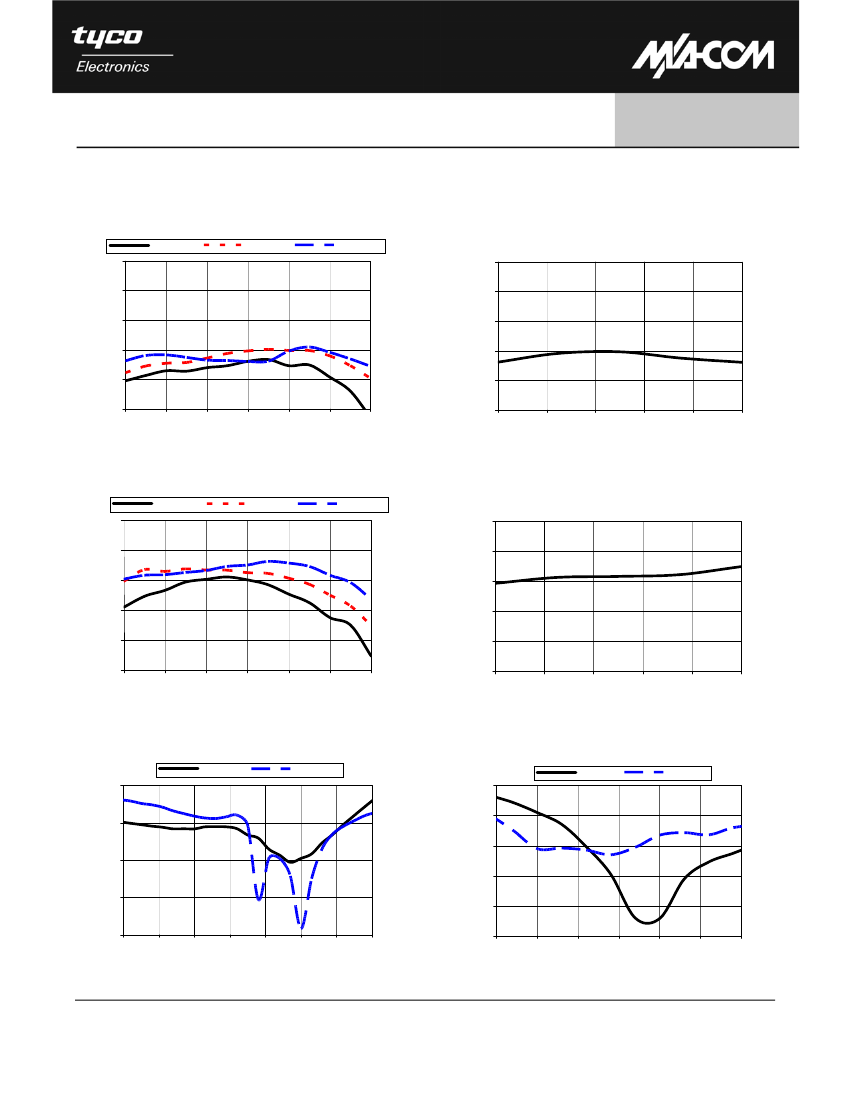

High Linearity MMIC Mixer with Integrated Local Oscillator Amplifier,
1700 - 2000 MHz
Features
•
•
•
•
•
•
Up or Down Frequency Conversion
High Input IP3: 21 dBm
Low LO Drive: -5 dBm to +5 dBm
Very Low Current: 7 mA
Single Ended Ports, 50-Ohm Impedance
Small Plastic Package: SOT-26
MD57-0002
V1
Functional Schematic
RF
IF
Description
The MD57-0002 is a passive MMIC mixer with an
on-chip LO buffer amplifier that allows the
MD57-0002 to operate with LO drive levels of -5
dBm to +5 dBm. The MD57-0002 features single
ended ports and does not require the use of external
baluns. All ports are 50-ohm impedance.
The MD57-0002 is ideally suited for up and down
frequency convertor applications in DCS1800,
PCS1900, PHS and 3G wireless communications
equipment requiring low LO power, high linearity,
low conversion loss and very low current
consumption.
The MD57-0002 is fabricated using a 0.5 micron
gate length GaAs MESFET process. This process
features full passivation for increased RF
performance and enhanced reliability.
SRC
GND
LO
VDD
Pin Configuration
Pin #
1
2
3
4
5
6
Pin Name
RF
SRC
LO
V
DD
GND
IF
Description.
RF Input/Output
LO Amplifier Bias Resistor
LO Input
LO Amplifier Bias Voltage
Ground
IF Input/Output
Ordering Information
Part Number
MD57-0002
MD57-0002TR
MD57-0002SMB
Absolute Maximum Ratings
1
Package
Bulk Packaging
1000 piece reel
Sample Test Board
Parameter
Input RF/IF Power
Input LO Power
Voltage
Operating Temperature
Storage Temperature
Absolute Maximum
+27 dBm
+17 dBm
+6 V
-40°C to +85°C
-65°C to +150°C
Note: Reference Application Note M513 for reel size
information.
1. Exceeding any one or combination of these limits may cause
permanent damage to this device.
1
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
High Linearity MMIC Mixer with Integrated Local Oscillator Amplifier,
1700 - 2000 MHz
Electrical Specifications: T
A
= 25°C, Z
0
= 50 Ohms, LO V
DD
= 5 V
RF = 1900 MHz (-10 dBm), LO = 1660 MHz (0 dBm), IF = 240 MHz
Parameter
Conversion Loss
Noise Figure
Input IP3
Input P1dB
Isolation
MD57-0002
V1
Test Conditions
—
—
Tone Spacing = 300 KHz
—
RF to IF
LO to IF
LO to RF
V
DD
= 5 V
Units
dB
dB
dBm
dBm
dB
dB
dB
mA
Min
—
—
18.5
—
—
—
—
—
Typ
8.5
8.5
21
15
18
5
13
7
Max
10.5
—
—
—
—
—
—
10
Current

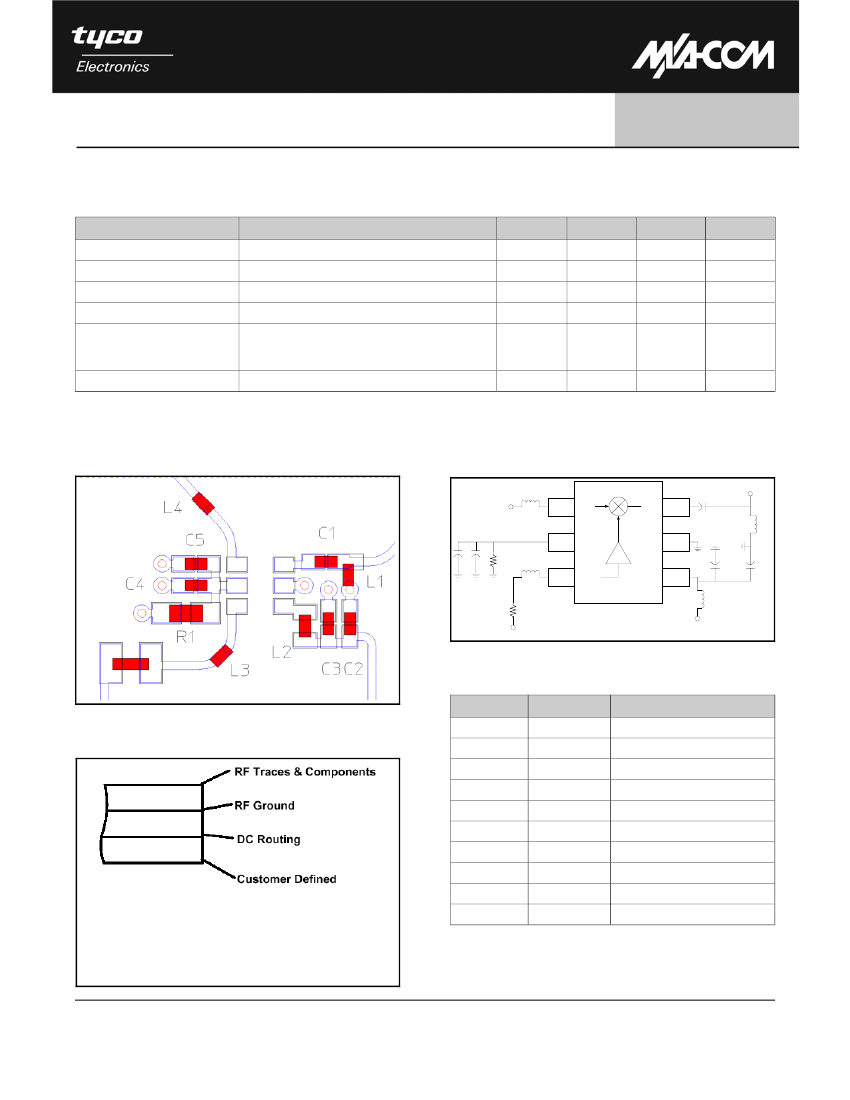

Recommended PCB Configuration
PCB Schematic
L4
RF
IF
L1
C5
C4
R1
L3
LO
VDD
L2
0 Ohm
V
DD
SRC
GND
C3
C2
C1
External Circuitry Parts List
Part
Value
200
Ω
27 nH
3.3 nH
7.5 nH
3.3 nH
100 pF
0.1 µF
6 pF
5 pF
0.1 µF
Purpose
LO Amplifier Bias Resistor
IF matching Inductor
2
LO V
DD
Inductor
LO Input Matching
RF Port Matching
IF DC Blocking Capacitor
IF V
DD
Bypass Capacitor
RF V
DD
Bypass Capacitor
RF Source Bypass
IF Source Bypass
PCB Cross Section View
R1
L1
L2
L3
L4
C1
C2
C3
PCB dielectric between RF traces and RF ground layers
should be chosen to reduce RF discontinuities between 50-
ohm lines and package pins. M/A-COM recommends an FR-
4 dielectric thickness of .008 (0.2 mm) yielding a 50-ohm line
width of 0.015” (0.38 mm). The recommended metalization
is 1 oz. copper.
2
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
C4
C5
2. L1 can be changed to 47 nH for lower IF frequencies (down
to 150 MHz).
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
High Linearity MMIC Mixer with Integrated Local Oscillator Amplifier,
1700 - 2000 MHz
MD57-0002
V1
Typical Performance Curves @ +25°C (IF Frequency = 240 MHz, Low Side LO)
Conversion Gain vs. Frequency
LO = -5 dBm
-5
LO = 0 dBm
LO = 5 dBm
Conversion Gain vs. LO Power, 1850 MHz RF
-5
Conversion Gain (dB)
Conversion Gain (dB)
1750
1800
1850
1900
1950
2000
-6
-7
-8
-9
-10
1700
-6
-7
-8
-9
-10
-5
-3
-1
1
3
5
RF Frequency (MHz)
LO Power (dBm)
Input IP3 vs. Frequency
LO = -5 dBm
30
26
LO = 0 dBm
LO = 5 dBm
Input IP3 vs. LO Power, 1850 MHz RF
30
26
Input IP3 (dBm)
22
18
14
10
1700
Input IP3 (dBm)
1750
1800
1850
1900
1950
2000
22
18
14
10
-5
-3
-1
1
3
5
RF Frequency (MHz)
LO Power (dBm)
LO and RF Return Loss
LO Port S11
0
RF Port S11
IF Return Loss (LO Power = 0 dBm)
L1 = 27 nH
0
-5
L1 = 47 nH
-10
IF S11 (dB)
1400
1500
1600
1700
1800
1900
2000
S11 (dB)
-10
-15
-20
-25
100
-20
-30
-40
1300
150
200
250
300
350
400
Frequency (MHz)
IF Frequency (MHz)
3
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
High Linearity MMIC Mixer with Integrated Local Oscillator Amplifier,
1700 - 2000 MHz
Typical Performance Curves @ +25°C
Isolation vs. Frequency
LO to IF Isolation
RF to IF Isolation
30
25
LO to RF Isolation
MD57-0002
V1
SOT-26
Isolation (dB)
20
15
10
5
0
-5
1200
1300
1400
1500
1600
1700
1800
1900
2000
Frequency (MHz)
4
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
