TAK CHEONG
SEM IC O N DU C TO R
500 mW LL-34 Hermetically
Sealed Glass Zener Voltage
Regulators
SURFACE MOUNT
LL34
Absolute Maximum Ratings
Parameter
Power Dissipation
Storage Temperature Range
Operating Junction Temperature
T
A
= 25°C unless otherwise noted
Value
500
-65 to +200
+200
Units
mW
°C
°C

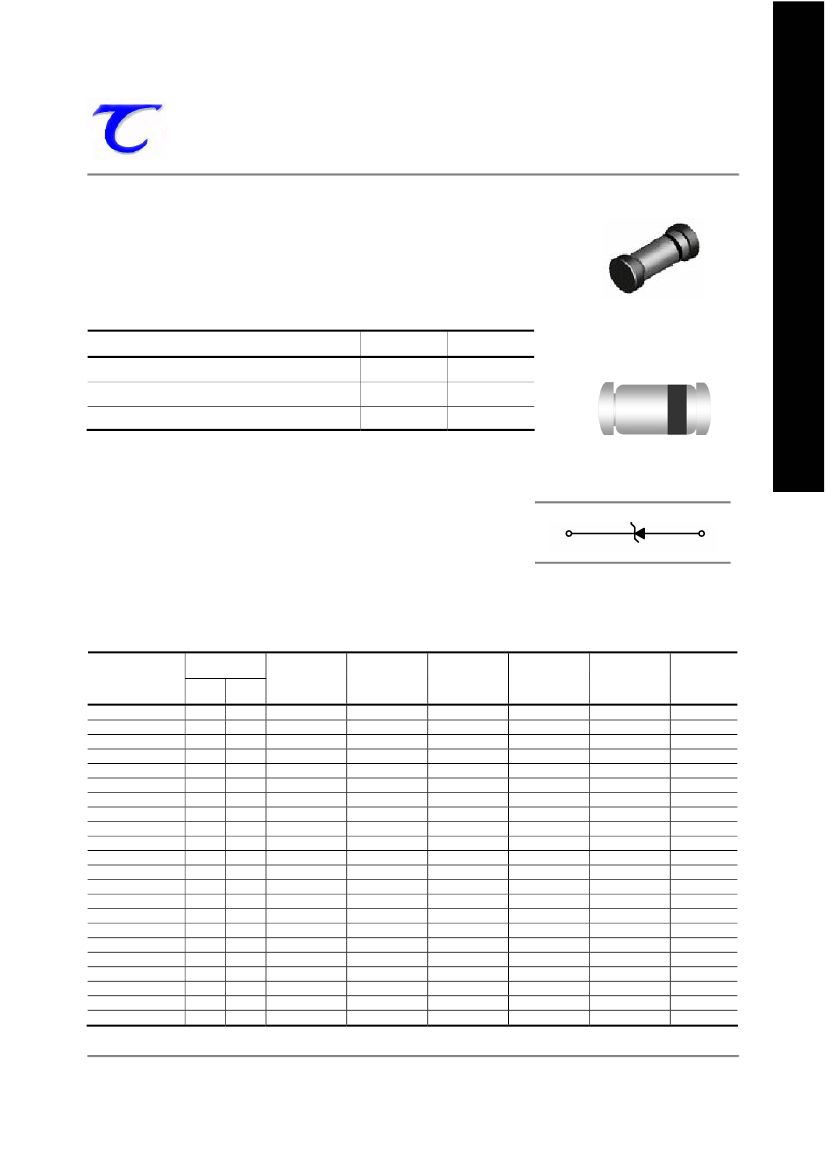

Cathode Band Color : Blue
DEVICE MARKING DIAGRAM
These ratings are limiting values above which the serviceability of the diode may be impaired.
Specification Features:
Zener Voltage Range 2.0 to 56 Volts
LL-34 (Mini-MELF) Package
Surface Device Type Mounting
Hermetically Sealed Glass
Compression Bonded Construction
All external surfaces are corrosion resistant and leads are readily solderable
1 band indicates negative polarity
st
Cathode
Anode
ELECTRICAL SYMBOL
Electrical Characteristics
Device Type
TCBZV55C 2V0
TCBZV55C 2V2
TCBZV55C 2V4
TCBZV55C 2V7
TCBZV55C 3V0
TCBZV55C 3V3
TCBZV55C 3V6
TCBZV55C 3V9
TCBZV55C 4V3
TCBZV55C 4V7
TCBZV55C 5V1
TCBZV55C 5V6
TCBZV55C 6V2
TCBZV55C 6V8
TCBZV55C 7V5
TCBZV55C 8V2
TCBZV55C 9V1
TCBZV55C 10
TCBZV55C 11
TCBZV55C 12
TCBZV55C 13
TCBZV55C 15
V
Z
@ I
ZT
(Volts)
V
Z
V
Z
Min
Max
1.88
2.11
2.08
2.33
2.28
2.56
2.51
2.89
2.8
3.2
3.1
3.5
3.4
3.8
3.7
4.1
4
4.6
4.4
5
4.8
5.4
5.2
6
5.8
6.6
6.4
7.2
7
7.9
7.7
8.7
8.5
9.6
9.4
10.6
10.4
11.6
11.4
12.7
12.4
14.1
13.8
15.6
T
A
= 25°C unless otherwise noted
I
ZT
(mA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Z
ZT
@ I
ZT
(Ω)
Max
100
100
85
85
85
85
85
85
75
60
35
25
10
8
7
7
10
15
20
20
26
30
I
ZK
(mA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Z
ZK
@ I
ZK
(Ω)
Max
600
600
600
600
600
600
600
600
600
600
550
450
200
150
50
50
50
70
70
90
110
110
I
R
@ V
R
(µA)
Max
50
50
50
10
4
2
2
2
1
0.5
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
V
R
(Volts)
1
1
1
1
1
1
1
1
1
1
1
1
2
3
5
6.2
6.8
7.5
8.2
9.1
10
11
July 2005 / C
Page 1
TCBZV55C2V0 through TCBZV55C56 Series
®
TAK CHEONG
SEM IC O N DU C TO R
Electrical Characteristics
T
A
= 25°C unless otherwise noted
V
Z
@ I
ZT
Z
ZT
@ I
ZT
Z
ZK
@ I
ZK
I
R
@ V
R
I
ZT
I
ZK
V
R
(Volts)
Device Type
(Ω)
(Ω)
(µA)
(mA)
(mA)
(Volts)
V
Z
V
Z
Max
Max
Max
Min
Max
TCBZV55C 16
15.3
17.1
5
40
1
170
0.1
12
TCBZV55C 18
16.8
19.1
5
50
1
170
0.1
13
TCBZV55C 20
18.8
21.1
5
55
1
220
0.1
15
TCBZV55C 22
20.8
23.3
5
55
1
220
0.1
16
TCBZV55C 24
22.8
25.6
5
80
1
220
0.1
18
TCBZV55C 27
25.1
28.9
2
80
1
220
0.1
20
TCBZV55C 30
28
32
2
80
1
220
0.1
22
TCBZV55C 33
31
35
2
80
1
220
0.1
24
TCBZV55C 36
34
38
2
80
1
220
0.1
27
TCBZV55C 39
37
41
2
90
0.5
500
0.1
28
TCBZV55C 43
40
46
2
90
0.5
600
0.1
32
TCBZV55C 47
44
50
2
110
0.5
700
0.1
35
TCBZV55C 51
48
54
2
125
0.5
700
0.1
38
TCBZV55C 56
52
60
2
135
0.5
1000
0.1
42
V
F
Forward Voltage = 1.0 V Maximum @
I
F
= 100 mA for all types
Notes:
1. The type numbers listed have zener voltage min/max limits as shown.
2. For detailed information on price, availability and delivery of nominal zener voltages between the voltages shown and tighter
voltage tolerances, contact your nearest Tak Cheong Electronics representative.
3. The zener impedance is derived from the 60-cycle ac voltage, which results when an ac current having an rms value equal to
10% of the dc zener current (I
ZT
or
I
ZK
) is superimposed to
I
ZT
or
I
ZK.
Electrical Symbol Definition
Symbol
V
Z
I
ZT
Z
ZT
I
ZK
Z
ZK
I
R
V
R
I
F
V
F
Parameter
Reverse Zener Voltage @
I
ZT
Typical Characteristics
I
(mA)
I
F
Reverse Current
Maximum Zener Impedance @
I
ZT
Reverse Current
Maximum Zener Impedance @
I
ZK
Reverse Leakage Current @
V
R
Breakdown Voltage
Forward Current
Forward Voltage @
I
F
(nA)
(mA)
(V)
V
Z
V
R
I
R
I
ZT
V
F
(mV)
V
Ordering Information
Device
TCBZV55Cxxx
TCBZV55CxxxR13
TCBZV55Cxxx
Pack Option
7” Reel
13” Reel
Others
Package
Tape and Reel
Tape and Reel
Quantity
2500
10,000
(…contact Tak Cheong sales representatives)
LL34 (Mini-MELF) Tape Packaging Standards
This standard practices for surface-mount tape packaging of leadless (Mini-MELF) components meets the requirements of EIA Standard
RS-481-A.
July 2005 / C
Page 2
®
TAK CHEONG
SEM IC O N DU C TO R

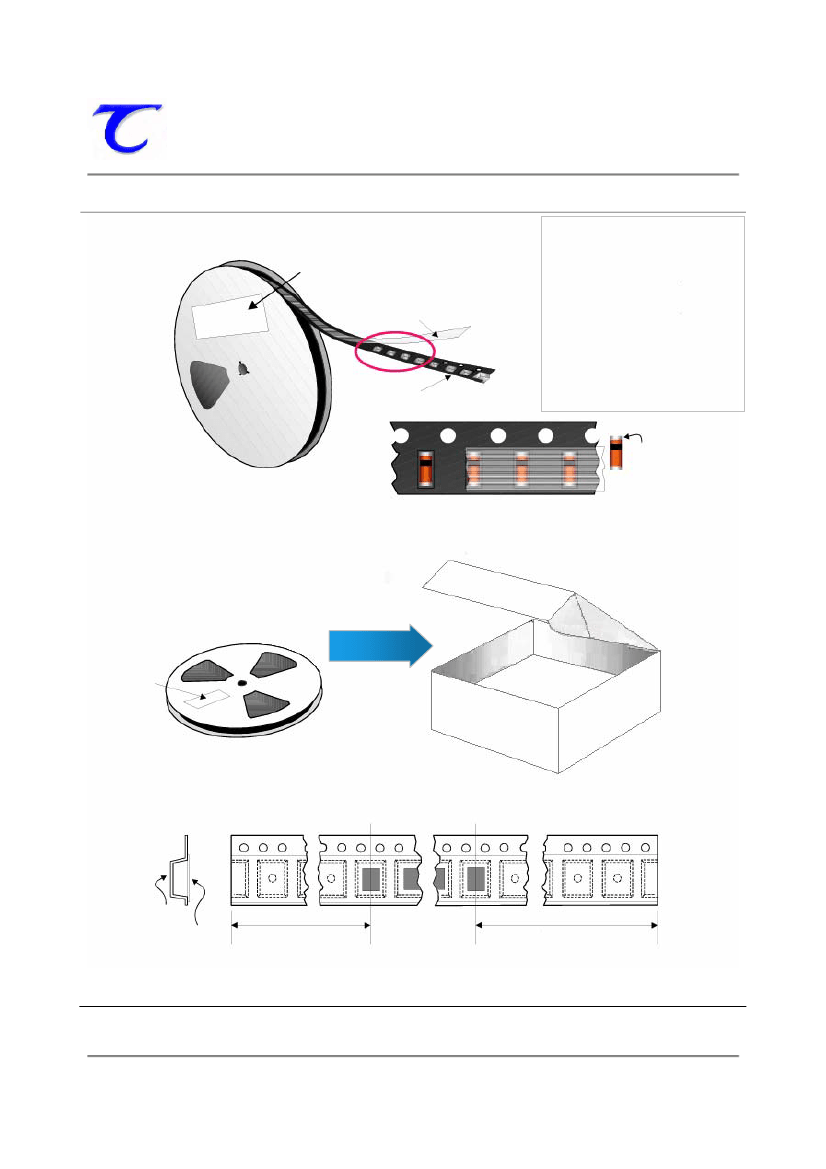

LL-34 (Mini-MELF) Tape & Reel Packaging Information
LL-34 Packaging Outline
Label
Packaging Description:
LL34 parts are shipped in tape and reel.
The carrier tape is made from a dissipative
(carton filled) polycarbonate resin. The
cover tape is a multiplayer film (Heat
Activated Adhesive in nature) primarily
composed of polyester film, adhesive layer,
sealant, and anti-static sprayed agent.
These reeled parts in standard option are
shipped with 2,500 units per 7” or 178mm
diameter reel. The reels are blue in color
and made of recyclable plastic. Other
option comes in 10,000 units per 13” or
330mm diameter reel
Antistatic Cover Tape
Static Dissipative Embossed
Carrier Tape
Cathode
LL34 UNIT ORIENTATION
Label
LL-34 Leader and Trailer
Carrier Tape
Cover Tape
Components
Trailer Tape
80mm minimum or
20 empty pockets.
Leader Tape
500mm minimum or
125 empty pockets.
July 2005 / C
Page 3
®
TAK CHEONG
SEM IC O N DU C TO R
LL-34 (Mini-MELF) Tape & Reel Packaging Information

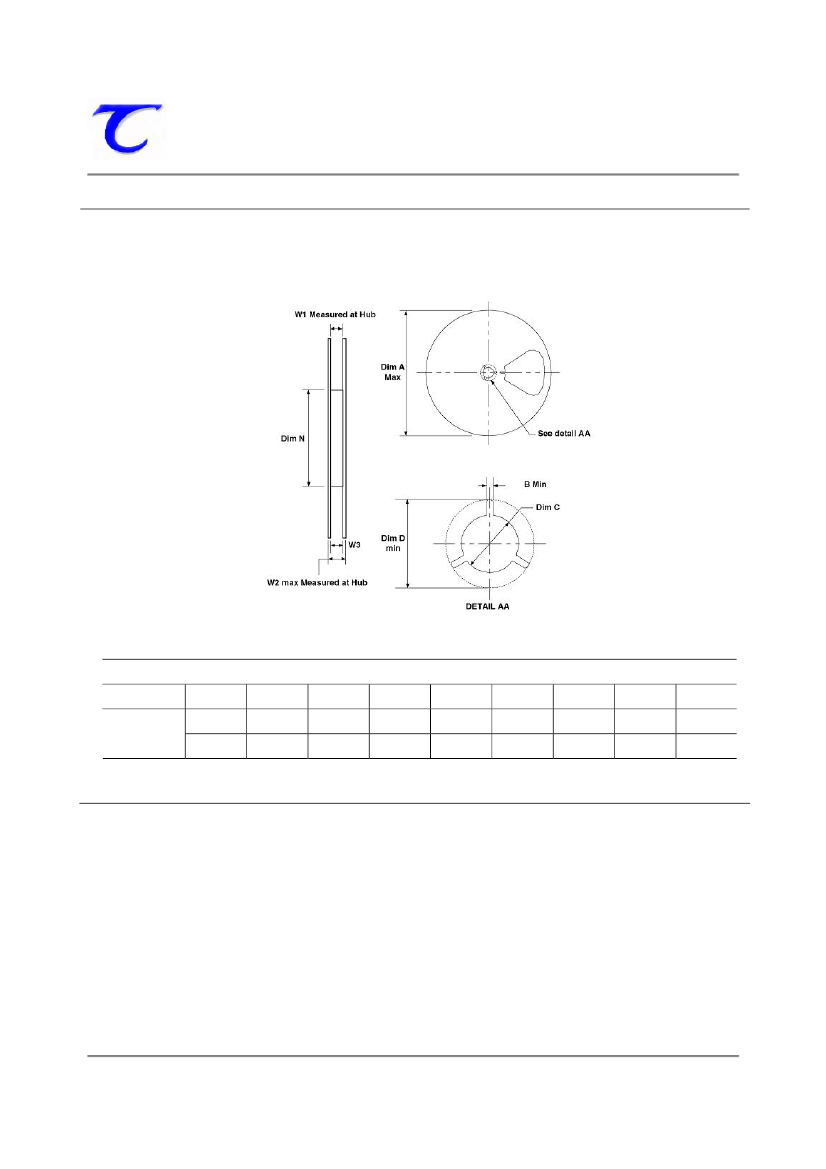

LL-34 Reel Outline
Dimensions are in millimeters
Tape Size
QTY Option
2,500
8mm
10,000
330
1.5
13
20.2
100
8.4
14.4
7.9 – 10.9
Dim A
178
Dim B
1.5
Dim C
13
Dim D
20.2
Dim N
55
W1
8.4
W2
14.4
W3
7.9 – 10.9
July 2005 / C
Page 4
®
TAK CHEONG
SEM IC O N DU C TO R
Package Outline
Package
Case Outline
LL-34
DIM
Min
Millimeters
Max
3.505
1.499
0.500
Min
0.130
0.055
0.014
Inches
Max
0.138
0.059
0.020
LL34
A
B
C
3.302
1.397
0.350
Notes:
1.
2.
LL34 polarity denoted by a band.
‘Expansion Gap’ has no relation to the location of polarity.
July 2005 / C
Page 5
