INFRARED RECEIVER MODULE
Description

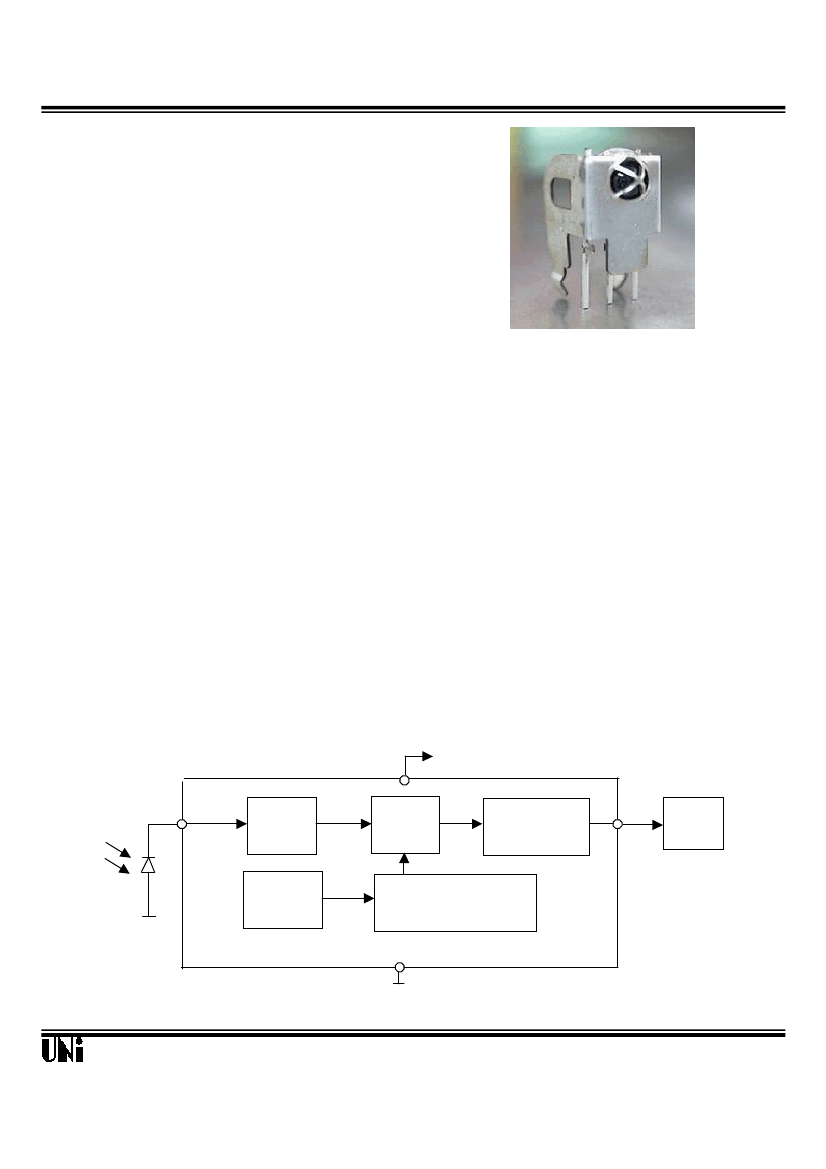

The MIM-5xx5K8 is miniaturized infrared receivers for
remote control and other applications requiring improved
ambient light rejection.
The separate PIN diode and preamplifier IC are assembled
on a single leadframe.
The epoxy package contains a special IR filter.
This module has excellent performance even in disturbed
ambient light applications and provides protection against
uncontrolled output pulses.
MIM-5xx5K8
Features
l
l
l
l
l
l
Photo detector and preamplifier in one package
Internal filter for PCM frequency
High immunity against ambient light
Improved shielding against electric field disturbance
5.0-Volt supply voltage; low power consumption
TTL and CMOS compatibility
MIM-5xx5K8 Series Models
l
l
l
MIM-5335K8 33.0KHz
MIM-5365K8 36.0KHz
MIM-5375K8 36.7KHz
l
l
MIM-5385K8 38.0KHz
MIM-5565K8 56.7KHz
BLOCK DIAGRAM
VS
Input
CGA &
filter
Demodulator
μ
C
Oscillator
AGC / ATC & digital
control
GND
REV: A1
Unity Opto Technology Co., Ltd.
01/12/2004
INFRARED RECEIVER MODULE
Absolute Maximum Ratings
Item
Supply voltage
Supply Current
Operating temperature
Storage temperature
Soldering temperature
Symbol
Vs
Is
T
opr
T
stg
T
sd
Ratings
-0.3 ~ 5.5
2.5
-25 ~ + 85
-25 ~ + 85
260
Unit
V
mA
o
o
o
MIM-5xx5K8
@ Ta=25℃
Remark
C
C
C
t≦5 s, 1mm from case
(T
a
=25°C )
Electro-optical characteristics (Vcc=5.0V)
Parameter
Supply Voltage
Current consumption
Response wavelength
Output form
H level output voltage
L level output voltage
H level output pulse width
L level output pulse width
Distance between emitter & detector
Half angle
V
0
h
V
0
l
Twh
Twl
L
∆θ
400
400
10.0
±45
Symbol
Vs
Icc
λp
4.2
0.5
800
800
Min.
4.5
Typ.
5.0
1.6
940
Max.
5.5
2.0
Unit
V
mA
nm
V
V
μs
μs
m
deg
NOTE 1
Remarks
Under no signal
- - - - - active low output - - - - -
Horizonal direction
Test Method
A. Standard Transmitter
ON/OFF pulse width satisfied from 25 cm to detection limit
600ms
carrier frequency f
0
duty 50%
600ms
600ms
Fig 1. Burst Wave
25cm
+5.0V
10kW
10mF
10kW
Transmitter
Duty 50%
V
out
GND
Oscilloscope
Fig 2. Standard Transmitter Measurement circuit
REV: A1
Unity Opto Technology Co., Ltd.
01/12/2004
INFRARED RECEIVER MODULE
B. Detection Length Test
MIM-5xx5K8
q
Transmitter output
V
out
q
D.U.T
L
q:
indicates horizontal and vertical directions
C . Pulse Width Test
Transmitter output
600ms 600ms
DUT output pulse
Twl
Twh
V
0
h
V
0
l
Application Circuit
100Ω*)
MIM-5xx5K8
MIE-544A2
Vcc (+5V)
>10kΩ
optional
3
1
2
4.7μF *)
μC
GND
*) recommended to suppress power supply disturbances
REV: A1
Unity Opto Technology Co., Ltd.
01/12/2004
INFRARED RECEIVER MODULE

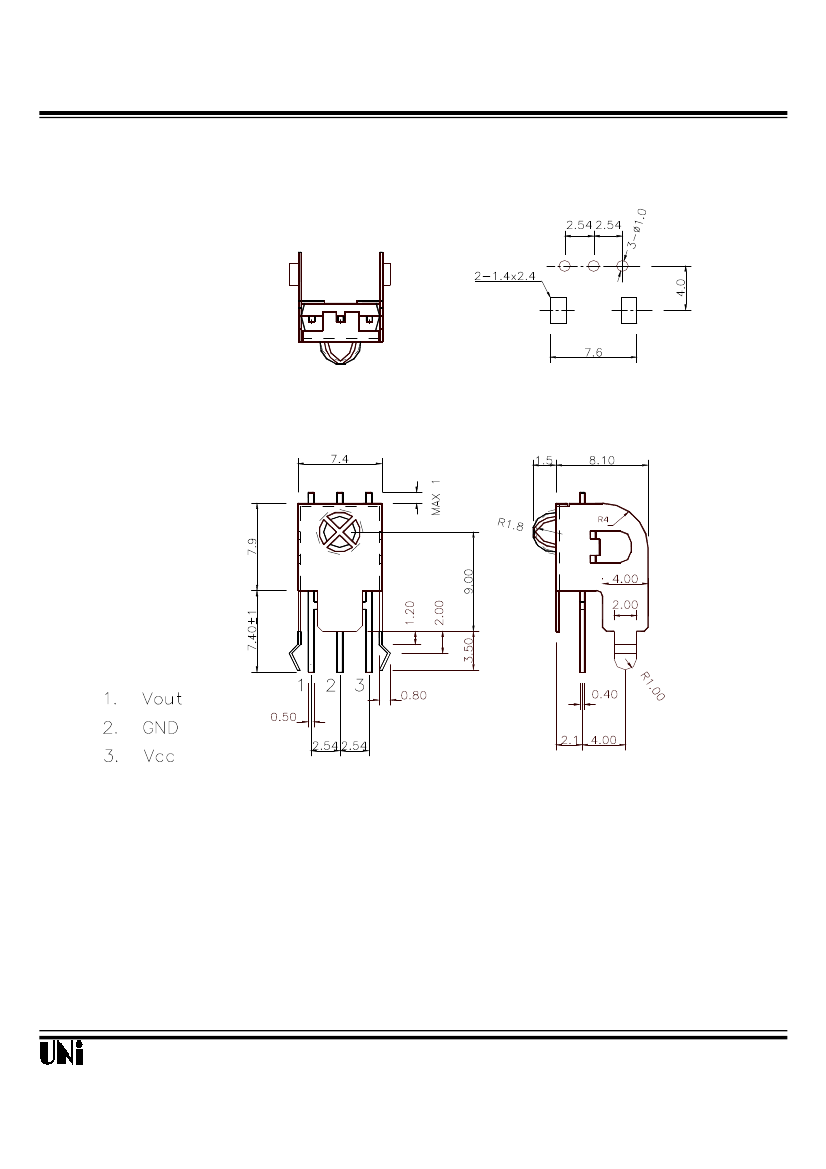

Dimensions in mm
MIM-5xx5K8
REV: A1
Unity Opto Technology Co., Ltd.
01/12/2004
INFRARED RECEIVER MODULE

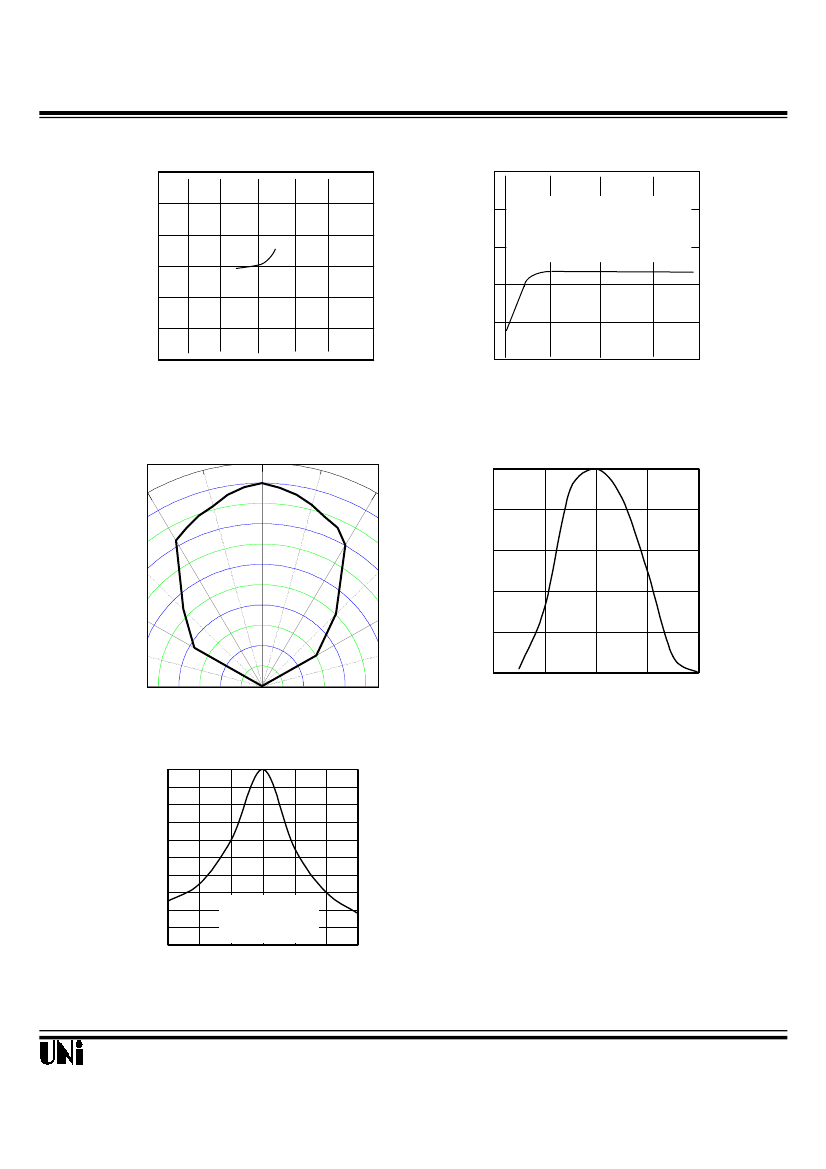

CHARACTERISTIC CURVES (T
A
=25
o
C)
900
MIM-5xx5K8
Supply Current Icc (mA)
1.8
1.6
1.4
1.2
1.0
3
4
5
6
7
Output Pulse Width
800
700
600
500
Burst length * 600ms, cycle =
1.2ms tpw: Average value of
output from start of signal input
to 60th pulse
Input Level V
IN
(mV
P-P
)
400
0.1
1
10
100
1000
Supply Voltage Vcc (V)
SUPPLY VOLTAGE vs. SUPPLY
CURRENT
Input Level (mV
p-p
)
INPUT LEVEL vs.OUTPUT PULSE WIDTH
Relative Spectral Sensitivity
0∘
15∘
30∘
1
1.0
0.8
45∘
60∘
0.6
0.4
0.2
0 0.1
75∘
0.3
0.5
0.8
0.6
0.4
0.2
0
750
850
950
1050
1150
λ
- Wavelength (nm)
RELATIVE SPECTRAL SENSITIVITY vs
WAVELENGTH
RELATIVE TRANIMISSION
1
Rel. Responsitivity
0.8
0.6
0.4
0.2
0
0.7
0.8
0.9
1
1.1
1.2
1.3
f=fo±5%
Δf(3dB)
= fo/7
f/fo - Relative Frequency
FREQUENCY DEPENDENCE OF
RESPONSIVITY
REV: A1
Unity Opto Technology Co., Ltd.
01/12/2004
