Unity Opto Technology Co., Ltd.
MVL-303G
MVL-303Y
MVL-303HR
MVL-303DR
MVL-303UR
04/30/2002
Description
The MVL-303xx series package are T-1 (φ3mm) standard
color transparent plastic lens package. The Hi-EFF red
(HR) and yellow LED chips are made with Gallium
Arsenide Phosphide on Gallium Phosphide diode. The
green LED chip is made with Gallium Phosphide on
Gallium Phosphide diode. The red (DR) chip is made with
Aluminum Gallium Arsenide on Gallium Arsenide diode.
The red (UR) chip is made with Aluminum Gallium
Arsenide on Aluminum Gallium Arsenide diode.
Package Dimensions
Unite: mm ( inches )
Applications
l
l
l
l
Popular T-1 (φ3mm) diameter package
Selected minimum intensities
General purpose leads
Reliable and rugged
NOTES :
1. Tolerance is ± 0.25 mm (.010") unless otherwise noted.
2. Protruded resin under flange is 1.5 mm (.059'') max.
3. Lead spacing is measured where the leads emerge from the package.
Absolute Maximum Tatings
Parameter
Power Dissipation
Peak Forward Current (1/10 Duty Cycle 0.1ms pulse width)
Continuous Forward Current
Derating Linear From 25
o
C
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Symbol
Pad
Ipf
Iaf
V
R
Topr
Tstg
Maximum Rating
GREEN YELLOW
HR
DR/UR
Unit
mW
A
mA/
o
C
mA
V
100
120
30
0.4
5
60
80
20
0.25
5
100
120
30
0.4
5
-55
o
C to + 100
o
C
-55
o
C to + 100
o
C
100
120
40
0.5
5
Lead Soldering Temperature (1.6mm from body) for 3 seconds at 260
o
C
P1

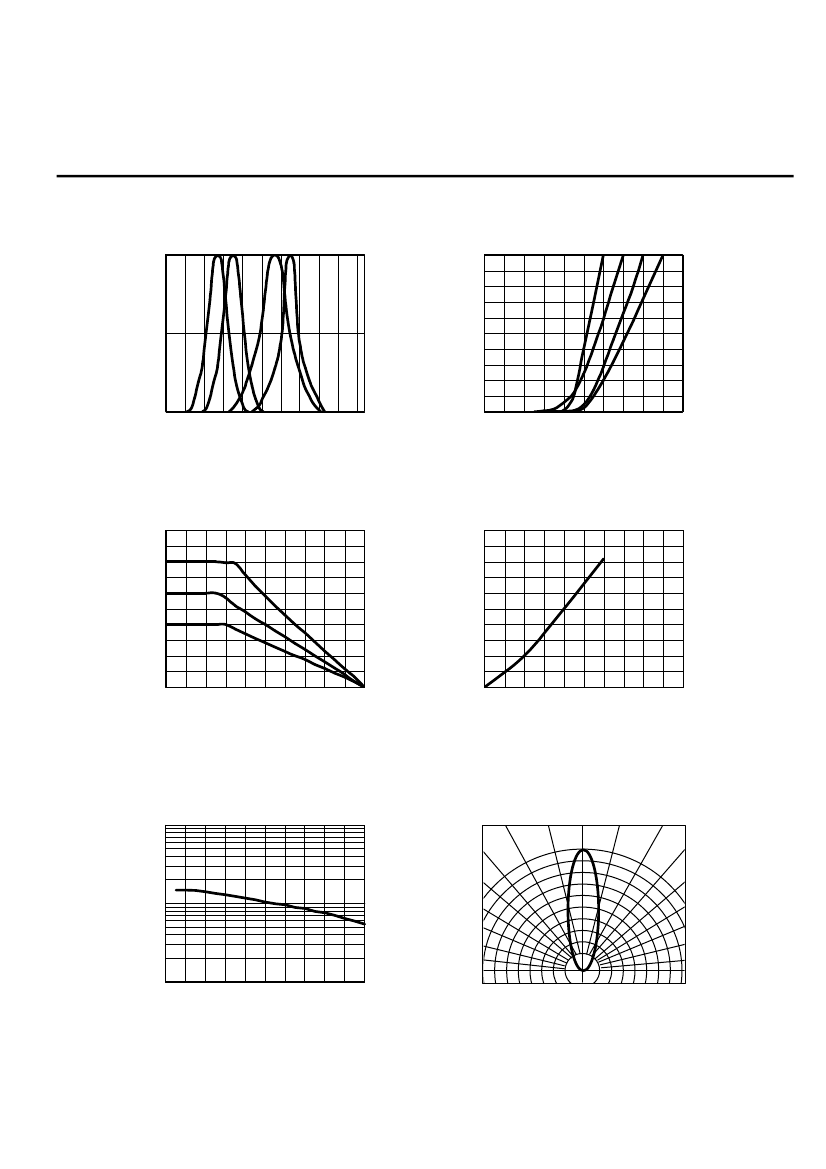

Typical Optical-Electrical Characteristic Curves
1
G Y
HRDR/UR
50
DR/URHR Y
G
Relative Luminous Intensity
Forward Current I
F
(mA)
500
550
600
650
700
750
40
30
20
10
0
0.8
1.2
1.6
2.0
2.4
2.8
0.5
0
Wavelength (nm)
Fig 1. RELATIVE LUMINOUS INTENSITY
VS. WAVELENGTH
Forward Voltage (V)
Fig 2. FORWARD CURRENT
VS. FORWARD VOLTAGE
50
40
30
20
10
0
0
20
40
60
80
100
DR/UR
G/HR
Y
5.0
Relative Luminous Intensity
Forward Current I
F
(mA)
4.0
3.0
2.0
1.0
0.0
0
10
20
30
40
50
Ambient Temperature (
o
C
)
Fig 3. FORWARD CURRENT
VS. AMBIENT TEMPERATURE
Forward Current I
F
(mA)
Fig 4. RELATIVE LUMINOUS INTENSITY
VS. FORWARD CURRENT
Relative Luminous Intensity
Relative Luminous Intensity
10
0
o
10
o
20
o
30
o
40
o
1
1.0
0.9
0.8
0.5 0.3 0.1
0.2 0.4 0.6
50
o
60
o
70
o
80
o
90
o
0.1
-30 -20 -10 0 10 20 30 40 50 60 70
Ambient Temperature (
o
C
)
Fig 5. RELATIVE LUMINOUS INTENSITY
VS. AMBIENT TEMPERATURE
Fig 6. RADIATION DIAGRAM
P3
