6-1634613-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 6-1634613-2

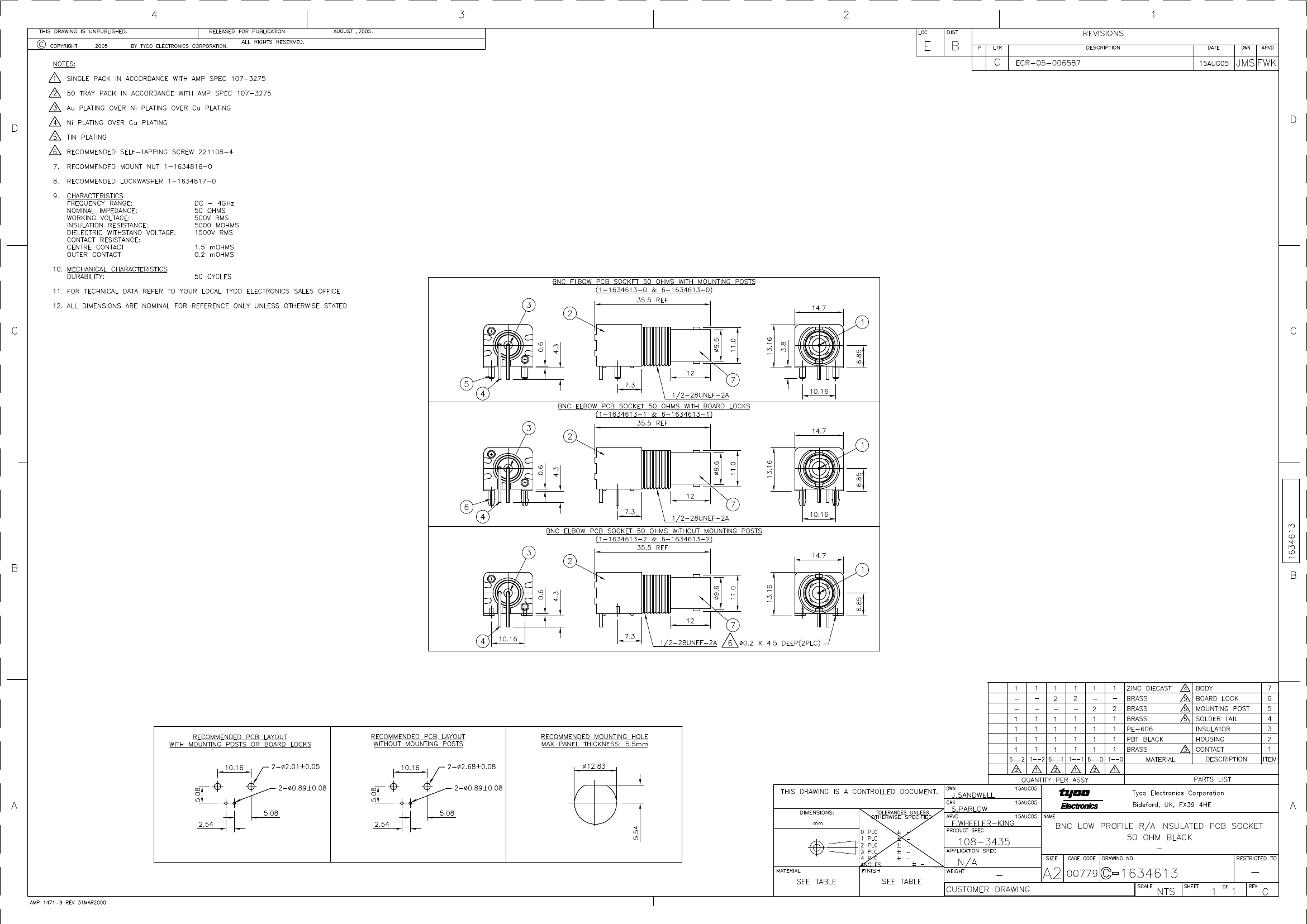

6-1634613-2: DescriptionPANEL MOUNT, BOARD TERMINATED, FEMALE, BNC CONNECTOR, SOLDER, SOCKET; CategoryThe connector The connector; File Size144KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

6-1634613-2 Overview

PANEL MOUNT, BOARD TERMINATED, FEMALE, BNC CONNECTOR, SOLDER, SOCKET

6-1634613-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	LOW PROFILE
body width	0.518 inch
subject depth	1.402 inch
body length	0.579 inch
Body/casing type	SOCKET
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact point gender	FEMALE
Contact style	COAX
Coupling type	BAYONET
DIN compliance	NO
Dielectric withstand voltage	2100VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	PE-606
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	1634613
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating frequency	4 GHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	YES
reliability	COMMERCIAL
Shell surface	NICKEL OVER COPPER
Shell material	ZINC
Terminal length	0.165 inch
Termination type	SOLDER
Total number of contacts	1
Base Number Matches	1

Preview

Download Datasheet

View All

6-1634613-2 Related Products

	6-1634613-2	1-1634613-2	6-1634613-1	6-1634613-0	1-1634613-1
Description	PANEL MOUNT, BOARD TERMINATED, FEMALE, BNC CONNECTOR, SOLDER, SOCKET	PANEL MOUNT, BOARD TERMINATED, FEMALE, BNC CONNECTOR, SOLDER, SOCKET	PANEL MOUNT, BOARD TERMINATED, FEMALE, BNC CONNECTOR, SOLDER, SOCKET	PANEL MOUNT, BOARD TERMINATED, FEMALE, BNC CONNECTOR, SOLDER, SOCKET	PANEL MOUNT, BOARD TERMINATED, FEMALE, BNC CONNECTOR, SOLDER, SOCKET
Reach Compliance Code	compli	compli	unknow	unknow	unknown
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie	Gold (Au) - with Nickel (Ni) barrie	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Coupling type	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
insulator material	PE-606	PE-606	PE-606	PE-606	POLYETHYLENE
JESD-609 code	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD AND PANEL
Maximum operating frequency	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES	YES	YES	YES
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Manufacturer's serial number	1634613	1634613	1634613	1634613	-
Base Number Matches	1	1	1	1	-
