HFZ24H04: DescriptionData Line Filter, 2 Function(s), 0.6A,; CategoryAnalog mixed-signal IC filter; File Size127KB，1 Pages; ManufacturerDelta Electronics

Download Datasheet Parametric View All

HFZ24H04 Overview

Data Line Filter, 2 Function(s), 0.6A,

HFZ24H04 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum DC resistance	0.93 Ω
filter type	DATA LINE FILTER
high	21 mm
inductance	35000 µH
length	26 mm
Manufacturer's serial number	HFZ24H
Installation type	THROUGH HOLE MOUNT
Number of functions	2
physical size	L26.0XB26.0XH21.0 (mm)/L1.024XB1.024XH0.827 (inch)
Rated current	0.6 A
width	26 mm
Base Number Matches	1

Preview

Download Datasheet

View All

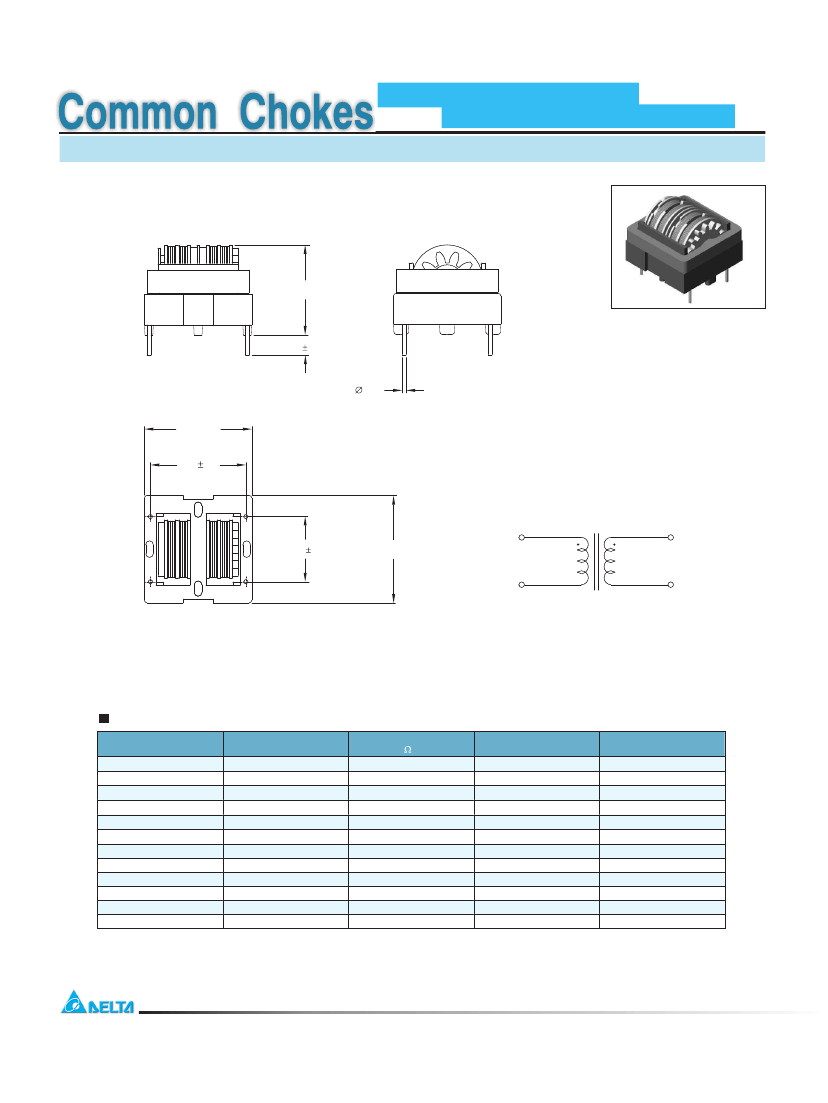

EMI Common-Mode

Suppression Inductors

HFZ24H Type

Mechanical Dimension:

Unit: mm

21.0 Max.

4.0 1.0

0.8

26.0 Max.

21.0 0.3

2

3

Schematic :

1

4

15.0 0.3

26.0 Max.

PRI

1

4

SEC

2

3

Electrical Characteristics:

AT 25

o

C, 40KHz/1V Tested:

PART NO.

HFZ24H01

HFZ24H02

HFZ24H03

HFZ24H04

HFZ24H05

HFZ24H06

HFZ24H07

HFZ24H08

HFZ24H09

HFZ24H10

HFZ24H11

HFZ24H12

INDUCTANCE

(mH) MIN

78.0

68.0

54.5

35.0

22.0

18.0

14.7

9.9

8.1

6.0

4.4

2.9

DCR

(m ) MAX

2015

1815

1390

930

550

490

360

250

220

155

115

87

RATED CURRENT

(Aac)

0.3

0.4

0.5

0.6

0.9

1.0

1.1

1.4

1.5

1.8

2.0

2.4

TEMPERATURE

RISE (

o

C) MAX

45

* WITHSTANDING VOLTAGE BETWEEN L1 & L2 1.5KV 1 MINUTE

* GOOD DIFFERENCE IN WINDING L1 & L2 INDUCTANCE

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.

TEL: 886-3-3591968; FAX: 886-3-3591991

http://www.deltaww.com
