INFRARED RECEIVER MODULE
Description

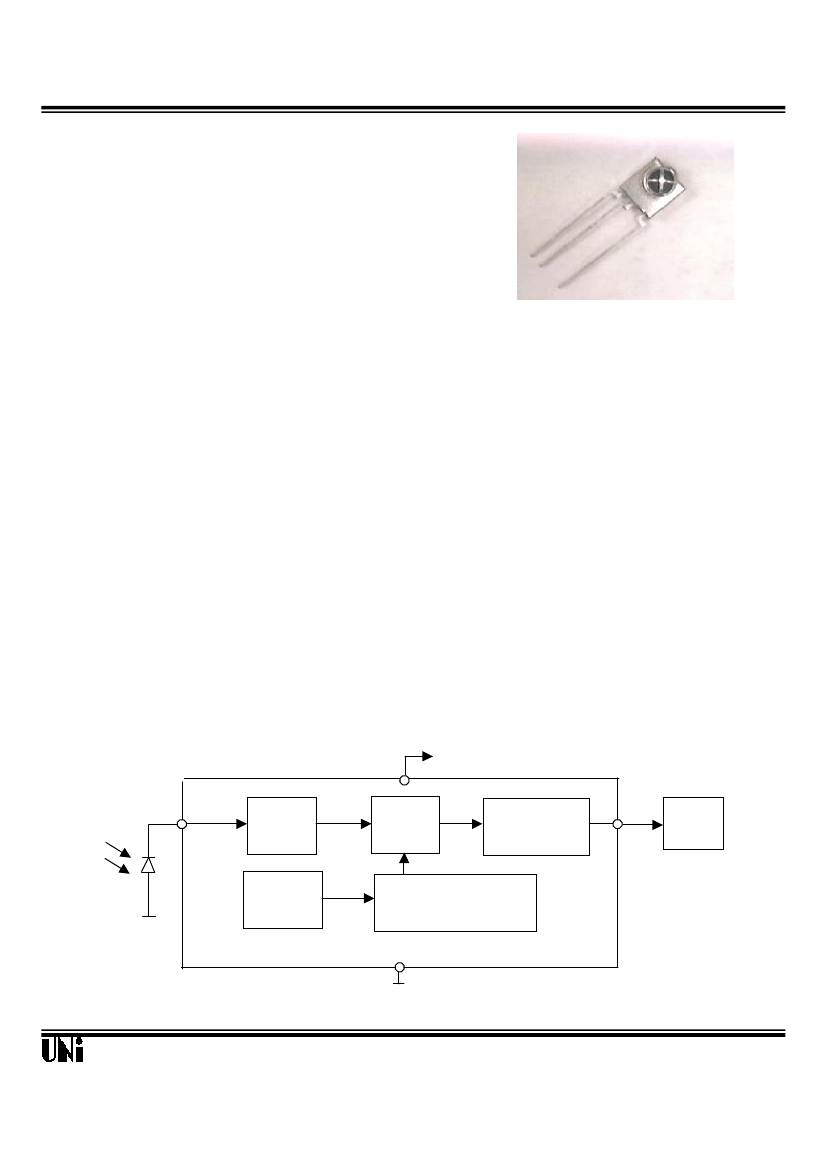

The MIM-5xx2T2 is miniaturized infrared receivers for
remote control and other applications requiring improved
ambient light rejection.
The separate PIN diode and preamplifier IC are assembled
on a single leadframe.
The epoxy package contains a special IR filter.
This module has excellent performance even in disturbed
ambient light applications and provides protection against
uncontrolled output pulses.
MIM-5xx2T2
Features
l
l
l
l
l
l
Photo detector and preamplifier in one package
Internal filter for PCM frequency
High immunity against ambient light
Improved shielding against electric field disturbance
5.0-Volt supply voltage; low power consumption
TTL and CMOS compatibility
MIM-5xx2T2 Series Models
l
l
l
l
MIM-5302T2 30.0KHz
MIM-5332T2 33.0KHz
MIM-5362T2 36.0KHz
MIM-5372T2 36.7KHz
l
l
l
l
MIM-5382T2 38.0KHz
MIM-5402T2 40.0KHz
MIM-5442T2 44.0KHz
MIM-5562T2 56.0KHz
BLOCK DIAGRAM
VS
Input
CGA &
filter
Demodulator
μC
Oscillator
AGC / ATC & digital
control
GND
REV: A1
Unity Opto Technology Co., Ltd.
12/09/2003
INFRARED RECEIVER MODULE
Absolute Maximum Ratings
Item
Supply voltage
Supply Current
Operating temperature
Storage temperature
Soldering temperature
Power dissipation at Ta=25oC
Symbol
V
CC
Is
T
opr
T
stg
T
sd
P
tot
Ratings
-0.3 ~ 6.0
5.0
-25 ~ + 85
-25 ~ + 85
260
30
Unit
V
mA
o
o
o
MIM-5xx2T2
@ Ta=25
o
C
Remark
C
C
C
t≦5 s, 1mm from case
mW
Electro-optical characteristics (Vcc=5.0V)
Parameter
Supply Voltage
Current consumption
Response wavelength
Output form
H level output voltage
L level output voltage
H level output pulse width
L level output pulse width
Distance between emitter & detector
Half angle
V
0
h
V
0
l
Twh
Twl
L
1
Dq
400
400
10.0
±45
Symbol
Vs
Icc
lp
4.2
0.5
800
800
Min.
4.5
Typ.
5.0
1.4
940
Max.
5.5
2.0
Unit
V
mA
nm
V
V
ms
ms
m
deg
Note 1
Horizonal direction
Remarks
Under no signal
- - - - - active low output - - - - -
Test Method
A. Standard Transmitter
carrier frequency f
0
duty 50%
ON/OFF pulse width satisfied from
25 cm to detection limit
600ms
600ms
600ms
Fig 1. Burst Wave
25cm
+5.0V
10kW
10mF
10kW
Transmitter
Duty 50%
V
out
GND
Oscilloscope
Fig 2. Standard Transmitter Measurement circuit
REV: A1
Unity Opto Technology Co., Ltd.
12/09/2003
INFRARED RECEIVER MODULE
B. Detection Length Test
MIM-5xx2T2
q
Transmitter output
V
out
q
D.U.T
L
q:
indicates horizontal and vertical directions
C . Pulse Width Test
Transmitter output
600ms 600ms
DUT output pulse
Twl
Twh
V
0
h
V
0
l
Application Circuit
100Ω*)
MIM-5xx2T2
MIE-544A2
Vcc (+5V)
>10kΩ
optional
3
1
2
4.7μF *)
μC
GND
*) recommended to suppress power supply disturbances
REV: A1
Unity Opto Technology Co., Ltd.
12/09/2003
INFRARED RECEIVER MODULE
Dimensions in mm
MIM-5xx2T2
REV: A1
Unity Opto Technology Co., Ltd.
12/09/2003
INFRARED RECEIVER MODULE

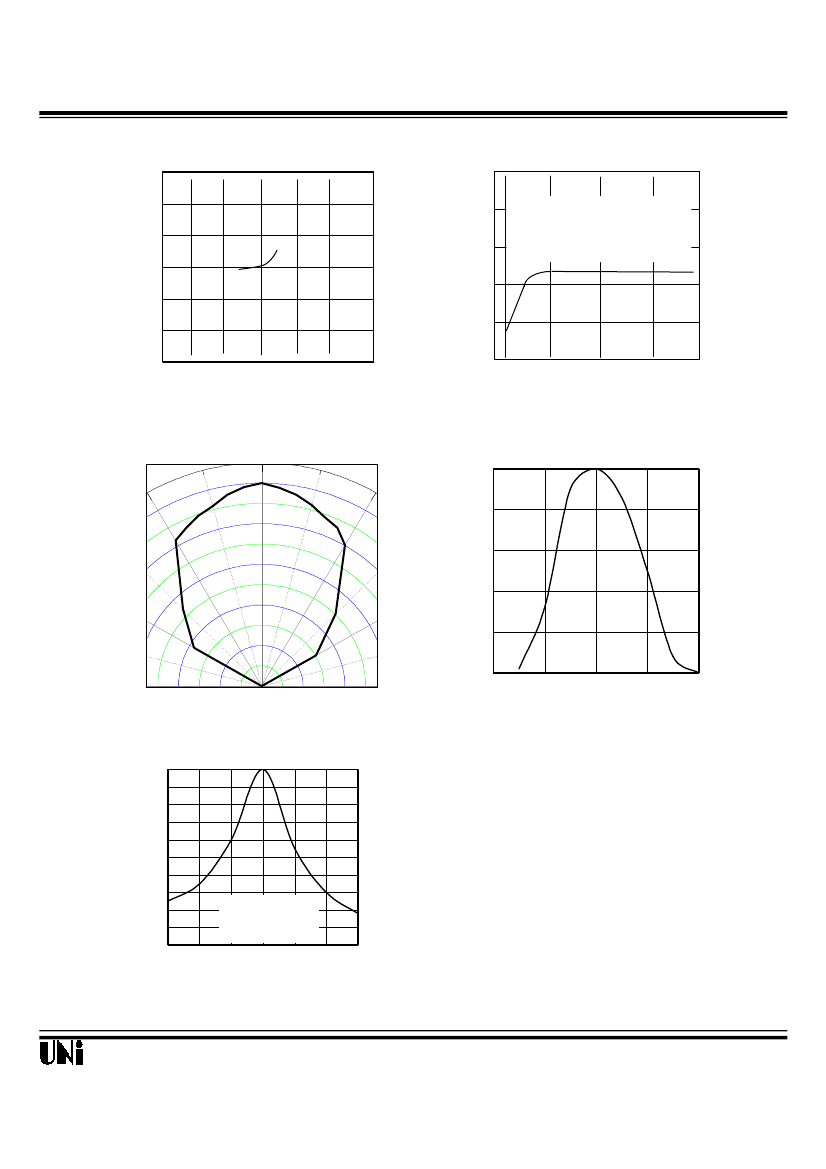

CHARACTERISTIC CURVES (T
A
=25
o
C)
900
MIM-5xx2T2
Supply Current Icc (mA)
1.8
1.6
1.4
1.2
1.0
3
4
5
6
7
Output Pulse Width
800
700
600
500
Burst length * 600ms, cycle =
1.2ms tpw: Average value of
output from start of signal input
to 60th pulse
Input Level V
IN
(mV
P-P
)
400
0.1
1
10
100
1000
Supply Voltage Vcc (V)
SUPPLY VOLTAGE vs. SUPPLY
CURRENT
Input Level (mV
p-p
)
INPUT LEVEL vs.OUTPUT PULSE WIDTH
Relative Spectral Sensitivity
0∘
15∘
1
30∘
1.0
0.8
45∘
60∘
0.6
0.4
0.2
0 0.1
75∘
0.3
0.8
0.6
0.4
0.2
0
750
850
950
1050
1150
λ
- Wavelength (nm)
RELATIVE SPECTRAL SENSITIVITY vs
WAVELENGTH
RELATIVE TRANIMISSION
1
Rel. Responsitivity
0.8
0.6
0.4
0.2
0
0.7
0.8
0.9
1
1.1
1.2
1.3
f=fo±5%
Δf(3dB)
= fo/7
f/fo - Relative Frequency
FREQUENCY DEPENDENCE OF
RESPONSIVITY
REV: A1
Unity Opto Technology Co., Ltd.
12/09/2003
