Marketing Bulletin
DATE:
TO:
FROM:
RE:
September 20
th
, 2006
All Sales Personnel
Mark Stoner
Product Termination
To all concerned parties,
This bulletin is to notify all customers of the discontinuation of the following Ecliptek
series effective September 20
th
, 2006:
Series
EC14
Description
5V 4 pad SMD Plastic Oscillator
Recommended Replacement
EP14 or EH14
In compliance with our End of Life (EOL) policy, this will serve as advanced notice of
product termination. New orders will not be accepted after March 31
st
, 2007, with
delivery to conclude by September 30
th
2007.
If there are any questions pertaining to this bulletin, please fell free to contact me.
Thank you again for your cooperation.
Best Regards,
Mark W. Stoner
Vice President of Marketing
Ecliptek Corporation
3545 CADILLAC AVENUE
•
COSTA MESA, CA 92626-1401
•
(714) 433-1200
•
Fax (714) 433-1234

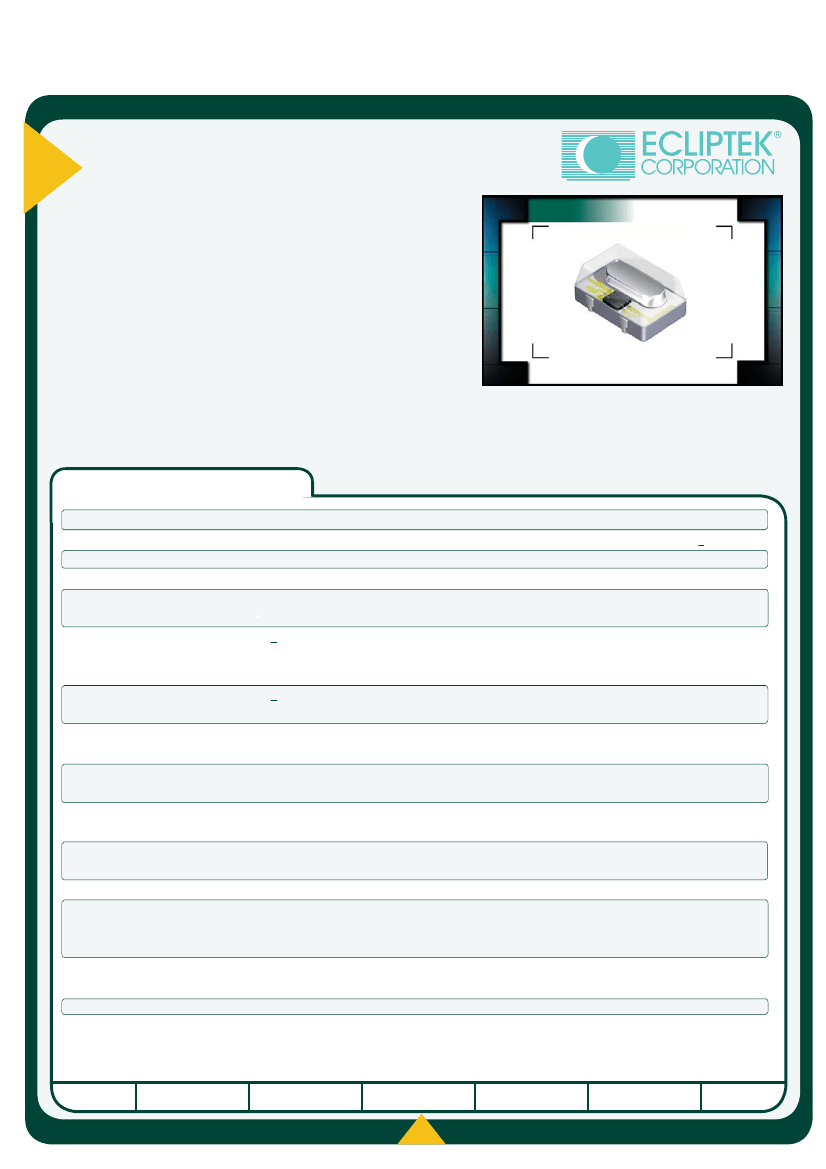

EC14
Series
• Plastic surface mount package
• 5.0V supply voltage
• HCMOS/TTL output
• Stability to ±50ppm
• Available on tape and reel
EC14
H 4.7
L 14.0
W 9.8
OSCILLATOR
ELECTRICAL SPECIFICATIONS
Frequency Range (MHz)
Operating Temperature Range
Storage Temperature Range
Supply Voltage (V
DD
)
Frequency Tolerance / Stability*
Input Current
Inclusive of Operating Temperature Range,
Supply Voltage, and Load
<30.000MHz
30.001MHz to 50.000MHz
>50.000MHz
Load Drive Capability
Output Voltage Logic High (V
OH
)
Output Voltage Logic Low (V
OL
)
Duty Cycle
Rise Time / Fall Time
Aging (at 25°C)
Tri-State Input Voltage
No Connection
V
IH
:≥2.0V
DC
V
IL
:≤0.8V
DC
Start Up Time
Period Jitter: Absolute
Period Jitter: One Sigma
1.000MHz to 26.000MHz
26.001MHz to 66.667MHz
<53.125MHz
>53.125MHz
w/TTL Load
w/HCMOS Load
w/TTL Load
w/HCMOS Load
at 50% of waveform w/HCMOS Load at 1.4V
DC
w/TTL Load
at 1.4V
DC
w/HCMOS Load or w/TTL Load
20% to 80% of waveform w/HCMOS Load;
0.4V
DC
to 2.4V
DC
w/TTL Load
±5ppm / year Maximum
Enables Output
Enables Output
Disables Output: High Impedance
4 mSeconds Maximum
10 mSeconds Maximum
±100pSeconds Maximum
±25pSeconds Maximum
1.000MHz to 66.667MHz
0°C to 70°C or -40°C to 85°C (<30.000MHz)
-55°C to 125°C
5.0V
DC
±10%
±100ppm Maximum or
±50ppm Maximum (0°C to 70°C Only)
23mA Maximum (Unloaded)
35mA Maximum (Unloaded)
50mA Maximum (Unloaded)
10TTL Load or 50pF HCMOS Load
15pF HCMOS Load
2.4V
DC
Minimum
V
DD
-0.5V
DC
Minimum
0.4V
DC
Maximum
0.5V
DC
Maximum
50 ±10(%) (Standard)
50 ±5(%) (Optional)
8 nSeconds Maximum
I
OH
= -16mA
I
OH
= -16mA
I
OL
= +16mA
I
OL
= +16mA
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EC14
PLASTIC
5.0V
OS33
08/06
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.

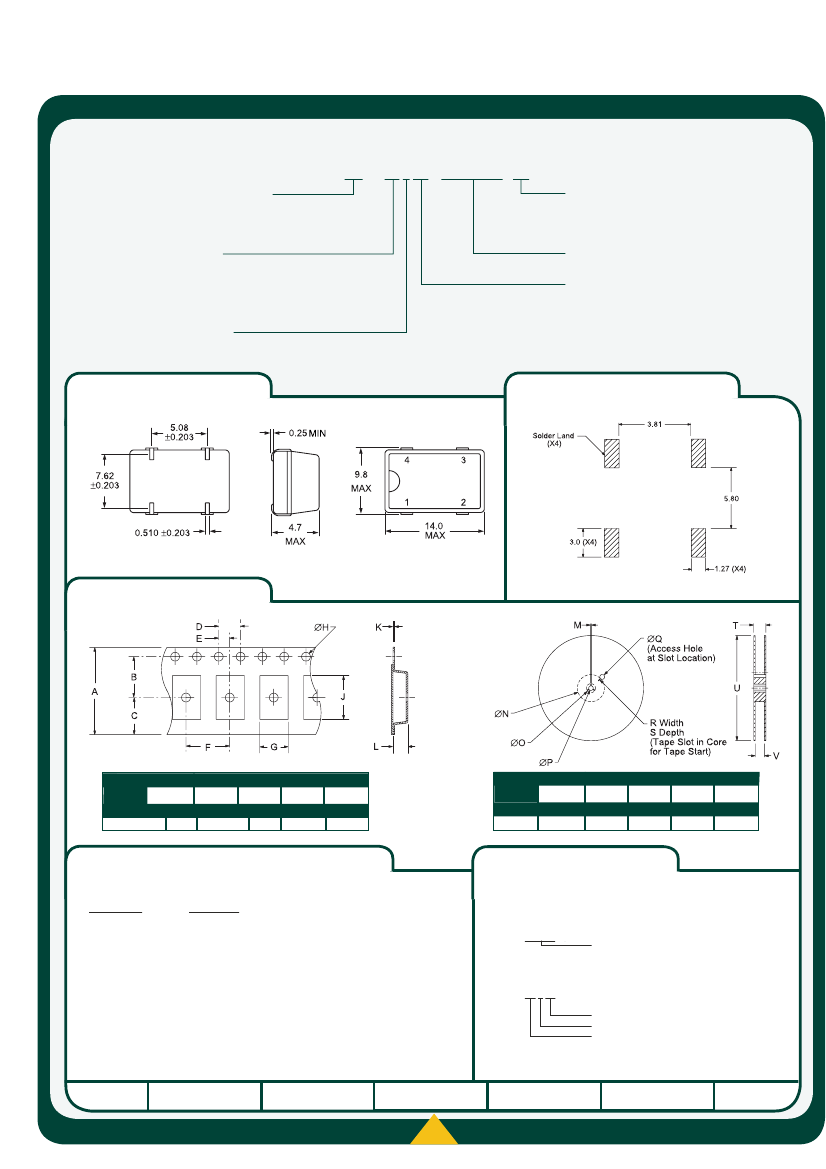

PART NUMBERING GUIDE
EC14 00 SJ ET T TS - 25.000M TR
FREQUENCY TOLERANCE / STABILITY
00=±100ppm Maximum (Standard)
45=±50ppm Maximum
OPERATING TEMP. RANGE
Blank=0°C to 70°C
ET=-40°C to 85°C
DUTY CYCLE
Blank=50 ±10(%) (Standard)
T=50 ±5(%)
MECHANICAL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
PACKAGING OPTIONS
Blank=Bulk
TR=Tape and Reel (Standard)
FREQUENCY
OUTPUT CONTROL FUNCTION
TS=Tri-State Enable High
SUGGESTED SOLDER PAD LAYOUT
ALL DIMENSIONS IN MILLIMETERS
TAPE AND REEL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
Pin 1: Tri-State
Pin 2: Case Ground
Pin 3: Output
Pin 4: Supply Voltage
Tolerances = ±0.1
TAPE
A
24 ±.3
B
11.5 ±.1
C
10.75 ±.1
D
4 ±.2
E
2±.1
REEL
M
1.5 MIN
N
50 MIN
O
20.2 MIN
P
13±.2
Q
40 MIN
QTY/REEL
1,000
F
12 ±.2
G
B0*
H
1.5 +.1-0
J
A0*
K
.3 ±.1
L
K0*
*Compliant to EIA 481A
R
2.5 MIN
S
10 MIN
T
30.4 MAX
U
360 MAX
V
24.4+2-0
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS
MARKING SPECIFICATIONS
Characteristic
Seal Integrity
Solderability
Marking Permanency
Shock
Vibration
Specification
Bubble test in Perfluorocarbon at +125°C ±5°C for 60 seconds
minimum (internal crystal only).
Sn63 Solder dip at +230°C ±5°C for 5 seconds/95% coverage.
10 Strokes with brush after 1 minute soak in solvent, 3 times.
Line 1: ECLIPTEK
Line 2: XX.XXX M
Frequency in MHz (5 Digits Maximum + Decimal)
Line 3: XX Y ZZ
Random drop on hard wooden plate 3 times from a height
of 20cm.
Frequency with an amplitude of 1.5mm sweeping between 10Hz
to 55Hz within 1 minute (approximately) for 2 hours minimum on
each axis (X, Y and Z) for a total of 6 hours.
CATEGORY
SERIES
PACKAGE
VOLTAGE
Week of Year
Last Digit of Year
Ecliptek Manufacturing Identifier
MANUFACTURER
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EC14
PLASTIC
5.0V
OS33
08/06
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
