ES1A

Description
1 A, 50 V, SILICON, SIGNAL DIODE
Categorysemiconductor    Discrete semiconductor
File Size236KB,4 Pages
ManufacturerTAITRON Components
Websitehttp://www.taitroncomponents.com/
Download Datasheet Parametric Compare View All

ES1A Online Shopping

Suppliers Part Number Price MOQ In stock
ES1A - - View Buy Now

ES1A Overview

1 A, 50 V, SILICON, SIGNAL DIODE

ES1A Parametric

Parameter NameAttribute value
Number of terminals2
Number of components1
Processing package descriptionPlastic, SMA, 2 PIN
stateACTIVE
packaging shapeRectangle
Package SizeSMALL OUTLINE
surface mountYes
Terminal formC BEND
Terminal locationpair
Packaging MaterialsPlastic/Epoxy
structuresingle
Diode component materialssilicon
Diode typeSignal diode
Maximum reverse recovery time0.0200 us
Maximum repetitive peak reverse voltage50 V
Maximum average forward current1 A
1.0A Surface Mount
Super Fast Rectifier
ES1A - ES1K
1.0A Surface Mount Super Fast Rectifier
Features
Low profile surface mounted package
Glass passivated junction
Ultra fast recovery time for high efficiency
Plastic package has underwriters laboratory
flammability classification 94V-0
High temperature soldering: 250 °C /10 seconds at terminals
RoHS compliant

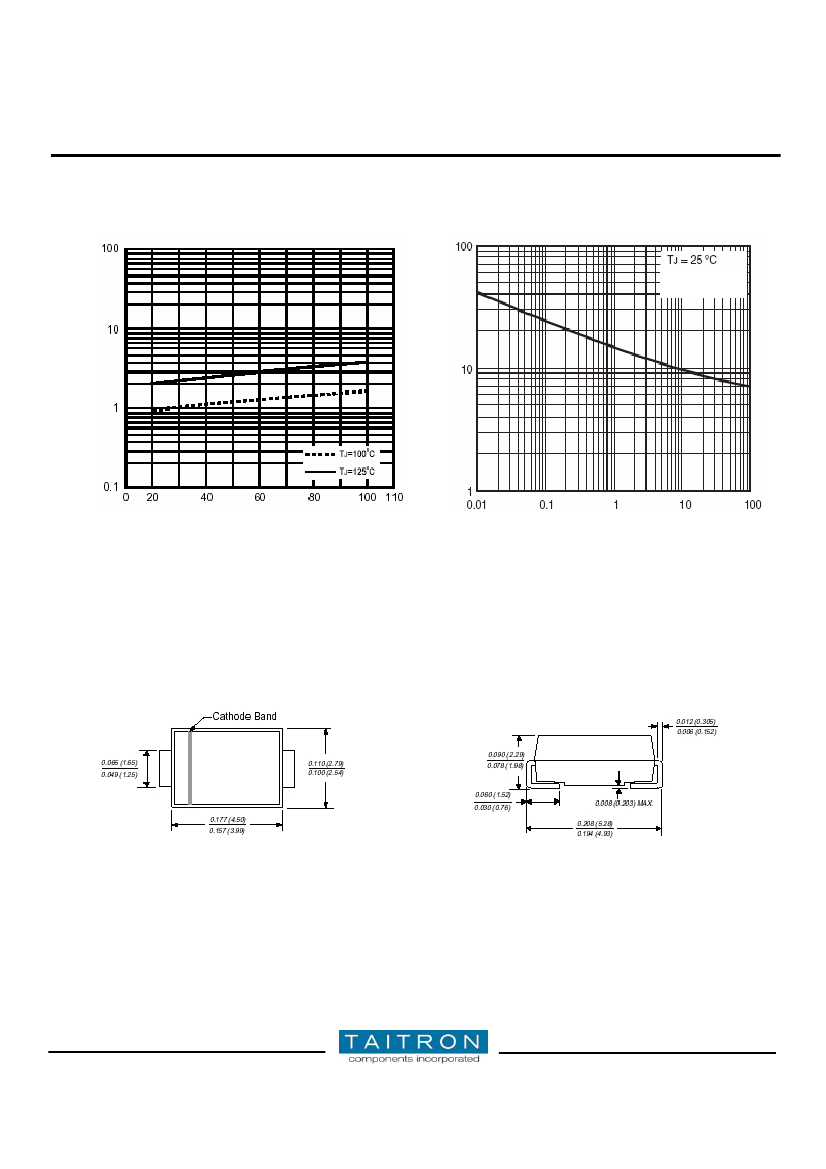

SMA
Mechanical Data
Case:
Terminals:
Polarity:
Weight:
JEDEC DO-214AC molded plastic
Solder plated, solderable per MIL-STD-750, Method 2026
Cathode end indicated by color band
0.002 Ounce, 0.064 gram

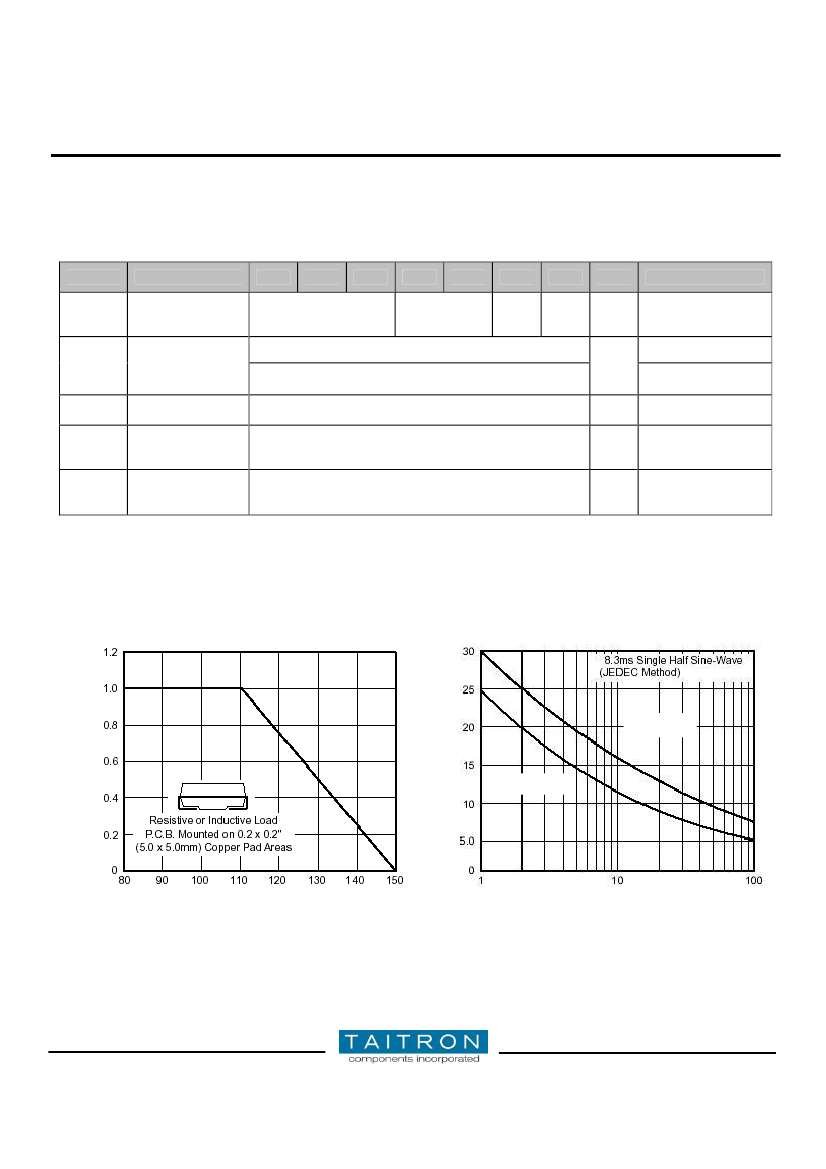

Maximum Ratings
(T
Ambient
=25ºC unless noted)
Symbol
Description
Maximum Repetitive
Peak Reverse
Voltage
Maximum RMS
Voltage
Maximum DC
Blocking Voltage
Maximum Average
Forward Rectified
Current
Peak Forward Surge
Current
Operating Junction
and Storage
Temperature Range
ES1A
50
35
50
ES1B
100
70
100
ES1D
200
140
200
ES1F
300
210
300
1.0
ES1G
400
280
400
ES1J
600
420
600
ES1K
800
560
800
Unit
V
V
V
A
T
L
=110°C
8.3ms single half sine-
wave superimposed on
rated load (JEDEC
Method)
Conditions
V
RRM
V
RMS
V
DC
I
AV
I
FSM
30
25
A
T
J,
T
STG
-55 to 150
°C
Note:
Single phase half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel: (800)-TAITRON
Fax: (800)-TAITFAX
(800)-824-8766
(800)-824-8329
(661)-257-6060
(661)-257-6415
Rev. B/AH 2008-04-11
Page 1 of 4

ES1A Related Products

ES1A ES1F ES1D ES1B
Description 1 A, 50 V, SILICON, SIGNAL DIODE 1 A, 300 V, SILICON, SIGNAL DIODE, DO-214AC 1 A, 200 V, SILICON, SIGNAL DIODE 1 A, 100 V, SILICON, SIGNAL DIODE, DO-214AC
Number of terminals 2 2 2 2
Number of components 1 1 1 1
Processing package description Plastic, SMA, 2 PIN SMA, 2 PIN Plastic, SMA, 2 PIN GREEN, PLASTIC, SMA, 2 PIN
state ACTIVE ACTIVE ACTIVE ACTIVE
packaging shape Rectangle Rectangle Rectangle Rectangle
Package Size SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
surface mount Yes Yes Yes Yes
Terminal form C BEND C BEND C BEND C BEND
Terminal location pair pair pair pair
Packaging Materials Plastic/Epoxy Plastic/Epoxy Plastic/Epoxy Plastic/Epoxy
structure single single single single
Diode component materials silicon silicon silicon silicon
Diode type Signal diode Signal diode Signal diode Signal diode
Maximum reverse recovery time 0.0200 us 0.0350 us 0.0200 us 0.0350 us
Maximum repetitive peak reverse voltage 50 V 300 V 200 V 100 V
Maximum average forward current 1 A 1 A 1 A 1 A
terminal coating - MATTE Tin PURE Tin PURE Tin
