0.5A Surface Mount Rectifier
GL34A – GL34M
0.5A Surface Mount Rectifier
Features
•
For surface mount applications
•
Low leakage current
•
RoHS Compliant
MiniMelf
Mechanical Data
Case:
Epoxy:
Terminals:
Polarity:
Weight:
JEDEC MiniMelf molded plastic
Plastic package has UL flammability classification 94V-0
Solder plated solderable per MIL-STD-750, Method 2026
Cathode end indicated by color band
0.0014 ounce, 0.036 gram
Maximum Ratings
(T
Ambient
=25ºC unless noted)
Symbol
Description
Maximum Repetitive
Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking
Voltage
Maximum Average
Forward Rectified
Current
Peak Forward Surge
Current
Maximum Instantaneous
Forward Voltage
Maximum DC Reverse
Current at Rated DC
Blocking Voltage
Typical Junction
Capacitance
Typical Thermal
Resistance, Junction to
Ambient
Operating Junction and
Storage Temperature
Range
GL34A
50
35
50
GL34B
100
70
100
GL34D
200
140
200
GL34G
400
280
400
0.5
GL34J
600
420
600
GL34K
800
560
800
GL34M
1000
700
1000
Unit
V
V
V
A
T
L
=50°C
8.3ms single half sine-
wave superimposed on
rated load (JEDEC
Method)
I
F
=0.5 A
T
A
=25° C
µA
250
15
206
pF
°C / W
T
A
=100° C
V
R
=4V, f=1MHz
Conditions
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
C
J
R
thJA
10
A
1.1
5
V
T
J,
T
STG
-55 to +125
°C
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel: (800)-TAITRON
Fax: (800)-TAITFAX
(800)-824-8766
(800)-824-8329
(661)-257-6060
(661)-257-6415
Rev. A/AH 2008-03-10
Page 1 of 3
0.5A Surface Mount Rectifier
GL34A – GL34M

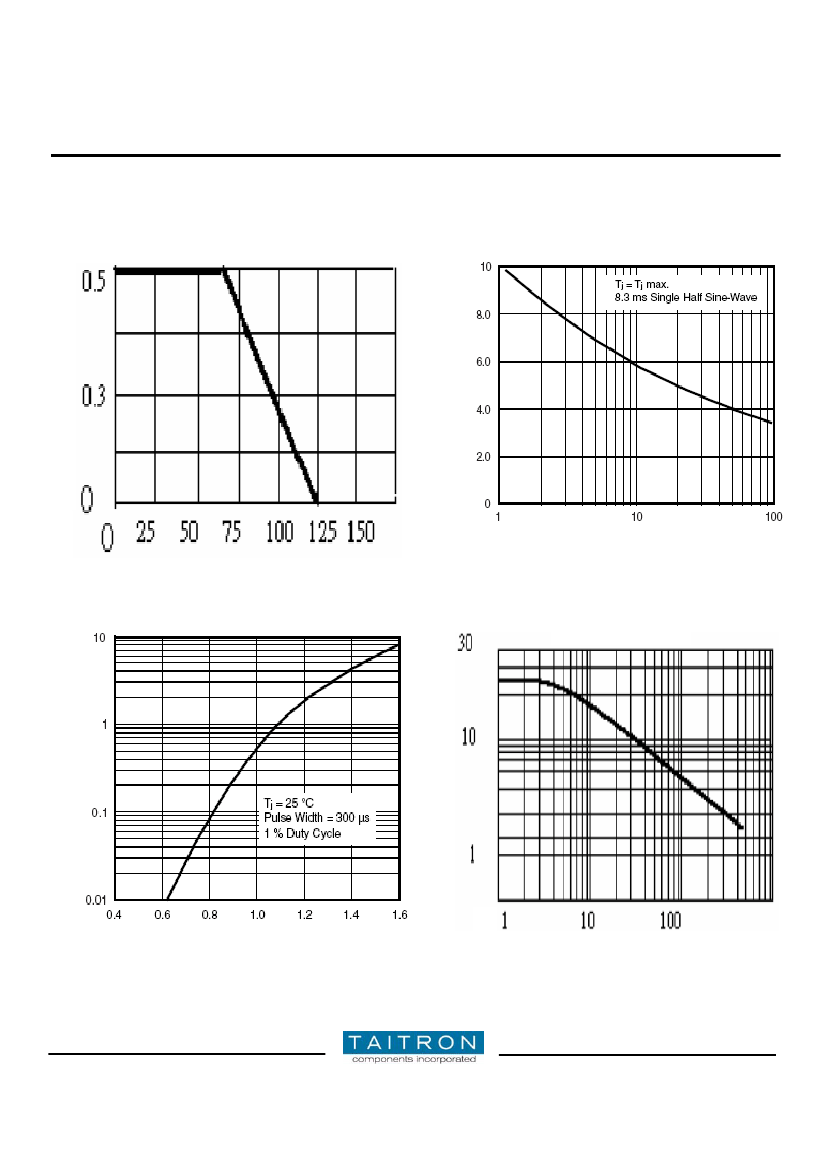

Typical Characteristics Curves
Average Forward Rectified Current (A)
Fig.1-Forward Current Derating Curve
Average Forward Surge Current (A)
Fig.2-Max. Non-Repetitive Peak Forward Surge Current
Number of Cycles at 60Hz
Lead Temperature (°C)
Fig.3- Typical Forward Characteristics
I
nstantaneous Forward Current (A)
Fig.4- Typical Junction Capacitance
Instantaneous Forward Voltage (V)
Junction Capacitance (pF)
Reverse Voltage (V)
Rev. A/AH 2008-03-10
www.taitroncomponents.com
Page 2 of 3
0.5A Surface Mount Rectifier
GL34A – GL34M

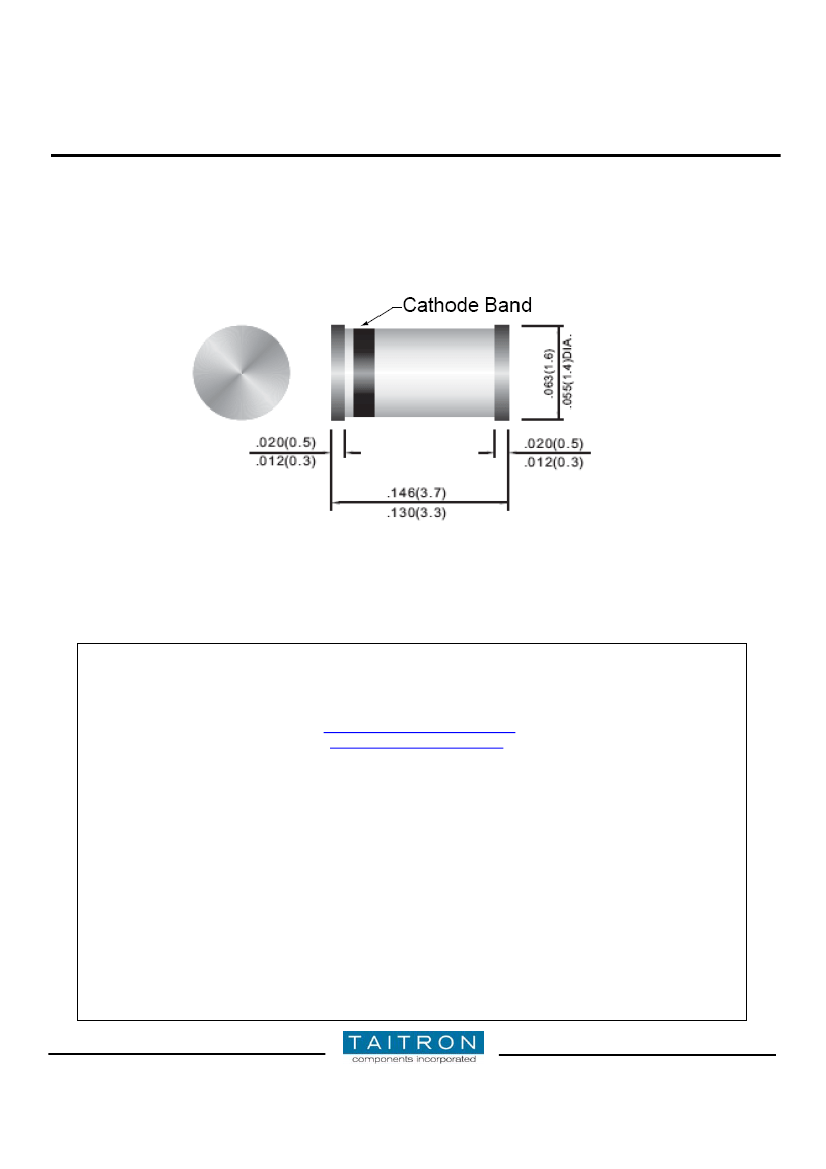

Dimensions in inch (mm)
MiniMelf
