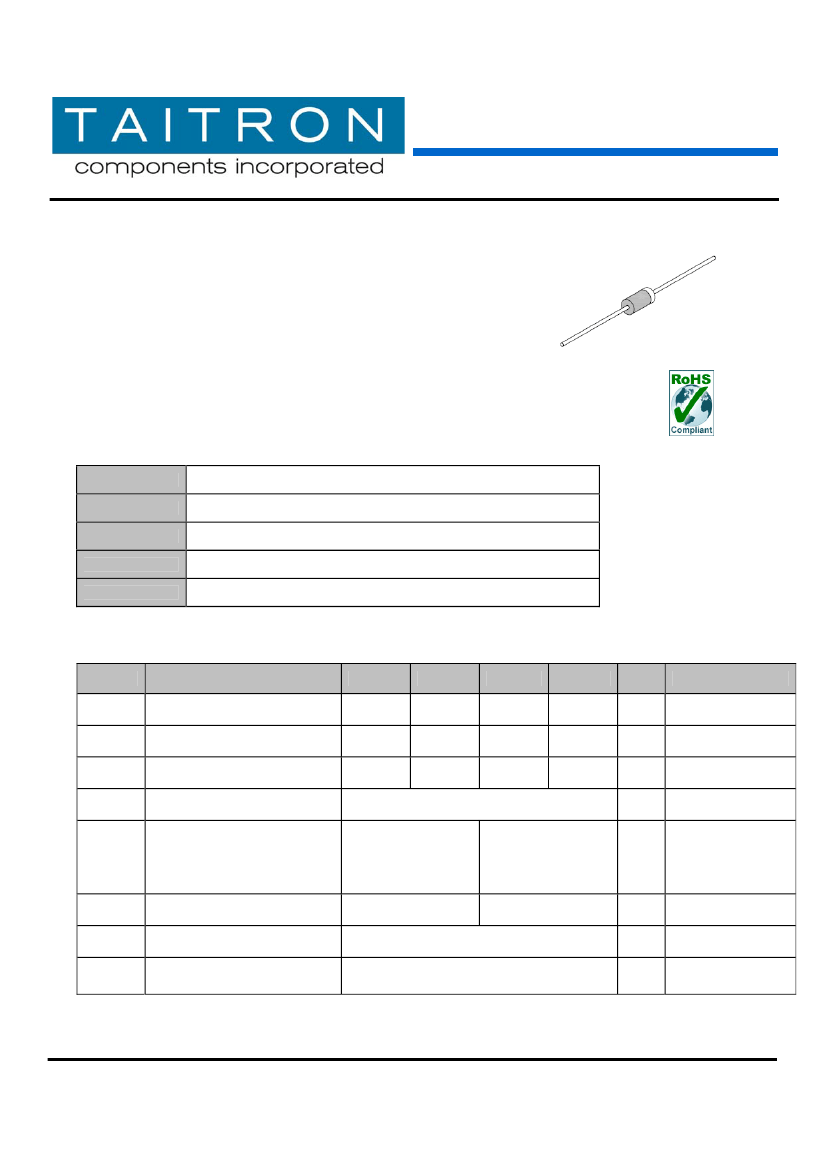

0.2A High Voltage
Fast Recovery Rectifiers
GF235 - GF260
0.2A High Voltage Fast Recovery Rectifiers
Features
•
•
•
•
•
Fast recovery times
Lost cost
Designed for photo flash application
Beveled round chip, avalanche operation
RoHS compliance
DO-15
Mechanical Data
Case:
Epoxy:
Terminals:
Polarity:
Weight:
JEDEC DO-15 molded plastic body
Plastic package has UL flammability classification 94V-0
Plated axial leads, solderable per MIL-STD-202, Method 208
Color band denotes cathode end
0.015 ounces, 0.4 gram
Maximum Ratings and Electrical Characteristics
(T
A
=25ºC unless noted otherwise)
Symbol
Description
Maximum Recurrent Peak
Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward
Rectified Current
GF235
3500
2450
3500
GF240
4000
2800
4000
0.2
GF250
5000
3500
5000
GF260
6000
4200
6000
Unit
V
V
V
A
L=10mm, T
A
=55° C
8.3ms single half
sine-wave
superimposed on
rated load (JEDEC
Method)
I
F
=0.2A
T
A
=25° C
I
F
=0.5A, I
R
=1A,
I
rr
=0.25A
Conditions
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
Peak Forward Surge Current
25
20
A
V
F
I
R
T
rr
Maximum Instantaneous
Forward Voltage
Maximum DC Reverse Current at
Rated DC Blocking Voltage
Typical Reverse Recovery Time
8.0
5.0
500
12.0
V
µA
nS
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel:
Fax:
(800)-TAITRON (800)-824-8766
(800)-TAITFAX (800)-824-8329
(661)-257-6060
(661)-257-6415
Rev. A/AH 2008-05-04
Page 1 of 4
0.2A High Voltage Fast Recovery Rectifiers
GF235 - GF260
Symbol
Description
Typical Junction Capacitance
Operating Temperature range
Storage Temperature Range
GF235
6.0
-65 to +125
-65 to +150
GF240
GF250
4.0
GF260
Unit
pF
°C
°C
Conditions
V
R
=4V, f=1MHz
C
J
T
J
T
STG

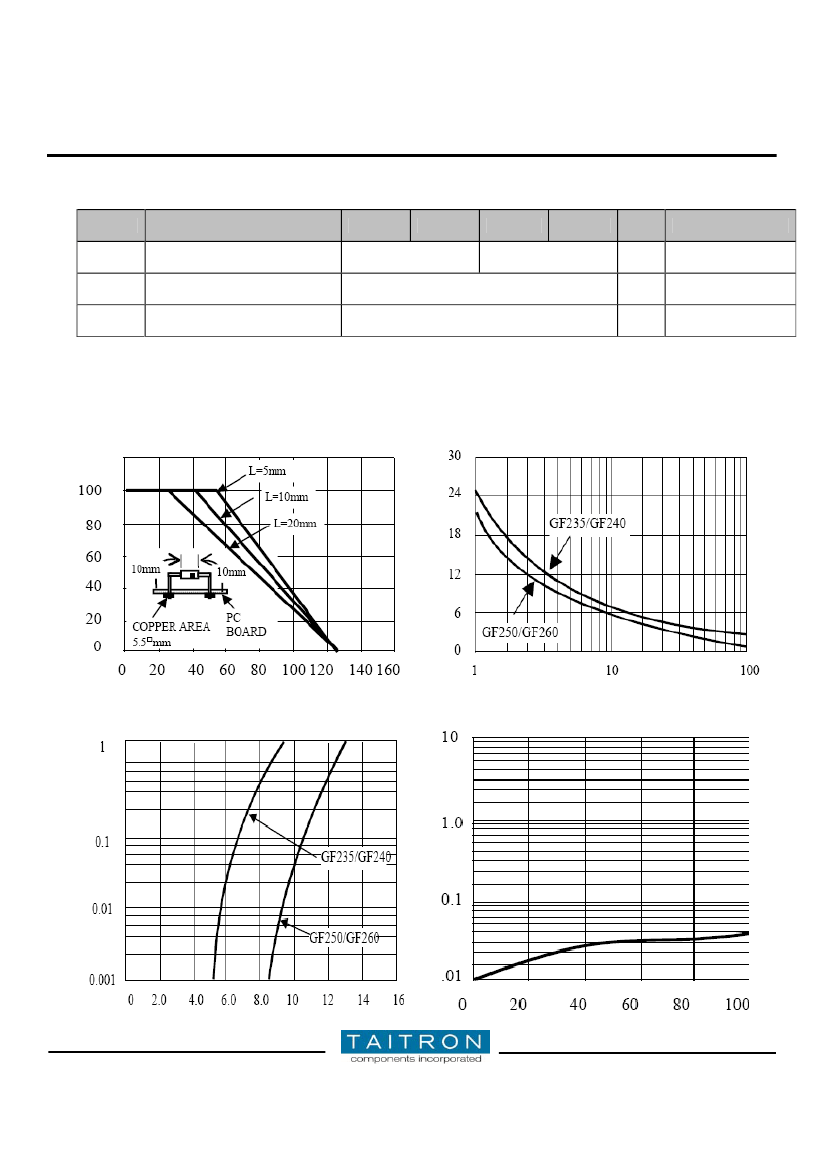

Typical Characteristics Curves
Fig.1-Max. Forward Current Rating Effect of
Copper Area. Resistive/Inductive Load
Fig.2-Max. Non-Repetitive Forward Surge Current
Peak Forward Surge Current (A)
Percent of Average Rectified Current (%)
Ambient Temperature T
a
(°C)
Fig.3- Typical Forward Characteristics
Instantaneous Reverse Current (µA)
Number of Cycles at 60Hz
Fig.4-Typical Reverse Characteristics
Instantaneous Forward Current
(A)
Forward Voltage (V)
www.taitroncomponents.com
Percent of Rated Peak Reverse Voltage (%)
Rev. A/AH 2008-05-04
Page 2 of 4
0.2A High Voltage Fast Recovery Rectifiers
GF235 - GF260
Fig.5- Typical Junction Capacitance
Junction
Capacitance
(
pF)
Reverse Voltage (V)

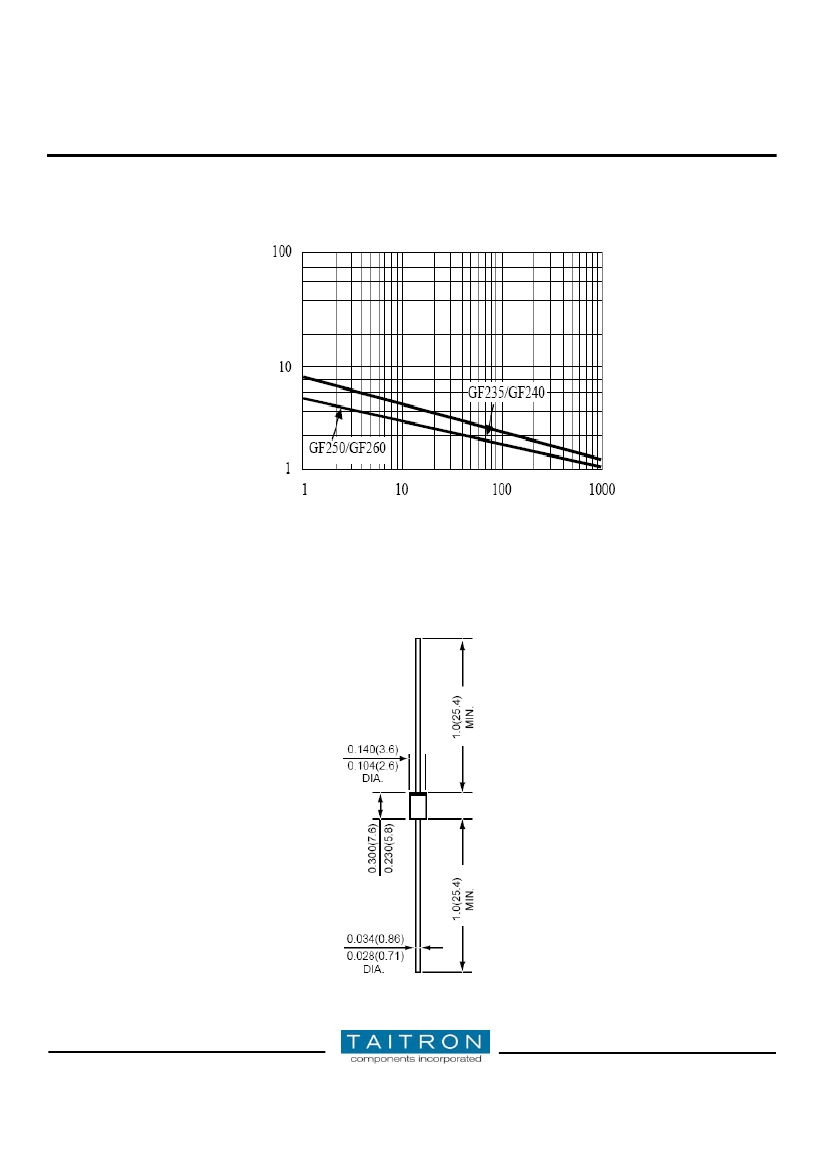

Dimensions in inches (mm)
DO-15
Rev. A/AH 2008-05-04
www.taitroncomponents.com
Page 3 of 4
0.2A High Voltage Fast Recovery Rectifiers
GF235 - GF260
How to contact us:
US HEADQUARTERS
28040 WEST HARRISON PARKAWAY, VALENCIA, CA 91355-4162
Tel: (800) TAITRON (800) 824-8766 (661) 257-6060
Fax: (800) TAITFAX (800) 824-8329 (661) 257-6415
Email:
taitron@taitroncomponents.com
Http://www.taitroncomponents.com
TAITRON COMPONENTS MEXICO, S.A .DE C.V.
BOULEVARD CENTRAL 5000 INTERIOR 5 PARQUE INDUSTRIAL ATITALAQUIA, HIDALGO C.P.
42970 MEXICO
Tel: +52-55-5560-1519
Fax: +52-55-5560-2190
TAITRON COMPONETS INCORPORATED E REPRESENTAÇÕES DO BRASIL LTDA
RUA DOMINGOS DE MORAIS, 2777, 2.ANDAR, SALA 24 SAÚDE - SÃO PAULO-SP 04035-001 BRAZIL
Tel: +55-11-5574-7949
Fax: +55-11-5572-0052
TAITRON COMPONETS INCORPORATED, SHANGHAI REPRESENTATIVE OFFICE
METROBANK PLAZA, 1160 WEST YAN’ AN ROAD, SUITE 1503, SHANGHAI, 200052, CHINA
Tel: +86-21-5424-9942
Fax: +86-21-5424-9931
Rev. A/AH 2008-05-04
www.taitroncomponents.com
Page 4 of 4
