SURFACE MOUNT SUPER FAST
RECOVERY RECTIFIER
MFPU1S – MFPU6S
Surface Mount Super Fast Recovery Rectifier
Features
•
Low leakage current
•
For surface mounted applications
•
Epoxy Molding Compound has UL Flammability
Classification 94V-0
•
RoHS Compliance
MFP
Mechanical Data
Case:
Terminals:
Polarity:
Mounting Position:
Weight:
MFP / MINI-SMA, Molded plastic body
Solder plated, solderable per MIL-STD-750, Method 2026
Indicated by cathode band
Any
0.04 gram
Maximum Ratings and Electrical Characteristics
(T
A
=25ºC unless otherwise noted)
Symbol
Description
Max. Repetitive Peak Reverse
Voltage
Max. RMS Voltage
Average Forward Rectified
Current
Peak Forward Surge Current
Max. Forward Voltage
Reverse Current
@ VR = VRRM
Max. Reverse Recovery Time
Thermal Resistance
Diode Junction Capacitance
Operating Junction and
0.95
5.0
100
35
42
10
MFPU
1S
50
35
MFPU
2S
100
70
MFPU
3S
150
105
1.0
30
1.25
MFPU
4S
200
140
MFPU
5S
300
210
MFPU
6S
400
280
Unit
V
V
A
A
V
uA
uA
V
IF=1.0A
TA = 25°C
TA = 100°C
I
F =
0.5A, I
R
=
1.0A,
I
rr
= 0.25A.
TA = 50°C
Conditions
V
RRM
V
RMS
I
F(AV)
I
FSM
V
F
I
R
Trr
Rth
JA
C
J
°C / W Junction to ambient
pF
F=1MHz
and V
R
= 4V
T
J,
T
STG
Storage Temperature Range
-55 to +150
°C
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel: (800)-247-2232
Fax: (800)-TAITFAX
(800)-TAITRON
(800)-824-8329
(661)-257-6060
(661)-257-6415
Rev. B/WW
Page 1 of 3
Surface Mount Super Fast Recovery Rectifier
MFPU1S – MFPU6S

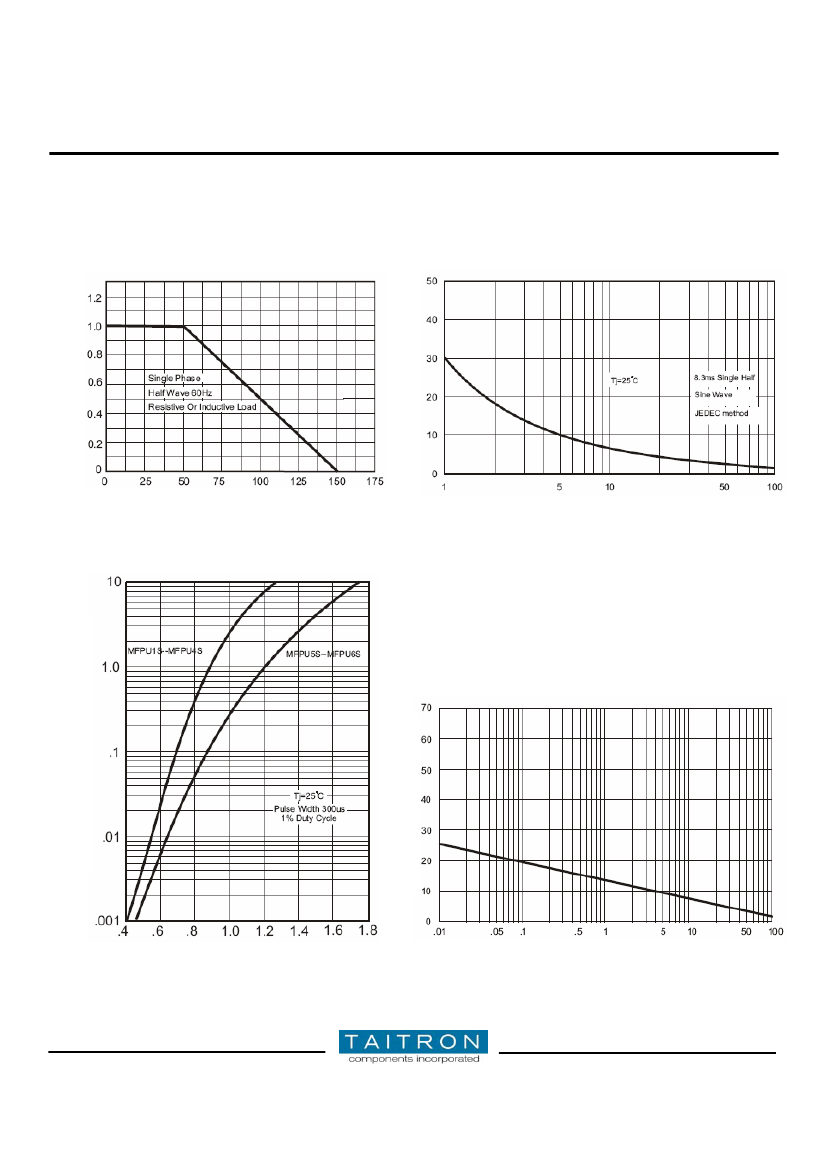

Typical Characteristics Curves
Fig.1- Forward Current Derating Curve
Peak Forward Surge Current, (A)
Ambient Temperature (°C)
Average Forward Current, (A)
Fig.2- Maximum Non-Repetitive Forward Surge Current
Number of Cycles at 60Hz
Fig.3- Typical Forward Characteristics
Instantaneous Forward Current, (A)
Fig.4-Typical Junction Capacitance
Junction Capacitance, (pF)
Forward Voltage, (V)
Reverse Voltage, (V)
Rev. B/WW
www.taitroncomponents.com
Page 2 of 3
Surface Mount Super Fast Recovery Rectifier
MFPU1S – MFPU6S

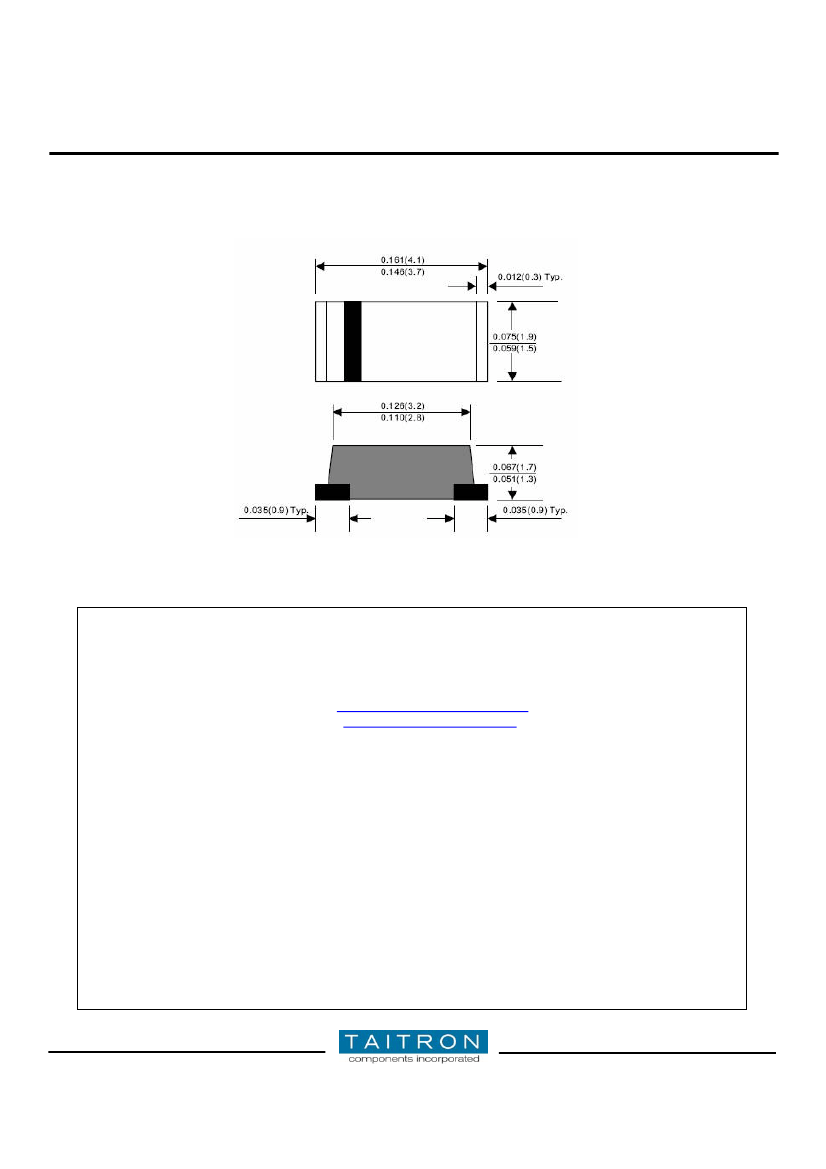

Dimensions in inches (mm)
