MR851 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> MR851

MR851: Description3 A, 100 V, SILICON, RECTIFIER DIODE, DO-201AD; CategoryDiscrete semiconductor diode; File Size129KB，4 Pages; ManufacturerTAITRON Components; Websitehttp://www.taitroncomponents.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

MR851 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MR851	-	-	View	Buy Now

MR851 Overview

3 A, 100 V, SILICON, RECTIFIER DIODE, DO-201AD

MR851 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TAITRON Components
Reach Compliance Code	unknow
application	EFFICIENCY
Minimum breakdown voltage	100 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JEDEC-95 code	DO-201AD
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	200 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	-150 °C
Minimum operating temperature	-50 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.15 µs
Reverse test voltage	100 V
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

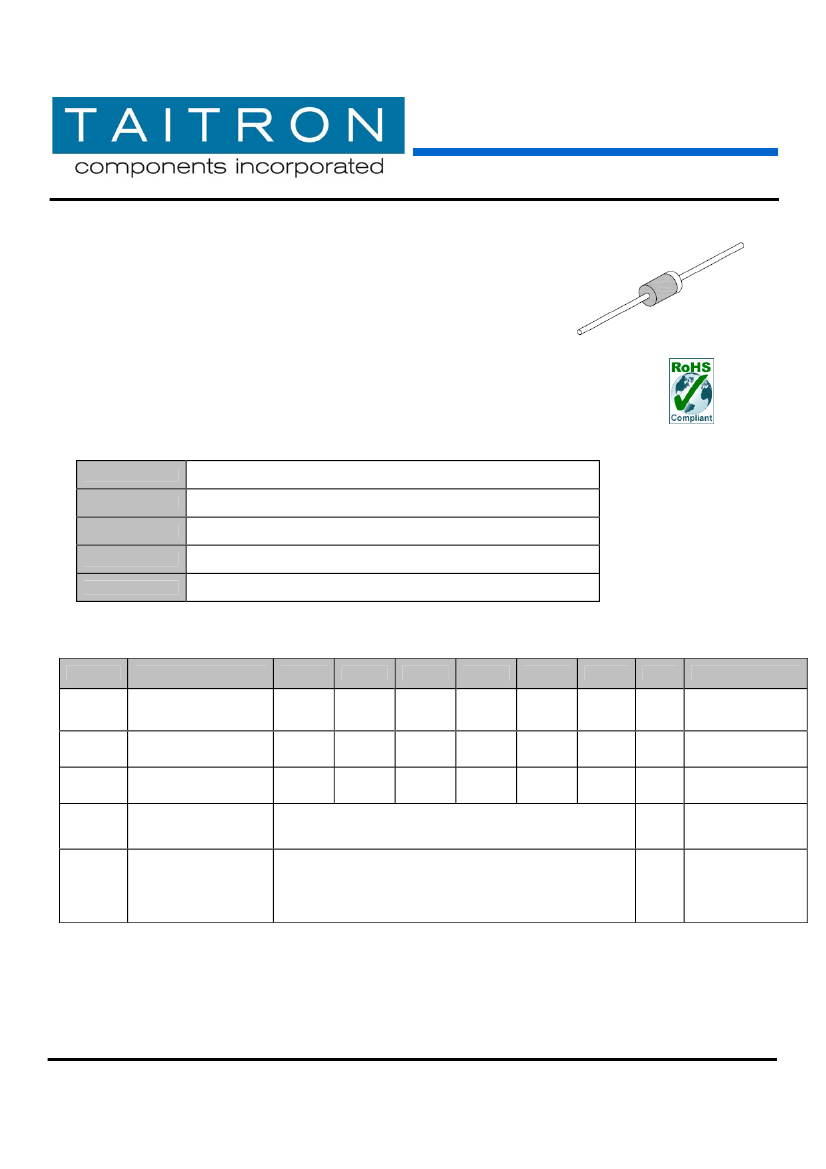

3.0A Fast Recovery Rectifier

MF850

–

MR858

3.0A Fast Recovery Rectifier

Features

•

Fast switching for high efficiency

•

High surge current capability

•

High temperature soldering guaranteed 250°C/10 seconds

/.0375" (9.5mm) lead length, 5lbs (2.3kg) tension

•

RoHS Compliance

DO-201AD

Mechanical Data

Case:

Epoxy:

Terminals:

Polarity:

Weight:

JEDEC DO-201AD, molded plastic body

Plastic package has UL flammability classification 94V-0

Plated axial leads, solderable per MIL-STD-750, Method 2026

Color band denotes cathode end

1.1 grams

Maximum Ratings and Electrical Characteristics

=25ºC unless noted otherwise)

Symbol

Description

Maximum Repetitive

Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking

Voltage

Maximum Average

Forward Rectified

Current

Peak Forward Surge

Current

MR850

MR851

100

MR852

200

140

200

3.0

MR854

400

280

400

MR856

600

420

600

MR858

800

560

800

Unit

Conditions

RRM

RMS

F(AV)

Ta=90 ˚C

8.3ms single half

sine-wave

superimposed on

rated load (JEDEC

method)

FSM

200

TAITRON COMPONENTS INCORPORATED

www.taitroncomponents.com

Tel:

Fax:

(800)-TAITRON (800)-824-8766

(800)-TAITFAX (800)-824-8329

(661)-257-6060

(661)-257-6415

Rev. A/DX 2007-06-04

Page 1 of 4

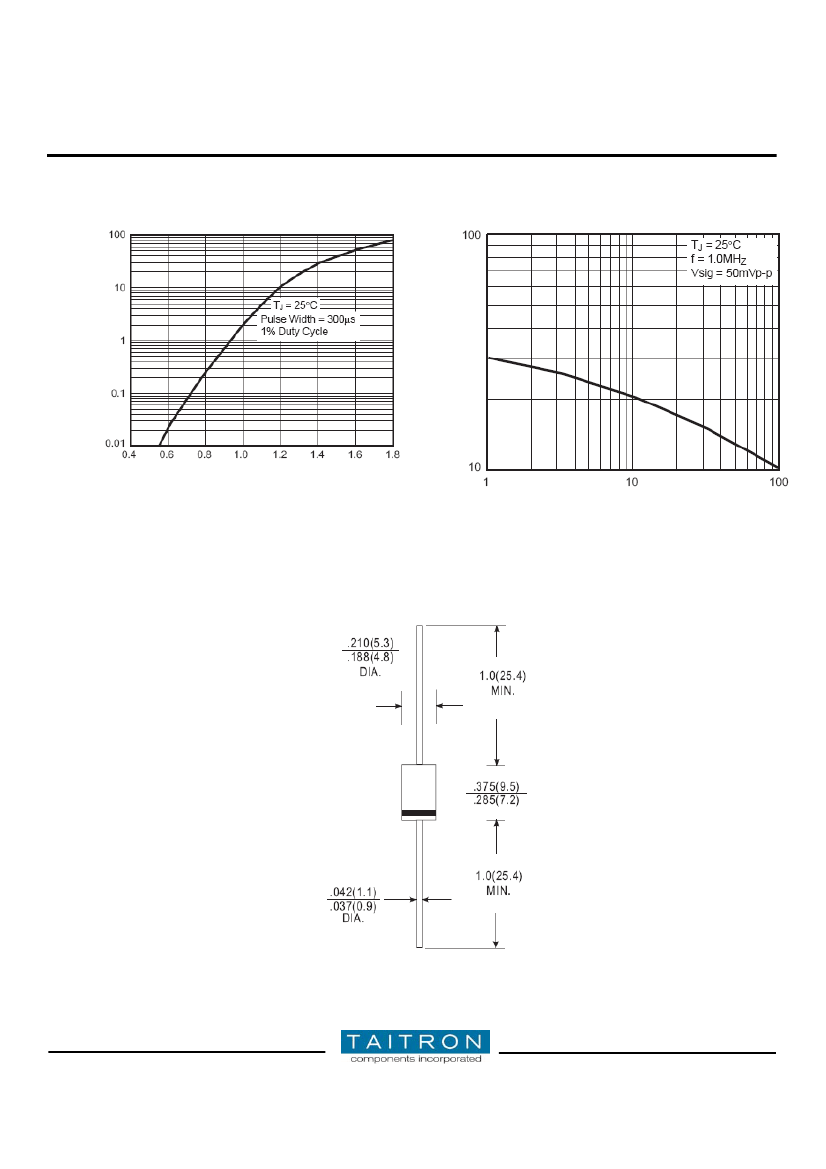

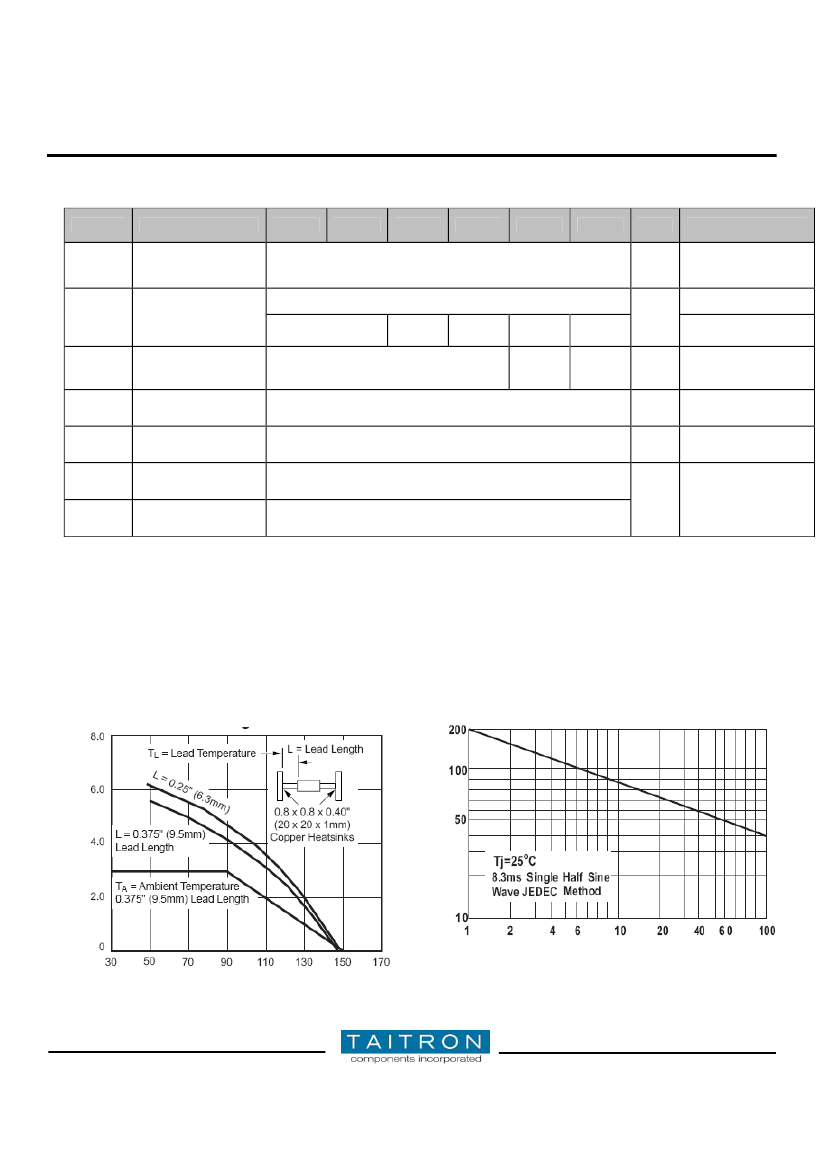

MR851 Related Products

	MR851	MR850	MR852	MR854
Description	3 A, 100 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, SILICON, RECTIFIER DIODE	3 A, 200 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 400 V, SILICON, RECTIFIER DIODE, DO-201AD
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	TAITRON Components	TAITRON Components	TAITRON Components	TAITRON Components
Reach Compliance Code	unknow	unknow	unknow	unknow
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Minimum breakdown voltage	100 V	50 V	200 V	400 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V	1.3 V	1.3 V	1.3 V
JEDEC-95 code	DO-201AD	DO-201AD	DO-201AD	DO-201AD
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	200 A	200 A	200 A	200 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	-150 °C	-150 °C	-150 °C	-150 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-50 °C
Maximum output current	3 A	3 A	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Maximum repetitive peak reverse voltage	100 V	50 V	200 V	400 V
Maximum reverse current	10 µA	10 µA	10 µA	10 µA
Maximum reverse recovery time	0.15 µs	0.15 µs	0.15 µs	0.15 µs
Reverse test voltage	100 V	50 V	200 V	400 V
surface mount	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL
