DM5000-80XX-40 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> DM5000-80XX-40

Preview

DM5000-80XX-40: DescriptionRectangular Connector Adapter, 80 Contacts(Side1), 68 Contacts(Side2), Female-Female; CategoryThe connector The connector; File Size52KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric Compare View All

DM5000-80XX-40 Overview

Rectangular Connector Adapter, 80 Contacts(Side1), 68 Contacts(Side2), Female-Female

DM5000-80XX-40 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Connector type	RECTANGULAR CONNECTOR ADAPTER
Contact point gender	FEMALE-FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
触点数量:侧 1	80
触点数量:侧 2	68
Shell material	THERMOPLASTIC
direct connection	NO
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

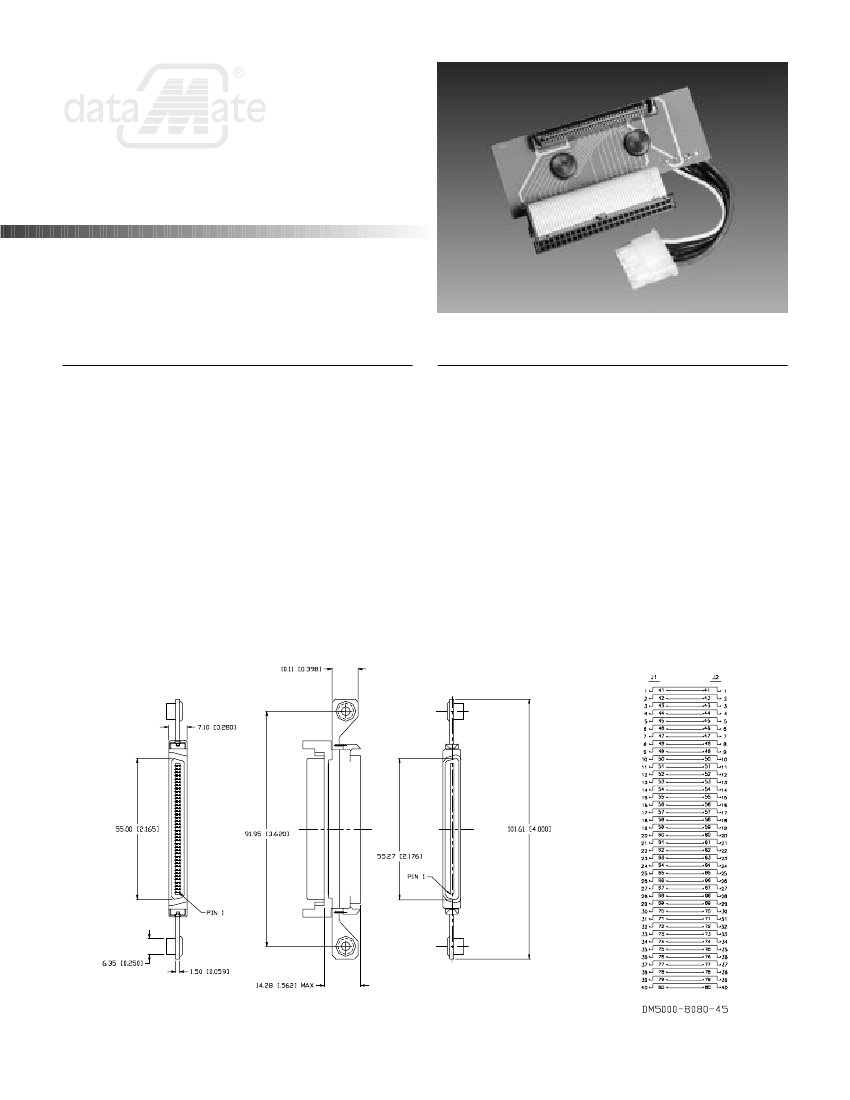

DM5000

Part Number

DM5000 -

80XX - 40 = 80 pin SCA Female x 68 HDF,

Active Negation Termination

- 45 = SCA-2 Extender

- 48 = 80 pin SCA Female x 68 HDF,

Active Negation Termination

- 51 = 80 pin Male x 50 LDF Ribbon

Cable with Power Receptacle on

Cable - No Termination

- 52 = 80 pin Female x 68 HDF - No

Temination, use on LVD

- 53 = 80 pin Female x 68 LDF with

Power Receptacle

- 54 = 80 pin Male x 68 LDF with Power

Receptacle on Cable-No

Termination

Specifications

Insulator Material:

Reinforced thermoplastic, rated UL 94V-0

Plating Material:

Plug contacts plated .000020" min Au over .000050"

Ni socket contacts plated .000005" Au flash over

palladium Ni

Circuit Board:

FR 4 material rated Class III (thickness + .0003")

62

DM5000-80XX-40 Related Products

	DM5000-80XX-40	DM5000-80XX-48	DM5000-80XX-51	DM5000-80XX-52	DM5000-80XX-53
Description	Rectangular Connector Adapter, 80 Contacts(Side1), 68 Contacts(Side2), Female-Female	Rectangular Connector Adapter, 80 Contacts(Side1), 68 Contacts(Side2), Female-Female	Rectangular Connector Adapter, 80 Contacts(Side1), 50 Contacts(Side2), Male-Female	Rectangular Connector Adapter, 80 Contacts(Side1), 68 Contacts(Side2), Female-Female	Rectangular Connector Adapter, 80 Contacts(Side1), 68 Contacts(Side2), Female-Female
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Connector type	RECTANGULAR CONNECTOR ADAPTER	RECTANGULAR CONNECTOR ADAPTER	RECTANGULAR CONNECTOR ADAPTER	RECTANGULAR CONNECTOR ADAPTER	RECTANGULAR CONNECTOR ADAPTER
Contact point gender	FEMALE-FEMALE	FEMALE-FEMALE	MALE-FEMALE	FEMALE-FEMALE	FEMALE-FEMALE
DIN compliance	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
触点数量:侧 1	80	80	80	80	80
触点数量:侧 2	68	68	50	68	68
Shell material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
direct connection	NO	NO	NO	NO	NO
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	-	-	Methode Electronics Inc.	Methode Electronics Inc.	Methode Electronics Inc.
