KMG
Series
Miniature
General Purpose
Solvent Proof
105 C
Maximum
Temperature
MINIATURE -105 C
KMG

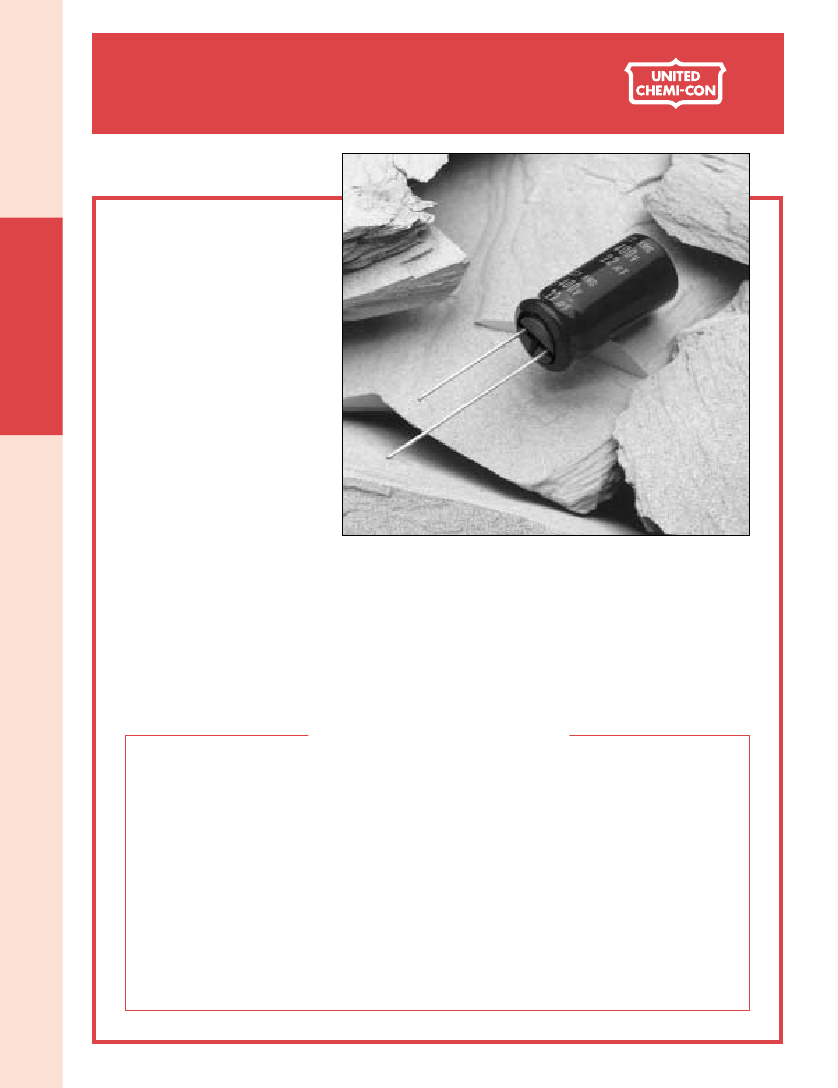

The KMG series capacitors are designed for general purpose use with an operating temperature
range for most of these capacitors from 55 C to 105 C. The KMG series is a miniaturized version
of the KME series with a load life of 1,000 hours at 105 C with the rated ripple current applied.
The KMG series capacitors below 350 volts were developed to withstand HCFC cleaning agents for
five minutes by ultrasonic, vapor or immersion. This solvent proof design allows all circuit board
components to be cleaned together, at the same time, without resorting to more expensive epoxy
end-sealed capacitors. Refer to the Mini-Glossary for recommended cleaning conditions.
Summary of Specifications
Radial lead terminals.
Capacitance range: 0.1 to 22,000µF.
Voltage range: 6.3 to 450VDC.
Operating temperature range: 55 C to 105 C for 6.3 to 100V; 40 C to 105 C
for 160 to 400V; 25 C to 105 C for 450V.
Leakage current: See specifications table for leakage current values at 20 C.
Standard capacitance tolerance: 20%
Nominal case size (D L): 5 11mm to 18 40mm.
Rated lifetime: 1,000 to 2,000 hours at 105 C with the rated ripple current applied,
depending on rated voltage and case size.
136
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
KMG Series
KMG Specifications
Item
Rated Voltage Range
Operating Temperature Range
Capacitance Range
Capacitance Tolerance
Leakage Current
At
6.3 to 100VDC
55 to 105 C
0.1 to 22,000 F
20% ( M ) at
20 C
DC Rated Voltage
6.3 -100V
160 - 450V
Test Time
After 1 minute
After 1 minute
After 5 minutes
I
CV
≤
1,000: I
CV
≤
1,000: I
Leakage Current ( A )
0.03CV or 4 A, whichever is greater.
0.1CV 40
0.03CV 15
CV >1,000: I
CV >1,000: I
0.04CV 100
0.02CV 25
Characteristics
160 to 400VDC
40 to 105 C
450VDC
25 to 105 C
20 C, 120Hz
MINIATURE -105 C
Where I = Leakage current ( A ), C = Nominal capacitance ( F ) and V = Rated voltage ( V )
KMG
Dissipation Factor ( Tan )
At
20 C, 120Hz
6.3
0.34
10
0.24
16
0.20
25
0.16
35
0.14
50
0.12
63
0.10
100
0.08
160 - 250
0.20
350 - 450
0.24
Rated Voltage ( V )
Tan
( DF )
When nominal capacitance exceeds 1,000 F, add 0.02 to the values above for each 1,000 F increase.
Low Temperature
Characteristics
At 120Hz, impedance ( Z ) ratio between the
exceed the values given below.
Rated Voltage ( V )
Z ( 25 C ) / Z ( 20 C )
Z ( 40 C ) / Z ( 20 C )
6.3
5
12
10
4
10
16
3
8
25 C or
25
2
5
35
2
4
40 C value and
50 -100
2
3
20 C value shall not
450
6
–
160 - 250 350 - 400
3
4
6
6
Ripple Current Multipliers
Refer to Section 4 of the
Mini-Glossary for explanation
of Ripple Current Multipliers.
Ambient Temperature ( C )
85 C
1.75
105 C
1.00
Frequency (Hz )
Capacitance ( F )
≤
3.3 F
4.7- 33 F
47-1000 F
≥
2200 F
50Hz
0.65
0.75
0.80
0.85
120Hz
1.00
1.00
1.00
1.00
300Hz
1.35
1.25
1.15
1.03
1kHz
1.75
1.50
1.30
1.05
10kHz
2.30
1.75
1.40
1.08
100kHz
2.50
1.80
1.50
1.08
Load Life
The following specifications shall be satisfied when the capacitors are restored to 20 C after
subjecting them to the DC rated voltage for the specified test time at 105 C with the rated
ripple current applied. The sum of DC voltage and peak AC voltage must not exceed the full
rated voltage of the capacitors.
Case Diameter
Ø
5 -
Ø
10mm
Ø
12.5 -
Ø
18mm
Test Time
1,000 hours for 6.3 - 450V
1,000 hours for 6.3 -100V
2,000 hours for 160 - 450V
Capacitance change:
≤
20% of initial measured value
Tan ( DF )
:
≤
200% of initial specified value
Leakage current
:
≤
initial specified value
Shelf Life
The following specifications shall be satisfied when the capacitors are restored to 20 C after
exposing them for 1,000 hours at 105 C without voltage applied. The rated voltage shall be
applied to the capacitors for a minimum of 30 minutes, at least 24 hours and not more than
48 hours before the measurements.
Capacitance change:
≤
20% of initial measured value
Tan ( DF )
:
≤
200% of initial specified value
Leakage current
:
≤
initial specified value for 6.3 -100V
:
≤
500% of initial specified value for 160 - 450V
Others
Satisfies characteristic W of JIS C5141
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
137
KMG Series
Diagram of Dimensions
VB/Radial Lead
Unit: mm
PVC Sleeve
d
D
'
D
F
F
F
F
L
Vent
(Except 5)
L
'
15
MIN.
4
MIN.
5~ 8
10
12.5 ~ 18
MINIATURE -105 C
KMG
Gas escape end seal for all case diameters.
For optional lead configurations and tape and ammo
packaging, refer to the beginning of the Miniature section.
Ø
D
5
6.3
8
10, 12.5
16, 18
Ø
D
'
max.
Ø
D
Ø
D
Ø
D
Ø
D
Ø
D
0.5
0.5
0.5
0.5
0.5
L
'
max.
L 1.5
L 1.5
L 1.5
L 1.5
L 1.5
Ø
d
0.5
0.5
0.6
0.6
0.8
F 0.5
2.0
2.5
3.5
5.0
7.5
Part Numbering System for KMG Series
KMG
400
VB
22R
M
12X25
When ordering, always specify complete catalog number for KMG Series.
LL
Lead Length: LL is Standard.
Case Code: See Case Sizes in Tables.
Capacitance Tolerance: M = 20%
Capacitance Value: Expressed in Microfarads. The first two digits are
significant figures, and the third digit indicates the number of zeros
for capacitance of 100 F or more. R indicates the decimal point for
capacitance less than 100 F (e.g. R22 = .22 F; 2R2 = 2.2 F;
22R = 22 F; 221 = 220 F; 222 = 2,200 F; 223 = 22,000 F ).
Lead Configuration: VB = Radial Lead Terminals.
DC Rated Voltage: Expressed in Volts (e.g. 400 = 400WVDC).
Series Name: Indicates Basic Capacitor Design.
Standard Voltage Ratings - VB/Radial Lead
Rated
Voltage
(WVDC)
Capacitance
(µF )
Catalog
Part Number
Nominal
Case Size*
D L ( mm )
Maximum ESR
(
Ω
) at
20 C, 120Hz
Maximum
Ripple Current
( mA rms) at
105 C, 120Hz
140
190
230
310
380
540
710
840
1,090
1,350
1,650
2,010
2,350
6.3 Volts
8 Volts Surge
220
330
470
680
1,000
1,500
2,200
3,300
4,700
6,800
10,000
15,000
22,000
KMG6.3VB221M5X11LL
KMG6.3VB331M6X11LL
KMG6.3VB471M6X11LL
KMG6.3VB681M8X11LL
KMG6.3VB102M8X11LL
KMG6.3VB152M10X16LL
KMG6.3VB222M10X20LL
KMG6.3VB332M10X20LL
KMG6.3VB472M12X20LL
KMG6.3VB682M12X25LL
KMG6.3VB103M16X25LL
KMG6.3VB153M16X35LL
KMG6.3VB223M18X40LL
5
6.3
6.3
8
8
10
10
10
12.5
12.5
16
16
18
11
11
11
11.5
11.5
16
20
20
20
25
25
35.5
40
2.562
1.708
1.199
0.829
0.564
0.376
0.271
0.191
0.141
0.107
0.086
0.069
0.057
*
The case sizes in table are with no sleeve, refer to diagram for case sizes with sleeve.
138
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
KMG Series
Standard Voltage Ratings - VB/Radial Lead
Rated
Voltage
(WVDC)
Capacitance
(µF )
Catalog
Part Number
Nominal
Case Size*
D L ( mm )
Maximum ESR
(
Ω
) at
20 C, 120Hz
Maximum
Ripple Current
( mA rms) at
105 C, 120Hz
170
200
250
380
460
625
760
1,000
1,260
1,570
1,890
2,180
110
145
180
260
310
460
560
760
920
1,170
1,480
1,780
2,060
80
96
130
160
230
310
380
560
680
895
1,090
1,400
1,710
2,040
90
120
150
220
270
350
460
665
810
1,030
1,260
1,610
1,910
10 Volts
13 Volts Surge
220
330
470
680
1,000
1,500
2,200
3,300
4,700
6,800
10,000
15,000
100
150
220
330
470
680
1,000
1,500
2,200
3,300
4,700
6,800
10,000
47
68
100
150
220
330
470
680
1,000
1,500
2,200
3,300
4,700
6,800
47
68
100
150
220
330
470
680
1,000
1,500
2,200
3,300
4,700
KMG10VB221M6X11LL
KMG10VB331M6X11LL
KMG10VB471M6X11LL
KMG10VB681M10X12LL
KMG10VB102M10X12LL
KMG10VB152M10X20LL
KMG10VB222M10X20LL
KMG10VB332M12X20LL
KMG10VB472M12X25LL
KMG10VB682M16X25LL
KMG10VB103M16X35LL
KMG10VB153M18X35LL
KMG16VB101M5X11LL
KMG16VB151M6X11LL
KMG16VB221M6X11LL
KMG16VB331M8X11LL
KMG16VB471M8X11LL
KMG16VB681M10X16LL
KMG16VB102M10X16LL
KMG16VB152M12X20LL
KMG16VB222M12X20LL
KMG16VB332M12X25LL
KMG16VB472M16X25LL
KMG16VB682M16X31LL
KMG16VB103M18X35LL
KMG25VB47RM5X11LL
KMG25VB68RM5X11LL
KMG25VB101M6X11LL
KMG25VB151M8X11LL
KMG25VB221M8X11LL
KMG25VB331M8X11LL
KMG25VB471M10X12LL
KMG25VB681M10X20LL
KMG25VB102M10X20LL
KMG25VB152M12X25LL
KMG25VB222M12X25LL
KMG25VB332M16X25LL
KMG25VB472M16X31LL
KMG25VB682M18X35LL
KMG35VB47RM5X11LL
KMG35VB68RM6X11LL
KMG35VB101M6X11LL
KMG35VB151M8X11LL
KMG35VB221M8X11LL
KMG35VB331M10X12LL
KMG35VB471M10X16LL
KMG35VB681M12X20LL
KMG35VB102M12X20LL
KMG35VB152M16X25LL
KMG35VB222M16X25LL
KMG35VB332M16X35LL
KMG35VB472M18X35LL
6.3
6.3
6.3
10
10
10
10
12.5
12.5
16
16
18
5
6.3
6.3
8
8
10
10
12.5
12.5
12.5
16
16
18
5
5
6.3
8
8
8
10
10
10
12.5
12.5
16
16
18
5
6.3
6.3
8
8
10
10
12.5
12.5
16
16
16
18
11
11
11
12.5
12.5
20
20
20
25
25
35.5
35.5
11
11
11
11.5
11.5
16
16
20
20
25
25
31.5
35.5
11
11
11
11.5
11.5
11.5
12.5
20
20
25
25
25
31.5
35.5
11
11
11
11.5
11.5
12.5
16
20
20
25
25
35.5
35.5
1.808
1.205
0.846
0.585
0.398
0.265
0.196
0.141
0.106
0.083
0.07
0.057
3.315
2.21
1.507
1.005
0.705
0.488
0.332
0.221
0.166
0.121
0.092
0.073
0.063
5.643
3.9
2.652
1.768
1.205
0.804
0.564
0.39
0.265
0.177
0.136
0.1
0.078
0.063
4.937
3.413
2.321
1.547
1.055
0.703
0.494
0.341
0.232
0.155
0.121
0.09
0.071
MINIATURE -105 C
KMG
16 Volts
20 Volts Surge
25 Volts
32 Volts Surge
35 Volts
44 Volts Surge
*
The case sizes in table are with no sleeve, refer to diagram for case sizes with sleeve.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
139
KMG Series
Standard Voltage Ratings - VB/Radial Lead
Rated
Voltage
(WVDC)
Capacitance
(µF )
Catalog
Part Number
Nominal
Case Size*
D L ( mm )
Maximum ESR
(
Ω
) at
20 C, 120Hz
Maximum
Ripple Current
( mA rms) at
105 C, 120Hz
1.3
2.9
4.3
6.2
13
20
25
30
40
65
90
110
145
180
245
300
410
530
780
950
1,410
1,470
1,770
46
71
100
120
215
335
510
640
930
7.1
15
21
29
32
54
93
130
165
265
440
540
715
985
28
34
67
120
145
195
335
540
705
50 Volts
63 Volts Surge
0.1
0.22
0.33
0.47
1.0
2.2
3.3
4.7
10
22
33
47
68
100
150
220
330
470
680
1,000
1,500
2,200
3,300
10
22
33
47
100
220
330
470
1,000
0.47
1.0
2.2
3.3
4.7
10
22
33
47
100
220
330
470
1,000
3.3
4.7
10
22
33
47
100
220
330
KMG50VBR10M5X11LL
KMG50VBR22M5X11LL
KMG50VBR33M5X11LL
KMG50VBR47M5X11LL
KMG50VB1R0M5X11LL
KMG50VB2R2M5X11LL
KMG50VB3R3M5X11LL
KMG50VB4R7M5X11LL
KMG50VB10RM5X11LL
KMG50VB22RM5X11LL
KMG50VB33RM5X11LL
KMG50VB47RM6X11LL
KMG50VB68RM8X11LL
KMG50VB101M8X11LL
KMG50VB151M10X12LL
KMG50VB221M10X12LL
KMG50VB331M10X16LL
KMG50VB471M10X20LL
KMG50VB681M12X25LL
KMG50VB102M12X25LL
KMG50VB152M16X31LL
KMG50VB222M16X35LL
KMG50VB332M18X35LL
KMG63VB10RM5X11LL
KMG63VB22RM5X11LL
KMG63VB33RM6X11LL
KMG63VB47RM6X11LL
KMG63VB101M10X12LL
KMG63VB221M10X16LL
KMG63VB331M10X20LL
KMG63VB471M12X20LL
KMG63VB102M16X25LL
KMG100VBR47M5X11LL
KMG100VB1R0M5X11LL
KMG100VB2R2M5X11LL
KMG100VB3R3M5X11LL
KMG100VB4R7M5X11LL
KMG100VB10RM6X11LL
KMG100VB22RM8X11LL
KMG100VB33RM8X11LL
KMG100VB47RM10X12LL
KMG100VB101M10X20LL
KMG100VB221M12X25LL
KMG100VB331M16X25LL
KMG100VB471M16X31LL
KMG100VB102M18X40LL
KMG160VB3R3M6X11LL
KMG160VB4R7M6X11LL
KMG160VB10RM10X12LL
KMG160VB22RM10X20LL
KMG160VB33RM10X20LL
KMG160VB47RM12X20LL
KMG160VB101M16X25LL
KMG160VB221M16X31LL
KMG160VB331M18X35LL
5
5
5
5
5
5
5
5
5
5
5
6.3
8
8
10
10
10
10
12.5
12.5
16
16
18
5
5
6.3
6.3
10
10
10
12.5
16
5
5
5
5
5
6.3
8
8
10
10
12.5
16
16
18
6.3
6.3
10
10
10
12.5
16
16
18
11
11
11
11
11
11
11
11
11
11
11
11
11.5
11.5
12.5
12.5
16
20
25
25
31.5
35.5
35.5
11
11
11
11
12.5
16
20
20
25
11
11
11
11
11
11
11.5
11.5
12.5
20
25
25
31.5
40
11
11
12.5
20
20
20
25
31.5
35.5
1,989.0
904.091
602.727
423.191
198.9
90.409
60.273
42.319
19.89
9.041
6.027
4.232
2.925
1.989
1.326
0.904
0.603
0.423
0.293
0.199
0.133
0.105
0.08
16.575
7.534
5.023
3.527
1.658
0.753
0.502
0.353
0.166
282.128
132.6
60.273
40.182
28.213
13.26
6.027
4.018
2.821
1.326
0.603
0.402
0.282
0.133
100.455
70.532
33.15
15.068
10.045
7.053
3.315
1.507
1.005
MINIATURE -105 C
KMG
63 Volts
79 Volts Surge
100 Volts
125 Volts Surge
160 Volts
200 Volts Surge
*
The case sizes in table are with no sleeve, refer to diagram for case sizes with sleeve.
140
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
京公网安备 11010802033920号
EEWORLD
