DM9309J/883 datasheet, PDF - EEWORLD Datasheet

DM9309J/883: DescriptionMultiplexer, 9309 Series, 2-Func, 4 Line Input, 1 Line Output, Complementary Output, CDIP16, CERAMIC, DIP-16; Categorylogic logic; File Size94KB，6 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

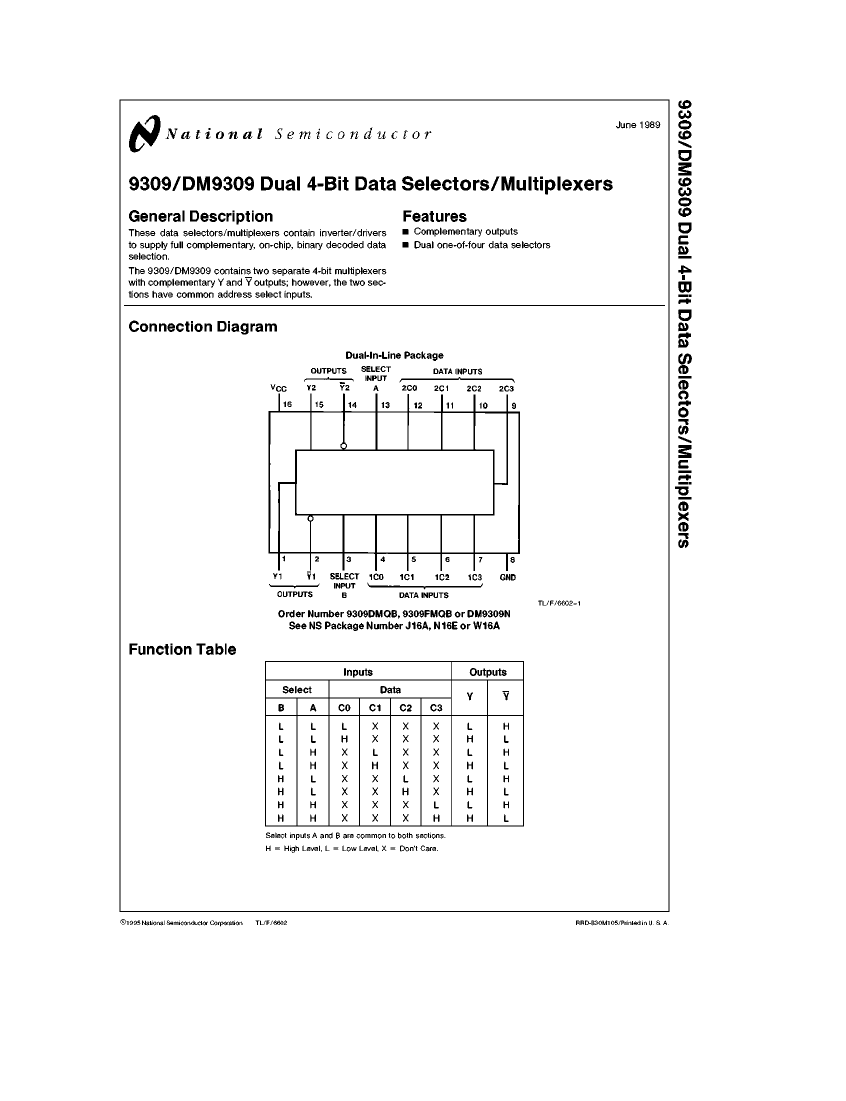

DM9309J/883 Overview

Multiplexer, 9309 Series, 2-Func, 4 Line Input, 1 Line Output, Complementary Output, CDIP16, CERAMIC, DIP-16

Parameter Name	Attribute value
package instruction	DIP,
Reach Compliance Code	unknown
series	9309
JESD-30 code	R-GDIP-T16

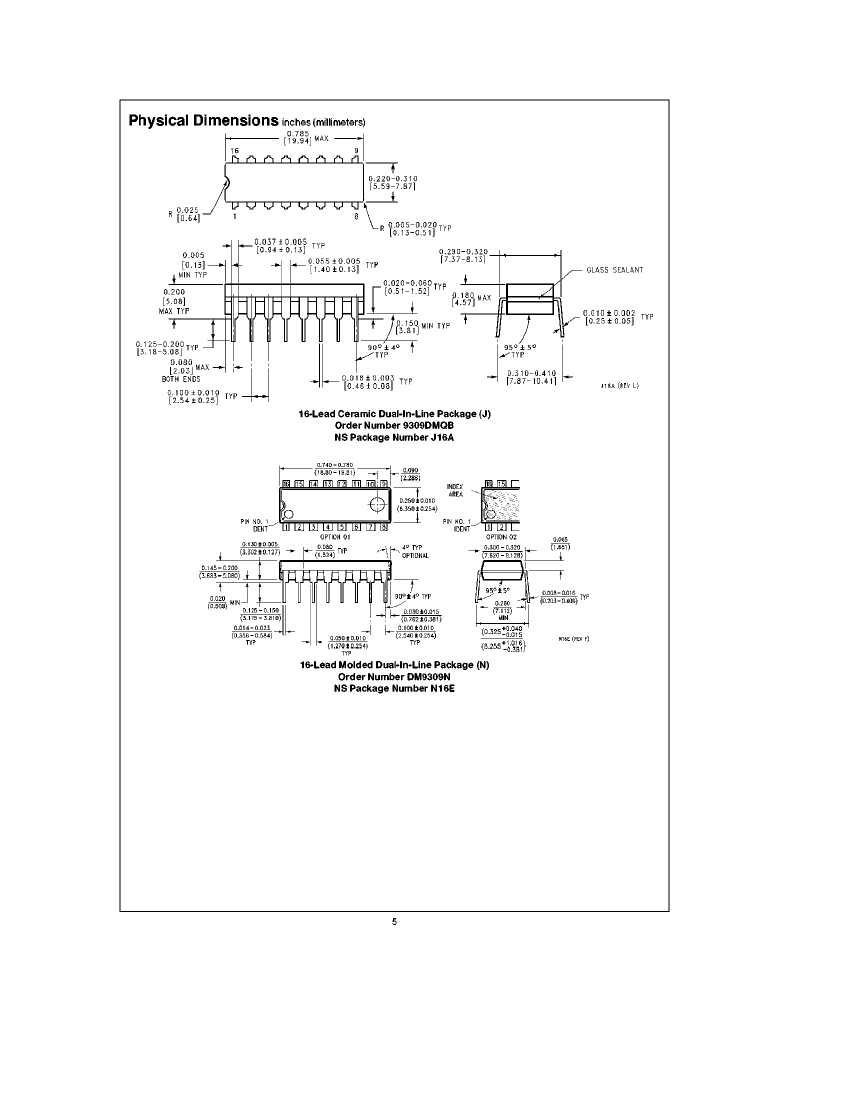

length	19.43 mm
Logic integrated circuit type	MULTIPLEXER
Number of functions	2
Number of entries	4
Output times	1
Number of terminals	16

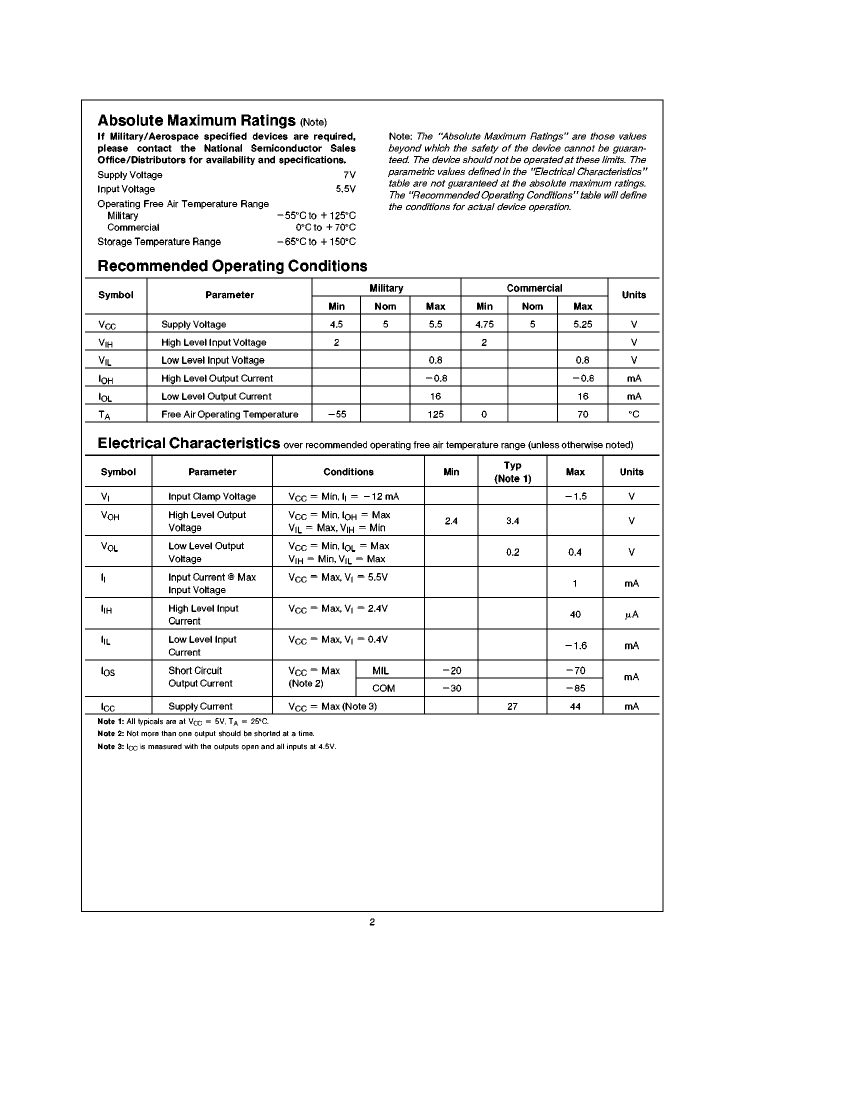

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE

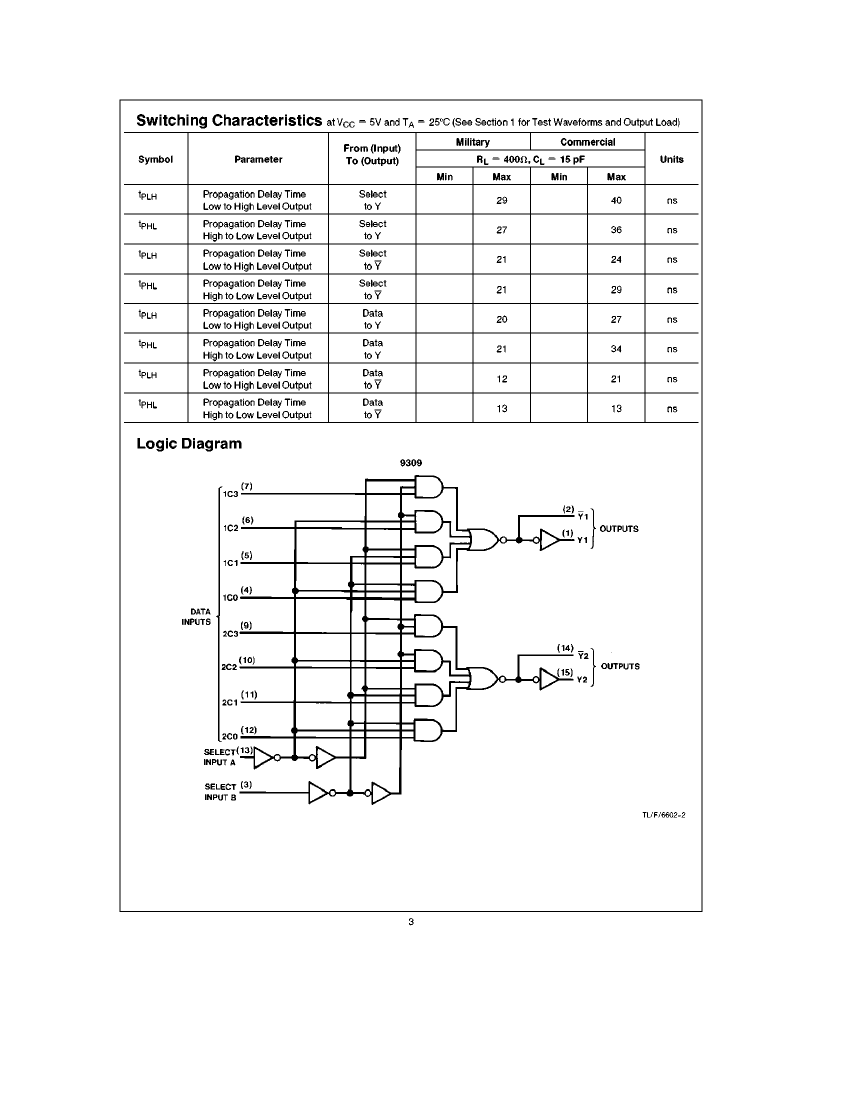

propagation delay (tpd)	27 ns
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

	DM9309J/883
Description	Multiplexer, 9309 Series, 2-Func, 4 Line Input, 1 Line Output, Complementary Output, CDIP16, CERAMIC, DIP-16
package instruction	DIP,
Reach Compliance Code	unknown
series	9309
JESD-30 code	R-GDIP-T16
length	19.43 mm
Logic integrated circuit type	MULTIPLEXER
Number of functions	2
Number of entries	4
Output times	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	27 ns
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1
