LQN1HR21K04M01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LQN1HR21K04M01

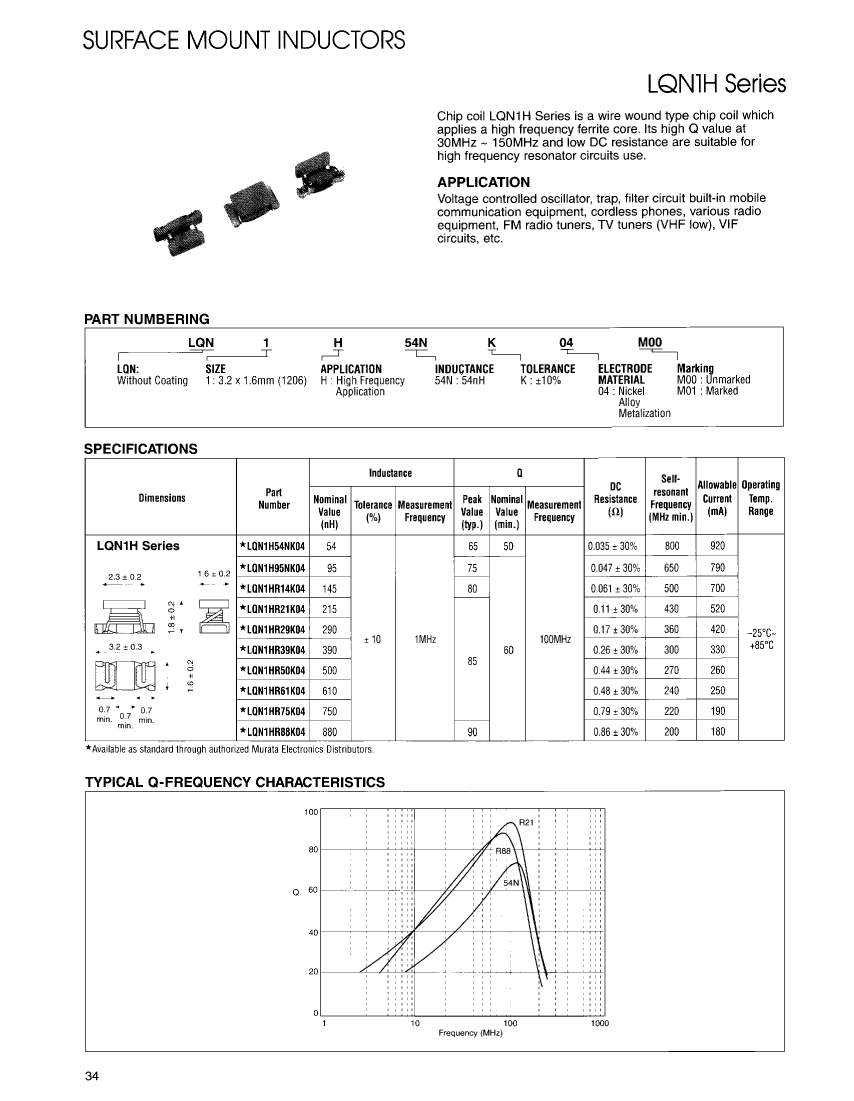

LQN1HR21K04M01: DescriptionGeneral Purpose Inductor, 0.215uH, 10%, 1 Element, Ferrite-Core, SMD; CategoryPassive components inductor; File Size45KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric Compare View All

LQN1HR21K04M01 Overview

General Purpose Inductor, 0.215uH, 10%, 1 Element, Ferrite-Core, SMD

LQN1HR21K04M01 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
core material	FERRITE
DC Resistance	0.11 Ω
Nominal inductance(L)	0.215 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Minimum quality factor (at nominal inductance)	60
Maximum rated current	0.52 A
self resonant frequency	430 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 100 MHZ
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	J BEND
Test frequency	1 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

LQN1HR21K04M01 Related Products

	LQN1HR21K04M01	HCHP1020K1290DG151	LQN1H95NK04M01	LQN1HR14K04M01	LQN1HR50K04M01	LQN1HR75K04M01	LQN1HR39K04M01	LQN1H54NK04M01	LQN1HR61K04M01	LQN1HR88K04M01
Description	General Purpose Inductor, 0.215uH, 10%, 1 Element, Ferrite-Core, SMD	Fixed Resistor, Metal Glaze/thick Film, 1W, 129ohm, 200V, 0.5% +/-Tol, -100,100ppm/Cel, 1020,	General Purpose Inductor, 0.095uH, 10%, 1 Element, Ferrite-Core, SMD	General Purpose Inductor, 0.145uH, 10%, 1 Element, Ferrite-Core, SMD	General Purpose Inductor, 0.5uH, 10%, 1 Element, Ferrite-Core, SMD	General Purpose Inductor, 0.75uH, 10%, 1 Element, Ferrite-Core, SMD	General Purpose Inductor, 0.39uH, 10%, 1 Element, Ferrite-Core, SMD	General Purpose Inductor, 0.054uH, 10%, 1 Element, Ferrite-Core, SMD	General Purpose Inductor, 0.61uH, 10%, 1 Element, Ferrite-Core, SMD	General Purpose Inductor, 0.88uH, 10%, 1 Element, Ferrite-Core, SMD
Reach Compliance Code	unknown	compliant	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
core material	FERRITE	-	FERRITE	FERRITE	-	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE
DC Resistance	0.11 Ω	-	0.047 Ω	0.061 Ω	-	0.79 Ω	0.26 Ω	0.035 Ω	0.48 Ω	0.86 Ω
Nominal inductance(L)	0.215 µH	-	0.095 µH	0.145 µH	-	0.75 µH	0.39 µH	0.054 µH	0.61 µH	0.88 µH
Inductor Applications	RF INDUCTOR	-	RF INDUCTOR	RF INDUCTOR	-	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	-	1	1	-	1	1	1	1	1
Number of terminals	2	2	2	2	-	2	2	2	2	2
Maximum operating temperature	85 °C	155 °C	85 °C	85 °C	-	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-55 °C	-25 °C	-25 °C	-	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Minimum quality factor (at nominal inductance)	60	-	60	60	-	60	60	50	60	60
Maximum rated current	0.52 A	-	0.79 A	0.7 A	-	0.19 A	0.33 A	0.92 A	0.25 A	0.18 A
self resonant frequency	430 MHz	-	650 MHz	500 MHz	-	220 MHz	300 MHz	800 MHz	240 MHz	200 MHz
Shape/Size Description	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	-	NO	NO	-	NO	NO	NO	NO	NO
special characteristics	Q MEASURED AT 100 MHZ	-	Q MEASURED AT 100 MHZ	Q MEASURED AT 100 MHZ	-	Q MEASURED AT 100 MHZ	Q MEASURED AT 100 MHZ	Q MEASURED AT 100 MHZ	Q MEASURED AT 100 MHZ	Q MEASURED AT 100 MHZ
surface mount	YES	-	YES	YES	-	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	-	DUAL ENDED	DUAL ENDED	-	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	J BEND	-	J BEND	J BEND	-	J BEND	J BEND	J BEND	J BEND	J BEND
Test frequency	1 MHz	-	1 MHz	1 MHz	-	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz
Tolerance	10%	0.5%	10%	10%	-	10%	10%	10%	10%	10%
Maker	-	-	Murata	Murata	Murata	Murata	Murata	Murata	Murata	Murata
