IRFSL4410ZTRRPBF

Description
Power Field-Effect Transistor, 75A I(D), 100V, 0.009ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-262AA, LEAD FREE, PLASTIC, TO-262, 3 PIN
CategoryDiscrete semiconductor    The transistor
File Size840KB,11 Pages
ManufacturerInternational Rectifier ( Infineon )
Websitehttp://www.irf.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

IRFSL4410ZTRRPBF Overview

Power Field-Effect Transistor, 75A I(D), 100V, 0.009ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-262AA, LEAD FREE, PLASTIC, TO-262, 3 PIN

IRFSL4410ZTRRPBF Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Parts packaging codeTO-262AA
package instructionIN-LINE, R-PSIP-T3
Contacts3
Reach Compliance Codecompliant
ECCN codeEAR99
Avalanche Energy Efficiency Rating (Eas)242 mJ
Shell connectionDRAIN
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage100 V
Maximum drain current (ID)75 A
Maximum drain-source on-resistance0.009 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JEDEC-95 codeTO-262AA
JESD-30 codeR-PSIP-T3
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals3
Operating modeENHANCEMENT MODE
Maximum operating temperature175 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)260
Polarity/channel typeN-CHANNEL
Maximum pulsed drain current (IDM)390 A
Certification statusNot Qualified
surface mountNO
Terminal surfaceMATTE TIN OVER NICKEL
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperature40
transistor applicationsSWITCHING
Transistor component materialsSILICON
Base Number Matches1

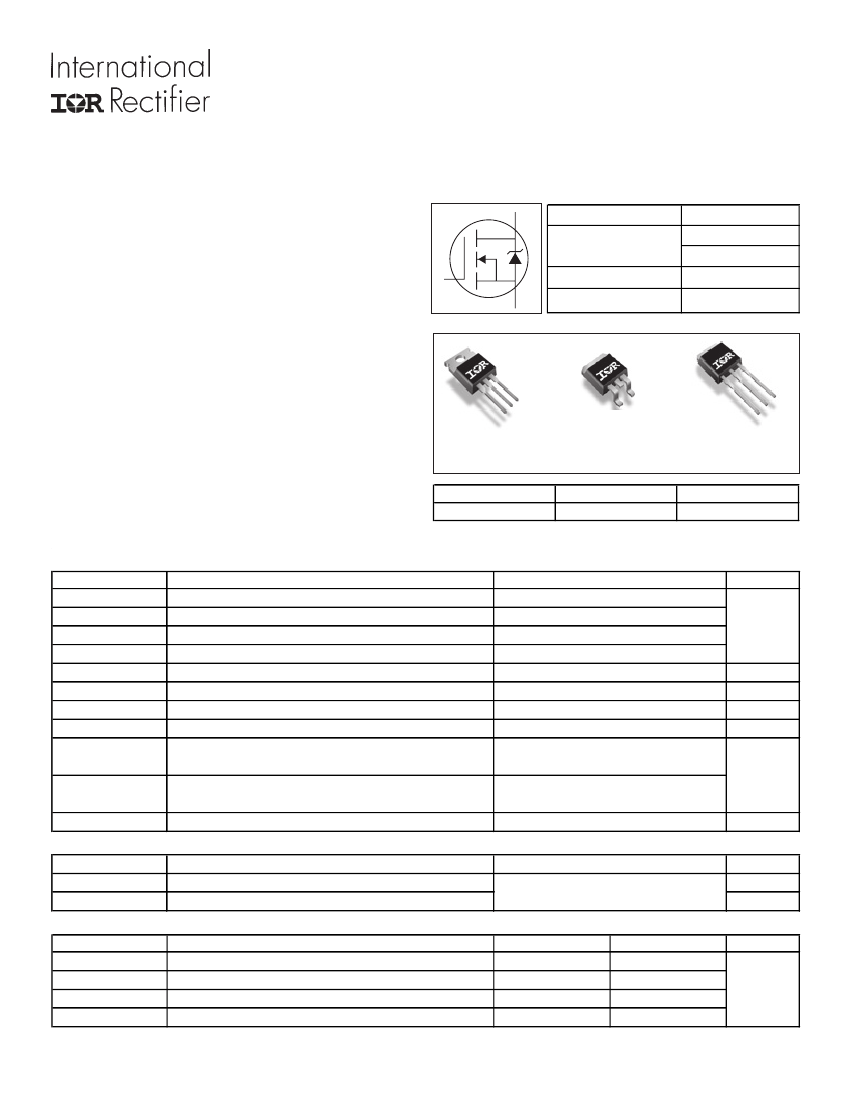

PD - 97278B
IRFB4410ZPbF
IRFS4410ZPbF
IRFSL4410ZPbF
HEXFET
®
Power MOSFET
Applications
l
High Efficiency Synchronous Rectification in SMPS
l
Uninterruptible Power Supply
l
High Speed Power Switching
l
Hard Switched and High Frequency Circuits
Benefits
l
Improved Gate, Avalanche and Dynamic dV/dt
Ruggedness
l
Fully Characterized Capacitance and Avalanche
SOA
l
Enhanced body diode dV/dt and dI/dt Capability
l
Lead-Free
D
G
S
V
DSS
R
DS(on)
typ.
max.
I
D (Silicon Limited)
I
D (Package Limited)
D
D
100V
7.2m:
9.0m:
97c
75A
D
G
D
S
G
D
S
G
D
S
TO-220AB
IRFB4410ZPbF
G
D
2
Pak
IRFS4410ZPbF
D
TO-262
IRFSL4410ZPbF
S
Gate
Drain
Source
Absolute Maximum Ratings
Symbol
I
D
@ T
C
= 25°C
I
D
@ T
C
= 100°C
I
D
@ T
C
= 25°C
I
DM
P
D
@T
C
= 25°C
V
GS
dv/dt
T
J
T
STG
Parameter
Continuous Drain Current, V
GS
@ 10V (Silicon Limited)
Continuous Drain Current, VGS @ 10V (Silicon Limited)
Continuous Drain Current, V
GS
@ 10V (Package Limited)
Pulsed Drain Current
d
Maximum Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
Peak Diode Recovery
f
Operating Junction and
Storage Temperature Range
Soldering Temperature, for 10 seconds
(1.6mm from case)
Mounting torque, 6-32 or M3 screw
Single Pulse Avalanche Energy
e
Avalanche Current
c
Repetitive Avalanche Energy
g
Max.
97c
69c
75
390
230
1.5
± 20
16
-55 to + 175
300
10lbxin (1.1Nxm)
242

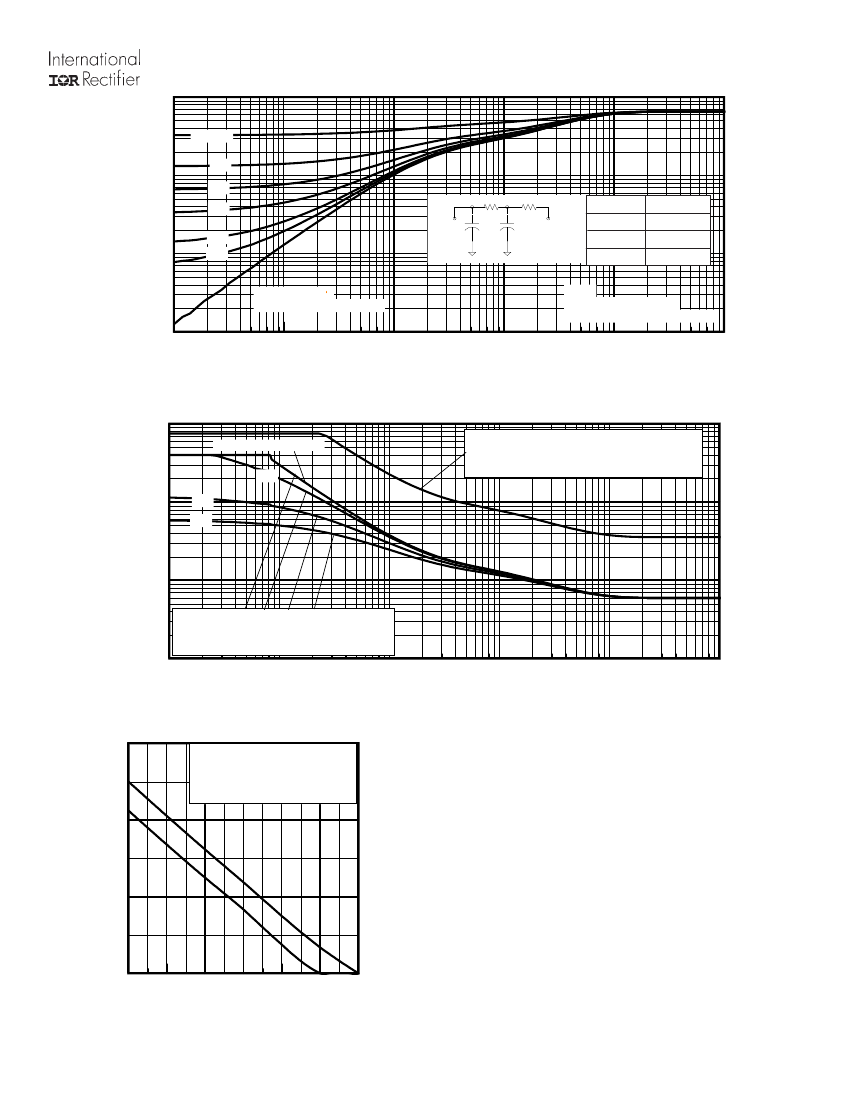

See Fig. 14, 15, 22a, 22b,
Units
A
W
W/°C
V
V/ns
°C
Avalanche Characteristics
E
AS (Thermally limited)
I
AR
E
AR
mJ
A
mJ
Thermal Resistance
Symbol
R
θJC
R
θCS
R
θJA
R
θJA
Parameter
Junction-to-Case
k
Case-to-Sink, Flat Greased Surface , TO-220
Junction-to-Ambient, TO-220
k
Junction-to-Ambient (PCB Mount) , D Pak
jk
2
Typ.
–––
0.50
–––
–––
Max.
0.65
–––
62
40
Units
°C/W

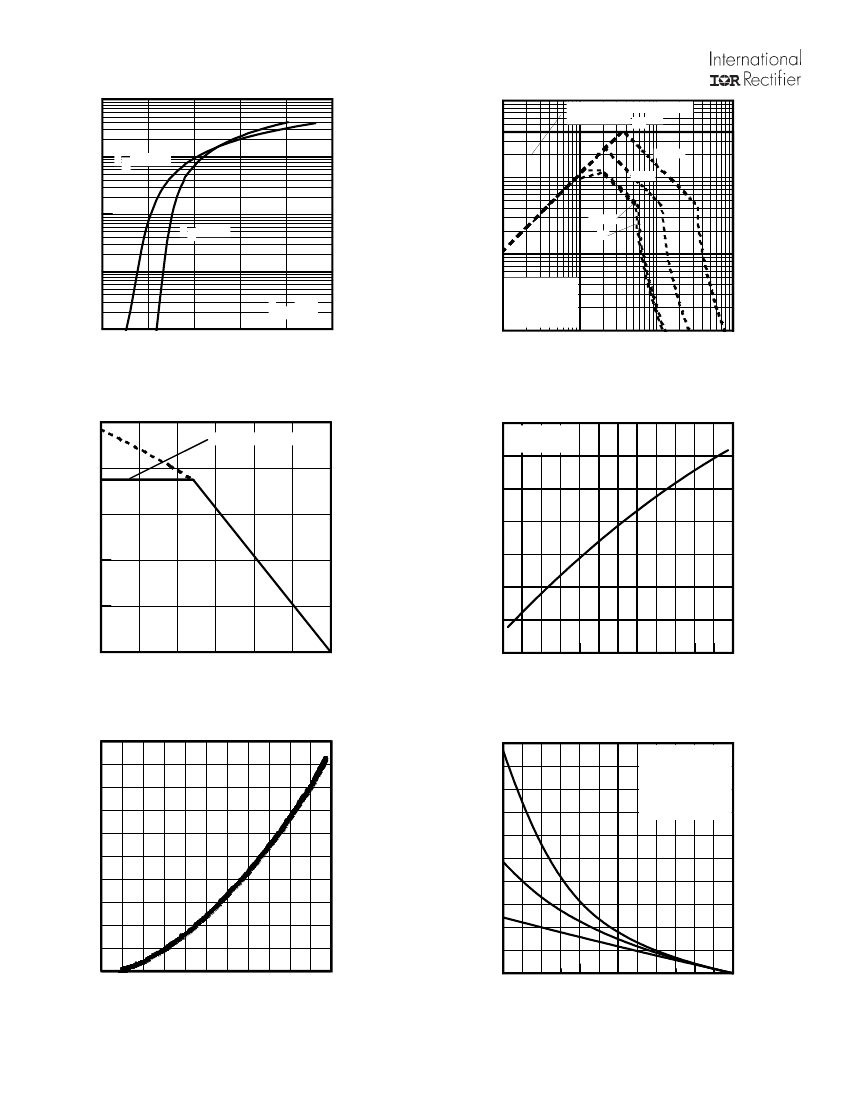

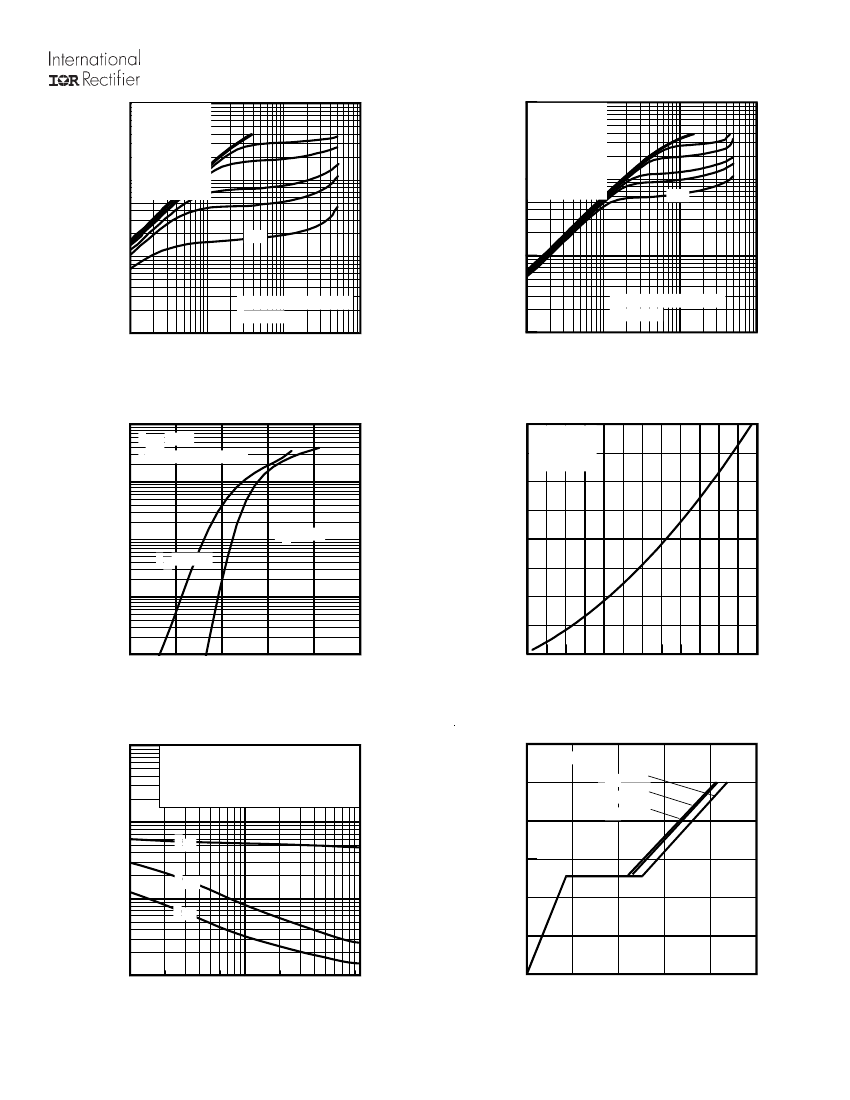

www.irf.com
1
06/01/07
