SS14 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SS14

SS14: DescriptionSIGNAL DIODE; CategoryDiscrete semiconductor diode; File Size171KB，3 Pages; ManufacturerTAITRON Components; Websitehttp://www.taitroncomponents.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SS14 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SS14	-	-	View	Buy Now

SS14 Overview

SIGNAL DIODE

SS14 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TAITRON Components
Parts packaging code	DO-214AC
package instruction	ROHS COMPLIANT, PLASTIC, SMA, 2 PIN
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-50 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	40 V
surface mount	YES
technology	SCHOTTKY
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

1.0A Surface Mount

Schottky Rectifier

SS12

–

SS110

1.0A Surface Mount Schottky Rectifier

Features

•

Low Profile in SMA Package

•

High current capability, low forward voltage drop

•

Plastic package has Underwriters Laboratory Flammability

Classification 94V-0

•

High temperature soldering guaranteed: 250° C/10 seconds, at terminals

•

RoHS compliant

SMA

(DO-214AC)

Mechanical Data

Case:

Terminals:

Polarity

Weight:

JEDEC DO-214AC, Molded plastic body

Solder plated, solderable per MIL-STD-750D, Method 2026

Color band denotes the cathode end

0.002 ounce, 0.064 gram

Maximum Ratings & Electrical Characteristics

Ambient

=25ºC unless noted otherwise)

Symbols

Description

Maximum RMS voltage

Maximum repetitive peak reverse

voltage

Maximum DC blocking voltage

Maximum average forward rectified

current (FIG.1)

Peak forward surge current

(JEDEC Method)

Maximum instantaneous forward

voltage at 3.0A

Maximum DC reverse current at

rated DC blocking voltage

Maximum thermal resistance,

Junction to Ambient

Typical Junction Capacitance

(NOTE)

Operating junction temperature

range

Storage Temperature Range

-50 to +125

-65 to +150

0.50

0.5

° C/W

110

-50 to +150

°C

=4V, f=1MHz

=100 °C

1.0

110

100

Unit

8.3ms single half sine-

wave superimposed on

rated load

(AV)

=1.0A

=25 °C

Conditions

RMS

RRM

(AV)

FSM

θJA

θJL

0.75

0.85

STG

TAITRON COMPONENTS INCORPORATED

www.taitroncomponents.com

Tel: (800)-TAITRON

Fax: (800)-TAITFAX

(800)-824-8766

(800)-824-8329

(661)-257-6060

(661)-257-6415

Rev. B/AH 2008-02-18

Page 1 of 3

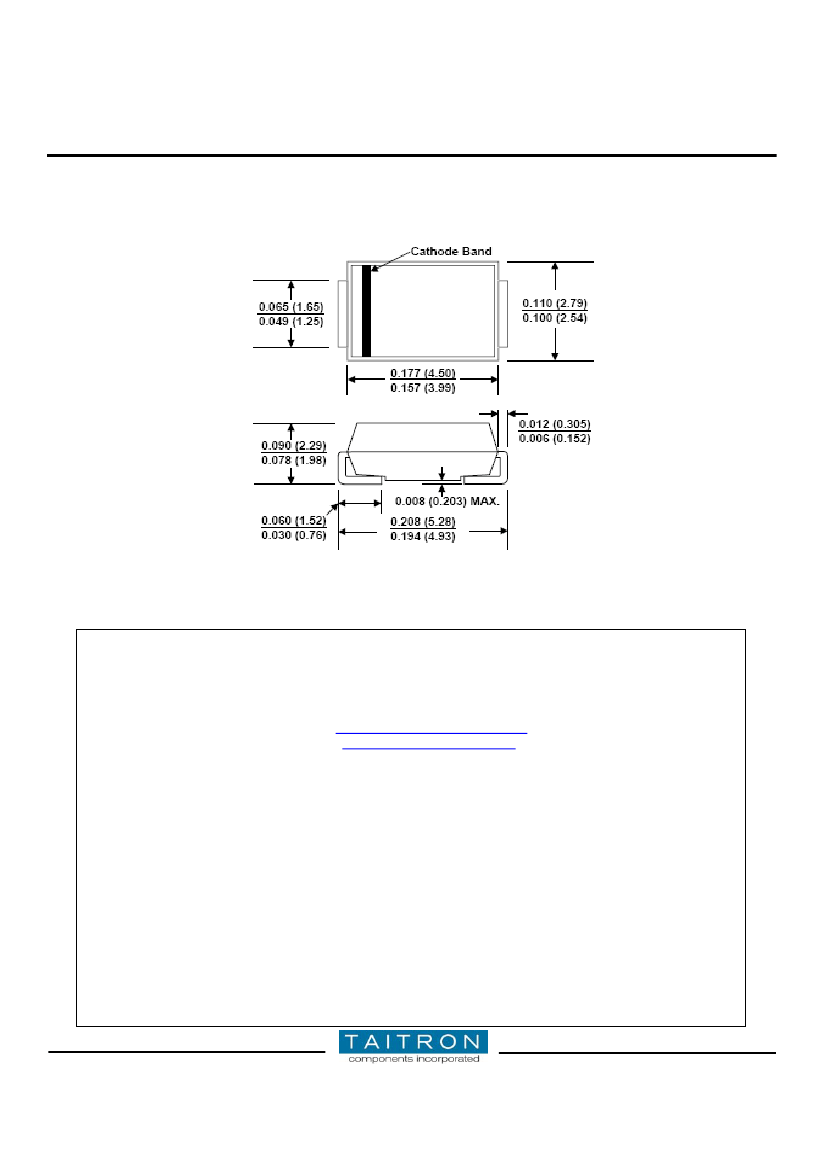

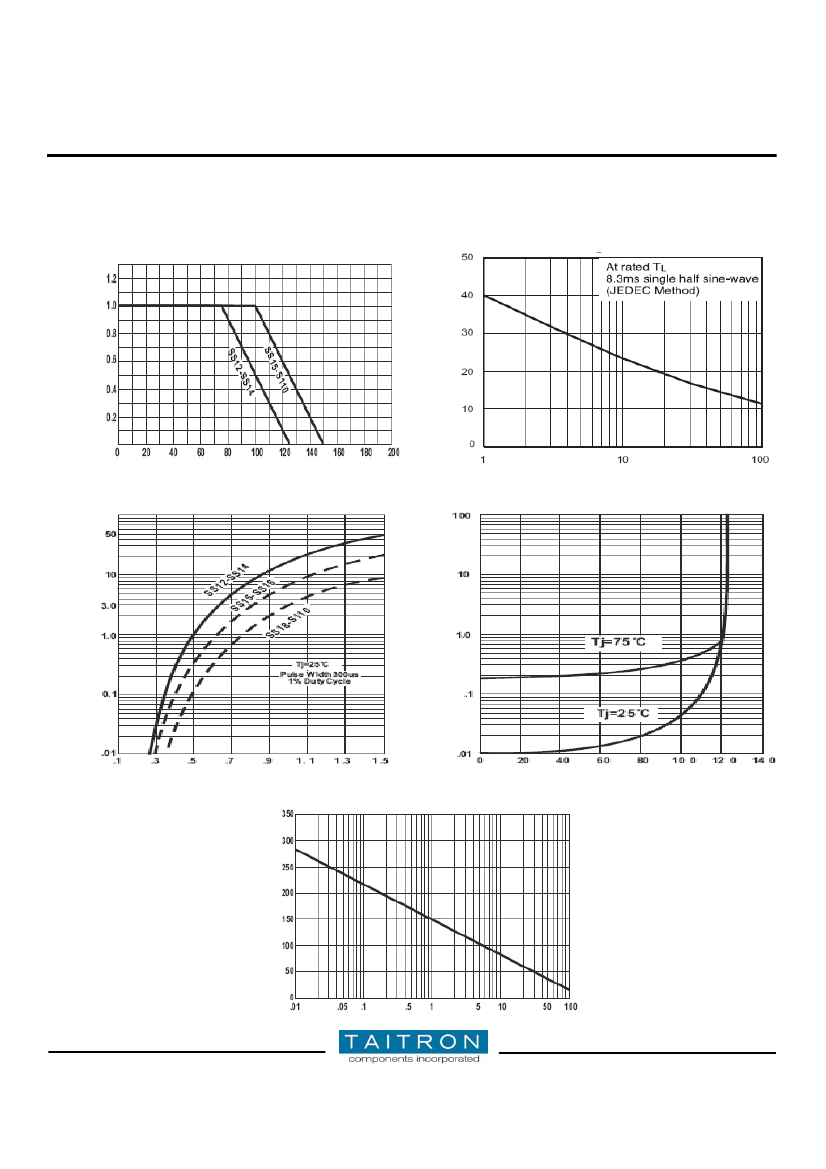

SS14 Related Products

	SS14	SS13	SS15	SS12
Description	SIGNAL DIODE	SIGNAL DIODE	1 A, 50 V, SILICON, SIGNAL DIODE, DO-214AC	1 A, 20 V, SILICON, SIGNAL DIODE, DO-214AC
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	TAITRON Components	TAITRON Components	TAITRON Components	TAITRON Components
Parts packaging code	DO-214AC	DO-214AC	DO-214AC	DO-214AC
package instruction	ROHS COMPLIANT, PLASTIC, SMA, 2 PIN	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Contacts	2	2	2	2
Reach Compliance Code	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-214AC	DO-214AC	DO-214AC	DO-214AC
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Number of components	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	125 °C	125 °C	150 °C	125 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-50 °C
Maximum output current	1 A	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum repetitive peak reverse voltage	40 V	30 V	50 V	20 V
surface mount	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
