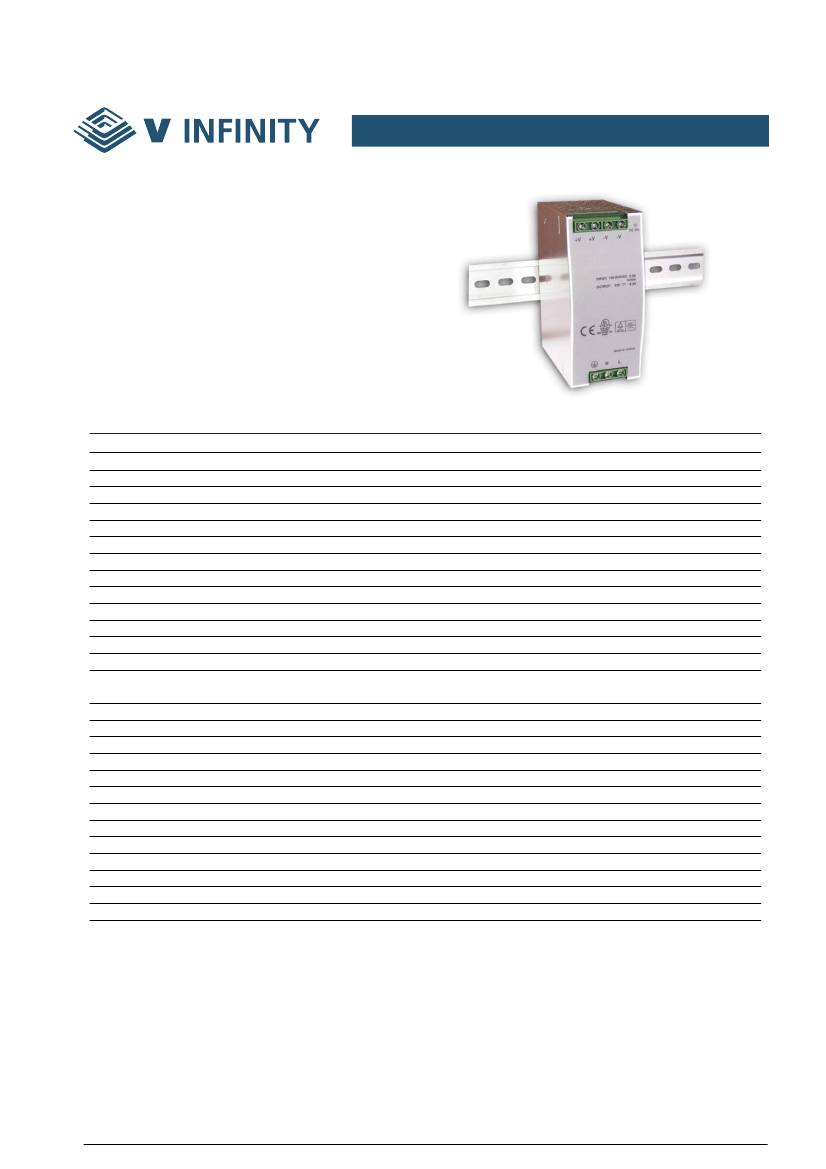

VDR-75-24
Single Output DIN Rail Power Supply
Features
·Fixed switching frequency @ 50kHz
·Installed on din rail T535 / 7.5 or 15
·Universal AC input range
·Short circuit, overload, over-voltage protected
·100% full load burn-in test
·Built in EMI filter, low ripple noise
·Convection cooled
·3 year warranty
·Fully approved
DC output voltage
Output V. tolerance
Output rated current
Output current range
Ripple & noise
Line regulation
Load regulation
DC output power
Efficiency
DC voltage adj.
Input voltage range
AC current
Inrush current
Leakage current
Overload protection
Over voltage protection
Over temp. protection
Temperature coefficient
Set up, rise, hold up time
Vibration
Withstand voltage
Isolation resistance
Working temp., humidity
Storage temp., humidity

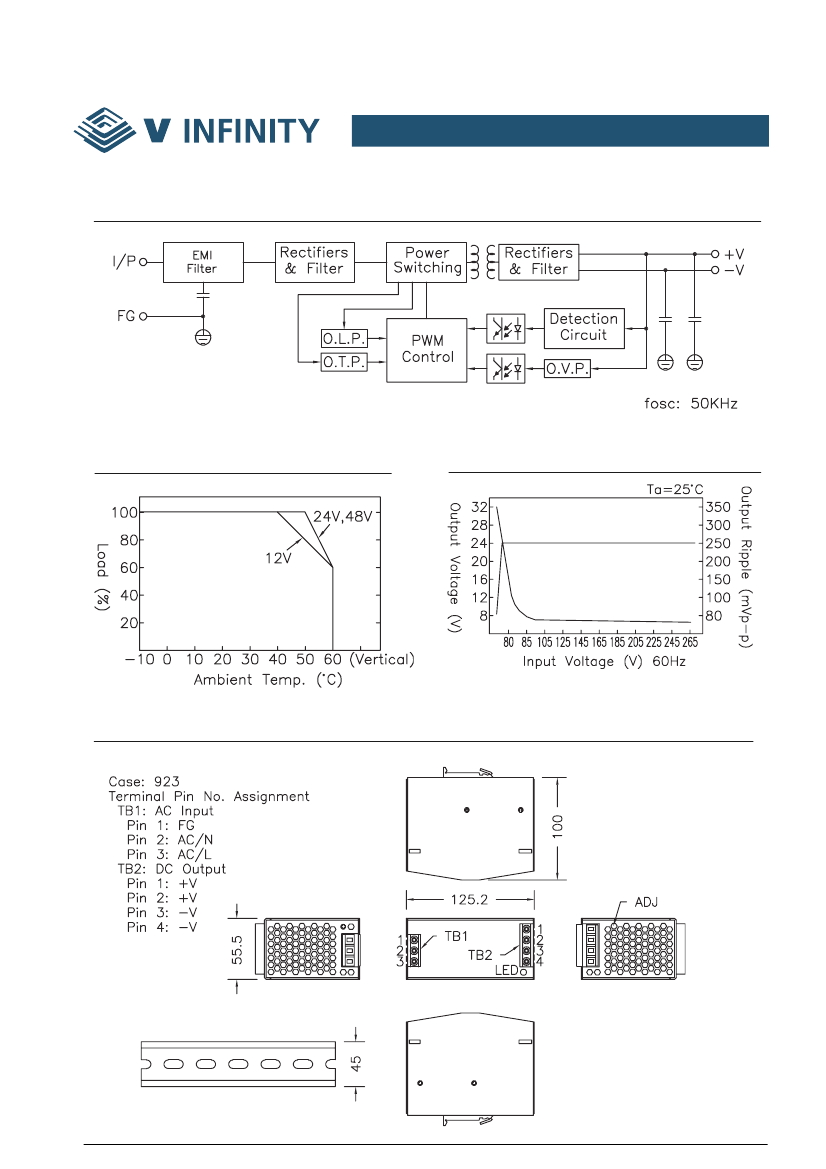

Dimensions
Weight
Safety standards
EMC standards
Notes:
24V
±1%
3.2A
0-3.2A
150mVp-p
±0.5%
±1%
76.8W
80%
24-28V
85~264VAC 47~63Hz; 120~370VDC
2.0A/115V 1.2A/230V
cold start 30A/115V 60A/230V
<1mA/240VAC
105%~150%
type: constant current limiting, auto recovery
29~34V
85ºC± 5ºC type: shutdown
reset\;auto recovery (TSW1)
±0.03% / °C (0~50°C)
1000ms;60ms;50ms/230V;1800ms;60ms;10ms/115V
10~500Hz, 2G 10min./1cycle (1 hour each axes)
I/P-O/P: 3KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC, for 1 min.
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms min.
-10°C~+60% (refer to output derating curve), 20%-90% RH
-20ºC~+85ºC, 10%~95% RH
2.19x4.93x3.94 inches (55.5x125.2x100mm)
1.32lbs (0.6Kgs)
TUV EN60950, UL508
EN55022 CLASS B, EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61000-3-2,-3
1. All parameters are specified at 230VAC input, rated load, 25°C 70% RH ambient
2. Tolerance includes set up tolerance, line regulation, load regulation
3. Ripple & noise are measured at 20MHz by using a 12” twisted pair terminated with a 0.1uF & 47 uF capacitor
4. Line regulation is measured from low line to high line at rated load
5, Load regulation is measure from 0% to 100% rated load
*V-Infinity reserves the right to make changes to its products or to discontinue any product or service without notice, and to advise cus-
tomers to verify the most up-to-date product information before placing orders. V-Infinity assumes no liability or responsibility for cus-
tomer’s applications using V-Infinity products other than repair or replacing (at V-I’s option) V-Infinity products not meeting V-I’s pub-
lished specifications. Nothing will be covered outside of standard product warranty.
V-Infinity, LLC, 9615 SW Allen Blvd Suite 103, Beaverton, OR 97005
www.v-infinity.com
1-866-372-1258
