V-Infinity, LLC, 20050 SW 112th Ave., Tualatin, OR 97062
www.v-infinity.com
1-866-372-1258
2/3
VED30 Series DC-DC Converters
Rev. 06-2006
Input
Input Voltage Range
12V: 9-18V
24V: 18-36V
48V: 36-72V
Pi Type
Input Filter
Output
Voltage Accuracy
Single Output
Dual +Output
-Output
Triple, 5V
12V/15V
-5V
±1.0%
±1.0%
±3.0%
±1.0%
±5.0%
±2.0%
max.
max.
max.
max.
max.
max.
Voltage Balence (Dual)
Transient Response: Single, 25% Step Load Change
Dual, FL-1/2±1% Error Band
External Trim Adj. Range
Ripple & Noise
20MHz BW
±1.0%max
<500µ sec.
<500µ sec.
±10%
10mV RMS., max
75mV p-p, max
±0.02%/°C
Continuous
±0.2% max.
±1.0% max.
±1.0% max.
±5.0% max.
Temperature Coefficient
Short Circuit Protection
Line Regulation
1
Single/Dual
Triple
2
Load Regulation
Single/Dual
Triple
General Specifications
Efficiency
Isolation Voltage
Isolation Resistance
Switching Frequency
Operating Temperature Range
Case Temperature
Storage Temperature
Cooling
EMI/RFI
Dimensions
Case Material
see table
500VDC min.
10
9
Ohm min.
200KHz, Type
25°C to +71°C
100°C max.
55°C to +105°C
Free air convection
Six Sided Continuous Shield
2.56x3.0x0.83 inches
(65x76.2x21.1mm)
Black coated copper with non-
conductive base
NOTES:
1. Measured from high line to low line
2. Measured from full load to 1/4 load
V-Infinity, LLC, 20050 SW 112th Ave., Tualatin, OR 97062
www.v-infinity.com
1-866-372-1258
3/3

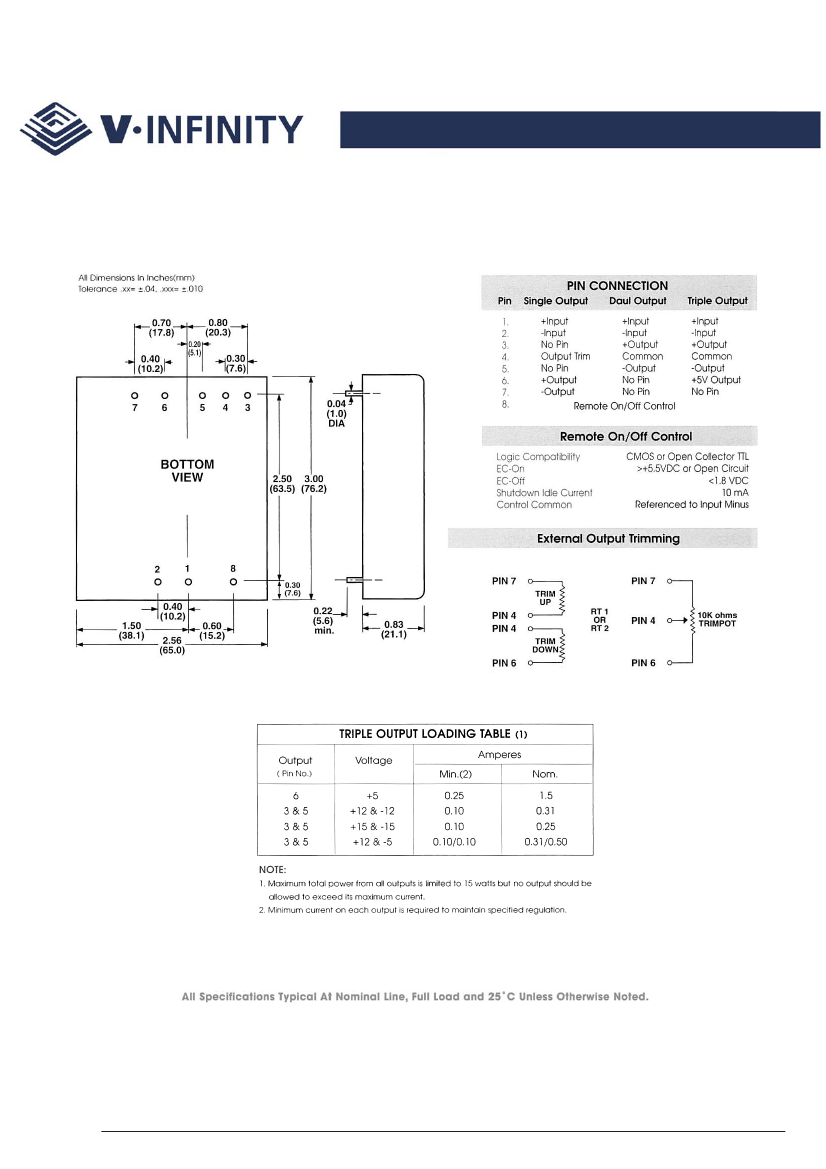

VED30 Series DC-DC Converters
Rev. 06-2006
V-Infinity reserves the right to make changes to its products or to discontinue any product or service without notice, and to advise customers to ver-
ify the most up-to-date product information before placing orders. V-Infinity assumes no liability or responsibility for customer’s applications using V-
Infinity products other than repair or replacing (at V-I’s option) V-Infinity products not meeting V-I’s published specifications. Nothing will be covered
outside of standard product warranty.
V-Infinity, LLC, 20050 SW 112th Ave., Tualatin, OR 97062
