BR93LC46F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> BR93LC46F

BR93LC46F: DescriptionEEPROM, 64X16, Serial, CMOS, PDSO8, SOP-8; Categorystorage storage; File Size441KB，15 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BR93LC46F Overview

EEPROM, 64X16, Serial, CMOS, PDSO8, SOP-8

BR93LC46F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	SOIC
package instruction	LSOP, SOP8,.25
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum clock frequency (fCLK)	0.2 MHz
Data retention time - minimum	10
Durability	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8
length	5 mm
memory density	1024 bit
Memory IC Type	EEPROM
memory width	16
Number of functions	1
Number of terminals	8
word count	64 words
character code	64
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	64X16
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2/5.5 V
Certification status	Not Qualified
Maximum seat height	1.6 mm
Serial bus type	MICROWIRE
Maximum standby current	0.000003 A
Maximum slew rate	0.003 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	4.4 mm
Maximum write cycle time (tWC)	25 ms
write protect	SOFTWARE
Base Number Matches	1

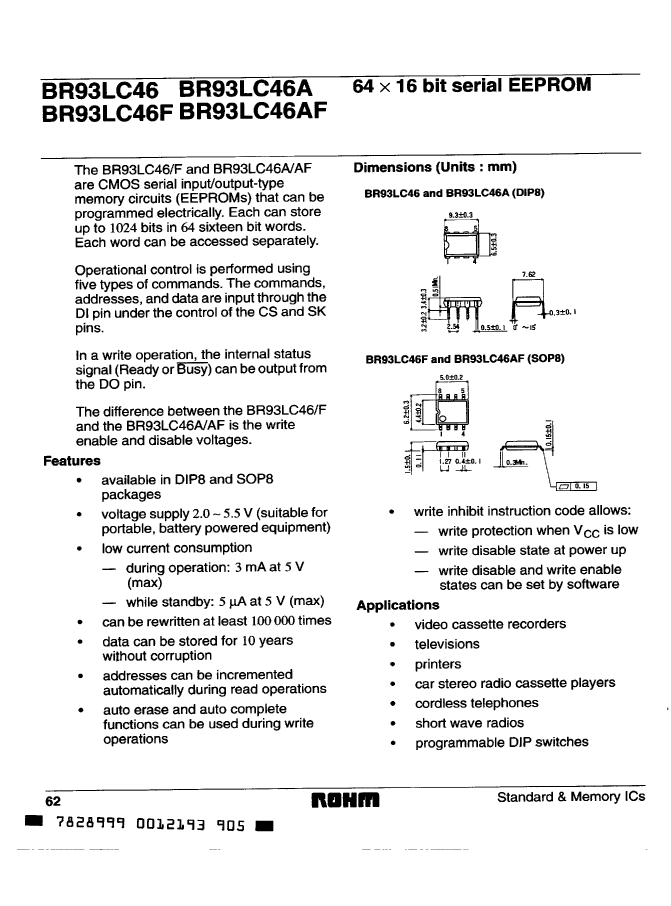

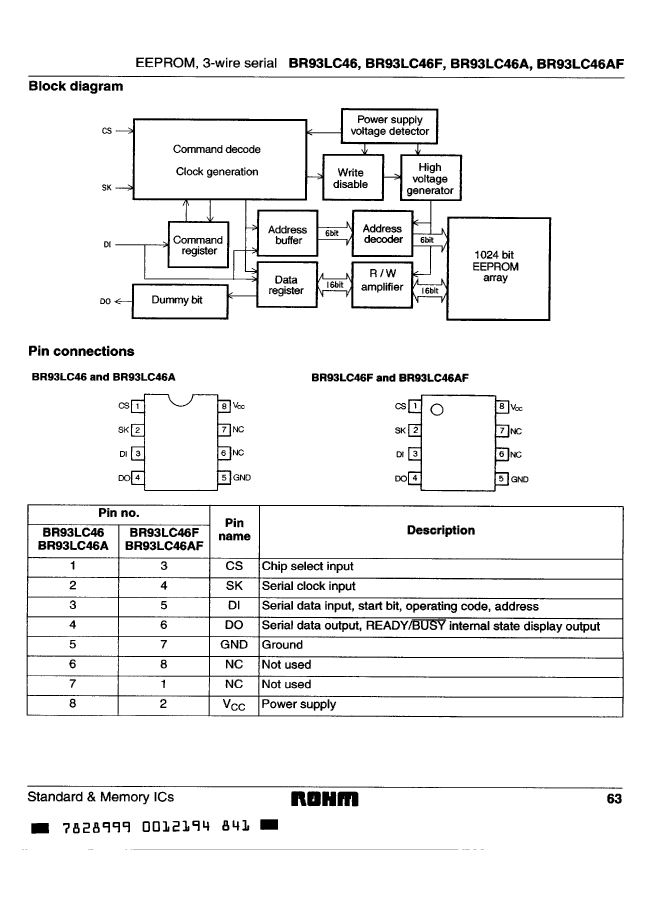

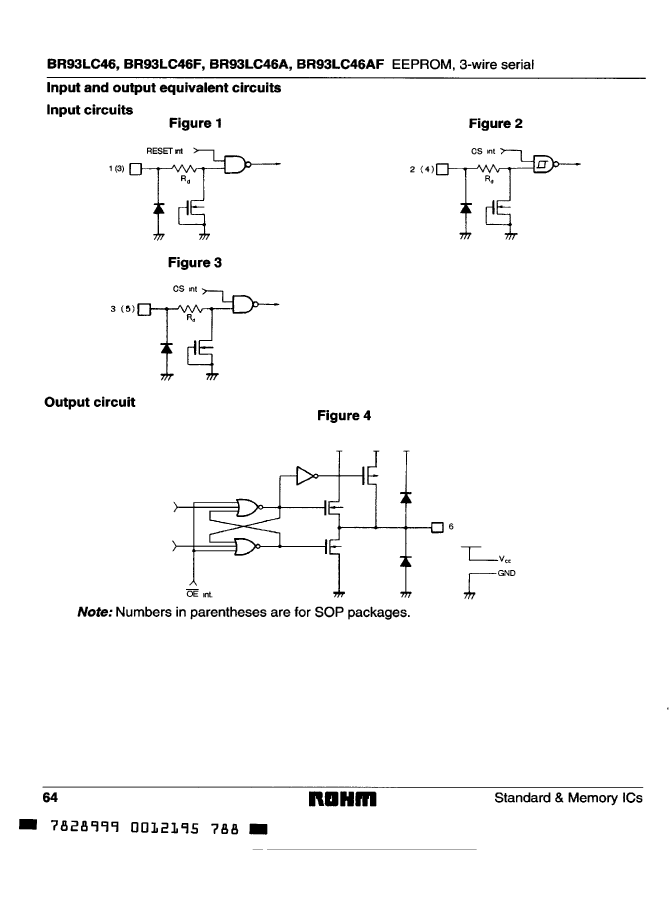

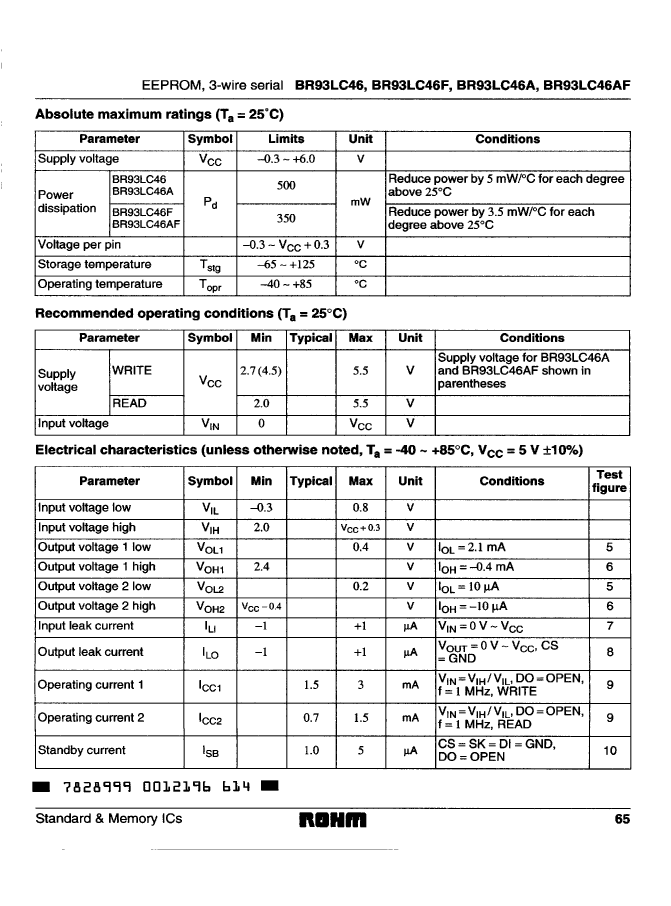

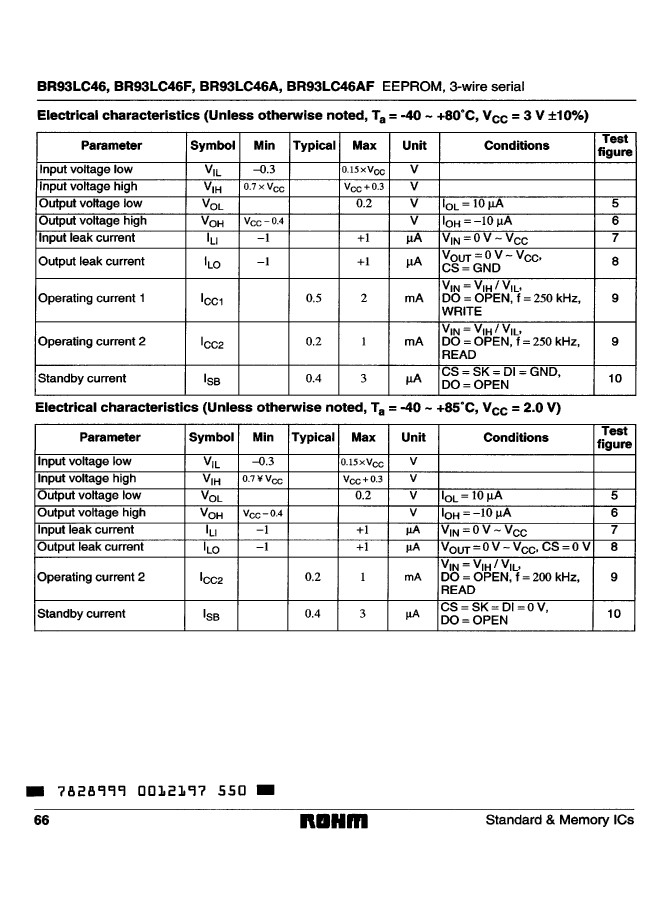

Preview

Download Datasheet

View All

BR93LC46F Related Products

	BR93LC46F	BR93LC46AF	BR93LC46	BR93LC46A
Description	EEPROM, 64X16, Serial, CMOS, PDSO8, SOP-8	EEPROM, 64X16, Serial, CMOS, PDSO8, SOP-8	EEPROM, 64X16, Serial, CMOS, PDIP8, DIP-8	EEPROM, 64X16, Serial, CMOS, PDIP8, DIP-8
Is it Rohs certified?	conform to	conform to	conform to	conform to
Parts packaging code	SOIC	SOIC	DIP	DIP
package instruction	LSOP, SOP8,.25	LSOP, SOP8,.25	DIP, DIP8,.3	DIP, DIP8,.3
Contacts	8	8	8	8
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Data retention time - minimum	10	10	10	10
Durability	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDIP-T8	R-PDIP-T8
length	5 mm	5 mm	9.3 mm	9.3 mm
memory density	1024 bit	1024 bit	1024 bit	1024 bit
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM
memory width	16	16	16	16
Number of functions	1	1	1	1
Number of terminals	8	8	8	8
word count	64 words	64 words	64 words	64 words
character code	64	64	64	64
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
organize	64X16	64X16	64X16	64X16
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSOP	LSOP	DIP	DIP
Encapsulate equivalent code	SOP8,.25	SOP8,.25	DIP8,.3	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	IN-LINE	IN-LINE
Parallel/Serial	SERIAL	SERIAL	SERIAL	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT APPLICABLE	NOT SPECIFIED
power supply	2/5.5 V	5 V	2/5.5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	1.6 mm	3.7 mm	3.7 mm
Serial bus type	MICROWIRE	MICROWIRE	MICROWIRE	MICROWIRE
Maximum standby current	0.000003 A	0.000005 A	0.000003 A	0.000005 A
Maximum slew rate	0.003 mA	0.003 mA	0.003 mA	0.003 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2.7 V	4.5 V	2.7 V	4.5 V
Nominal supply voltage (Vsup)	3 V	5 V	3 V	5 V
surface mount	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT APPLICABLE	NOT SPECIFIED
width	4.4 mm	4.4 mm	7.62 mm	7.62 mm
write protect	SOFTWARE	SOFTWARE	SOFTWARE	SOFTWARE
Base Number Matches	1	1	1	1
