MX29F1610BTC-70 datasheet, PDF

Datasheet> All Categories > storage> storage> MX29F1610BTC-70

MX29F1610BTC-70: DescriptionFlash, 1MX16, 70ns, PDSO48, 12 X 20 MM, TSOP1-48; Categorystorage storage; File Size1MB，36 Pages; ManufacturerMacronix; Websitehttp://www.macronix.com/en-us/Pages/default.aspx

Download Datasheet Parametric Compare View All

MX29F1610BTC-70 Overview

Flash, 1MX16, 70ns, PDSO48, 12 X 20 MM, TSOP1-48

MX29F1610BTC-70 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	TSOP1
package instruction	12 X 20 MM, TSOP1-48
Contacts	48
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	70 ns
Spare memory width	8
command user interface	YES
Data polling	NO
JESD-30 code	R-PDSO-G48
JESD-609 code	e0
length	18.4 mm
memory density	16777216 bit
Memory IC Type	FLASH
memory width	16
Number of functions	1
Number of departments/size	16
Number of terminals	48
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX16
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1
Encapsulate equivalent code	TSSOP48,.8,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
page size	64/128 words
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programming voltage	5 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Department size	128K
Maximum standby current	0.00002 A
Maximum slew rate	0.06 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
switch bit	NO
type	NOR TYPE
width	12 mm
Base Number Matches	1

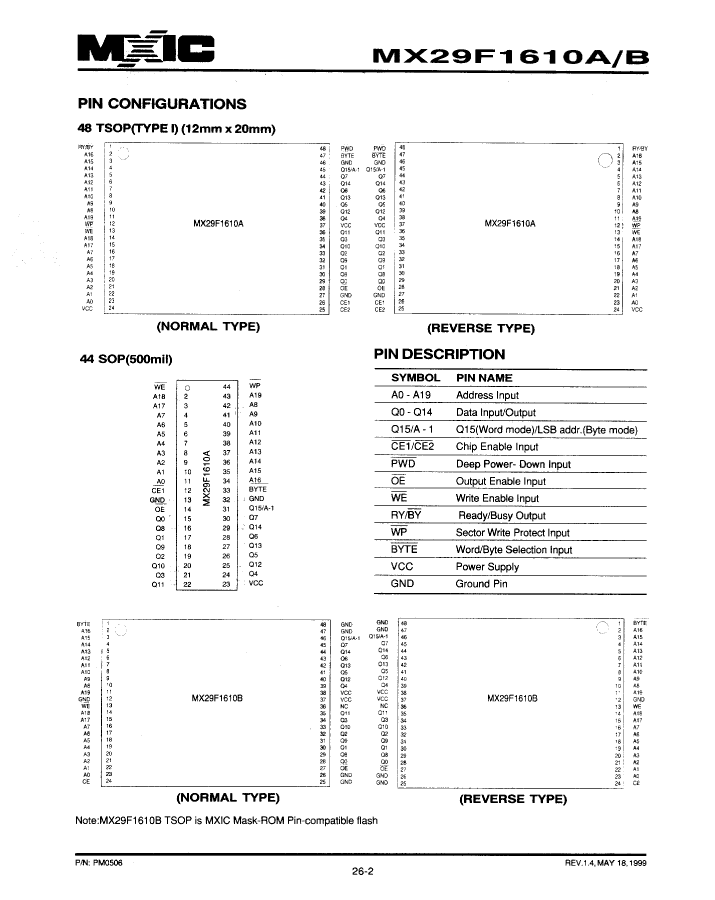

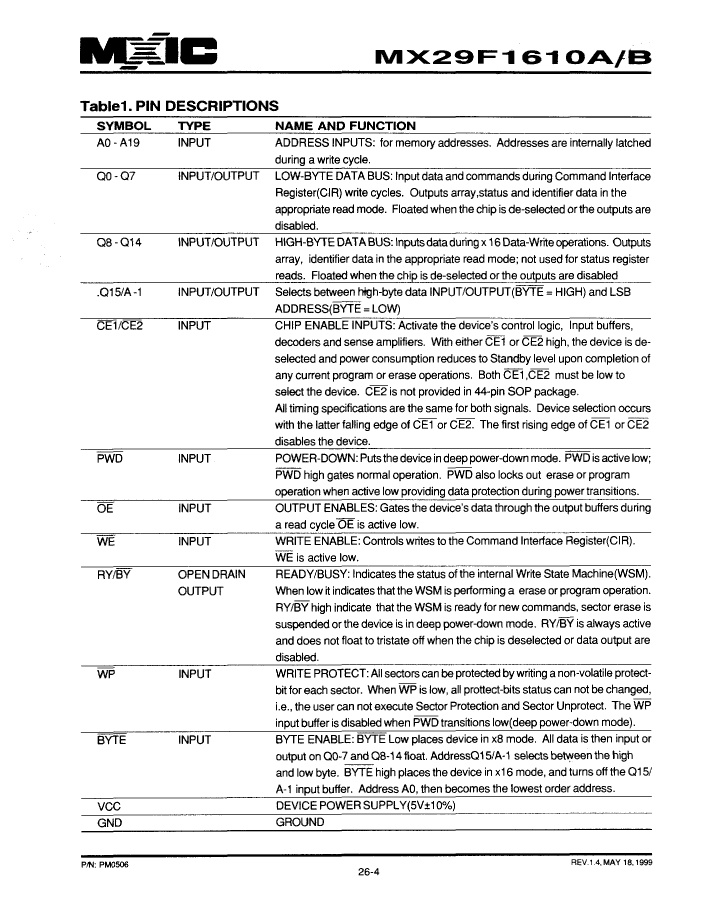

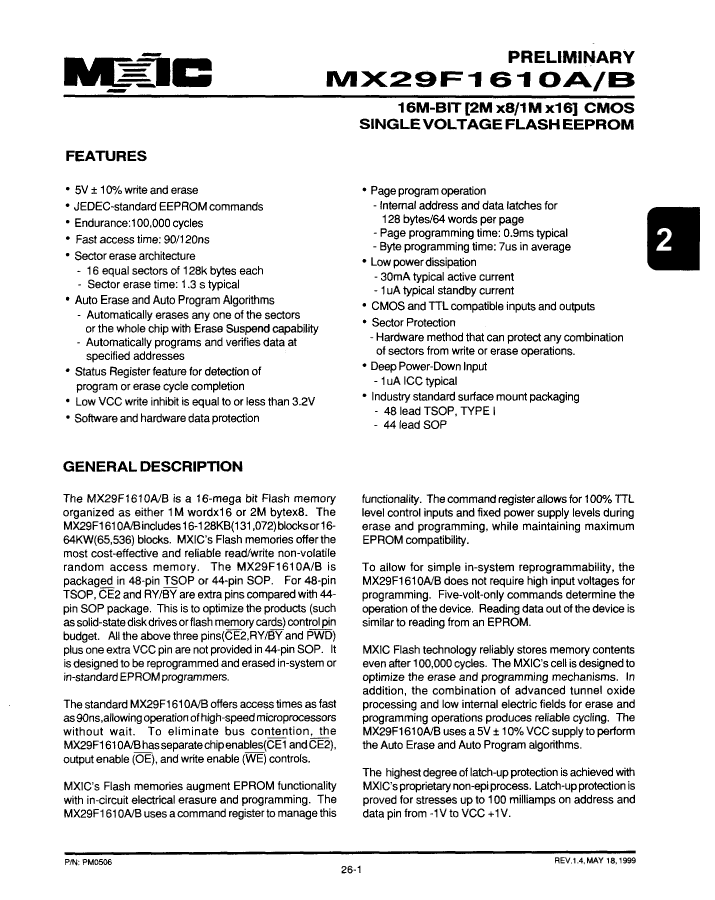

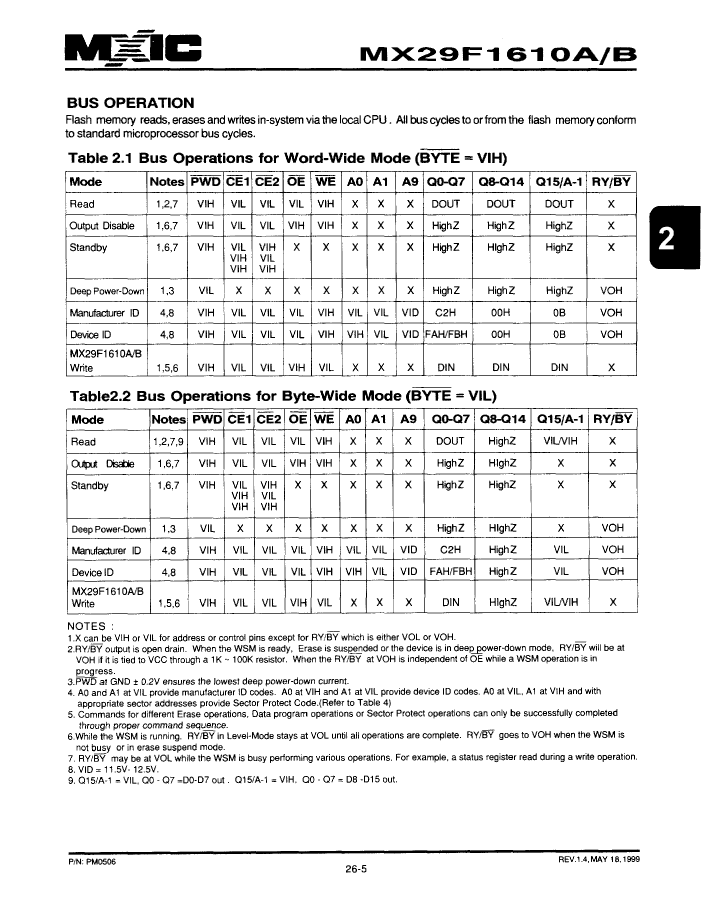

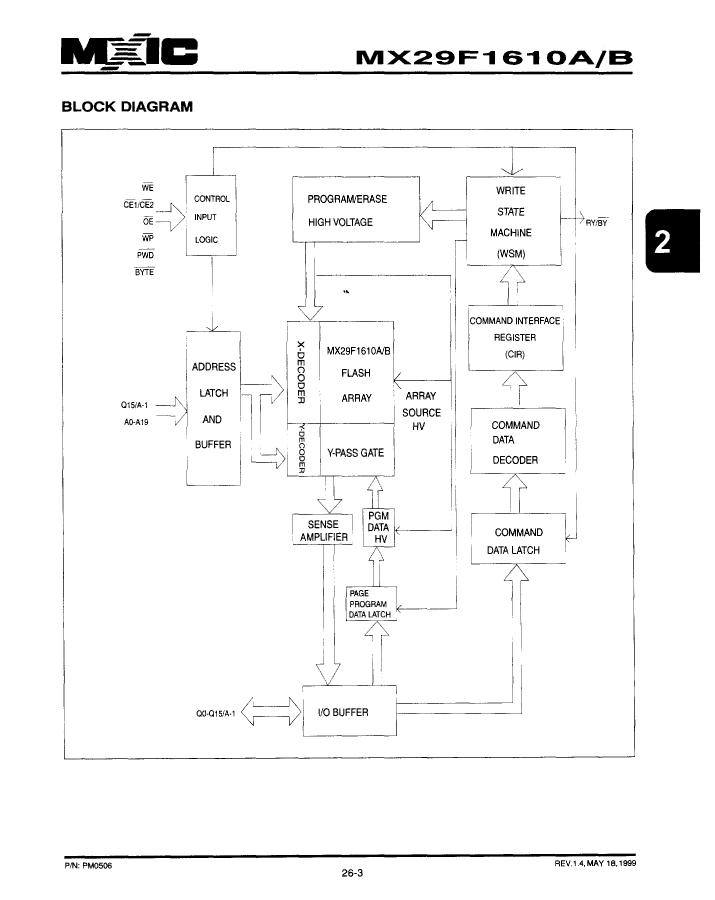

Preview

Download Datasheet

View All

MX29F1610BTC-70 Related Products

	MX29F1610BTC-70	MX29F1610BMC-90	MX29F1610BMC-70	MX29F1610ATC-70	MX29F1610ARC-70	MX29F1610AMC-70	MX29F1610BRC-90	MX29F1610BTC-90	MX29F1610BRC-70
Description	Flash, 1MX16, 70ns, PDSO48, 12 X 20 MM, TSOP1-48	Flash, 1MX16, 90ns, PDSO44, 0.500 INCH, PLASTIC, SOP-44	Flash, 1MX16, 70ns, PDSO44, 0.500 INCH, PLASTIC, SOP-44	Flash, 1MX16, 70ns, PDSO48, 12 X 20 MM, TSOP1-48	Flash, 1MX16, 70ns, PDSO48, 12 X 20 MM, REVERSE, TSOP1-48	Flash, 1MX16, 70ns, PDSO44, 0.500 INCH, PLASTIC, SOP-44	Flash, 1MX16, 90ns, PDSO48, 12 X 20 MM, REVERSE, TSOP1-48	Flash, 1MX16, 90ns, PDSO48, 12 X 20 MM, TSOP1-48	Flash, 1MX16, 70ns, PDSO48, 12 X 20 MM, REVERSE, TSOP1-48
Parts packaging code	TSOP1	SOIC	SOIC	TSOP1	TSOP1	SOIC	TSOP1	TSOP1	TSOP1
package instruction	12 X 20 MM, TSOP1-48	0.500 INCH, PLASTIC, SOP-44	SOP,	12 X 20 MM, TSOP1-48	12 X 20 MM, REVERSE, TSOP1-48	SOP,	12 X 20 MM, REVERSE, TSOP1-48	12 X 20 MM, TSOP1-48	12 X 20 MM, REVERSE, TSOP1-48
Contacts	48	44	44	48	48	44	48	48	48
Reach Compliance Code	unknown	unknow	unknow	unknow	unknow	unknow	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	70 ns	90 ns	70 ns	70 ns	70 ns	70 ns	90 ns	90 ns	70 ns
Spare memory width	8	8	8	8	8	8	8	8	8
JESD-30 code	R-PDSO-G48	R-PDSO-G44	R-PDSO-G44	R-PDSO-G48	R-PDSO-G48	R-PDSO-G44	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	18.4 mm	28.49 mm	28.49 mm	18.4 mm	18.4 mm	28.49 mm	18.4 mm	18.4 mm	18.4 mm
memory density	16777216 bit	16777216 bi	16777216 bi	16777216 bi	16777216 bi	16777216 bi	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH
memory width	16	16	16	16	16	16	16	16	16
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	48	44	44	48	48	44	48	48	48
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	1MX16	1MX16	1MX16	1MX16	1MX16	1MX16	1MX16	1MX16	1MX16
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP1	SOP	SOP	TSOP1	TSOP1-R	SOP	TSOP1-R	TSOP1	TSOP1-R
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Programming voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	3 mm	3 mm	1.2 mm	1.2 mm	3 mm	1.2 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	1.27 mm	1.27 mm	0.5 mm	0.5 mm	1.27 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	12 mm	12.6 mm	12.6 mm	12 mm	12 mm	12.6 mm	12 mm	12 mm	12 mm
Base Number Matches	1	1	1	1	1	1	1	1	1
Is it Rohs certified?	incompatible	-	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
command user interface	YES	-	-	YES	YES	-	YES	YES	YES
Data polling	NO	-	-	NO	NO	-	NO	NO	NO
Number of departments/size	16	-	-	16	16	-	16	16	16
Encapsulate equivalent code	TSSOP48,.8,20	-	-	TSSOP48,.8,20	TSSOP48,.8,20	-	TSSOP48,.8,20	TSSOP48,.8,20	TSSOP48,.8,20
page size	64/128 words	-	-	64/128 words	64/128 words	-	64/128 words	64/128 words	64/128 words
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	-	-	5 V	5 V	-	5 V	5 V	5 V
Department size	128K	-	-	128K	128K	-	128K	128K	128K
Maximum standby current	0.00002 A	-	-	0.00002 A	0.00002 A	-	0.00002 A	0.00002 A	0.00002 A
Maximum slew rate	0.06 mA	-	-	0.06 mA	0.06 mA	-	0.06 mA	0.06 mA	0.06 mA
Maximum time at peak reflow temperature	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
switch bit	NO	-	-	NO	NO	-	NO	NO	NO
type	NOR TYPE	-	-	NOR TYPE	NOR TYPE	-	NOR TYPE	NOR TYPE	NOR TYPE
