5962-9472901QEA datasheet, PDF

5962-9472901QEA: DescriptionAnalog Multiplier Or Divider, 1 Func, 30MHz Band Width, CDIP16; CategoryAnalog mixed-signal IC The signal circuit; File Size173KB，5 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

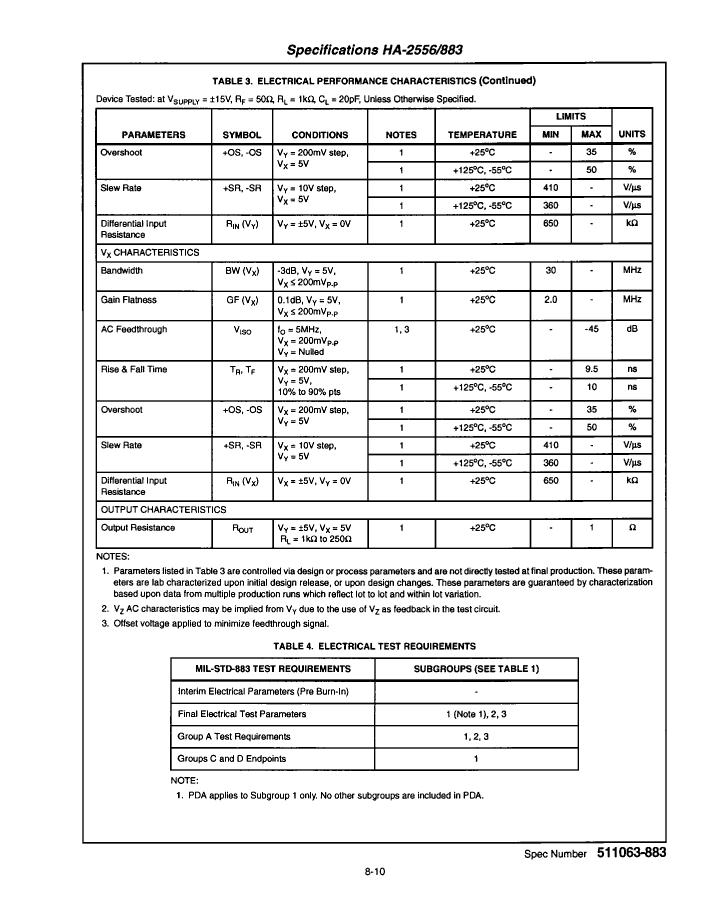

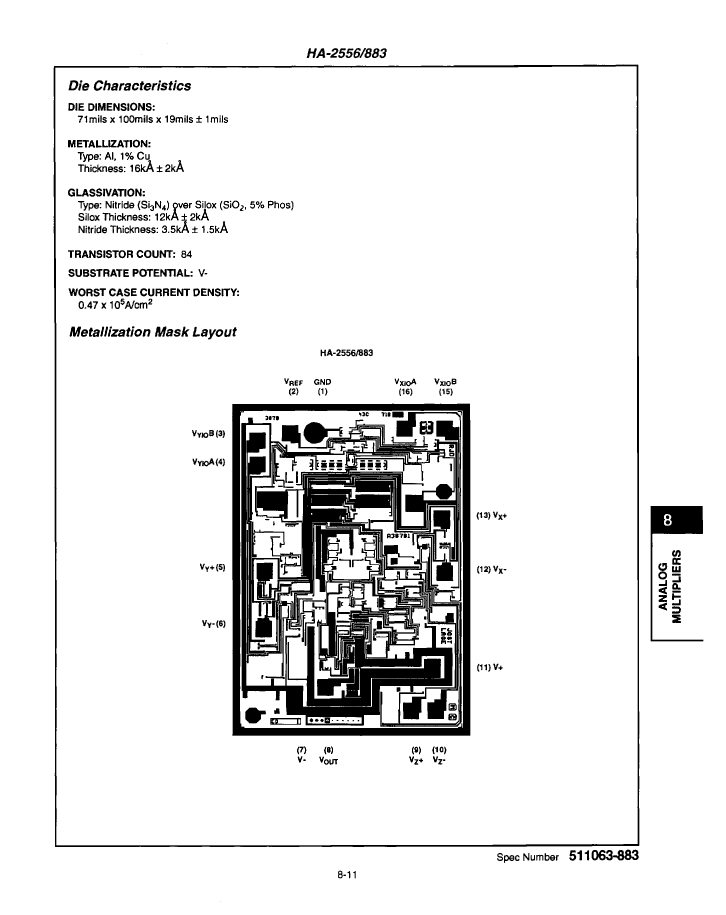

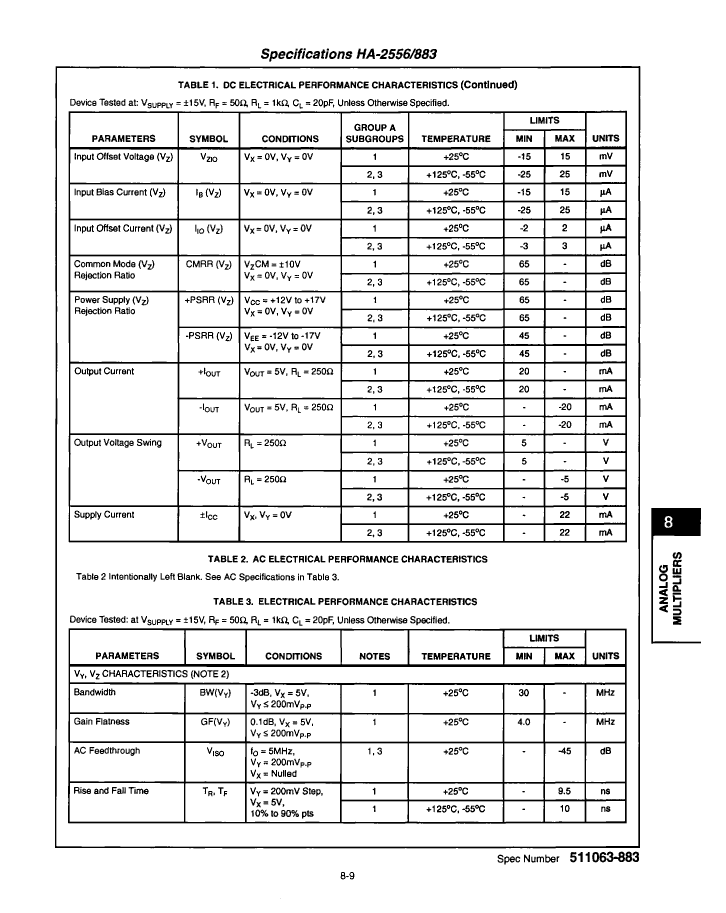

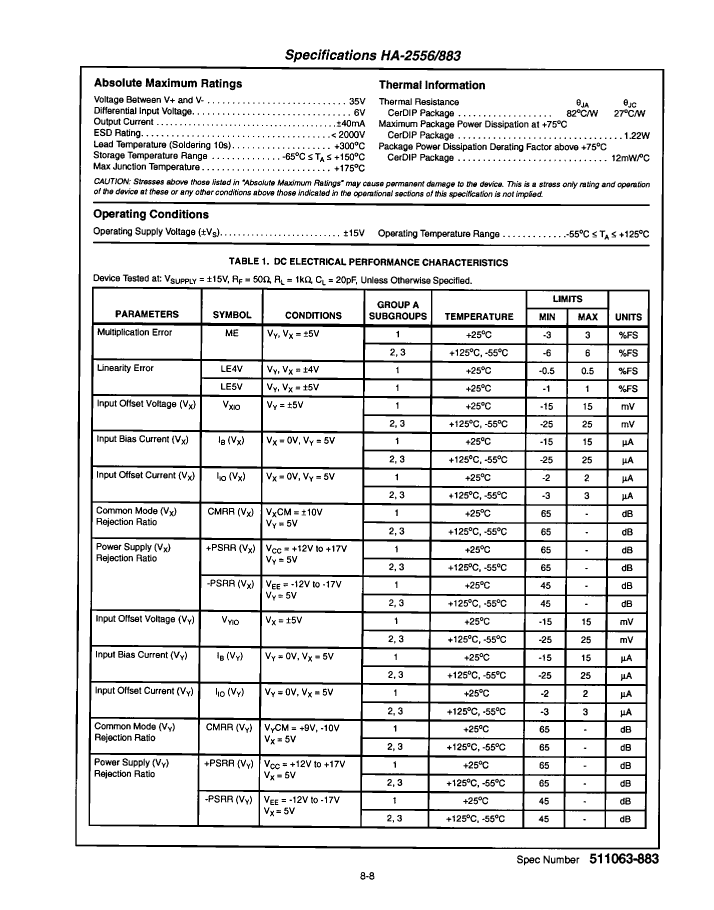

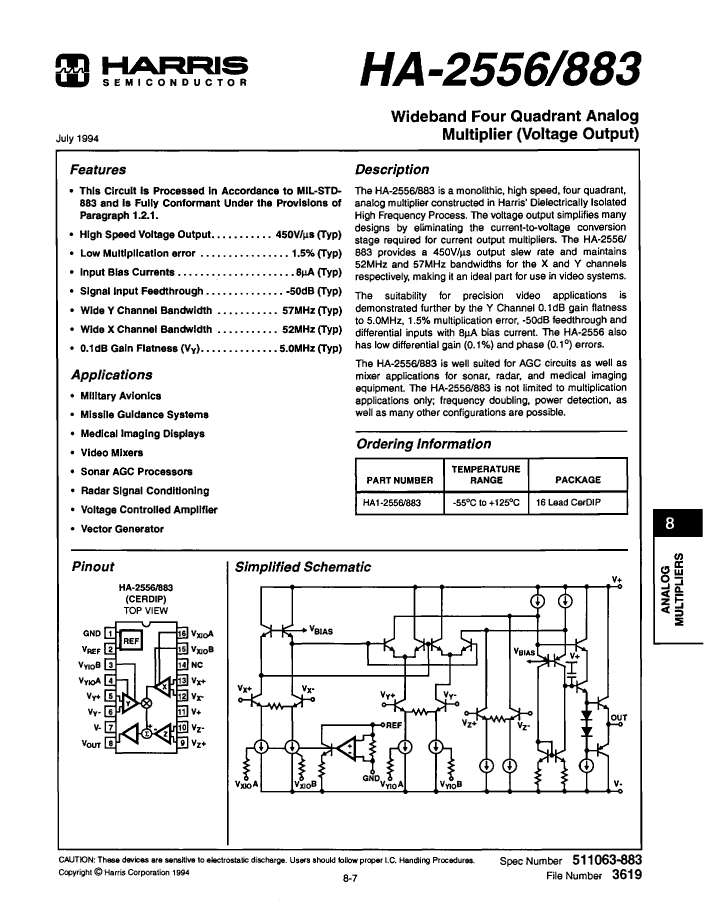

5962-9472901QEA Overview

Analog Multiplier Or Divider, 1 Func, 30MHz Band Width, CDIP16

Parameter Name	Attribute value
package instruction	DIP,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	ANALOG MULTIPLIER OR DIVIDER
Nominal bandwidth	30 MHz
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
Maximum negative input voltage	-5 V
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum positive input voltage	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

	5962-9472901QEA	5962-9472901QEX	HA1-2556/883
Description	Analog Multiplier Or Divider, 1 Func, 30MHz Band Width, CDIP16	Analog Multiplier Or Divider, 1 Func, 30MHz Band Width, CDIP16	Analog Multiplier Or Divider, 1 Func, 52MHz Band Width, BIPolar, CDIP16
package instruction	DIP,	DIP,	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	ANALOG MULTIPLIER OR DIVIDER	ANALOG MULTIPLIER OR DIVIDER	ANALOG MULTIPLIER OR DIVIDER
Nominal bandwidth	30 MHz	30 MHz	52 MHz
JESD-30 code	R-GDIP-T16	R-GDIP-T16	R-GDIP-T16
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V
Number of functions	1	1	1
Number of terminals	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V	15 V
surface mount	NO	NO	NO
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL
Base Number Matches	1	1	1
JESD-609 code	e0	-	e0
Maximum negative input voltage	-5 V	-5 V	-
Maximum positive input voltage	5 V	5 V	-
Terminal surface	TIN LEAD	-	Tin/Lead (Sn/Pb)
