SD103A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> SD103A

SD103A: Description40 V, SILICON, SIGNAL DIODE, DO-35; Categorysemiconductor Discrete semiconductor; File Size125KB，3 Pages; ManufacturerGood-Ark; Websitehttp://www.goodark.com/

Download Datasheet Parametric Compare View All

SD103A Overview

40 V, SILICON, SIGNAL DIODE, DO-35

SD103A Parametric

Parameter Name	Attribute value
Number of terminals	2
Number of components	1
Processing package description	Glass PACKAGE-2
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
packaging shape	round
Package Size	LONG FORM
Terminal form	Wire
terminal coating	tin silver
Terminal location	AXIAL
Packaging Materials	Glass
Craftsmanship	SCHOTTKY
structure	single
Shell connection	isolation
Diode component materials	silicon
Maximum power consumption limit	0.4000 W
Diode type	Signal diode
Maximum reverse recovery time	0.0100 us
Maximum repetitive peak reverse voltage	40 V

Preview

Download Datasheet

View All

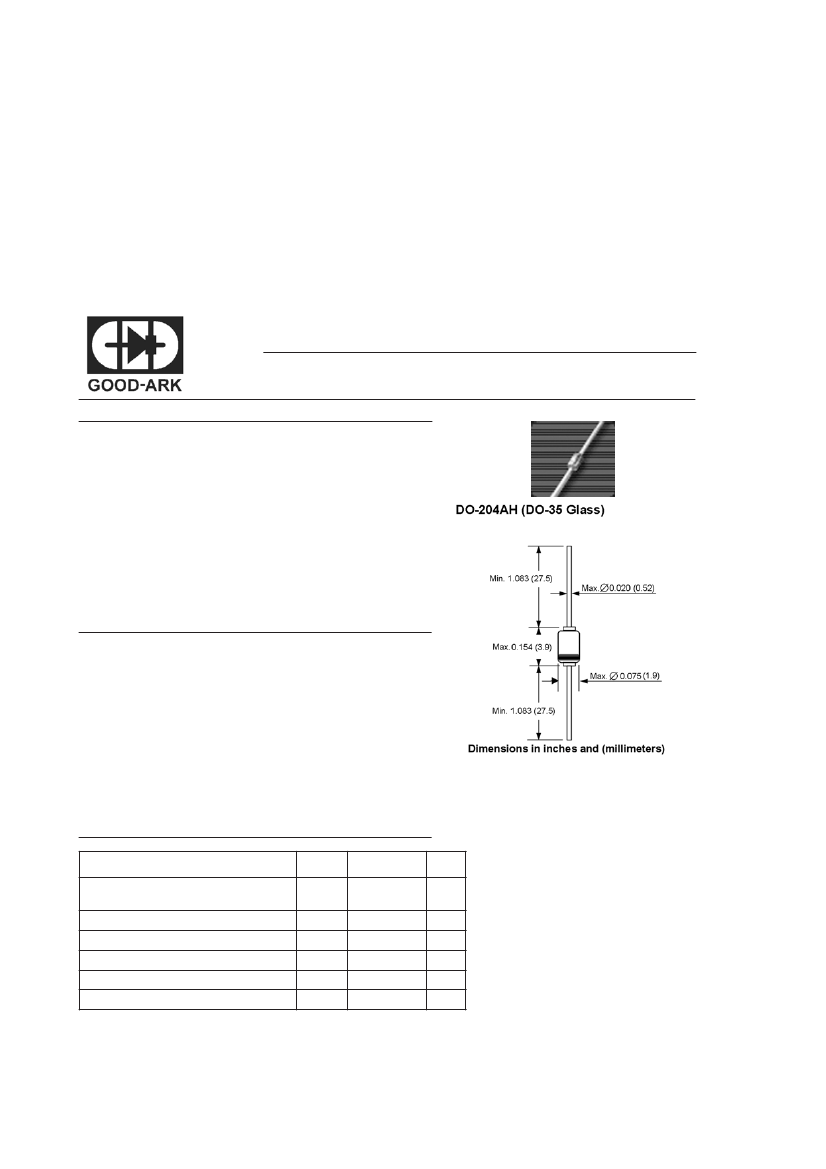

SD103A thru SD103C

Small-Signal Diode

Schottky Diodes

Features

For general purpose applications

The SD103 series is a Metal-on-silicon Schottky barrier device

which is protected by a PN junction guard ring.

The low forward voltage drop and fast switching make it ideal

for protection of MOS devices, steering, biasing and coupling

diodes for fast switching and low logic level applications.

Other applications are click suppression, efficient full wave

bridges in telephone subsets, and blocking diodes in recharge-

able low voltage battery systems.

These diodes are also available in the MiniMELF case with type

designations LL103A thru LL103C.

Mechanical Data

Case: DO-35 Glass Case

Weight: approx. 0.13g

Maximum Ratings and Thermal Characteristics

(Ratings at 25

C ambient temperature unless otherwise specified.)

Parameter

S D 103A

S D 103B

S D 103C

Symbol

Value

400

0.3

125

(1)

Unit

Peak inverse voltage

Power dissipation (Infinite heatsink)

Single cycle surge 60 Hz sine wave

Thermal resistance junction to ambient air

Junction temperature

Storage temperature range

RRM

tot

FSM

Volts

Amps

C/mW

(1)

-55 to +150

(1)

Notes:

1. Valid provided that leads at a distance of 4mm from case are kept at ambient temperature.

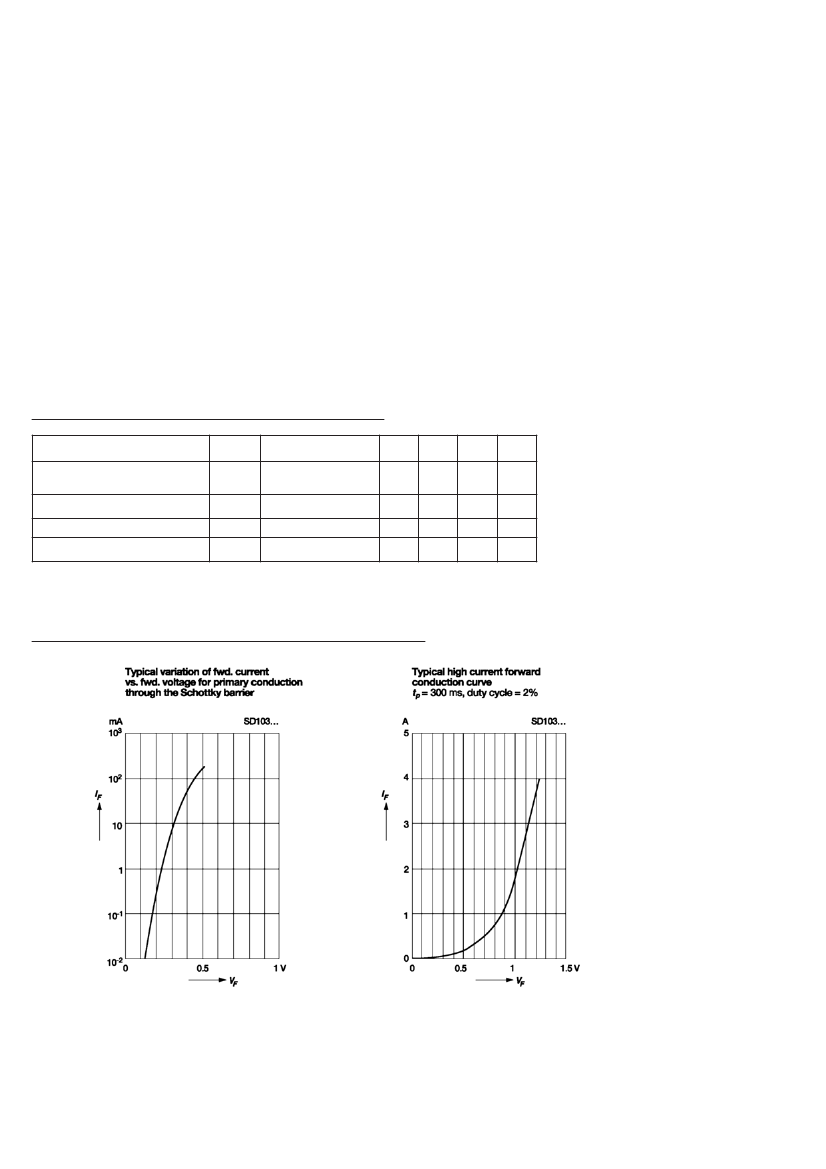

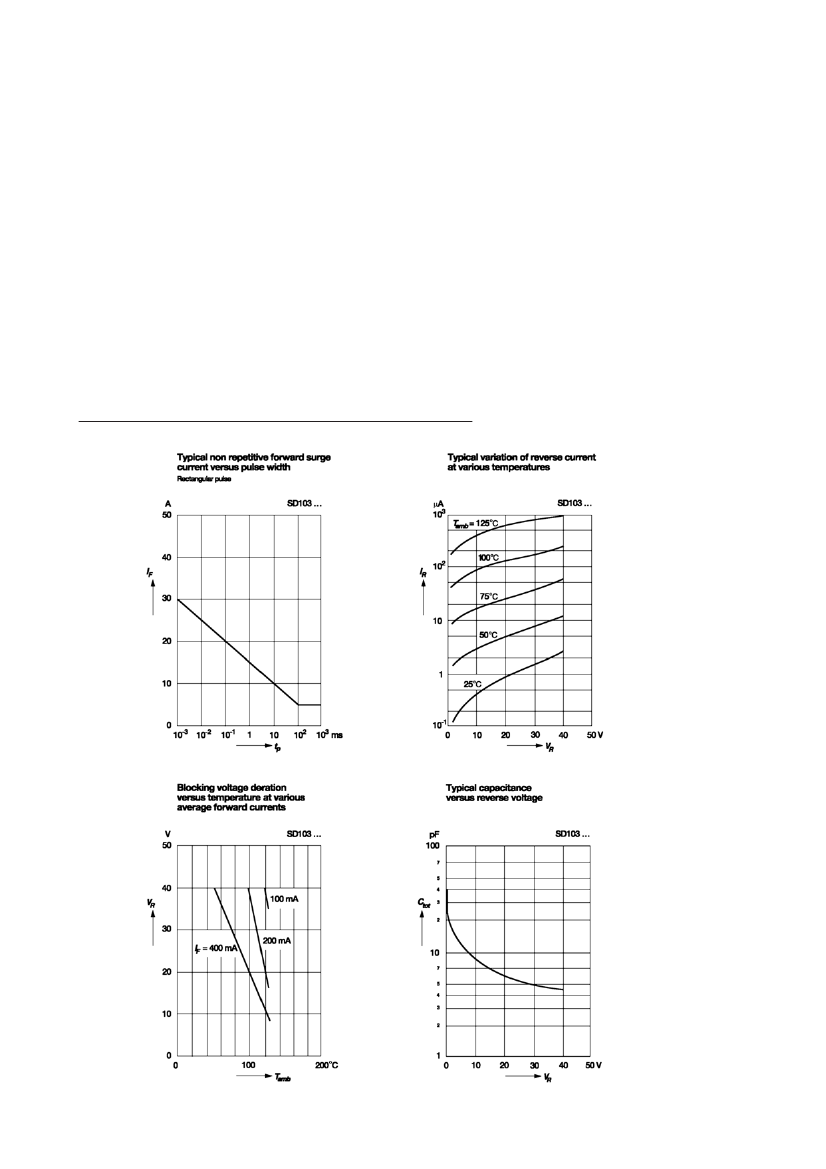

691
