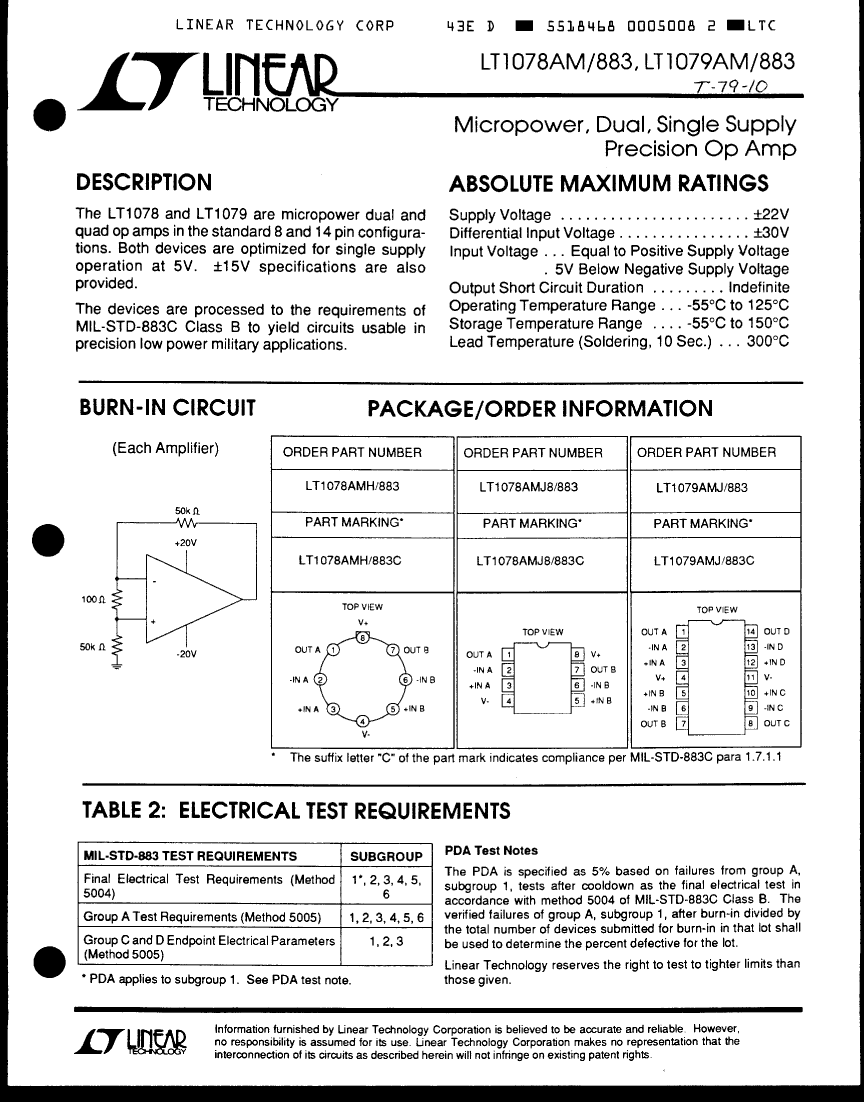

Preview

LT1078AMJ8/883: DescriptionBasic information of LT1078AMJ8/883 amplifier: LT1078AMJ8/883 is an OPERATIONAL AMPLIFIER. LT1078AMJ8/883 amplifier core information: The minimum operating temperature of the LT1078AMJ8/883 is -55 °C and the maximum operating temperature is 125 °C. Maximum bias current at 25°C: 0.008 µA The maximum slew rate of the LT1078AMJ8/883 given by the manufacturer is 0.16 mA, while the minimum slew rate is 0.06 V/us. Its minimum voltage gain is 200000. The power supply range is: 5/+-15 V. The input offset voltage of the LT1078AMJ8/883 is 430 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the op amp output terminal 0V (or close to 0V).) Related dimensions of LT1078AMJ8/883: LT1078AMJ8/883 has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. LT1078AMJ8/883 amplifier additional information: LT1078AMJ8/883 adopts the VOLTAGE-FEEDBACK architecture. It belongs to the low offset class of amplifiers. The frequency compensation status of LT1078AMJ8/883 is: YES. Its temperature grade is: MILITARY. It is a micropower amplifier. LT1078AMJ8/883 is not Rohs certified. The corresponding JESD-30 code is: R-XDIP-T8. The corresponding JESD-609 code is: e0. The packaging code of LT1078AMJ8/883 is: DIP. The packaging materials of LT1078AMJ8/883 are mostly CERAMIC. The package shape is RECTANGULAR. The LT1078AMJ8/883 package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.; CategoryAnalog mixed-signal IC Amplifier circuit; File Size242KB，2 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html; Alternative parts：LT1078AMJ8/883

Download Datasheet Parametric Compare View All

LT1078AMJ8/883 Overview

Basic information of LT1078AMJ8/883 amplifier:

LT1078AMJ8/883 is an OPERATIONAL AMPLIFIER.

LT1078AMJ8/883 amplifier core information:

The minimum operating temperature of the LT1078AMJ8/883 is -55 °C and the maximum operating temperature is 125 °C. Maximum bias current at 25°C: 0.008 µA

The maximum slew rate of the LT1078AMJ8/883 given by the manufacturer is 0.16 mA, while the minimum slew rate is 0.06 V/us. Its minimum voltage gain is 200000.

The power supply range is: 5/+-15 V. The input offset voltage of the LT1078AMJ8/883 is 430 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the op amp output terminal 0V (or close to 0V).)

Related dimensions of LT1078AMJ8/883:

LT1078AMJ8/883 has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm.

LT1078AMJ8/883 amplifier additional information:

LT1078AMJ8/883 adopts the VOLTAGE-FEEDBACK architecture. It belongs to the low offset class of amplifiers. The frequency compensation status of LT1078AMJ8/883 is: YES. Its temperature grade is: MILITARY. It is a micropower amplifier.

LT1078AMJ8/883 is not Rohs certified. The corresponding JESD-30 code is: R-XDIP-T8. The corresponding JESD-609 code is: e0. The packaging code of LT1078AMJ8/883 is: DIP. The packaging materials of LT1078AMJ8/883 are mostly CERAMIC.

The package shape is RECTANGULAR. The LT1078AMJ8/883 package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.

LT1078AMJ8/883 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.008 µA
frequency compensation	YES
Maximum input offset voltage	430 µV
JESD-30 code	R-XDIP-T8
JESD-609 code	e0
low-dissonance	YES
micropower	YES
Number of functions	2
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/+-15 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
minimum slew rate	0.06 V/us
Maximum slew rate	0.16 mA
Supply voltage upper limit	22 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Minimum voltage gain	200000
Base Number Matches	1

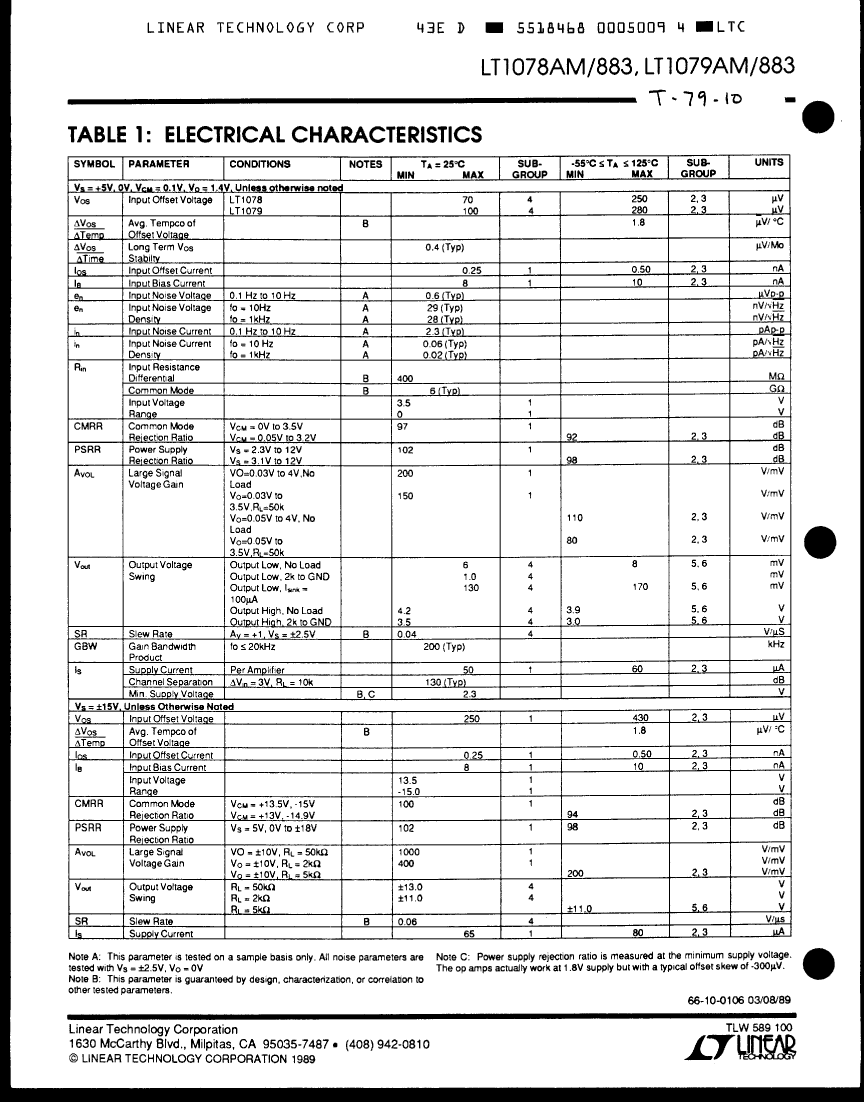

Preview

Download Datasheet

View All

LT1078AMJ8/883 Related Products

	LT1078AMJ8/883	LT1078AMH/883	LT1079AMJ/883
Description	LT1078AMJ8/883	LT1078AMH/883	LT1079AMJ/883
Is it Rohs certified?	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.008 µA	0.008 µA	0.008 µA
frequency compensation	YES	YES	YES
Maximum input offset voltage	430 µV	430 µV	430 µV
JESD-30 code	R-XDIP-T8	O-MBCY-W8	R-XDIP-T14
JESD-609 code	e0	e0	e0
low-dissonance	YES	YES	YES
micropower	YES	YES	YES
Number of functions	2	2	4
Number of terminals	8	8	14
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	METAL	CERAMIC
Encapsulate equivalent code	DIP8,.3	CAN8,.2	DIP14,.3
Package shape	RECTANGULAR	ROUND	RECTANGULAR
Package form	IN-LINE	CYLINDRICAL	IN-LINE
power supply	5/+-15 V	5/+-15 V	5/+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
minimum slew rate	0.06 V/us	0.06 V/us	0.06 V/us
Maximum slew rate	0.16 mA	0.16 mA	0.16 mA
Supply voltage upper limit	22 V	22 V	22 V
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	WIRE	THROUGH-HOLE
Terminal location	DUAL	BOTTOM	DUAL
Minimum voltage gain	200000	200000	200000
Base Number Matches	1	1	1
encapsulated code	DIP	-	DIP
surface mount	NO	-	NO
Terminal pitch	2.54 mm	-	2.54 mm
