LT1082MJ8/883B datasheet, PDF - EEWORLD Datasheet

LT1082MJ8/883B: Description3 A SWITCHING REGULATOR, 75 kHz SWITCHING FREQ-MAX, CDIP8; CategoryPower/power management The power supply circuit; File Size165KB，4 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

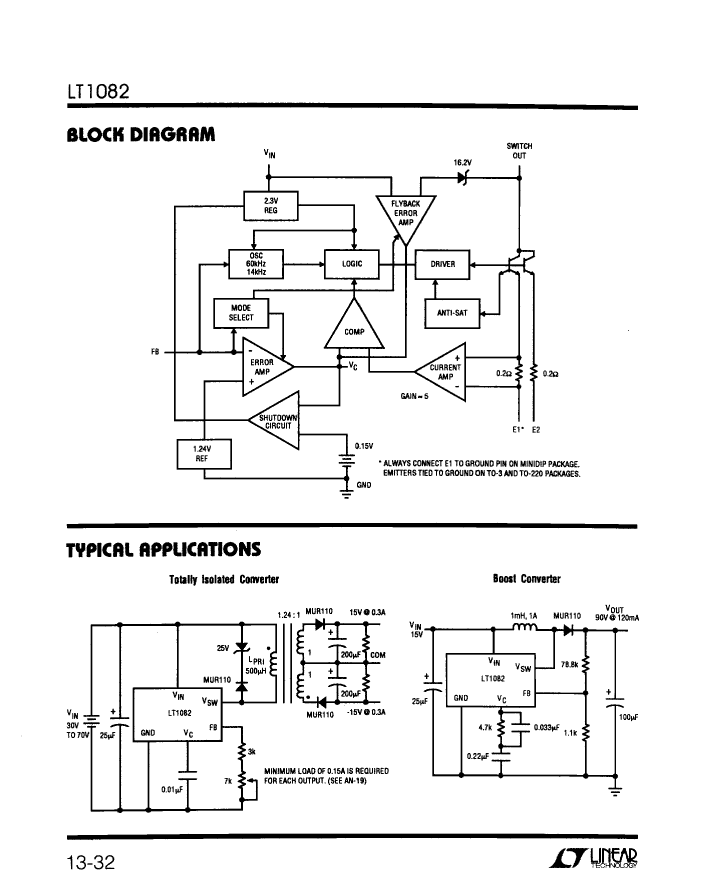

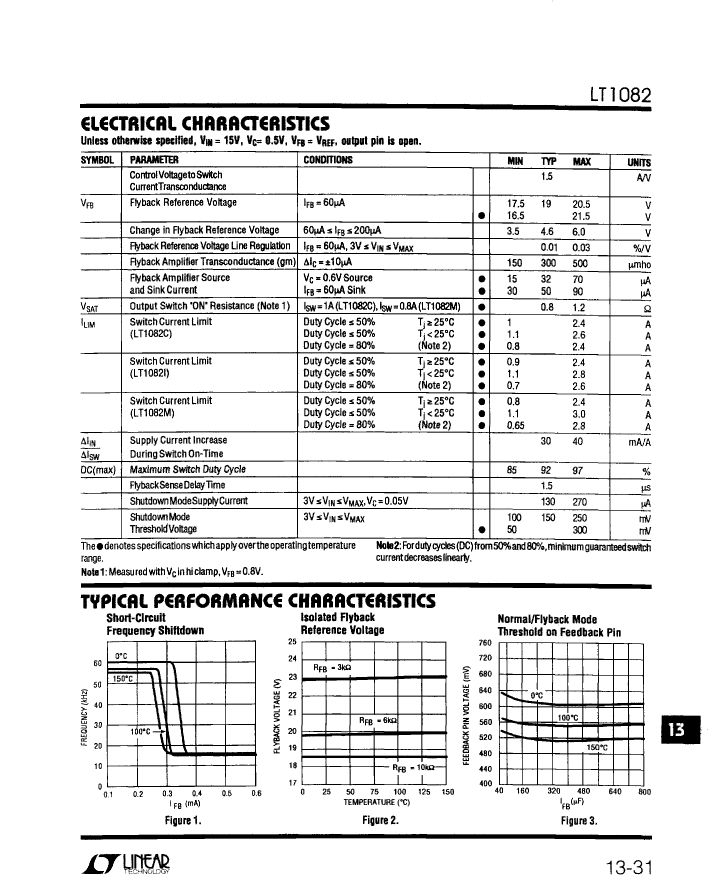

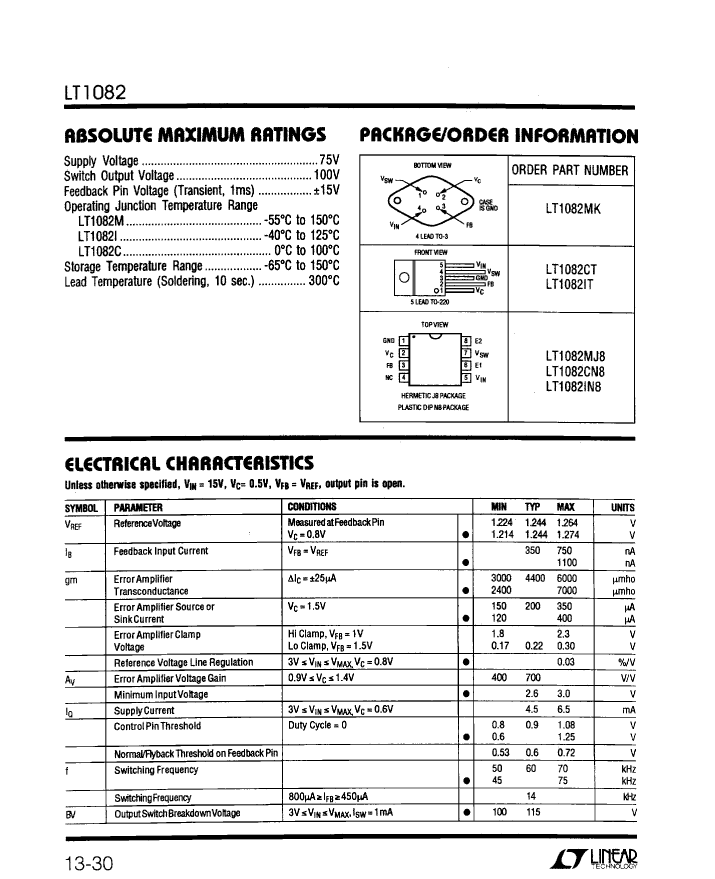

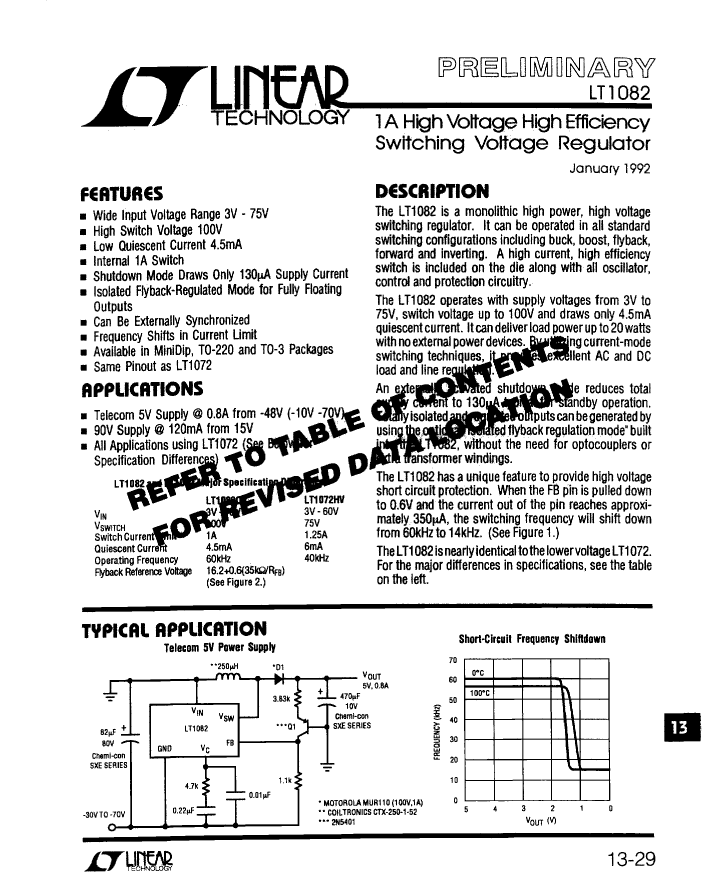

LT1082MJ8/883B Overview

3 A SWITCHING REGULATOR, 75 kHz SWITCHING FREQ-MAX, CDIP8

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	MINI, HERMETIC SEALED, CERDIP-8
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	75 V
Minimum input voltage	3 V
Nominal input voltage	15 V
JESD-30 code	R-GDIP-T8
JESD-609 code	e0
Number of functions	1
Number of terminals	8
Maximum output current	3 A
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.08 mm
surface mount	NO
Switch configuration	BOOST
Maximum switching frequency	75 kHz
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

	LT1082MJ8/883B	LT1082MK/883B
Description	3 A SWITCHING REGULATOR, 75 kHz SWITCHING FREQ-MAX, CDIP8	3 A SWITCHING REGULATOR, 75 kHz SWITCHING FREQ-MAX, MBFM2
Is it Rohs certified?	incompatible	incompatible
package instruction	MINI, HERMETIC SEALED, CERDIP-8	METAL CAN, TO-3, 4 PIN
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR	SWITCHING REGULATOR
control mode	CURRENT-MODE	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum input voltage	75 V	75 V
Minimum input voltage	3 V	3 V
Nominal input voltage	15 V	15 V
JESD-30 code	R-GDIP-T8	O-MBFM-P2
JESD-609 code	e0	e0
Number of functions	1	1
Number of terminals	8	2
Maximum output current	3 A	3 A
Package body material	CERAMIC, GLASS-SEALED	METAL
encapsulated code	DIP	TO-3
Package shape	RECTANGULAR	ROUND
Package form	IN-LINE	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Switch configuration	BOOST	BOOST
Maximum switching frequency	75 kHz	75 kHz
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	PIN/PEG
Terminal location	DUAL	BOTTOM
