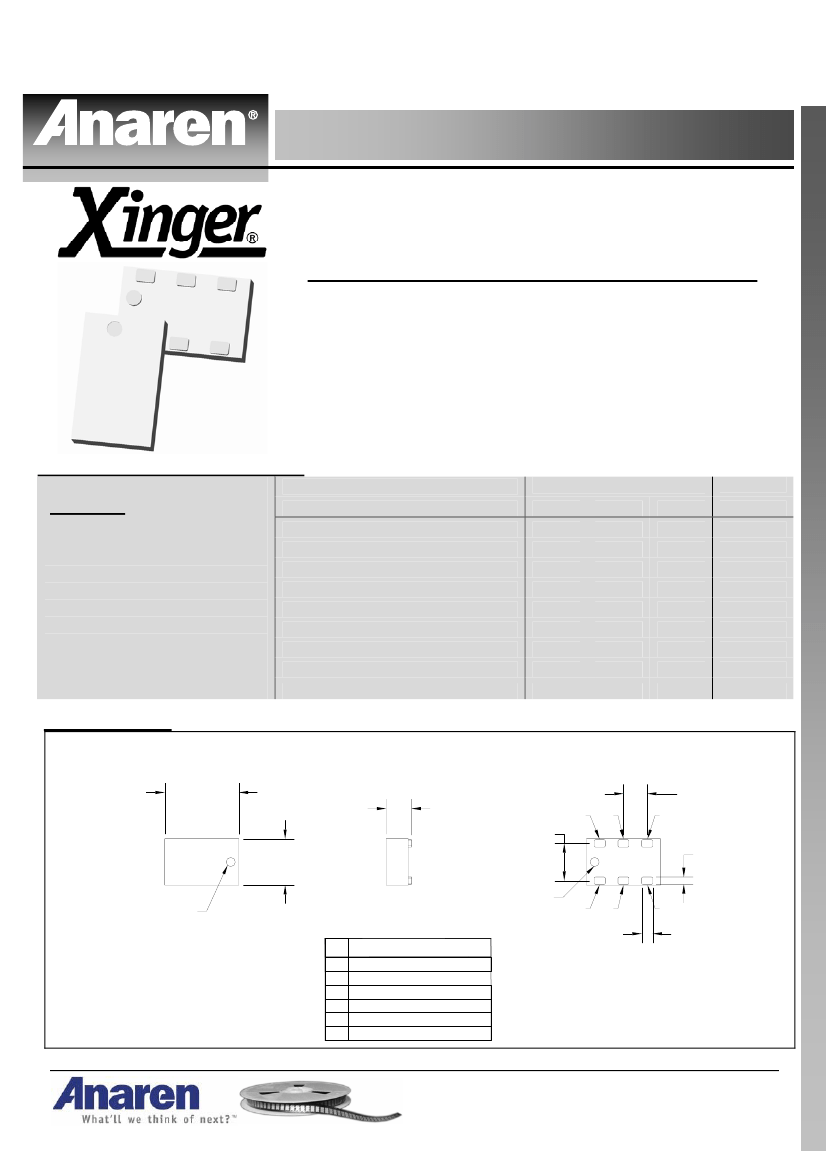

Model C1720J5003A00
Rev D
Ultra Low Profile 0805
3 dB, 90° Hybrid Coupler
Description
The C1720J5003A00 is a low cost, low profile sub-miniature high
performance 3 dB coupler in an easy to use surface mount package. It is designed
for PCS, DCS, DECT, and WCDMA-3G applications. The C1720J5003A00 is ideal
for balanced power and low noise amplifiers, plus signal distribution and other
applications where low insertion loss and tight amplitude and phase balance are
required. The C1720J5003A00 is available on tape and reel for pick and place high
volume manufacturing.
All of the Xinger components are constructed from ceramic filled PTFE
composites which possess excellent electrical and mechanical stability having X and
o
Y thermal coefficient of expansion (CTE) of 17 ppm/ C.
Detailed Electrical Specifications:
Specifications subject to change without notice.
ROOM (25°C)
Parameter
•
1700 – 2000 MHz
Frequency
•
0.7mm Height Profile
Port Impedance
•
PCS, DCS, DECT, & WCDMA-3G
Return Loss
•
Low Insertion Loss
Isolation
•
High Isolation
•
Surface Mountable
Insertion Loss*
•
Tape & Reel
Amplitude Balance
•
Non-conductive Surface
Phase Balance (relative to 90°)
•
RoHS Compliant
Power Handling
Operating Temperature
* Insertion Loss stated at room temperature (Insertion Loss is approximately 0.1 dB higher at +85 ºC)
Features:
Min.
1700
21
24
Typ.
50
27
36
0.3
0.2
1
Max
2000
0.4
1.0
5
4
+85
Unit
MHz
Ω
dB
dB
dB
dB
Degrees
Watts
ºC
-55
Outline Drawing
Top View (Near-side)
.079
±.004
[2.00
±0.10
]
Side View
Bottom View (Far-side)
4X .026
[0.65]
.039
[0.98]
1
2
3
6X .009
[0.22]
.028
±.002
[0.700
±0.05
]
.049
±.004
[1.25
±0.10
]
Orientation
Marker Denotes
Pin Location
Orientation
Marker Denotes
Pin Location
Pin
1
2
3
4
5
6
Designation
Input
GND
Isolated
Direct
GND
Coupled
6
5
6X .012
[0.30]
4
Dimensions are in Inches [Millimeters]
Mechanical Outline
Tolerances are Non-Cumulative
Available on Tape
and Reel for Pick and
Place Manufacturing.
USA/Canada:
Toll Free:
Europe
:
(315) 432-8909
(800) 411-6596
+44 2392-232392

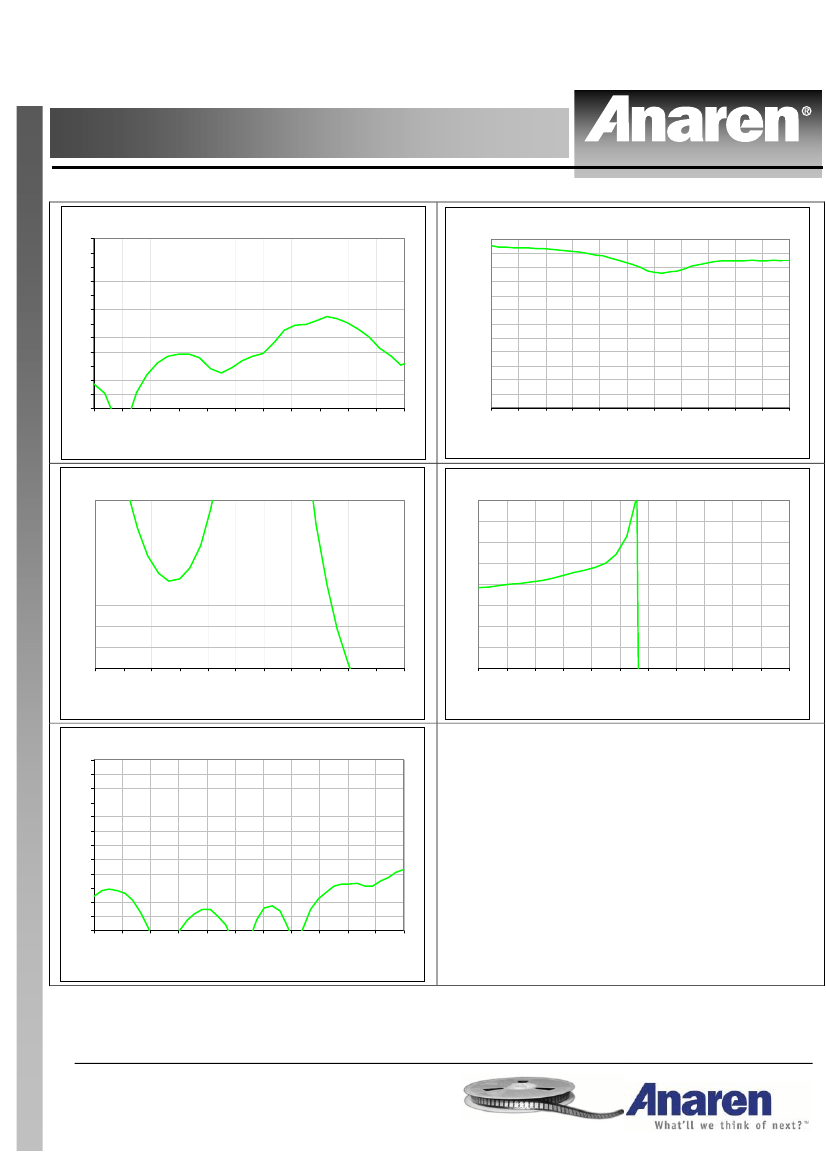

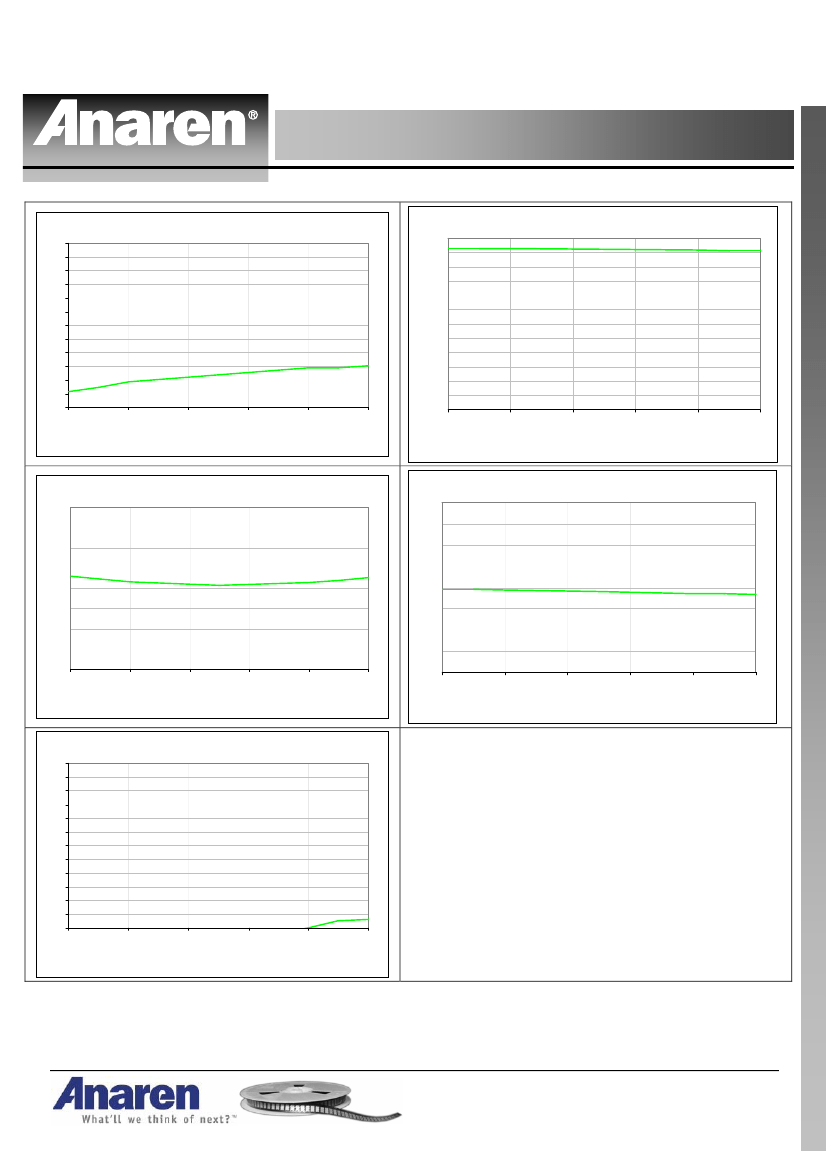

Model C1720J5003A00
Rev D
Mounting Configuration:
In order for Xinger surface mount components to work optimally, the proper impedance transmission lines must be
used to connect to the RF ports. If this condition is not satisfied, insertion loss, Isolation and VSWR may not meet
published specifications.
All of the Xinger components are constructed from ceramic filled PTFE composites which possess excellent electrical
and mechanical stability having X and Y thermal coefficient of expansion (CTE) of 17 ppm/
o
C.

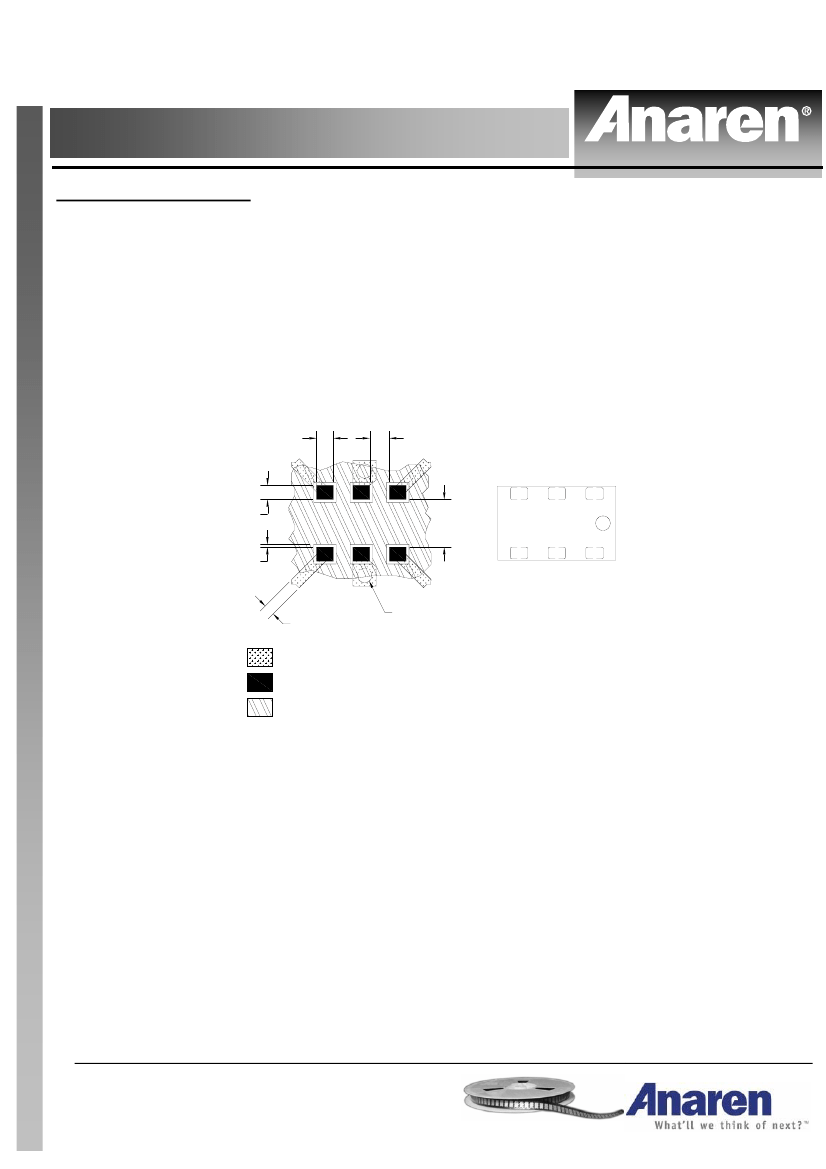

An example of the PCB footprint used in the testing of these parts is shown below. In specific designs, the
transmission line widths need to be adjusted to the unique dielectric coefficients and thicknesses as well as varying
pick and place equipment tolerances.
6X .014
[0.35]
4X .012
[0.30]
6X .013
[0.33]
6X .002
[0.05]
.026
[0.66]
4X Transmission
Line
Circuit Pattern
Footprint Pad (s)
Solder Resist
Plated thru
holes to
ground
Dimensions are in Inches [Millimeters]
Mounting Footprint
USA/Canada:
Toll Free:
Europe:
(315) 432-8909
(800) 411-6596
+44 2392-232392
Available on Tape and
Reel for Pick and Place
Manufacturing.
Model C1720J5003A00
Rev D

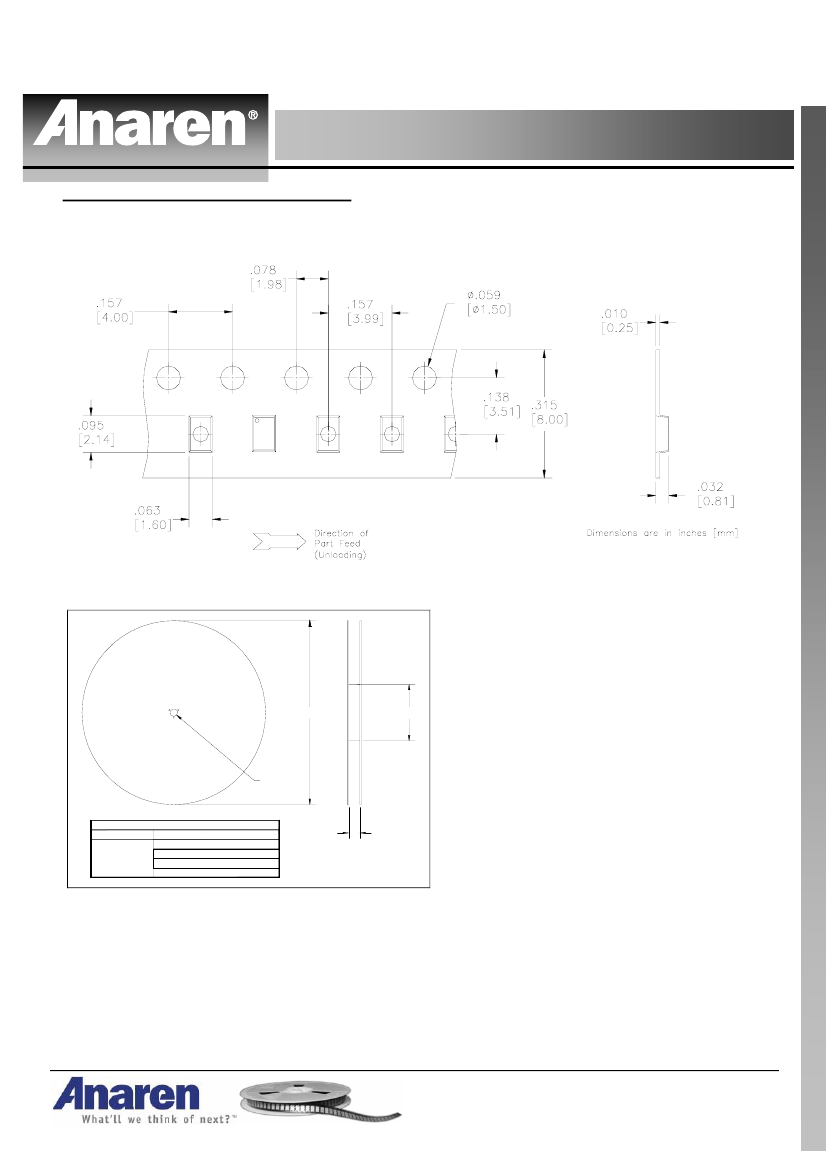

Packaging and Ordering Information
Parts are available in reel and are packaged per EIA 481-2. Parts are oriented in tape and reel as shown below. Minimum order
quantities are 4000 per reel. See Model Numbers below for further ordering information
.
ØA
ØC
ØD
QUANTITY/REEL
4000
TABLE 1
REEL DIMENSIONS (inches [mm])
ØA
7.00 [177.8]
B
0.32 [8.0]
ØC
2.0 [50.8]
ØD
0.512 [13.0]
B
Available on Tape
and Reel for Pick and
Place Manufacturing.
USA/Canada:
Toll Free:
Europe
:
(315) 432-8909
(800) 411-6596
+44 2392-232392
