M3EH58XAGFREQ datasheet, PDF - EEWORLD Datasheet

M3EH58XAGFREQ: DescriptionPECL 10KH Output Clock Oscillator, 1.5MHz Min, 155.52MHz Max,; CategoryPassive components oscillator; File Size50KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

M3EH58XAGFREQ Overview

PECL 10KH Output Clock Oscillator, 1.5MHz Min, 155.52MHz Max,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
maximum descent time	2.5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
Installation features	SURFACE MOUNT
Maximum operating frequency	155.52 MHz
Minimum operating frequency	1.5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-10 °C
Oscillator type	PECL 10KH
Output load	50 OHM
physical size	13.2mm x 13.2mm x 5.97mm
longest rise time	2.5 ns
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	40/60 %
Base Number Matches	1

SAMPLING

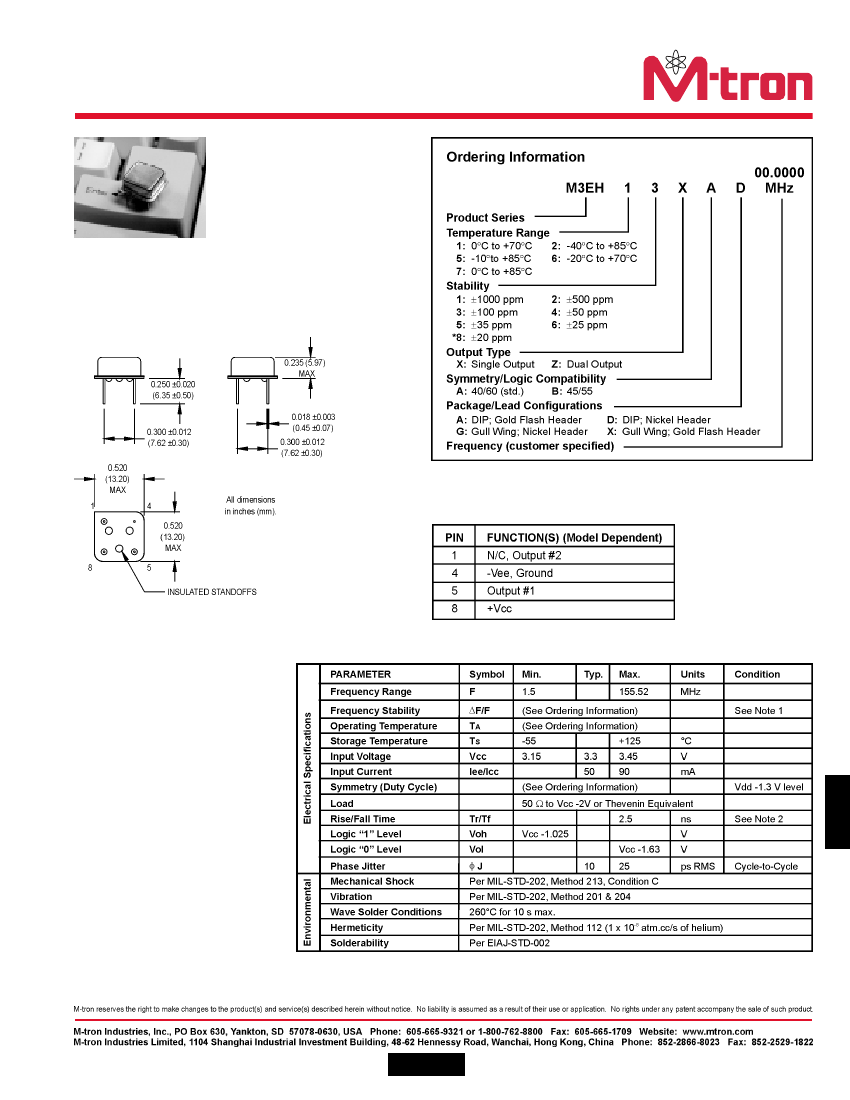

M3EH Series Half-Size ECL/PECL Oscillators

M3EH Series ECL/PECL Clock Oscillators, 10 KH

Compatible with Optional Complementary

Outputs

Pin Connections

1. Calibration, deviation over temperature, shock, vibration, and aging.

2. Rise/Fall times are measured between Vcc -1.025 V and Vcc -1.63 V.
