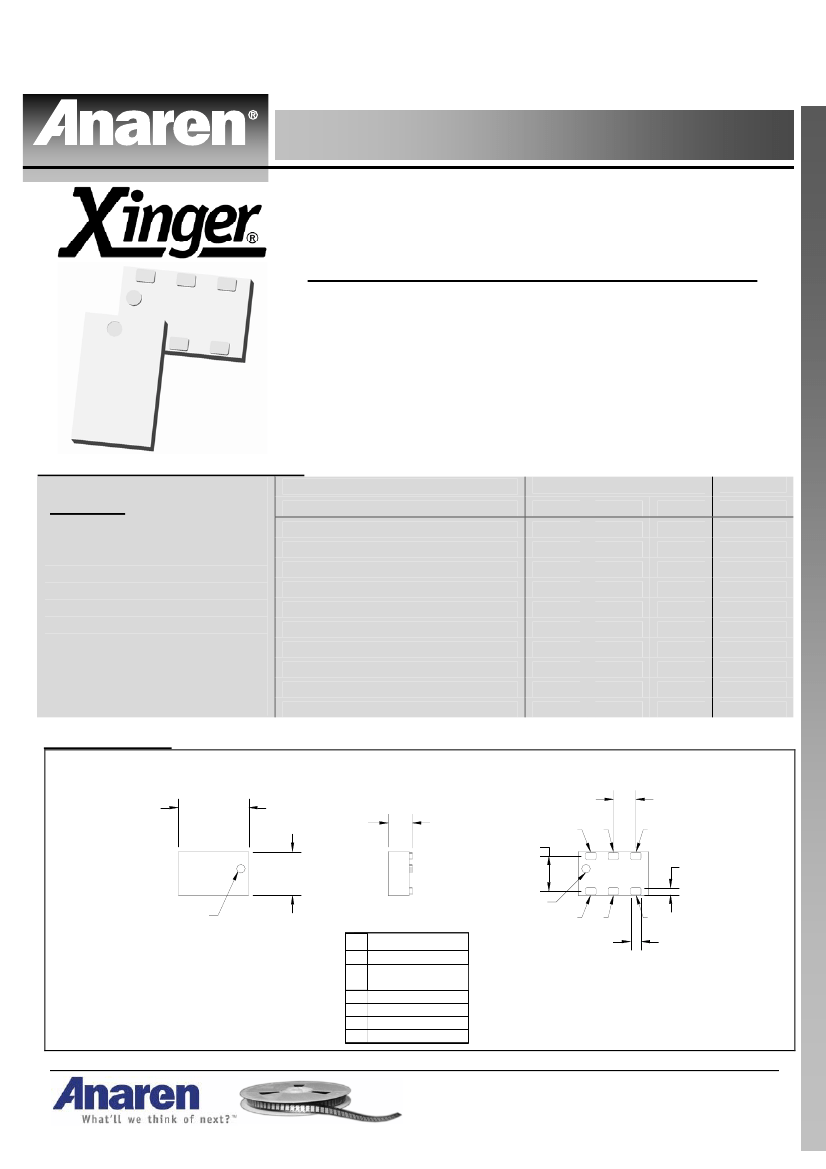

Model BD2425J5050A00
Rev B
Ultra Low Profile 0805 Balun
50Ω to 50Ω Balanced
Description
The BD2425J5050A00 is a low profile sub-miniature balanced to unbalanced
transformer designed for differential inputs and output locations on next generation
wireless chipsets in an easy to use surface mount package covering 802.11b+g+n.
The BD2425J5050A00 is ideal for high volume manufacturing and is higher
performance than traditional ceramic and lumped element baluns. The
BD2425J5050A00 has an unbalanced port impedance of 50Ω and a 50Ω balanced
port impedance. This transformation enables single ended signals to be applied to
differential ports on modern semiconductors. The output ports have equal amplitude
(-3dB) with 180 degree phase differential. The BD2425J5050A00 is available on
tape and reel for pick and place high volume manufacturing.
Detailed Electrical Specifications:
Specifications subject to change without notice.
ROOM (25°C)
•
•
•
•
•
•
•
•
•
•
Features:
2400 – 2400 MHz
0.7mm Height Profile
50 Ohm to 2 x 25 Ohm
802.11 b+g +n Compliant
Low Insertion Loss
Input to Output DC Isolation
Surface Mountable
Tape & Reel
Non-conductive Surface
RoHS Compliant
Parameter
Frequency
Unbalanced Port Impedance
Balanced Port Impedance
Return Loss
Insertion Loss*
Amplitude Balance
Phase Balance
CMRR
Power Handling
Operating Temperature
Min.
2400
Typ.
50
50
17
0.8
0.35
1
Max
2500
14
0.9
0.5
5
2
+85
-55
Unit
MHz
Ω
Ω
dB
dB
dB
Degrees
dB
Watts
ºC
* Insertion Loss stated at room temperature (Insertion Loss is approximately 0.1 dB higher at +85 ºC)
Outline Drawing
Top View (Near-side)
.079
±.004
[2.00
±0.10
]
Side View
Bottom View (Far-side)
.026 [0.65]
.027
±.002
[0.70
±0.05
]
.039 [0.98]
.049
±.004
[1.25
±0.10
]
Orientation
Marker Denotes
Pin Location
Orientation
Marker Denotes
Pin Location
6
5
6X .012
[0.30]
4
1
2
3
6X .009
[0.22]
Dimensions are in Inches [Millimeters]
Mechanical Outline
Pin Designation
1 Unbalanced Port
2 GND / DC Feed
+ RF GND
3 Balanced Port
4 Balanced Port
5 GND
6 NC
Tolerances are Non-Cumulative
Available on Tape
and Reel for Pick and
Place Manufacturing.
USA/Canada:
Toll Free:
Europe
:
(315) 432-8909
(800) 411-6596
+44 2392-232392
Model BD2425J5050A00
Rev B

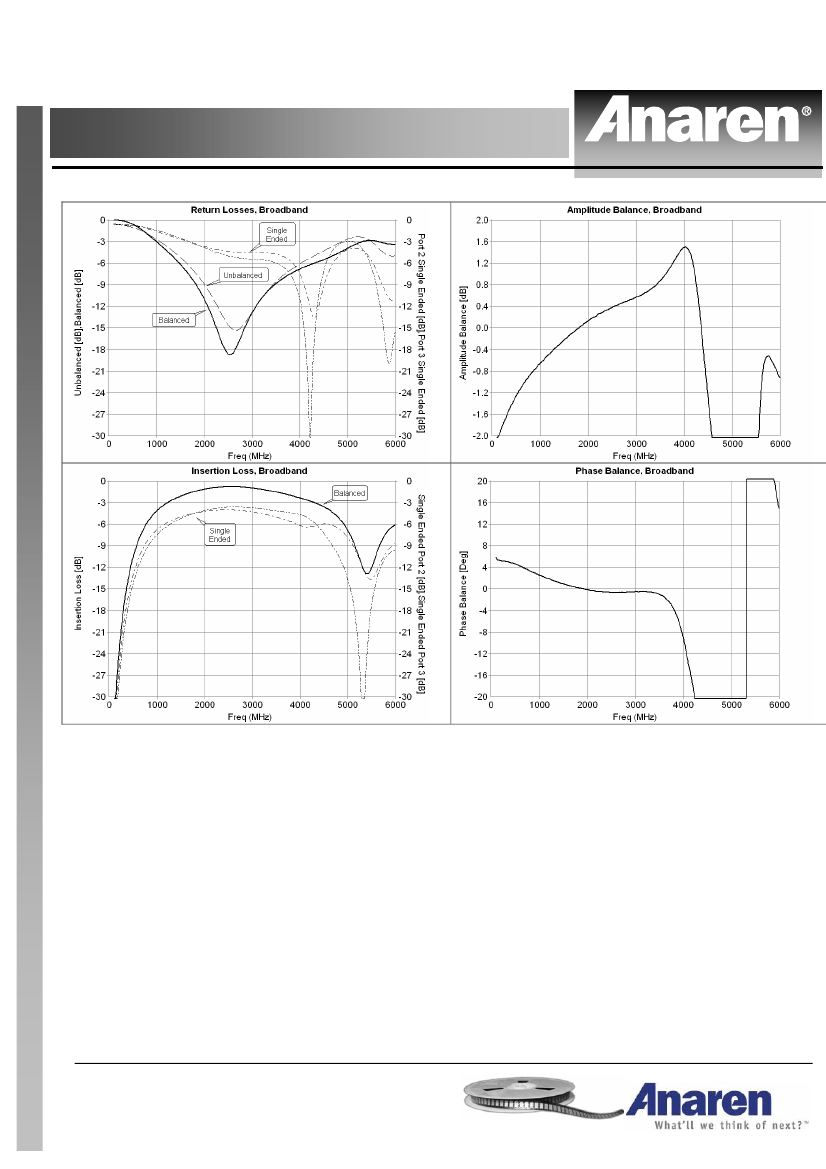

Typical Broadband Performance: 0 GHz. to 6.0 GHz.
USA/Canada:
Toll Free:
Europe:
(315) 432-8909
(800) 411-6596
+44 2392-232392
Available on Tape and
Reel for Pick and Place
Manufacturing.
Model BD2425J5050A00
Rev B

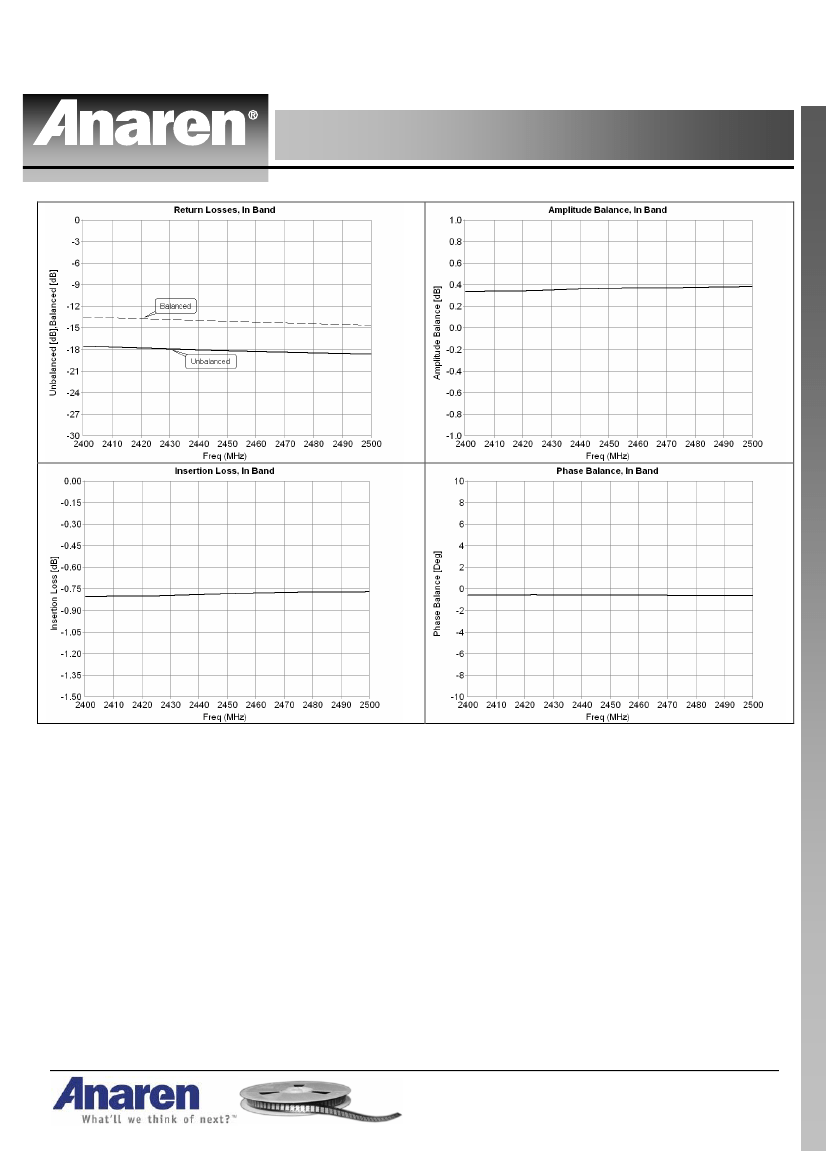

Typical Performance: 2400 MHz. to 2500 MHz.
Available on Tape
and Reel for Pick and
Place Manufacturing.
USA/Canada:
Toll Free:
Europe
:
(315) 432-8909
(800) 411-6596
+44 2392-232392
Model BD2425J5050A00
Rev B
Mounting Configuration:
In order for Xinger surface mount components to work optimally, the proper impedance transmission lines must be
used to connect to the RF ports. If this condition is not satisfied, insertion loss, Isolation and VSWR may not meet
published specifications.
All of the Xinger components are constructed from ceramic filled PTFE composites which possess excellent electrical
and mechanical stability having X and Y thermal coefficient of expansion (CTE) of 17 ppm/
o
C.
An example of the PCB footprint used in the testing of these parts is shown below. An example of a DC-biased
footprint is also shown below. In specific designs, the transmission line widths need to be adjusted to the unique
dielectric coefficients and thicknesses as well as varying pick and place equipment tolerances.

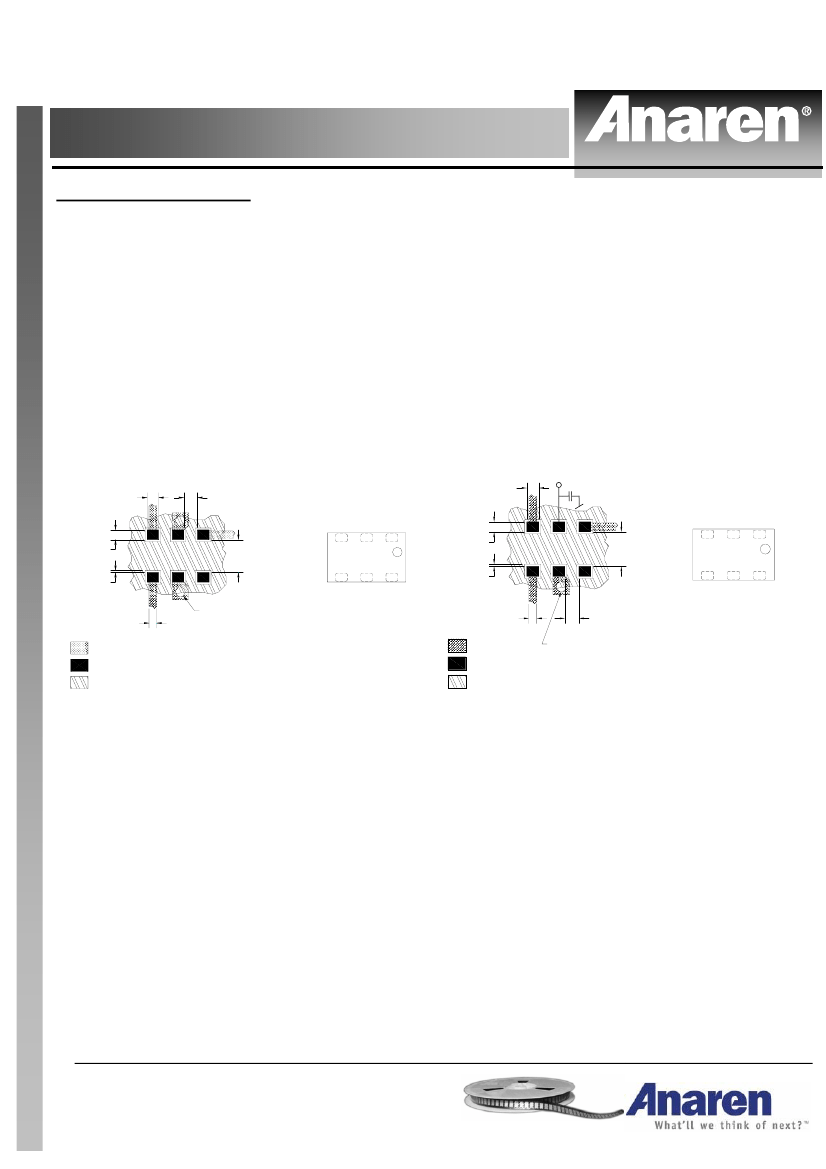

No Bias Footprint
DC Bias Footprint
6X .014
[0.35]
4X .012
[0.30]
Part Orientation (Top View)
6X .016
[0.35]
DC Bias
Part Orientation (Top View)
6X .013
[0.33]
6X .002
[0.05]
6X .011
[0.27]
6X .002
[0.05]
.029
[0.73]
.026
[0.66]
3X Transmission
Line
Circuit Pattern
Footprint Pad (s)
Solder Resist
Plated thru
hole to
ground
3X Transmission
Line
Circuit Pattern
Footprint Pad (s)
Dimensions are in Inches [Millimeters]
0805 Standard Mounting Footprint
4X .012
[0.30]
Plated thru
hole to
ground
Dimensions are in Inches [Millimeters]
0805 DC Bias Mounting Footprint
Solder Resist
USA/Canada:
Toll Free:
Europe:
(315) 432-8909
(800) 411-6596
+44 2392-232392
Available on Tape and
Reel for Pick and Place
Manufacturing.
Model BD2425J5050A00
Rev B

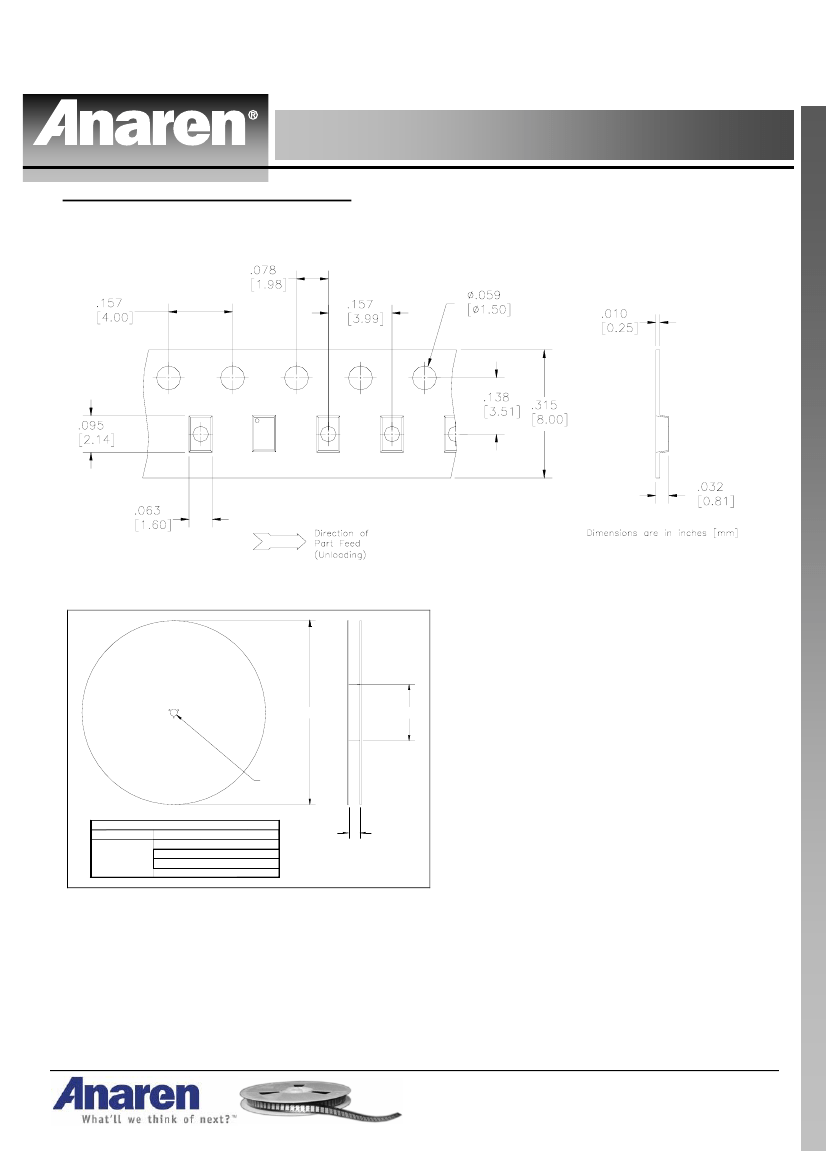

Packaging and Ordering Information
Parts are available in reel and are packaged per EIA 481-2. Parts are oriented in tape and reel as shown below. Minimum order
quantities are 4000 per reel. See Model Numbers below for further ordering information
.
ØA
ØC
ØD
QUANTITY/REEL
4000
TABLE 1
REEL DIMENSIONS (inches [mm])
ØA
7.00 [177.8]
B
0.32 [8.0]
ØC
2.0 [50.8]
ØD
0.512 [13.0]
B
Available on Tape
and Reel for Pick and
Place Manufacturing.
USA/Canada:
Toll Free:
Europe
:
(315) 432-8909
(800) 411-6596
+44 2392-232392
