Non-Isolated 10A SIP/SMT DC/DC Converters
VOLANT NFA010 SERIES

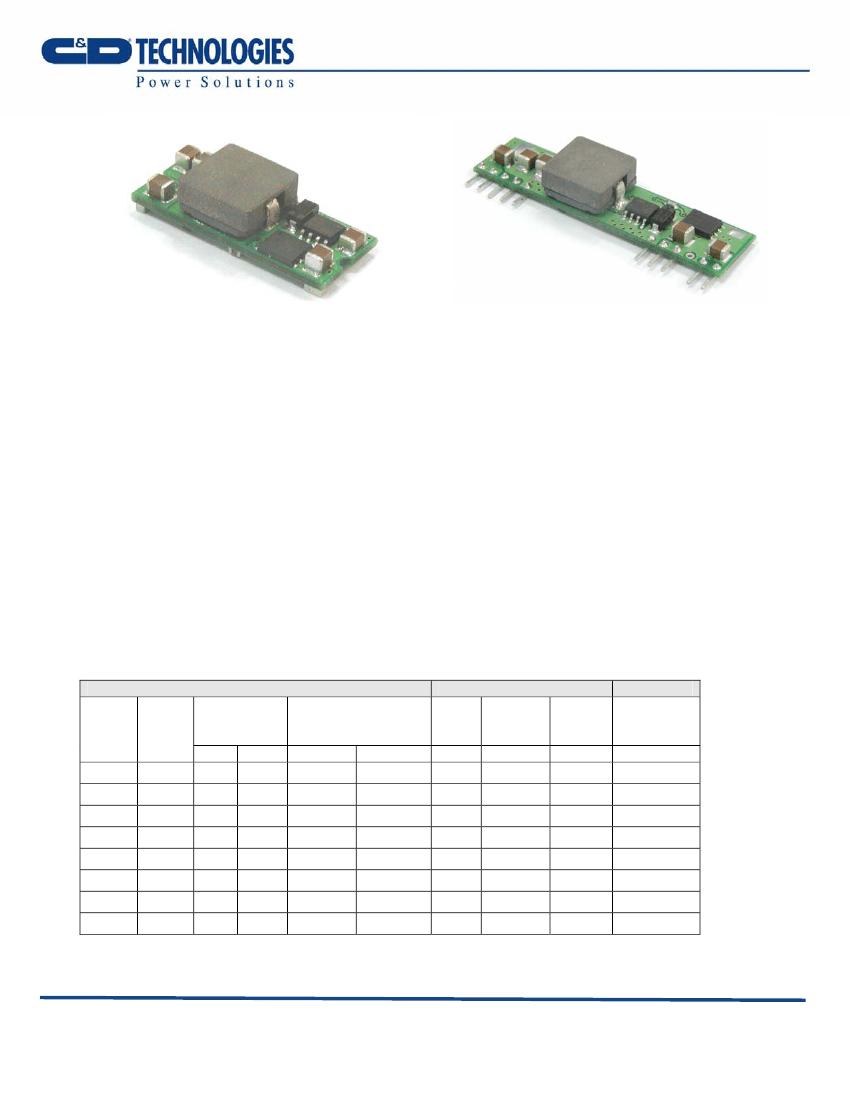

Features:
Small size, minimal footprint – SMT/SIP package
10A Output Current (all voltages)
High Efficiency: up to 95%
High reliability
Cost efficient open frame design
Output voltage programmable by an external resistor.
Monotonic Startup with Pre-Bias
+’ve Enable Logic and –‘ve Enable Logic models available
Optional Power Good Signal
Sequencing / Tracking Feature
Output
Vout
(V)
0.75
1.2
1.5
1.8
2.0
2.5
3.3
5.0
Iout
(A)
10
10
10
10
10
10
10
10
PARD
(mVp-p)
Typ.
50
50
50
50
50
50
50
50
Max.
75
75
75
75
75
75
75
75
Regulation
Max
Line
+/-0.2%
+/-0.2%
+/-0.2%
+/-0.2%
+/-0.2%
+/-0.2%
+/-0.2%
+/-0.2%
Load
+/-0.5%
+/-0.5%
+/-0.5%
+/-0.5%
+/-0.5%
+/-0.5%
+/-0.5%
+/-0.5%
Input
Vin
Nom.
(V)
12
12
12
12
12
12
12
12
Efficiency
Range
(V)
6.0 – 14
6.0 – 14
6.0 – 14
6.0 – 14
6.0 – 14
6.0 – 14
6.0 – 14
6.5 – 14
Iin
Typ
(A)
1.299
1.928
2.326
2.727
2.996
3.704
4.783
7.092
Full Load
Typ.
80%
86%
89%
90%
91%
92%
93%
95%
1150 Eglinton Avenue East
Toronto, Ontario M3C 1H7
1-866-740-1232
NFA010-6200650000 A01 Nov. 9, 2004
www.cdtechno-cps.com
4607 S.E. International Way
Milwaukie, Oregon 97222
1-971-206-2800
Page
1
Non-Isolated 10A SIP/SMT DC/DC Converters
VOLANT NFA010 SERIES
Input Characteristics
Input Voltage Operating Range
Input Reflected Ripple Current
Inrush Current Transient
Input Filter Type (external)
Input Turn ON Threshold
Input Turn OFF Threshold
Enable
(Positive enable has 20K pullup)
(Negative enable has no internal
pullup resistor)
Notes & Conditions
Minimum 6.5 V input @ 5 volts output
Min
6.0
Typ.
12
200
100
5.0
4.0
open
<0.4
<0.4
Max
14
0.2
Units
Vdc
mA p-p
A
2
s
µF
V
V
Vdc
Vdc
Positive enable: ON
Positive enable: OFF
Negative enable: ON;
open circuit or
Negative enable: OFF
Notes & Conditions
100% load
2
Min
-1.5
0
Typ.
Vin
Max
+1.5
10
75
8000
5.0
<2%
23
+0.2
+0.5
1
Units
%
A
mVp-p
µF
V
A
%
%
%
Output Characteristics
Vout Accuracy
Output Loading
Output Ripple & Noise
@ 20Mhz Bandwidth.
Maximum Capacitive Load
Vout Trim Range (Nom)
Total Accuracy
Current Limit
Output Line Regulation
Output Load Regulation
Turn-on Overshoot
SC Protection Technique
Pre-bias Start-up at output
Dynamic Characteristics
Load Transient
Operating Frequency
Rise Time
Start-Up Time
General Specifications
MTBF
Thermal Protection
Operating Ambient Temperature
Operating Ambient Temperature
SIP Dimensions
SMT Dimensions
SIP Pin Dimensions
SMT Block Dimensions
Pin and Block Material
Flammability Rating
Low ESR
0.75
Over line/load temperature
-0.2
-0.5
Hiccup with auto recovery
Unit starts monotonically with pre-
bias
Notes & Conditions
50% step, 0.1A/µs
Settling Time
10% Vo to 90% Vo
Vin to Vout and On/Off to Vout
Vout rise to monotonic
Notes & Conditions
Calculated (MIL-HDBK-217F)
See thermal derating text
Without derating 300LFM
See Power derating curve
2”Lx0.327”Wx0.512”H
(50.8x8.3x13.0mm)
1.30”Lx0.53”Wx0.366”H
(33x13.46x9.3mm)
0.025” (0.64mm) SQUARE
0.063” x0.065” x 0.112” , SQUARE
Square copper with tin-lead plating
UL94V-0
Min
Min
Typ.
Max
100
200
300
3.5
7
Typ.
919.53
110
Max
Units
mV
µs
KHz
ms
ms
Units
KHrs
°C
°C
°C
-40
-40
50
85
0.64
mm
1150 Eglinton Avenue East
Toronto, Ontario M3C 1H7
1-866-740-1232
NFA010-6200650000 A01 Nov. 9, 2004
www.cdtechno-cps.com
4607 S.E. International Way
Milwaukie, Oregon 97222
1-971-206-2800
Page
2
Non-Isolated 10A SIP/SMT DC/DC Converters
VOLANT NFA010 SERIES
Standards Compliance
CSA C22.2, Approvals Pending
Thermal Considerations
The power module operates in a variety of thermal environments; however, sufficient cooling should
be provided to help ensure reliable operation of the unit.

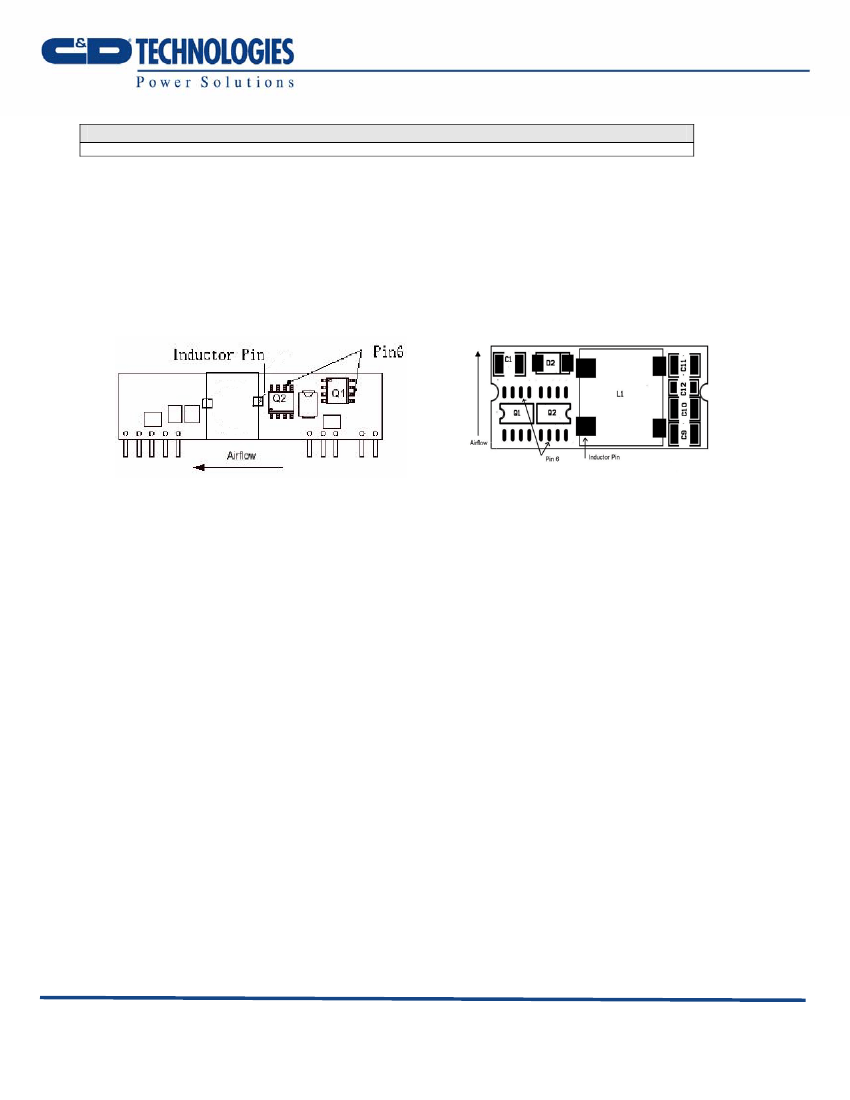

The thermal data presented is based on measurements taken at various airflows. Note that airflow is
parallel to the long axis of the module as shown in Figure 1 and derating applies accordingly.
Figure 1. Thermal Tests Set-Up.
The temperature at either location should not exceed 110°C. Over-temperature shutdown is
evaluated at these locations. The output power of the module should not exceed the rated power for
the module(Vo,set X Io,max).
Requirements for Cooling
To predict the approximate cooling needed for the module, refer to the Power Derating Curves in
Figures 2-17 .
These derating curves are approximations of the ambient temperature and airflow required to keep
the power module temperature below it's maximum rating. Once the module is assembled in the
actual system, the module's temperature should be verified.
1150 Eglinton Avenue East
Toronto, Ontario M3C 1H7
1-866-740-1232
NFA010-6200650000 A01 Nov. 9, 2004
www.cdtechno-cps.com
4607 S.E. International Way
Milwaukie, Oregon 97222
1-971-206-2800
Page
3
Non-Isolated 10A SIP/SMT DC/DC Converters
VOLANT NFA010 SERIES

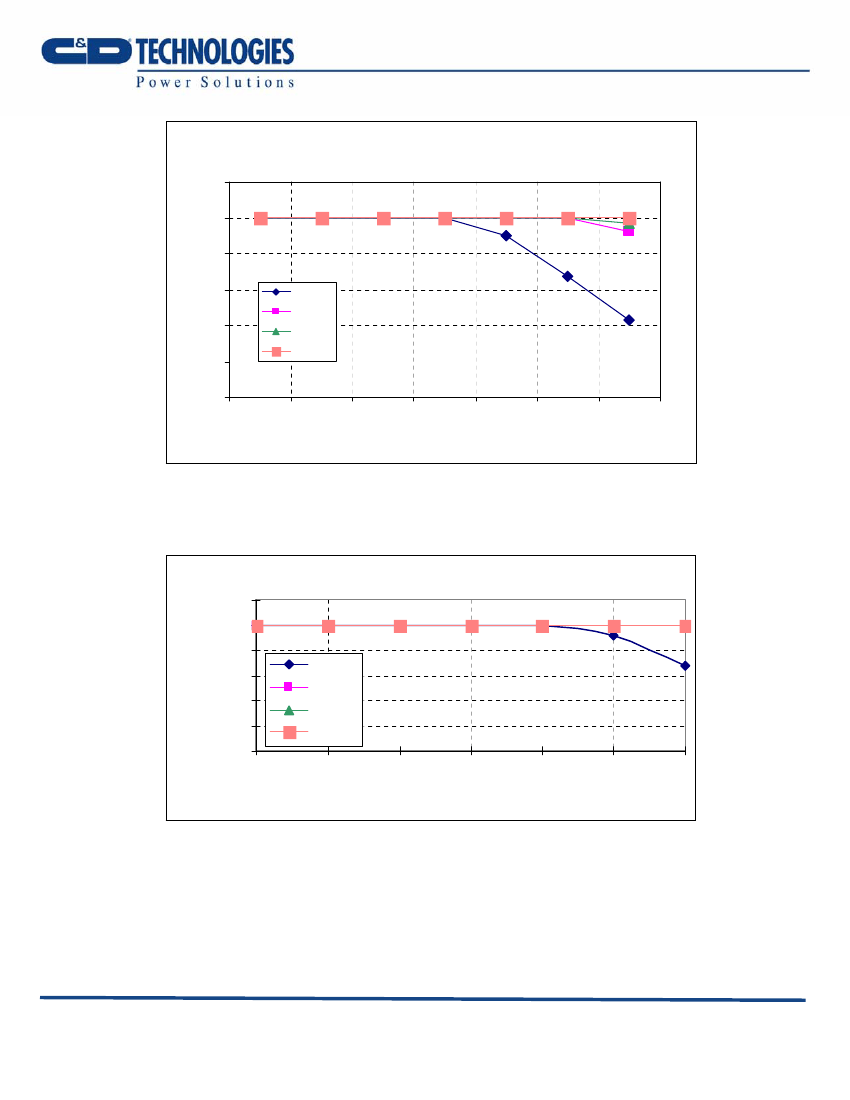

TYPICAL DERATING CURVES SIP/SMT VERSION
SMT10W-12S05A Vo=0.75V Derating Curve
NFA010 SMT Derating Curve Vout=0.75V
12
10
Output Current (A)
8
6
4
2
0
30
40
50
60
70
80
90
Ambient Temperature (C)
0LFM
100LFM
200LFM
300LFM
Fig. 2. SMT Power Derating vs Output Current for 12Vin 0.75V Out.
SIP1
0W-1
2S05A Derating Curve
Vout=0.75V
.0
NFA010 SIP Derating Curve
V1 Vout=0.75V
1
2
Output Current (A)
1
0
8
6
4
2
0
30
40
50
60
70
80
90
A mbient T emperature(C )
0LFM
1
00LFM
200LFM
300LFM
Fig. 3. SIP Power Derating vs Output Current for 12Vin 0.75V Out.
1150 Eglinton Avenue East
Toronto, Ontario M3C 1H7
1-866-740-1232
NFA010-6200650000 A01 Nov. 9, 2004
www.cdtechno-cps.com
4607 S.E. International Way
Milwaukie, Oregon 97222
1-971-206-2800
Page
4
Non-Isolated 10A SIP/SMT DC/DC Converters
VOLANT NFA010 SERIES

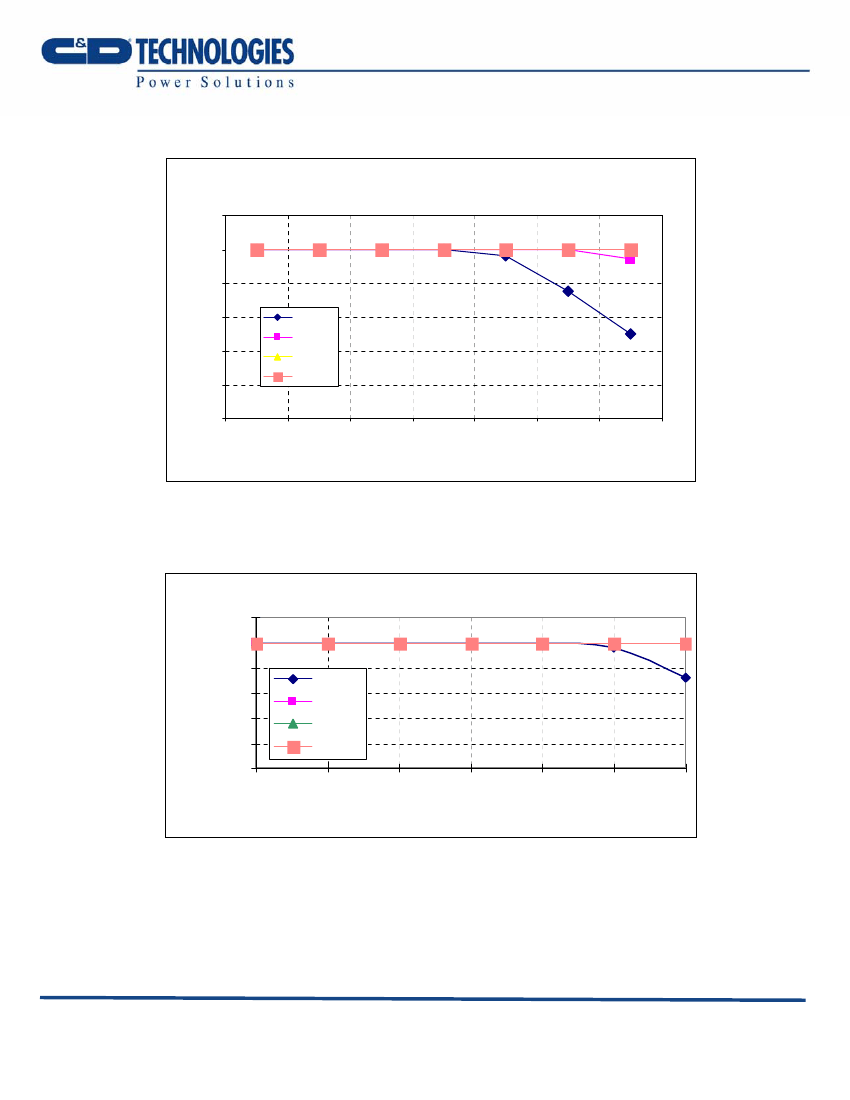

SMT10W-12S05A Vo=1.2V Derating Curve
NFA010 SMT Derating Curve Vout=1.2V
12
10
Output Current (A
8
6
4
2
0
30
40
50
60
70
80
90
Ambient Temperature (C)
0LFM
100LFM
200LFM
300LFM
Fig 4. SMT Power Derating vs Output Current for 12Vin 1.2V Out.
SIP1
0W-1
2S05A Derating Curve V1 Vout=1
.0
NFA010 SIP Derating Curve Vout=1.2V
.2V
1
2
1
0
8
6
4
2
0
30
40
50
60
70
80
90
A mbient T emperature(C )
0LFM
1
00LFM
200LFM
300LFM
Output Current (A)
1150 Eglinton Avenue East
Toronto, Ontario M3C 1H7
1-866-740-1232
Fig 5. SIP Power Derating vs Output Current for 12Vin 1.2V Out.
www.cdtechno-cps.com
NFA010-6200650000 A01 Nov. 9, 2004
4607 S.E. International Way
Milwaukie, Oregon 97222
1-971-206-2800
Page
5
