TB34G

Description
3.0A Glass Passivated Bridge Rectifier
File Size165KB，4 Pages
ManufacturerTAITRON Components
Websitehttp://www.taitroncomponents.com/
Download Datasheet Compare View All

TB34G Overview

3.0A Glass Passivated Bridge Rectifier

Preview

Download Datasheet

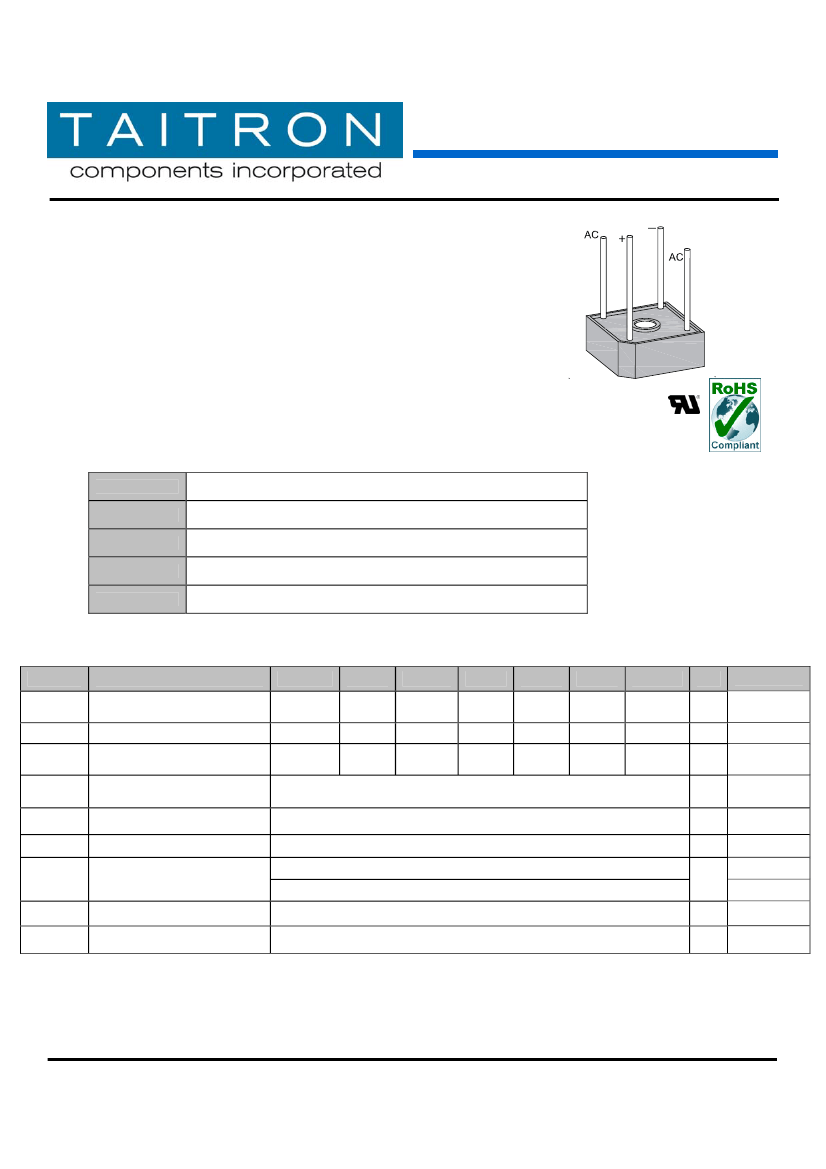

3.0A GLASS PASSIVATED
BRIDGE RECTIFIER
TB305G – TB310G
3.0A Glass Passivated Bridge Rectifier
Features
•
High forward surge current capability
•
Ideal for printed circuit board
•
High temperature soldering guaranteed:
260°C/10 seconds, at 5 lbs. (2.3kg) tension
•
RoHS Compliant
TB3

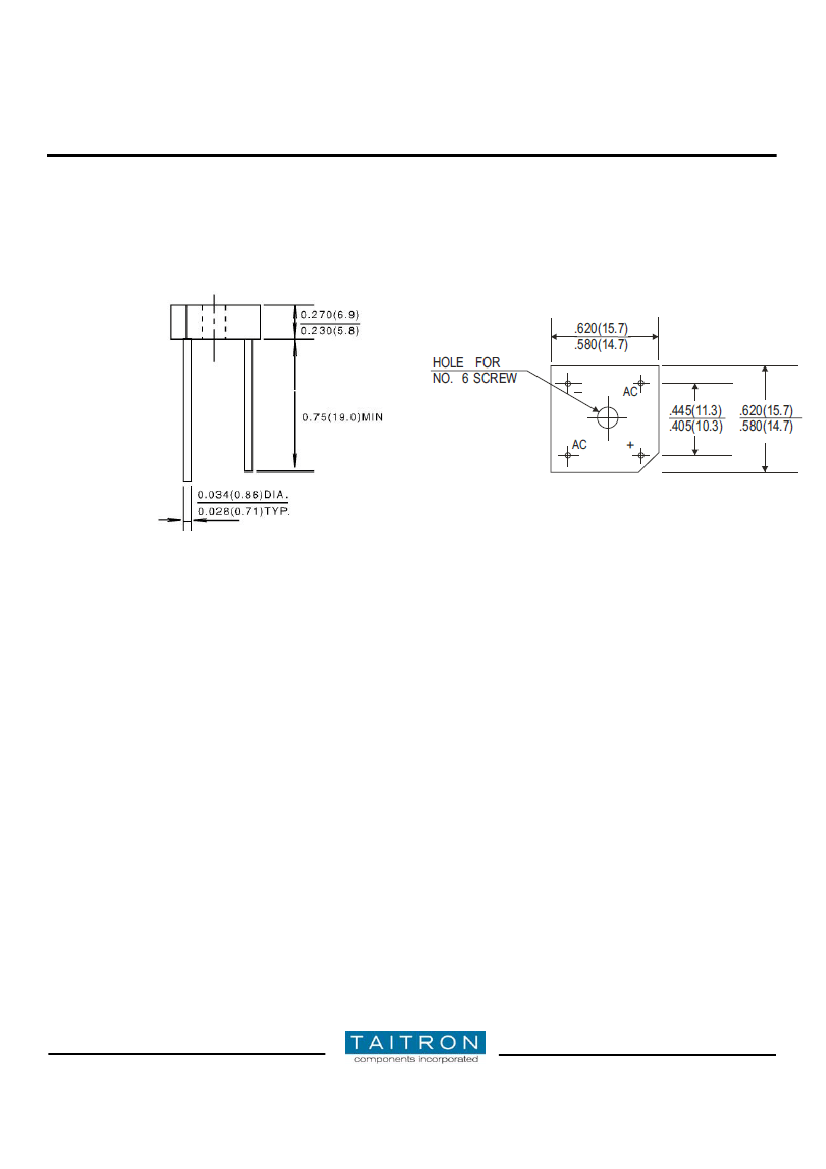

Mechanical Data
Case:
Epoxy:
Terminals:
Polarity:
Weight:
Molded plastic body
Meets UL 94V-0 flammability rating
Lead solderable per MIL-STD-202, Method 208
Hole thru for #6 screw
0.093 ounce, 2.62 grams
Maximum Ratings & Electrical Characteristics
(T
Ambient
=25ºC unless noted)
Symbol
Description
Maximum Repetitive Peak
Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking
Voltage
Maximum Average Forward
Rectified Current
Peak Forward Surge Current
Maximum Forward Voltage
Maximum Reverse Current at
Rated DC Blocking Voltage
per element
Operating Temperature Range
Storage Temperature Range
TB305G
50
35
50
TB31G
100
70
100
TB32G
200
140
200
TB34G
400
280
400
3.0
60
1.0
10.0
500
-55 to +150
-55 to +150
°C
°C
TB36G
600
420
600
TB38G
800
560
800
TB310G
1000
700
1000
Unit
V
V
V
A
A
V
uA
T
A
=50°C
Note
I
O
=1.5A
T
A
= 25 °C
T
A
=125 °C
Conditions
V
RRM
V
RMS
V
DC
I
O(AV)
I
FSM
V
F
I
R
T
J
T
STG
Note:
8.3 ms single half sine-wave superimposed on rated load (JEDEC Method)
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel: (800)-TAITRON
Fax: (800)-TAITFAX
(800)-824-8766
(800)-824-8329
(661)-257-6060
(661)-257-6415
Rev. A/JJ 2007-06-10
Page 1 of 4

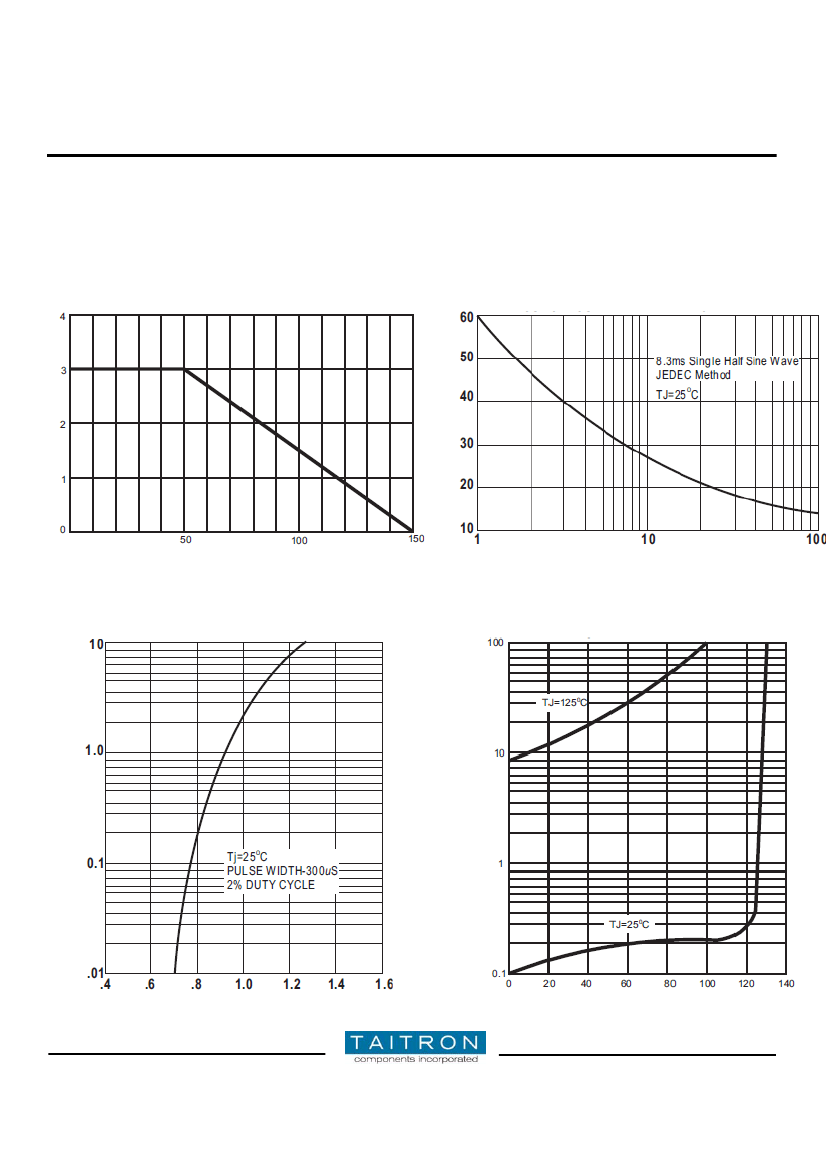

TB34G Related Products

TB34G TB31G TB305G TB32G TB310G TB36G TB38G
Description 3.0A Glass Passivated Bridge Rectifier 3.0A Glass Passivated Bridge Rectifier 3.0A Glass Passivated Bridge Rectifier 3.0A Glass Passivated Bridge Rectifier 3.0A Glass Passivated Bridge Rectifier 3.0A Glass Passivated Bridge Rectifier 3.0A Glass Passivated Bridge Rectifier
Is it Rohs certified? - conform to conform to conform to conform to conform to conform to
Maker - TAITRON Components TAITRON Components TAITRON Components TAITRON Components TAITRON Components TAITRON Components
package instruction - S-PUFM-W4 S-PUFM-W4 S-PUFM-W4 S-PUFM-W4 S-PUFM-W4 S-PUFM-W4
Reach Compliance Code - unknow unknow unknow unknow unknow unknow
Other features - UL RECOGNIZED UL RECOGNIZED UL RECOGNIZED UL RECOGNIZED UL RECOGNIZED UL RECOGNIZED
Minimum breakdown voltage - 100 V 50 V 200 V 1000 V 600 V 800 V
Configuration - BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS
Diode component materials - SILICON SILICON SILICON SILICON SILICON SILICON
Diode type - BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE
JESD-30 code - S-PUFM-W4 S-PUFM-W4 S-PUFM-W4 S-PUFM-W4 S-PUFM-W4 S-PUFM-W4
Maximum non-repetitive peak forward current - 50 A 50 A 50 A 50 A 50 A 50 A
Number of components - 4 4 4 4 4 4
Phase - 1 1 1 1 1 1
Number of terminals - 4 4 4 4 4 4
Maximum operating temperature - 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C
Minimum operating temperature - -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Maximum output current - 3 A 3 A 3 A 3 A 3 A 3 A
Package body material - PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape - SQUARE SQUARE SQUARE SQUARE SQUARE SQUARE
Package form - FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT
Peak Reflow Temperature (Celsius) - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Maximum repetitive peak reverse voltage - 100 V 50 V 200 V 1000 V 600 V 800 V
surface mount - NO NO NO NO NO NO
Terminal form - WIRE WIRE WIRE WIRE WIRE WIRE
Terminal location - UPPER UPPER UPPER UPPER UPPER UPPER
Maximum time at peak reflow temperature - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Base Number Matches - 1 1 1 1 1 1
