CD4520BE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> CD4520BE

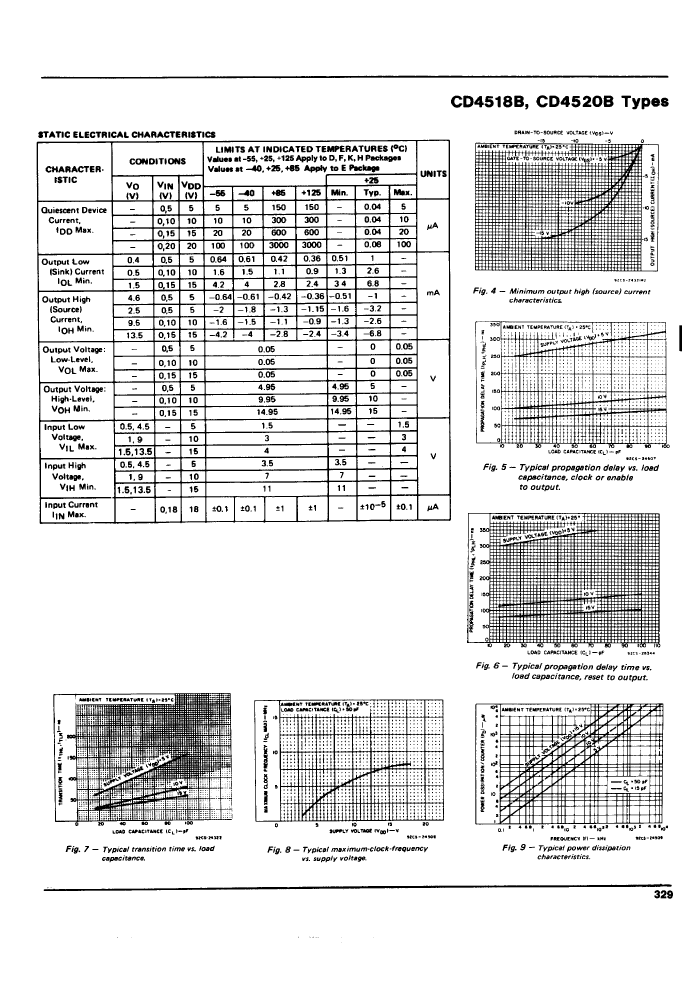

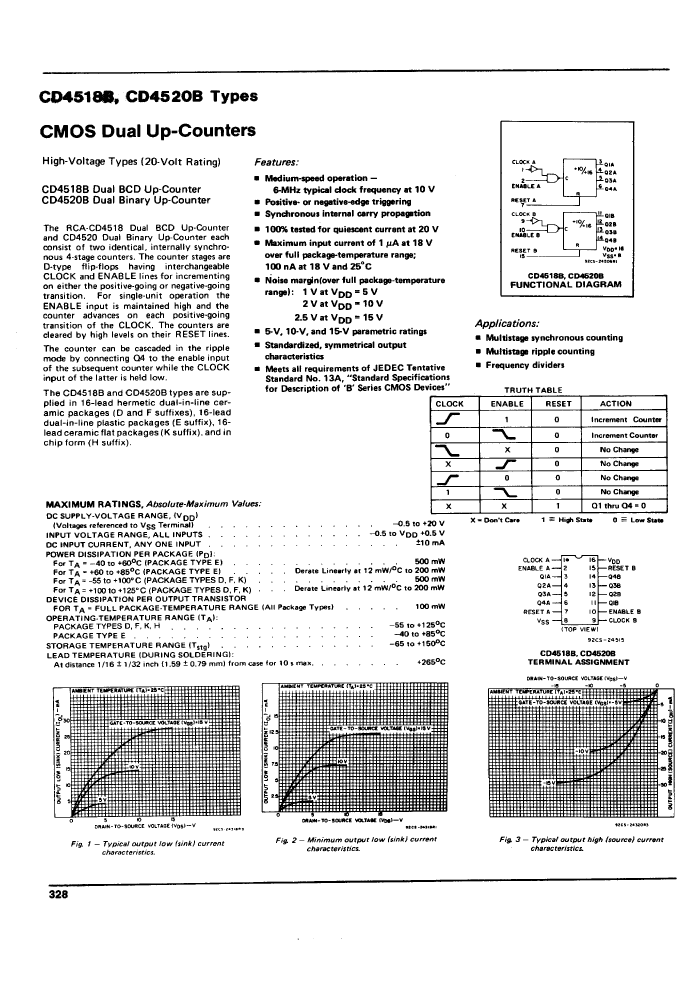

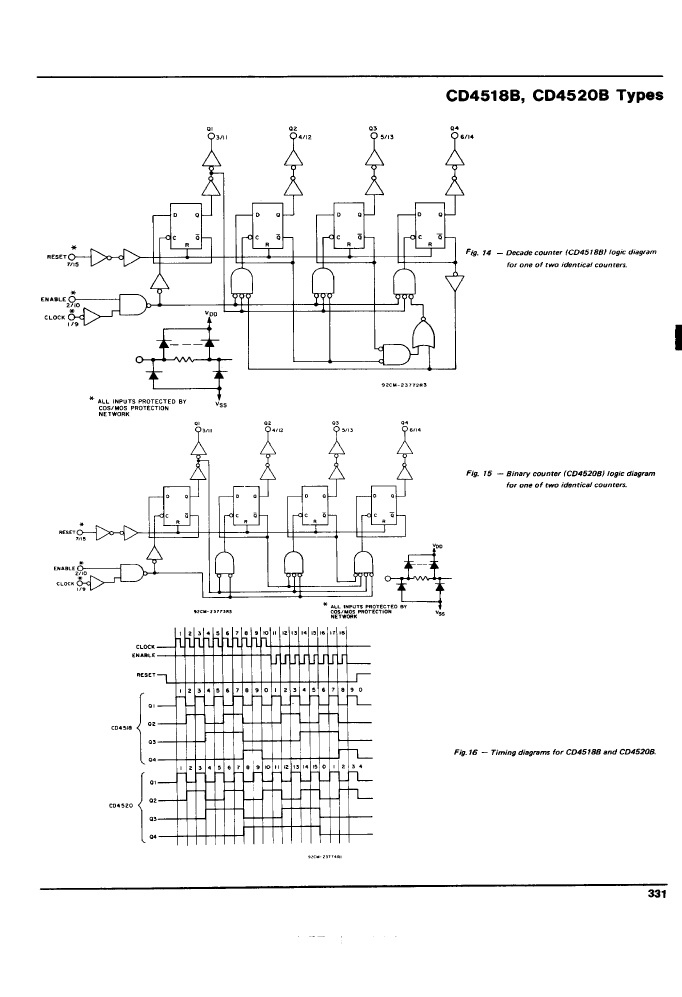

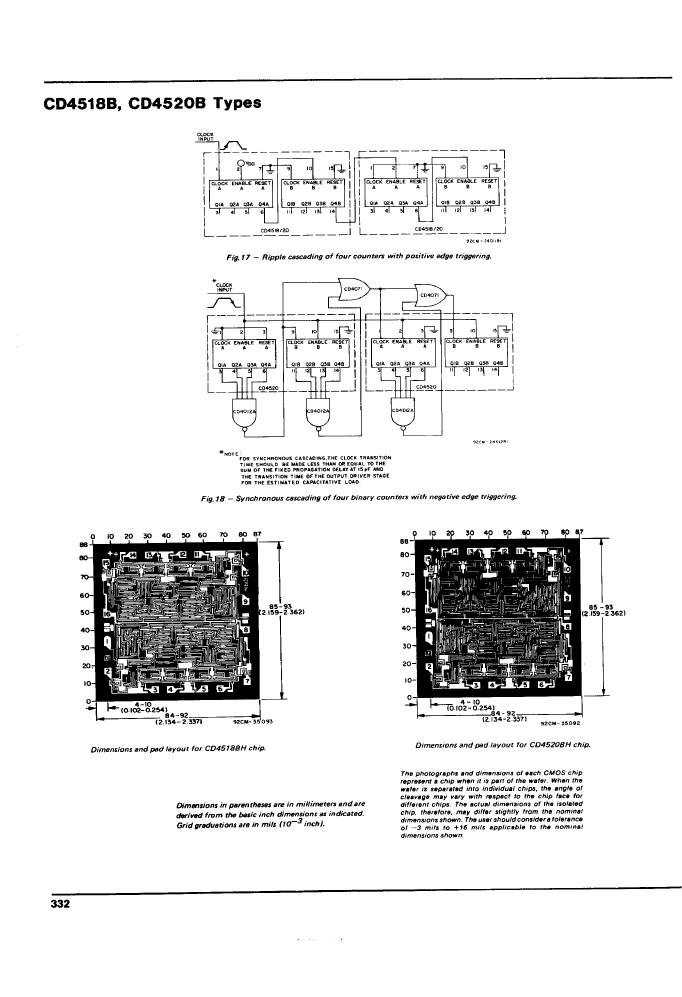

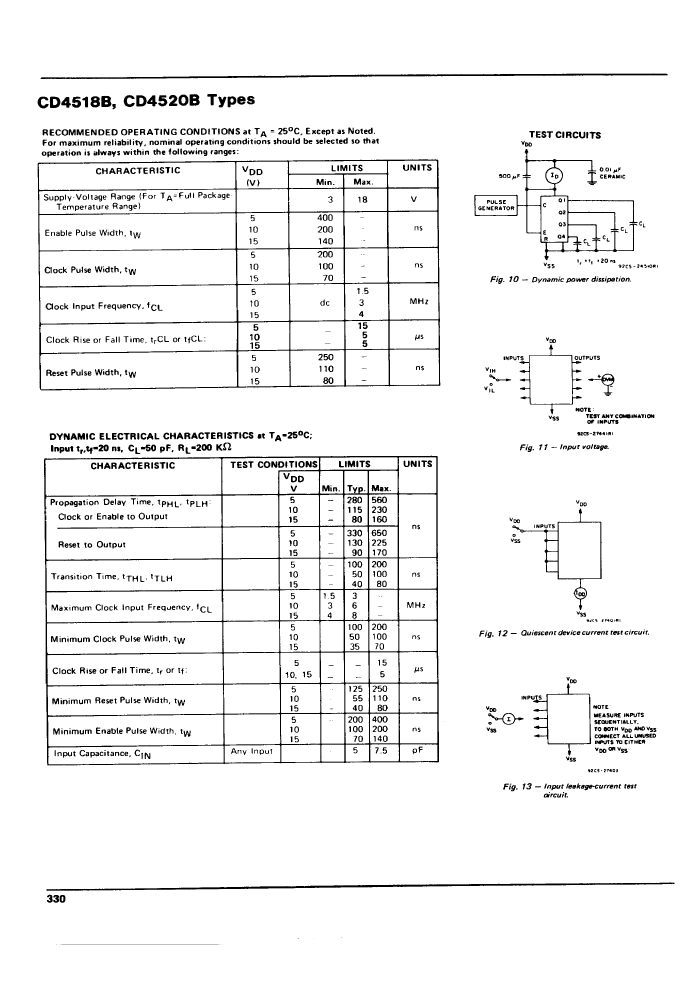

CD4520BE: DescriptionBinary Counter, Synchronous, Up Direction, CMOS, PDIP16,; Categorylogic logic; File Size252KB，5 Pages; ManufacturerRCA

Download Datasheet Parametric Compare View All

CD4520BE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD4520BE	-	-	View	Buy Now

CD4520BE Overview

Binary Counter, Synchronous, Up Direction, CMOS, PDIP16,

CD4520BE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Counting direction	UP
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Load/preset input	NO
Logic integrated circuit type	BINARY COUNTER
Operating mode	SYNCHRONOUS
Number of functions	2
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/15 V
Certification status	Not Qualified
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

CD4520BE Related Products

	CD4520BE	CD4520BD	CD4518BE	CD4520BK	CD4520BF	CD4520BH	CD4518BK	CD4518BD	CD4518BH
Description	Binary Counter, Synchronous, Up Direction, CMOS, PDIP16,	Binary Counter, Synchronous, Up Direction, CMOS, CDIP16,	Decade Counter, Synchronous, Up Direction, CMOS, PDIP16,	Binary Counter, Synchronous, Up Direction, CMOS, CDFP16,	Binary Counter, Synchronous, Up Direction, CMOS, CDIP16,	Binary Counter, Synchronous, Up Direction, CMOS,	Decade Counter, Synchronous, Up Direction, CMOS, CDFP16,	Decade Counter, Synchronous, Up Direction, CMOS, CDIP16,	Decade Counter, Synchronous, Up Direction, CMOS,
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DFP, FL16,.3	DIP, DIP16,.3	, DIE OR CHIP	DFP, FL16,.3	DIP, DIP16,.3	, DIE OR CHIP
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Counting direction	UP	UP	UP	UP	UP	UP	UP	UP	UP
Load/preset input	NO	NO	NO	NO	NO	NO	NO	NO	NO
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	DECADE COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of functions	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	125 °C	85 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-55 °C	-40 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	FL16,.3	DIP16,.3	DIE OR CHIP	FL16,.3	DIP16,.3	DIE OR CHIP
power supply	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY	INDUSTRIAL	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	-	incompatible	incompatible	-
JESD-30 code	R-PDIP-T16	R-XDIP-T16	R-PDIP-T16	R-XDFP-F16	R-XDIP-T16	-	R-XDFP-F16	R-XDIP-T16	-
JESD-609 code	e0	e0	e0	e0	e0	-	e0	e0	-
Number of terminals	16	16	16	16	16	-	16	16	-
Package body material	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	-	CERAMIC	CERAMIC	-
encapsulated code	DIP	DIP	DIP	DFP	DIP	-	DFP	DIP	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	-
Package form	IN-LINE	IN-LINE	IN-LINE	FLATPACK	IN-LINE	-	FLATPACK	IN-LINE	-
surface mount	NO	NO	NO	YES	NO	-	YES	NO	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE	-	FLAT	THROUGH-HOLE	-
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	-	1.27 mm	2.54 mm	-
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	-	DUAL	DUAL	-
Maker	-	RCA	RCA	-	RCA	RCA	RCA	RCA	RCA
