PXL8-65D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> PXL8-65D

PXL8-65D: DescriptionParabolic Antenna, 6425MHz Min, 7125MHz Max, 41.6dB Gain; CategoryWireless rf/communication Radio frequency and microwave; File Size36KB，1 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric Compare View All

PXL8-65D Overview

Parabolic Antenna, 6425MHz Min, 7125MHz Max, 41.6dB Gain

PXL8-65D Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
diameter	2.4 mm
front to back ratio	52 dB
Gain	41.6 dB
Omnidirectional	NO
Maximum operating frequency	7125 MHz
Minimum operating frequency	6425 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-50 °C
polarization	DUAL POLARIZED
RF/Microwave Device Types	PARABOLIC ANTENNA
Maximum transmission power	150 W
Maximum voltage standing wave ratio	1.06
Commentary	125 mph
Base Number Matches	1

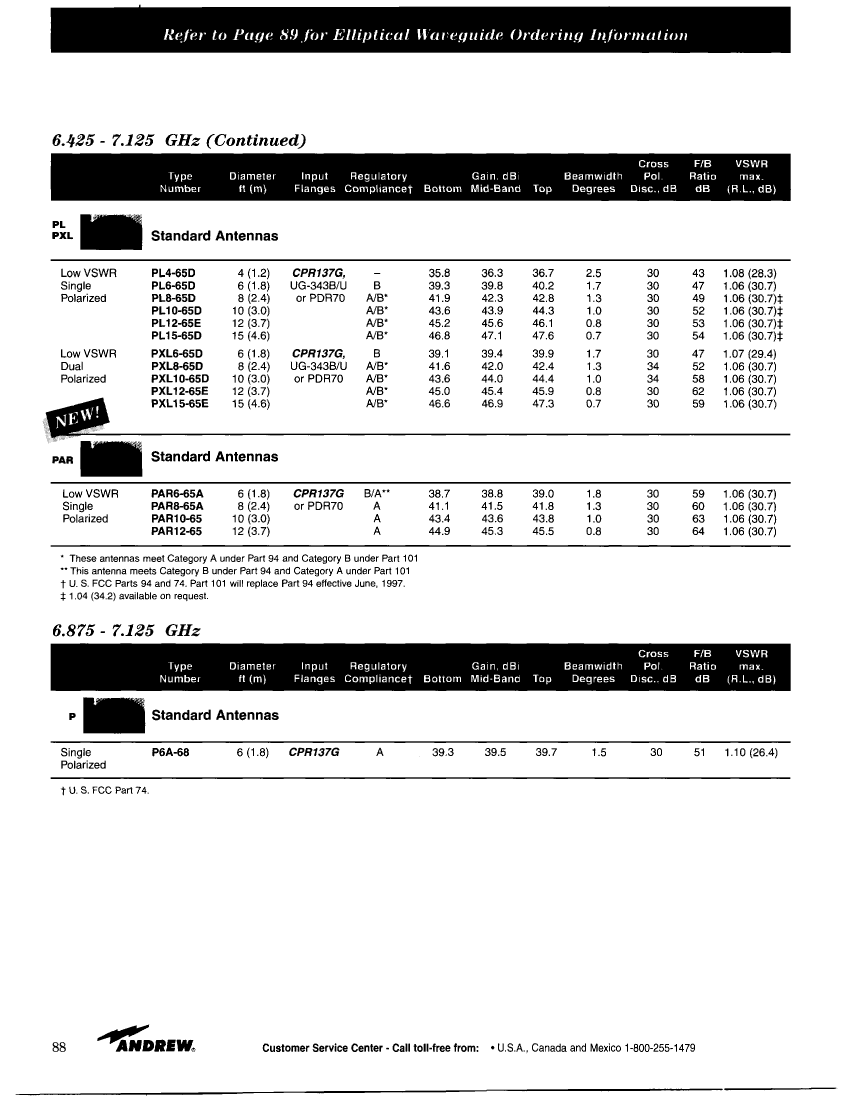

Preview

Download Datasheet

View All

PXL8-65D Related Products

	PXL8-65D	PXL12-65E	PL15-65D	PL4-65D	PXL15-65E	PAR6-65A	PL6-65D	PXL6-65D	PXL10-65D	PL8-65D
Description	Parabolic Antenna, 6425MHz Min, 7125MHz Max, 41.6dB Gain	Parabolic Antenna, 6425MHz Min, 7125MHz Max, 45dB Gain	Parabolic Antenna, 6425MHz Min, 7125MHz Max, 46.8dB Gain	Parabolic Antenna, 6425MHz Min, 7125MHz Max, 35.8dB Gain	Parabolic Antenna, 6425MHz Min, 7125MHz Max, 46.6dB Gain	Parabolic Antenna, 6425MHz Min, 7125MHz Max, 38.7dB Gain	Parabolic Antenna, 6425MHz Min, 7125MHz Max, 39.3dB Gain	Parabolic Antenna, 6425MHz Min, 7125MHz Max, 39.1dB Gain	Parabolic Antenna, 6425MHz Min, 7125MHz Max, 43.6dB Gain	Parabolic Antenna, 6425MHz Min, 7125MHz Max, 41.9dB Gain
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
diameter	2.4 mm	3.7 mm	4.6 mm	1.2 mm	4.6 mm	1.8 mm	1.8 mm	1.8 mm	3 mm	2.4 mm
front to back ratio	52 dB	62 dB	54 dB	43 dB	59 dB	59 dB	47 dB	47 dB	58 dB	49 dB
Gain	41.6 dB	45 dB	46.8 dB	35.8 dB	46.6 dB	38.7 dB	39.3 dB	39.1 dB	43.6 dB	41.9 dB
Omnidirectional	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Maximum operating frequency	7125 MHz	7125 MHz	7125 MHz	7125 MHz	7125 MHz	7125 MHz	7125 MHz	7125 MHz	7125 MHz	7125 MHz
Minimum operating frequency	6425 MHz	6425 MHz	6425 MHz	6425 MHz	6425 MHz	6425 MHz	6425 MHz	6425 MHz	6425 MHz	6425 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C
polarization	DUAL POLARIZED	DUAL POLARIZED	CIRCULAR	CIRCULAR	DUAL POLARIZED	CIRCULAR	CIRCULAR	DUAL POLARIZED	DUAL POLARIZED	CIRCULAR
RF/Microwave Device Types	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA
Maximum transmission power	150 W	150 W	150 W	150 W	150 W	150 W	150 W	150 W	150 W	150 W
Maximum voltage standing wave ratio	1.06	1.06	1.06	1.08	1.06	1.06	1.06	1.07	1.06	1.06
Commentary	125 mph	125 mph	125 mph	125 mph	125 mph	125 mph	125 mph	125 mph	125 mph	125 mph
Maker	-	-	-	-	CommScope Inc	CommScope Inc	CommScope Inc	CommScope Inc	CommScope Inc	CommScope Inc
