ABS1513403 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> ABS1513403

ABS1513403: DescriptionSnap Acting/Limit Switch, SPDT, Momentary, 2A, 30VDC, 5.1mm, Solder Terminal, Long Hinge Lever Actuator, Through Hole-straight; CategoryMechanical and electronic products switch; File Size477KB，19 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

ABS1513403 Overview

Snap Acting/Limit Switch, SPDT, Momentary, 2A, 30VDC, 5.1mm, Solder Terminal, Long Hinge Lever Actuator, Through Hole-straight

ABS1513403 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator stroke	5.1 mm
Actuator type	LONG HINGE LEVER
body width	6.4 mm
body height	11.1 mm
Body length or diameter	19.8 mm
Contact (AC) maximum rated R load	2A@250VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	2 A
Contact (DC) maximum rated R load	2A@30VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Electrical life	50000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating force	0.25 N
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum pre-travel	3.5 mm
seal	ENVIRONMENTALLY SEALED; IP67
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

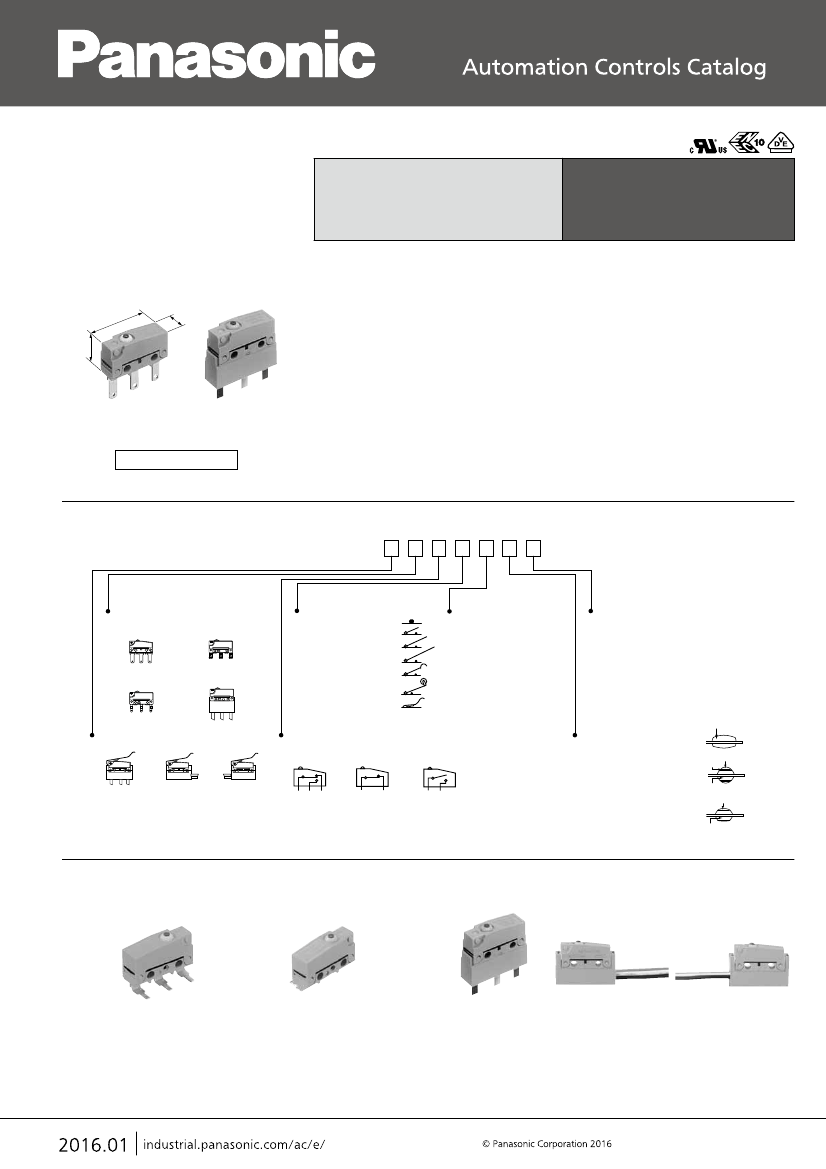

Subminiature Size

Sealed Switches

TURQUOISE SWITCHES

ABS (BS) SWITCHES

TYPICAL APPLICATIONS

• Automotive (detection of door

opening and closing)

• Vacuum cleaner

• Air puriﬁer

• Gas cooking range

FEATURES

Terminal type

19.8

6.4

Wire leads

11.1

• Subminiature size, High sealing

performance sealed switches

• Elastomer double molding

technology contribute to steady

sealing quality

• Superior operating position

precision

(Unit: mm)

RoHS compliant

ORDERING INFORMATION

ABS

Terminal

1: .110 quick-

4: Solder terminal

connect terminal

5: PC board

terminal

6: Wire leads

Actuator

0: Pin plunger

1: Short hinge lever

2: Hinge lever

3: Long hinge lever

4: Simulated roller lever

6: Hinge roller lever

8: Leaf lever

(with wire lead)

Operating Force (OF)

by pin plunger (max.)

4: 0.98 N

5: 1.47 N

Safety standard

Null: Safety standard un-acquiring

3: UL/CSA/VDE/SEMKO

(Ag alloy contact, Au-clad triple layer

contact type only, terminal type only)

9: UL/CSA

(Au-clad double layer contact type only,

terminal type only)

AgNi alloy

Wire and terminal position

1: Straight type 4: Right angle 5: Left angle

Contact form

3: SPST-NO

1: SPDT

2: SPST-NC

(Wire leads type only)

COM NO

COM

COM NO

Contact material

0: AgNi alloy contact

1: CuNi alloy + AgNi alloy

+ Au-clad triple layer

contact

4: CuNi alloy + Au-clad

double layer contact

Au-clad

AgNi alloy

CuNi alloy

Au-clad

Note: Not every combination is available. Please refer to the following table, “PRODUCT TYPES”.

CuNi alloy

TERMINAL AND WIRE LEAD POSITION

■

PC board angle terminals

■

Wire leads position

PC board right angle terminal

(ABS4······)

PC board left angle terminal

(ABS5······)

Wire leads straight type

(ABS1······)

Wire leads right angle type

(ABS4······)

Wire leads left angle type

(ABS5······)

–1–

AECTB2E 201601-T
