380LQ183M016H032 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 380LQ183M016H032

380LQ183M016H032: DescriptionCompact, High-Capacitance Snap-in; CategoryPassive components capacitor; File Size404KB，6 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric Compare View All

380LQ183M016H032 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	380LQ183M016H032	-	-	View	Buy Now

380LQ183M016H032 Overview

Compact, High-Capacitance Snap-in

380LQ183M016H032 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	18000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	22 mm
dielectric materials	ALUMINUM (WET)
ESR	46 mΩ
JESD-609 code	e3
leakage current	1.60997 mA
length	35 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Snap-i
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	16 V
ripple current	5570 mA
surface mount	NO
Terminal surface	Tin (Sn)
Terminal pitch	10 mm
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

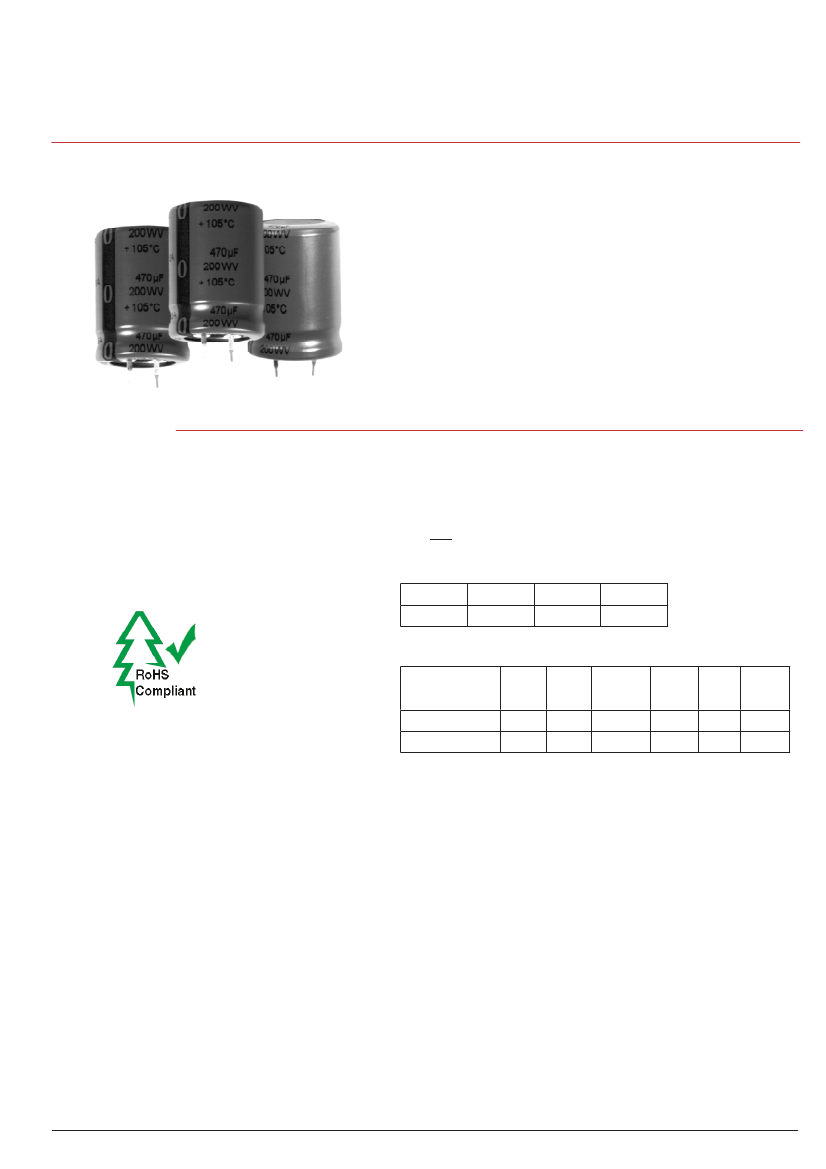

Type 380LQ

85 ºC Compact, High-Capacitance Snap-in

27% Smaller for Same Capacitance

Type 380LQ is on average 27% smaller and more than

10 mm shorter than Type 380LX. This is achieved with a

new can-closure method that permits installing capacitor

elements into smaller cans. Approaching the capability of

the 380LX, the new 380LQ enables you to shrink equipment

size and retain the original performance.

Highlights

• New, more capacitance per case

• Compare to Type 380LX

• New, lower voltages down to 16 V

Operating Temperature:

Rated Voltage:

Capacitance:

Leakage Current:

Ripple Current Multipliers:

–40 °C to + 85 °C

≤

315 Vdc

–25 °C to + 85 °C

≥

350 Vdc

16 to 450 Vdc

82 µF to 100,000 µF ± 20%

≤

√

CV µA, 4 mA max, 5 minutes

Ambient Temperature

45 ºC

1.50

Frequency

Freq. Hz

16 – 100 WV

160 – 450 WV

10 kHz

50 Hz 60 Hz 120 Hz 500 Hz 1 kHz & Up

0.93

0.75

0.95

0.80

1.00

1.05

1.20

1.08

1.25

1.15

1.40

60 ºC

1.46

70 ºC

1.30

85 ºC

1.00

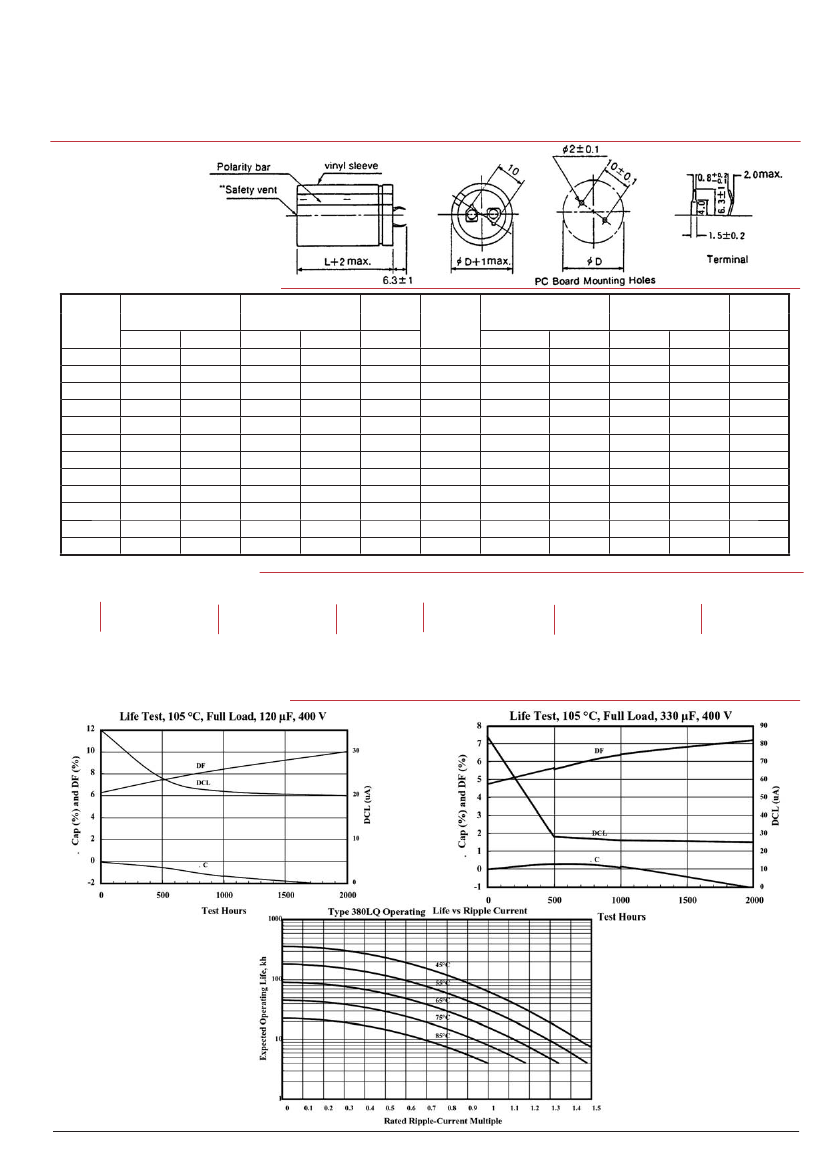

Speciﬁcations

Complies with the EU Directive

2002/95/EC requirement

restricting the use of Lead (Pb),

Mercury (Hg), Cadmium (Cd),

Hexavalent chromium (Cr(VI)),

PolyBrominated Biphenyls

(PBB) and PolyBrominated

Diphenyl Ethers (PBDE).

Load LifeTest:

EIA Ripple Life:

Shelf Life:

2000 h at full load at 85 °C

∆

Capacitance ± 20%

ESR 200% of limit

DCL 100% of limit

2000 h at 85 °C, full load per EIA IS-749

∆

Capacitance –20%

ESR 200% of limit

DCL 100% of limit

1000 h at 85 °C

∆

Capacitance ± 20%

ESR 200% of limit

DCL 100% of limit

10 to 55 Hz, 0.06" and 10 g max, 2 h each plane

Vibration:

CDM Cornell Dubilier

•

140 Technology Place

•

Liberty, SC 29657

•

Phone: (864)843-2277

•

Fax: (864)843-3800

•

www.cde.com
