SQT-142-02-F-T-RA datasheet, PDF

Datasheet> All Categories > The connector> The connector> SQT-142-02-F-T-RA

SQT-142-02-F-T-RA: DescriptionBoard Connector, 126 Contact(s), 3 Row(s), Female, Right Angle, 0.079 inch Pitch, Wire Wrap Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size893KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

SQT-142-02-F-T-RA Overview

Board Connector, 126 Contact(s), 3 Row(s), Female, Right Angle, 0.079 inch Pitch, Wire Wrap Terminal, Locking, Black Insulator

SQT-142-02-F-T-RA Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
body width	0.237 inch
subject depth	0.458 inch
body length	3.33 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Durability	100 Cycles
maximum insertion force	1.112 N
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	SQT
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5.1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.6 inch
Terminal pitch	2.0066 mm
Termination type	WIRE WRAP
Total number of contacts	126
Evacuation force-minimum value	.834 N
Base Number Matches	1

Preview

Download Datasheet

View All

F-214

SQT–110–01–F–D–RA

SQT–107–02–L–S

SQT–110–03–F–Q

SQT–117–01–L–D

SQT–112–01–L–6

(2,00 mm) .0787"

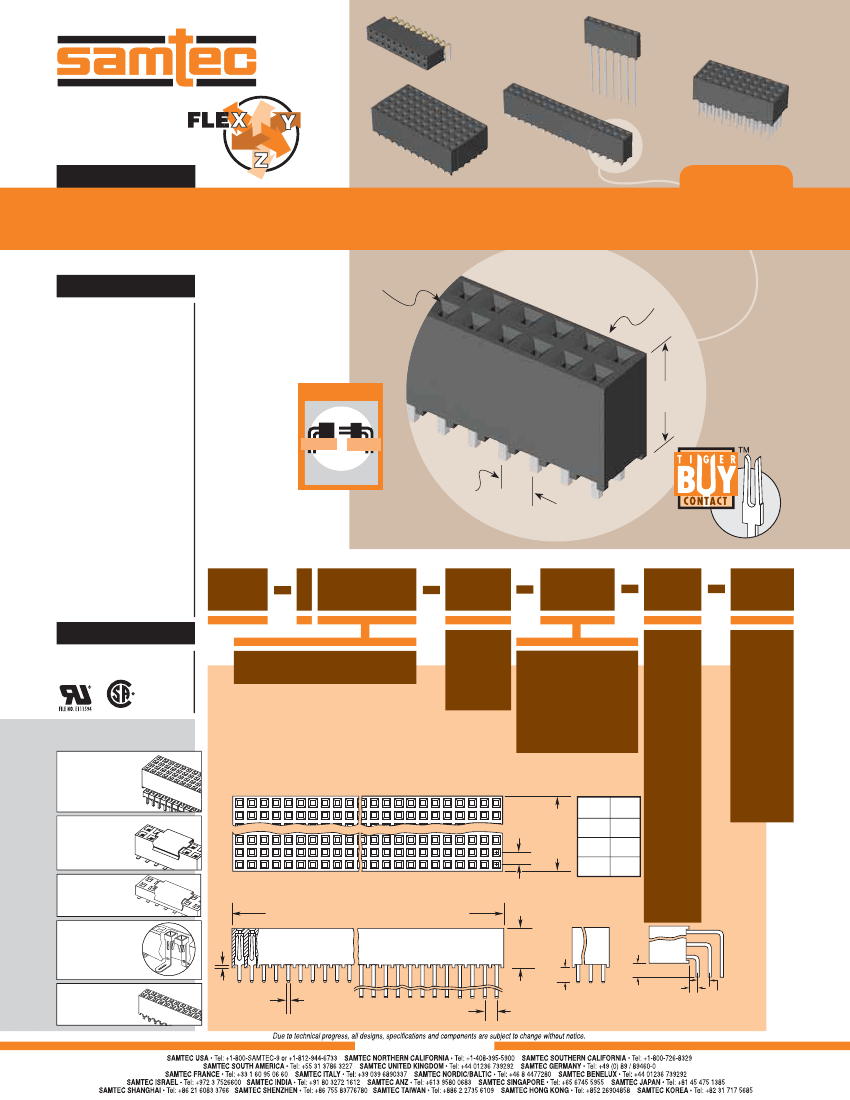

SQT SERIES

COST-EFFECTIVE RUGGED SOCKETS

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?SQT

Insulator Material:

Black Liquid Crystal Polymer

Contact Material:

Phosphor Bronze

Plating:

Sn or Au over 50µ" (1,27 µm) Ni

Current Rating (TMMH/SQT):

5.1 A per pin

(1 pin powered per row)

Voltage Rating:

450 VAC mated with

TMM or TMMH

Operating Temp Range:

-55°C to +125°C

Contact Resistance:

10 mΩ

Insertion Depth:

(2,62 mm) .103" to

(5,03 mm) .198"

Insertion Force:

(Single contact only)

4 oz (1,11 N) average

Normal Force:

60 grams (0,59 N) average

Withdrawal Force:

(Single contact only)

3 oz (0,83 N) average

Max Cycles:

100 with 10µ" (0,25 µm) Au

RoHS Compliant:

Yes

Lead–Free Solderable:

Yes

Mates with:

TMMH, TMM, MTMM,

MMT, TW, LTMM, ZLTMM,

ESQT, TCMD, PTT, TSH

Choice of one

through six rows

Vertical and

Right Angle

APPLICATIONS

TMM/

SQT TMMH

(6,35 mm)

.250"

HORIZONTAL

(2,00 mm)

.0787" pitch

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

SQT

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

–S

–F

= Gold ﬂash on contact,

Matte Tin on tail

= Single

Row

–RA

= Right

Angle

(–Q, –5 & –6

Row not

available)

(Lead Style

–01 only)

02 thru 50

–D

= Double

Row

FILE NO: 090871_0_000

–L

= 10µ" (0,25 µm) Gold on

contact, Matte Tin on tail
