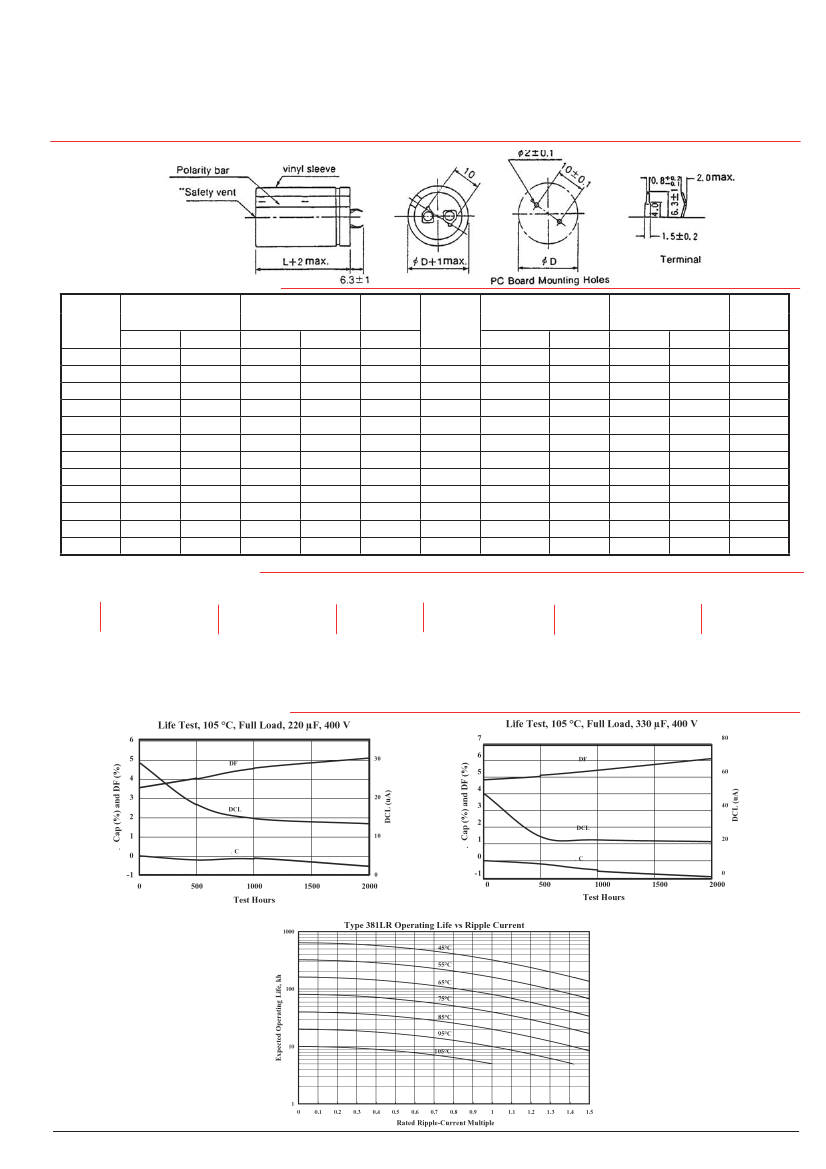

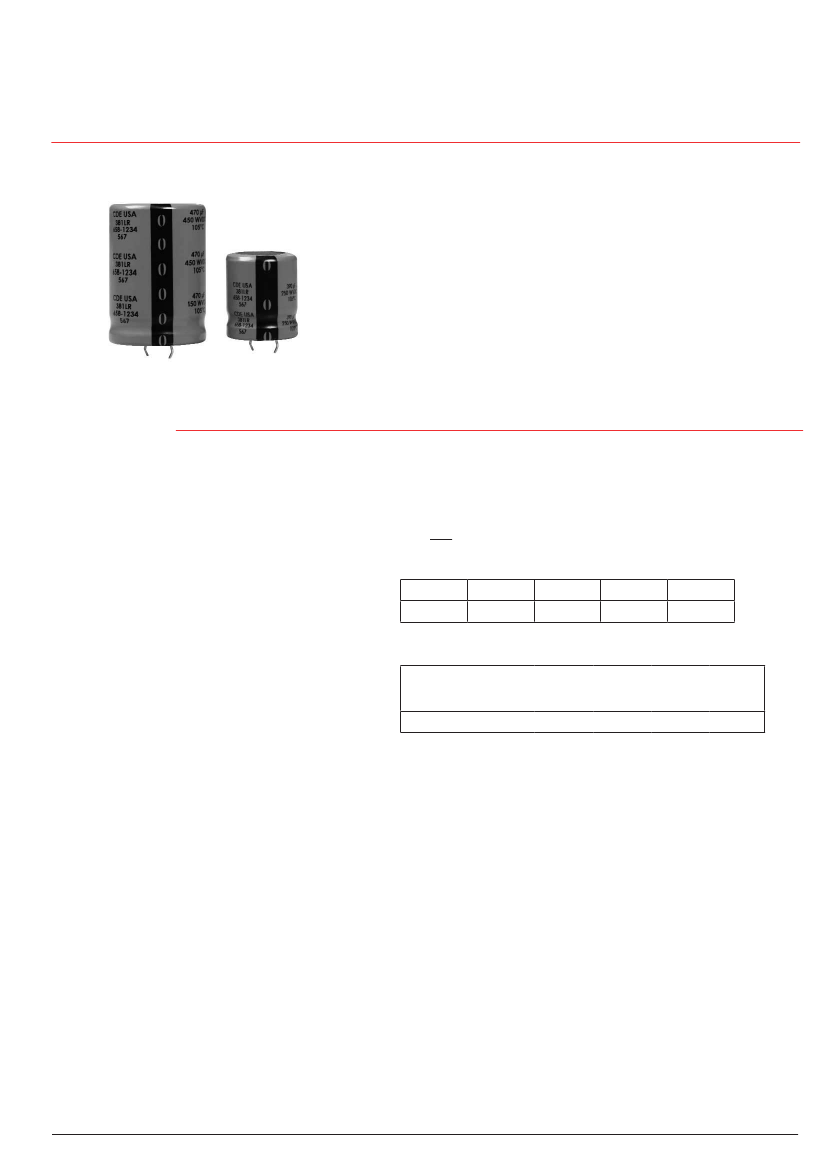

381LR: DescriptionUltra-High-Ripple Snap-in More Ripple Current Capability; File Size208KB，3 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

Download Datasheet Compare View All

381LR Overview

Ultra-High-Ripple Snap-in More Ripple Current Capability

Preview

Download Datasheet

View All

Type 381LR

105 °C Ultra-High-Ripple Snap-in

25% More Ripple Current Capability

Compared to standard 105 °C snap-ins like the Type 381L/LX

Type 381LR can handle an extra 25% ripple current or more. This

remarkable capability stems from advances in electrolyte that give

extremely low ESR values.In high ripple current applications like

motor drives you can save by using fewer capacitors.

Highlights

•

Operating Temperature:

Rated Voltage:

Capacitance:

Leakage Current:

Ripple Current Multipliers:

The right choice for motor drive bus capacitors

The right choice for UPS bus capacitors

Compare to Type 381L

Up to 2 times the ripple current

–40 °C to + 105 °C

≤

315 Vdc

–25 °C to + 105 °C

≥

350

Vdc

200 to 450 Vdc

56 µF to 2,200 µF ± 20%

≤

√

CV µA, 4 mA max, 5 minutes

Ambient Temperature

45 ºC

60 ºC

70 ºC

85 ºC

2.35

Frequency

50Hz

0.75

60 Hz

0.80

120 Hz

1.00

500 Hz

1.20

1 kHz

1.25

10 kHz

& up

1.40

2.20

2.00

1.70

Speciﬁcations

105 ºC

1.00

EIA Ripple Life:

Load LifeTest:

Shelf Life:

Vibration:

10,000 h at 85 °C, full load per EIA IS-749

∆

Capacitance ±20%

ESR 200% of limit

DCL 100% of limit

3000 h at full load at 105 °C

∆

Capacitance 20%

ESR 200% of limit

DCL 100% of limit

1000 h at 105 °C

∆

Capacitance 20%

ESR 200% of limit

DCL 100% of limit

10 to 55 Hz, 0.06" and 10 g max, 2 h each plane

CDM Cornell Dubilier

•

140 Technology Place

•

Liberty, SC 29657

•

Phone: (864)843-2277

•

Fax: (864)843-3800

•

www.cde.com

381LR Related Products

	381LR	381LR271M200H012	381LR391M200H022	381LR331M200H022
Description	Ultra-High-Ripple Snap-in More Ripple Current Capability	Ultra-High-Ripple Snap-in More Ripple Current Capability	Ultra-High-Ripple Snap-in More Ripple Current Capability	Ultra-High-Ripple Snap-in More Ripple Current Capability
Is it lead-free?	-	Lead free	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to	conform to
Maker	-	CDE [ CORNELL DUBILIER ELECTRONICS ]	CDE [ CORNELL DUBILIER ELECTRONICS ]	CDE [ CORNELL DUBILIER ELECTRONICS ]
Reach Compliance Code	-	compliant	compliant	compliant
ECCN code	-	EAR99	EAR99	EAR99
capacitance	-	270 µF	390 µF	330 µF
Capacitor type	-	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	-	22 mm	22 mm	22 mm
dielectric materials	-	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
ESR	-	553 mΩ	383 mΩ	452 mΩ
JESD-609 code	-	e3	e3	e3
leakage current	-	0.69714 mA	0.83786 mA	0.77072 mA
length	-	25 mm	30 mm	30 mm
Installation features	-	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	-	20%	20%	20%
Number of terminals	-	2	2	2
Maximum operating temperature	-	105 °C	105 °C	105 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C
Package shape	-	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
Package form	-	Snap-in	Snap-in	Snap-in
polarity	-	POLARIZED	POLARIZED	POLARIZED
positive tolerance	-	20%	20%	20%
Rated (DC) voltage (URdc)	-	200 V	200 V	200 V
ripple current	-	1420 mA	1710 mA	1560 mA
surface mount	-	NO	NO	NO
Terminal surface	-	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal pitch	-	10 mm	10 mm	10 mm
Terminal shape	-	SNAP-IN	SNAP-IN	SNAP-IN
