N7493N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> N7493N

N7493N: DescriptionBinary Counter, TTL/H/L Series, Asynchronous, Negative Edge Triggered, 3-Bit, Up Direction, TTL, PDIP14,; Categorylogic logic; File Size135KB，4 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

N7493N Overview

Binary Counter, TTL/H/L Series, Asynchronous, Negative Edge Triggered, 3-Bit, Up Direction, TTL, PDIP14,

N7493N Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Other features	DIVIDE BY 2 AND DIVIDE BY 8 FUNCTIONS
Counting direction	UP
series	TTL/H/L
JESD-30 code	R-PDIP-T14
Load capacitance (CL)	15 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Operating mode	ASYNCHRONOUS
Number of digits	3
Number of functions	2
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	53 mA
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Trigger type	NEGATIVE EDGE
minfmax	10 MHz
Base Number Matches	1

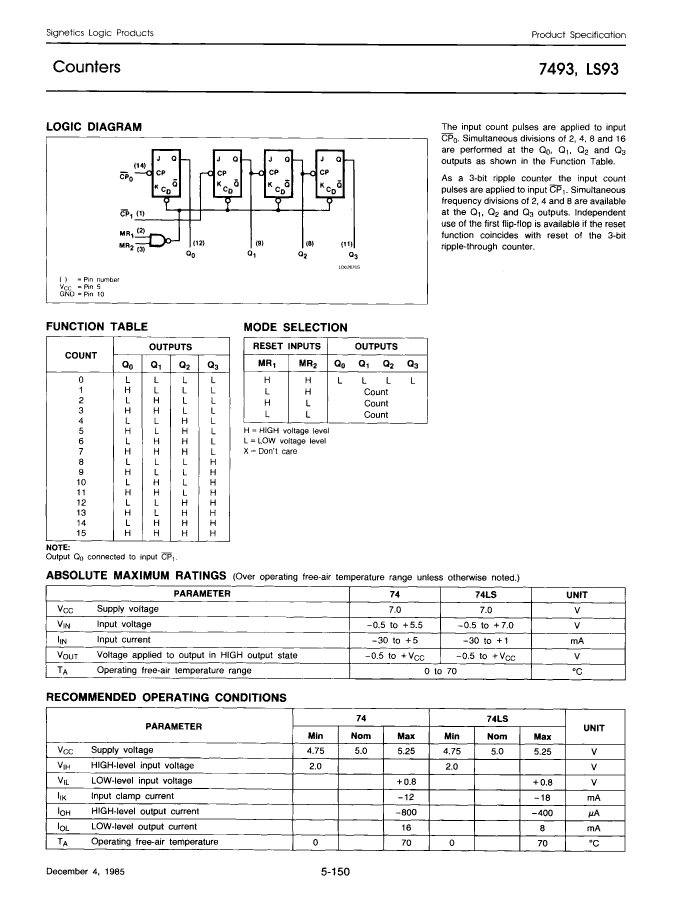

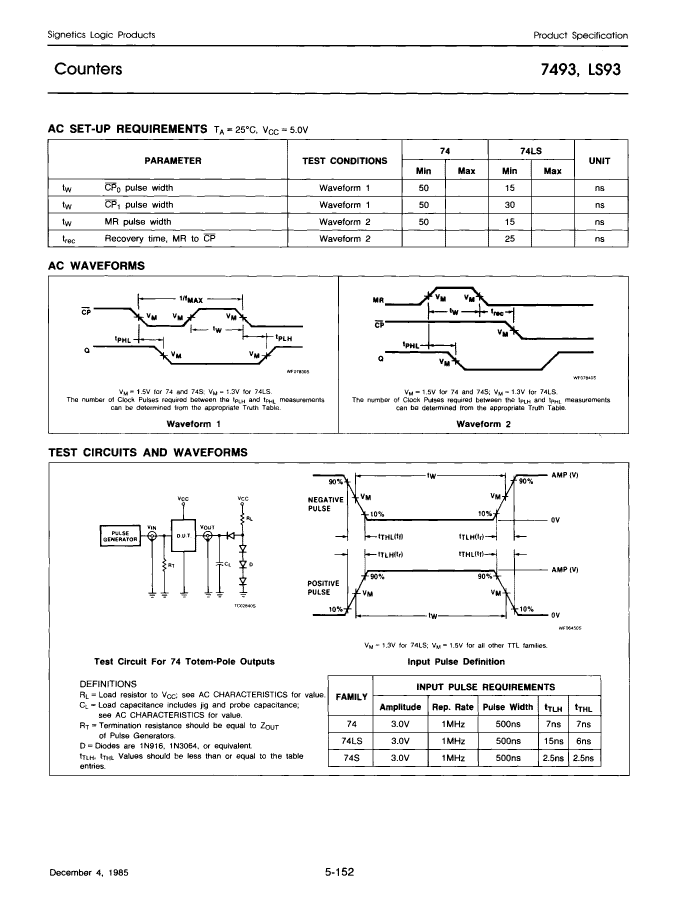

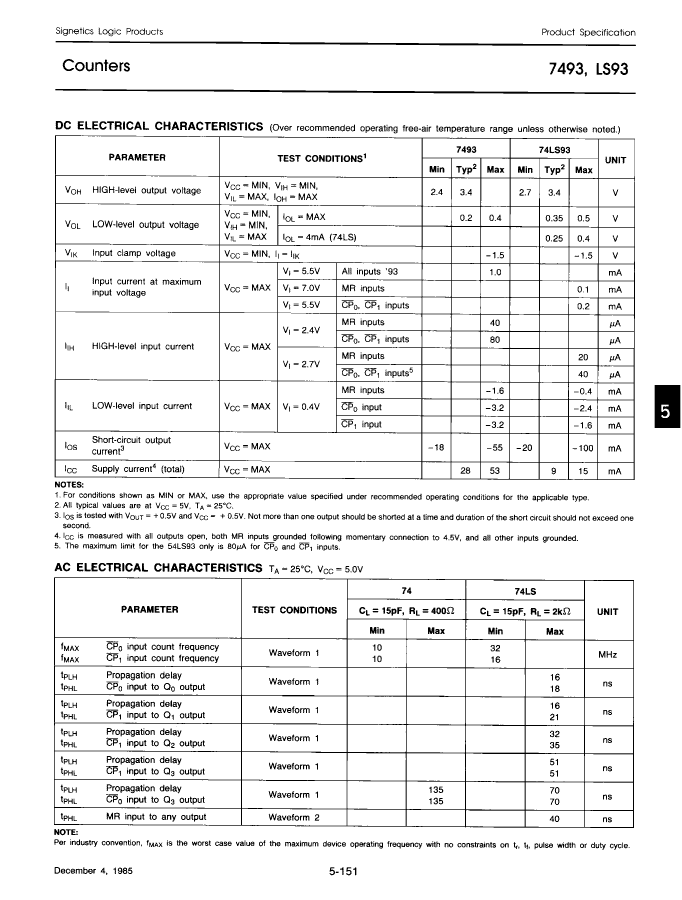

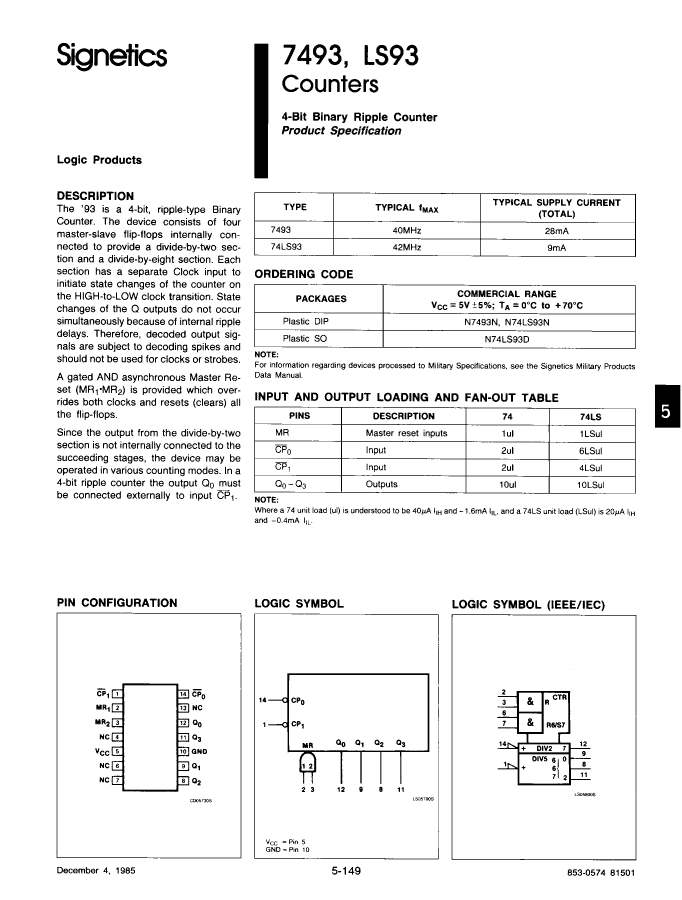

Preview

Download Datasheet

View All

N7493N Related Products

	N7493N	N74LS93N	N74LS93D
Description	Binary Counter, TTL/H/L Series, Asynchronous, Negative Edge Triggered, 3-Bit, Up Direction, TTL, PDIP14,	Binary Counter, LS Series, Asynchronous, Negative Edge Triggered, 3-Bit, Up Direction, TTL, PDIP14,	Binary Counter, LS Series, Asynchronous, Negative Edge Triggered, 3-Bit, Up Direction, TTL, PDSO14
Reach Compliance Code	unknown	unknown	unknown
Other features	DIVIDE BY 2 AND DIVIDE BY 8 FUNCTIONS	DIVIDE BY 2 AND DIVIDE BY 8 FUNCTIONS	DIVIDE BY 2 AND DIVIDE BY 8 FUNCTIONS
Counting direction	UP	UP	UP
series	TTL/H/L	LS	LS
JESD-30 code	R-PDIP-T14	R-PDIP-T14	R-PDSO-G14
Load capacitance (CL)	15 pF	15 pF	15 pF
Load/preset input	YES	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Number of digits	3	3	3
Number of functions	2	2	2
Number of terminals	14	14	14
Maximum operating temperature	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE
Maximum supply current (ICC)	53 mA	15 mA	15 mA
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	YES
technology	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal location	DUAL	DUAL	DUAL
Trigger type	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE
minfmax	10 MHz	16 MHz	16 MHz
Base Number Matches	1	1	1
Maker	-	YAGEO	YAGEO
propagation delay (tpd)	-	51 ns	51 ns
