GP2Y0A60SZ0F/GP2Y0A60SZLF
GP2Y0A60SZ0F
GP2Y0A60SZLF
Distance Measuring Sensor Unit
Measuring distance : 10 to 150 cm
Analog output type
■
Description
GP2Y0A60SZ0F/GP2Y0A60SZLF
is a distance
measuring sensor unit, composed of an integrated
combination of PSD (position sensitive detector) ,
IR-LED (infrared emitting diode) and signal
processing circuit.
The variety of the reflectivity of the object, the
environmental temperature and the operating
duration are not influenced easily to the distance
detection because of adopting the triangulation
method.
This device outputs the voltage corresponding to
the detection distance. So this sensor can also be
used as a proximity sensor.
■
Agency approvals/Compliance
1. Compliant with RoHS directive (2002/95/EC)
■
Applications
1. Touch-less switch
(Sanitary equipment, Control of illumination, etc)
2. Sensor for energy saving
(ATM, Copier, Vending machine, Laptop computer,
LCD monitor, etc)
3. Amusement equipment
(Robot, Arcade game machine, etc)
■
Features
1. Distance measuring sensor is united with PSD,
infrared LED and signal processing circuit
2. Distance measuring range : 10 to 150 cm
3. Compact size (22.0 × 8.0 × 7.2mm)
4. Long distance measuring type
(No external control signal required)
5. Analog output type
Notice
The content of data sheet is subject to change without prior notice.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
Sheet No.: OP13005EN-A
1

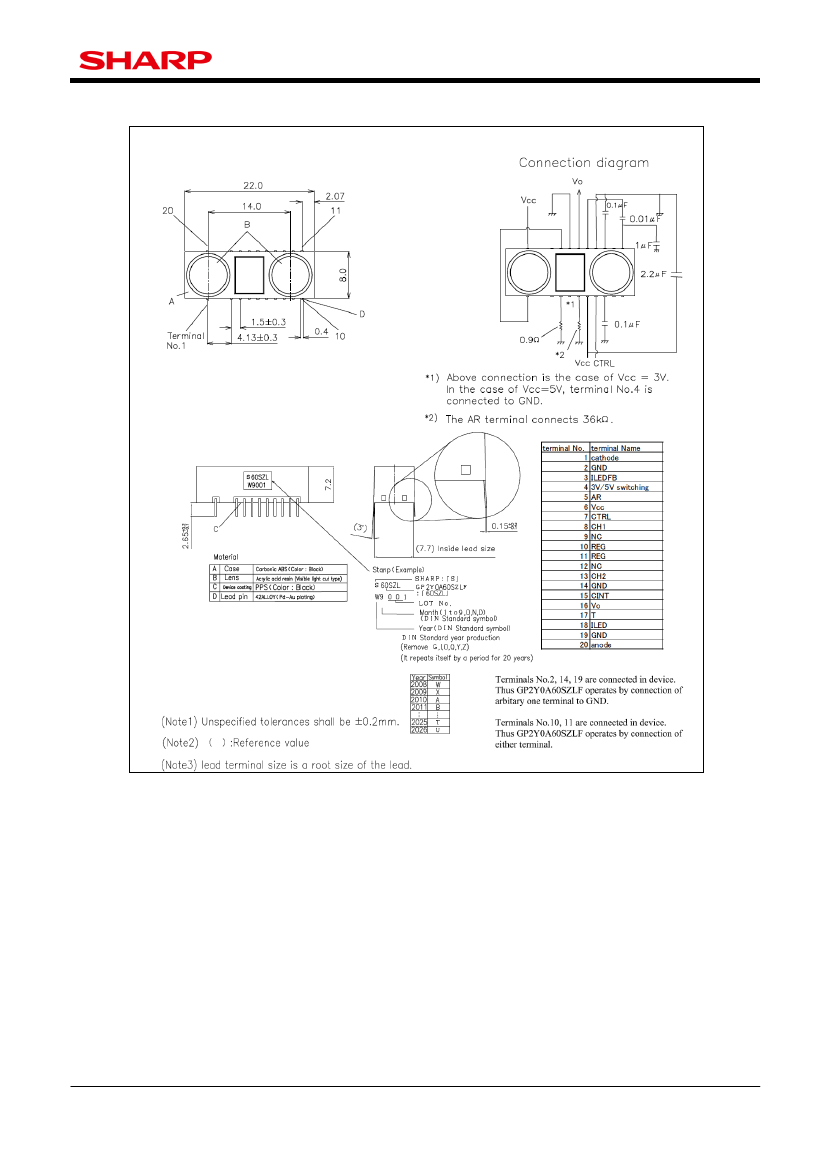

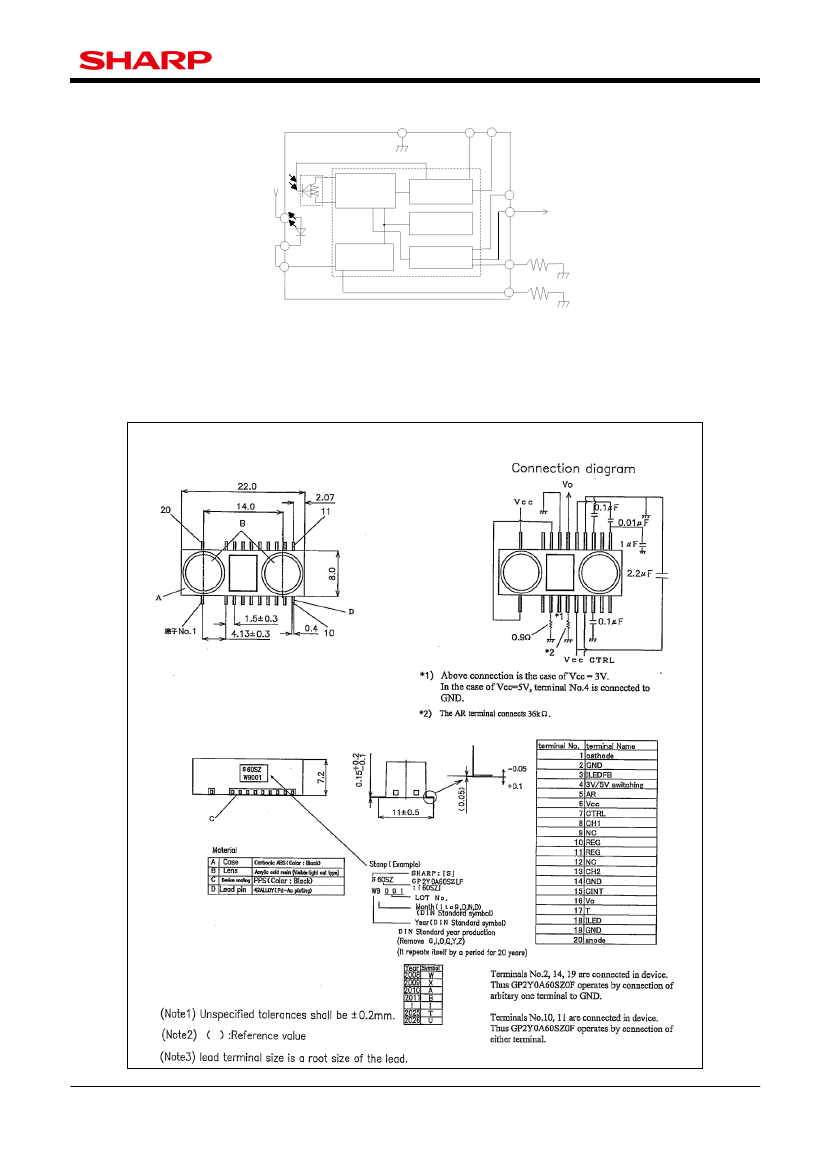

GP2Y0A60SZ0F/GP2Y0A60SZLF
■
Absolute maximum ratings
(Ta=25°C)
Parameter
Supply voltage
Output terminal voltage
Input terminal voltage 1
Input terminal voltage 2
Operating temperature
Storage temperature
Soldering temperature
Symbol
Vcc
Vo
-
-
Topr
Tstg
Tsol
Ratings
-0.3 to +5.5
-0.3 to Vcc+0.3
-0.3 to V
REG
+0.3
-0.3 to Vcc+0.3
-10 to +60
-40 to +70
260
Unit
V
V
V
V
°C
°C
°C
Remark
-
-
Terminal
(NC,CH1,CH2,CINT,AR,T)
Terminal (CTRL)
-
-
5s or less/time up 2 times
■
Recommended operating conditions
Parameter
Supply voltage
Supply voltage
High level input voltage
Low level input voltage
Symbol
Vcc
Vcc
V
CTRL
H
V
CTRL
L
Rating
4.5 to 5.5
2.7 to 3.6
2.3 to Vcc
MAX 0.2
Unit
V
V
V
V
Remark
5V
3V
Operating
Stand-by state
■
Electro-optical Characteristics
Parameter
Measuring distance range
Output terminal voltage
Output voltage difference
Average supply current
Stand-by supply current
Symbol
ΔL
Vo
ΔVo
Icc1
Icc2
Conditions
(Note 1)
L=150cm (Note 1)
Output change at L change
(10cm
→
150cm) (Note 1)
Vcc=3V, V
CTRL
=3V
Vcc=3V, V
CTRL
=0V
MIN.
10
0.05
1.35
-
-
(Ta=25°C, Vcc=3V)
TYP. MAX. Unit
-
150
cm
0.35
0.65
V
1.60
33
-
1.85
50
5
V
mA
μA
Parameter
Measuring distance range
Output terminal voltage
Output voltage difference
Symbol
ΔL
Vo
ΔVo
Average supply current
Icc1
-
33
50
mA
Stand-by supply current
Icc2
-
-
5
μA
※
L : Distance to reflective object
(Note 1) Using reflective object : White paper
(Made by Kodak Co., Ltd. gray cards R-27・white face, reflective ratio ; 90%)
Conditions
(Note 1)
L=150cm (Note 1)
Output change at L change
(10cm
→
150cm) (Note 1)
Vcc=5V, V
CTRL
=5V
Vcc=5V, V
CTRL
=0V
MIN.
10
0.15
2.75
(Ta=25°C, Vcc=5V)
TYP. MAX. Unit
-
150
cm
0.65
1.15
V
3.00
3.25
V
Sheet No.: OP13005EN-A
4
