MMWA05P1K-F

Description
CAPACITOR, METALLIZED FILM, POLYESTER, 50 V, 0.22 uF, THROUGH HOLE MOUNT
CategoryPassive components
File Size218KB，2 Pages
ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]
Download Datasheet Parametric Compare View All

MMWA05P1K-F Online Shopping

Suppliers Part Number Price MOQ In stock
MMWA05P1K-F - - View Buy Now

MMWA05P1K-F Overview

CAPACITOR, METALLIZED FILM, POLYESTER, 50 V, 0.22 uF, THROUGH HOLE MOUNT

MMWA05P1K-F Parametric

Parameter NameAttribute value
Maximum operating temperature85 Cel
Minimum operating temperature-55 Cel
negative deviation10 %
positive deviation10 %
Rated DC voltage urdc50 V
Processing package descriptionAXIAL LEADED, ROHS COMPLIANT
Lead-freeYes
EU RoHS regulationsYes
stateACTIVE
terminal coatingTIN
Installation featuresTHROUGH HOLE MOUNT
Manufacturer SeriesMMWA
capacitance0.2200 uF
packaging shapeTUBULAR PACKAGE
Capacitor typeMETALLIZED FILM
Terminal shapeWIRE
dielectric materialsPOLYESTER

Preview

Download Datasheet

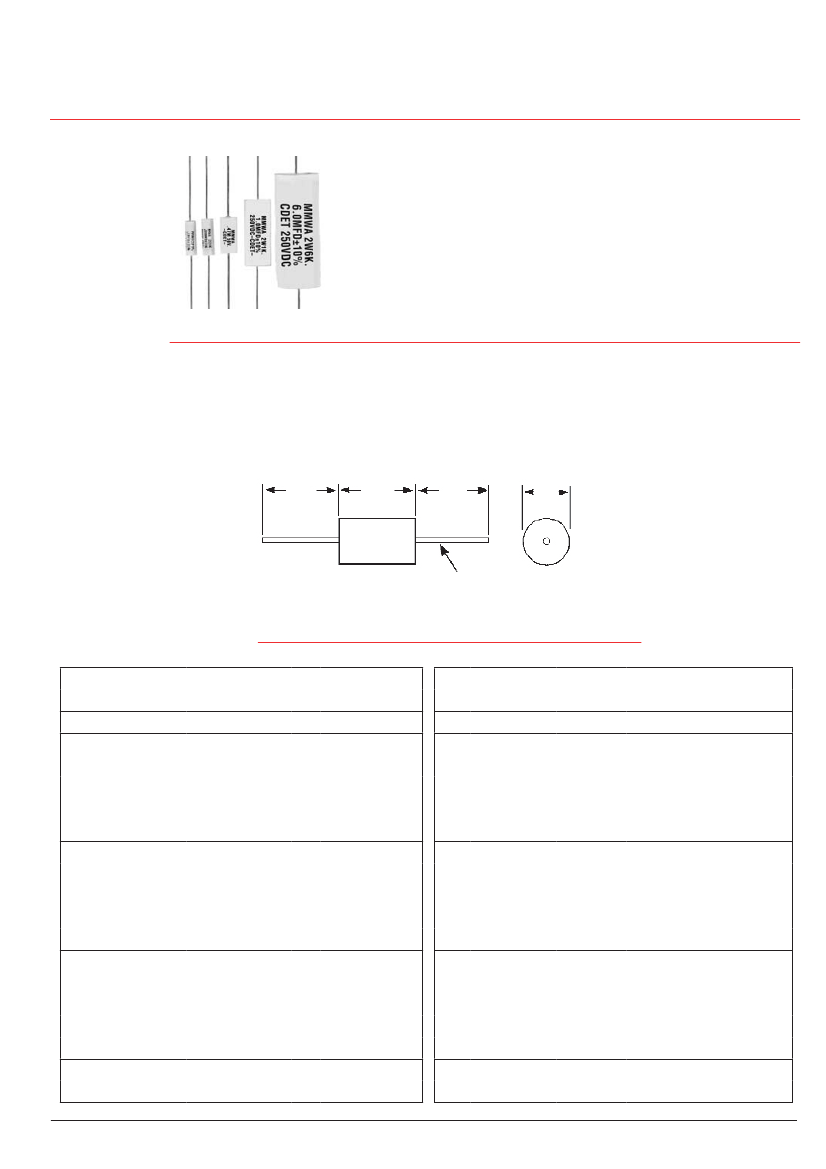

Type MMWA,
Polyester Film Capacitors
Metallized
Axial Leads
High Capacitance, High Voltage
Type MMWA
axial-leaded, metallized polyester film
capacitors incorporate compact, non-inductive extended
windings with epoxy end seals to offer excellent moisture
resistance and capacitance stability over the operating
temperature range. Metallized polyester provides self-
healing characteristics that help prevent permanent
shorting due to high voltage transients.
Specifications
Voltage Range:
50-1,000 Vdc (35-480 Vac, 60 Hz)
Capacitance Range:
.01-10 µF
Capacitance Tolerance:
±10% (K) standard
*Full-rated voltage at 85°C–Derate linearly to 50%-rated voltage at 125 °C
±5% (J) optional
Operating Temperature Range:
-55 °C to 125 °C*
1.50”
(38.1mm)
L MAX.
Dielectric Strength:
200% (1 minute)
Dissipation Factor:
.75% Max. (25°C, 1 kHz)
Insulation Resistance:
10,000 M
Ω
x µF
30,000 M
Ω
Min.
Life Test:
1000 Hours at 85 °C at 125% Rated Voltage
1.50”
(38.1mm)
MAX.
D
d
TINNED COPPER-CLAD STEEL LEADS
NOTE:
Other capacitance values, sizes and performance specifications are
available. Contact us.
Ratings and Dimensions
Cap.
(µF)
Catalog
Part Number
D
L
d
dV/dt
V/μs
Cap.
(µF)
Catalog
Part Number
D
Inches (mm) Inches (mm) Inches (mm)
50 Vdc (35 Vac)
0.100 MMWA05P1K-F
0.150 MMWA05P15K-F
0.220 MMWA05P22K-F
0.330 MMWA05P33K-F
0.470 MMWA05P47K-F
0.680 MMWA05P68K-F
1.000 MMWA05W1K-F
0.220
0.210
0.240
0.280
0.320
0.290
0.335
(5.6)
(5.3)
(6.1)
(7.1)
(8.1)
(7.4)
(8.5)
(9.0)
0.562 (14.3) 0.020 (0.5)
0.687 (17.4) 0.020 (0.5)
0.687 (17.4) 0.020 (0.5)
0.687 (17.4) 0.024 (0.6)
0.687 (17.4) 0.024 (0.6)
1.000 (25.4) 0.024 (0.6)
1.000 (25.4) 0.024 (0.6)
1.250 (31.7) 0.024 (0.6)
36
20
20
20
20
9
9
9
9
9
5
4
4
4
4
4
4
0.010 MMWA1S1K-F
0.015 MMWA1S15K-F
0.022 MMWA1S22K-F
0.033 MMWA1S33K-F
0.047 MMWA1S47K-F
0.068 MMWA1S68K-F
0.100 MMWA1P1K-F
0.150 MMWA1P15K-F
0.220 MMWA1P22K-F
0.330 MMWA1P33K-F
0.470 MMWA1P47K-F
0.680 MMWA1P68K-F
1.000 MMWA1W1K-F
Normally Stocked
L
d
dV/dt
V/μs
Inches (mm) Inches (mm) Inches (mm)
100 Vdc (65 Vac)
0.197
0.197
0.197
0.197
0.217
0.217
0.236
0.236
0.256
0.295
0.320
0.320
0.374
(5.0)
(5.0)
(5.0)
(5.0)
(5.5)
(5.5)
(6.0)
(6.0)
(6.5)
(7.5)
(8.1)
(8.1)
(9.5)
(9.5)
0.562 (14.3) 0.020 (0.5)
0.562 (14.3) 0.020 (0.5)
0.562 (14.3) 0.020 (0.5)
0.562 (14.3) 0.020 (0.5)
0.562 (14.3) 0.020 (0.5)
0.562 (14.3) 0.020 (0.5)
0.562 (14.3) 0.020 (0.5)
0.687 (17.4) 0.020 (0.5)
0.687 (17.4) 0.020 (0.5)
0.687 (17.4) 0.024 (0.6)
0.687 (17.4) 0.024 (0.6)
1.000 (25.4) 0.024 (0.6)
1.000 (25.4) 0.024 (0.6)
1.250 (31.7) 0.024 (0.6)
36
36
36
36
36
36
36
20
20
20
20
9
9
9
9
9
5
1.500 MMWA05W1P5K-F 0.355
2.000 MMWA05W2K-F
3.000 MMWA05W3K-F
4.000 MMWA05W4K-F
5.000 MMWA05W5K-F
6.000 MMWA05W6K-F
7.000 MMWA05W7K-F
8.000 MMWA05W8K-F
9.000 MMWA05W9K-F
10.000 MMWA05W10K-F
0.400 (10.2) 1.250 (31.7) 0.024 (0.6)
0.475 (12.1) 1.250 (31.7) 0.024 (0.6)
0.505 (12.8) 1.375 (34.9) 0.024 (0.6)
0.525 (13.3) 1.500 (38.1) 0.024 (0.6)
0.585 (14.9) 1.500 (38.1) 0.032 (0.8)
0.625 (15.9) 1.500 (38.1) 0.032 (0.8)
0.669 (17.0) 1.500 (38.1) 0.040 (1.0)
0.700 (17.8) 1.500 (38.1) 0.040 (1.0)
0.670 (17.0) 1.750 (44.4) 0.040 (1.0)
1.500 MMWA1W1P5K-F 0.374
2.000 MMWA1W2K-F
3.000 MMWA1W3K-F
4.000 MMWA1W4K-F
0.400 (10.2) 1.250 (31.7) 0.024 (0.6)
0.475 (12.1) 1.250 (31.7) 0.024 (0.6)
0.505 (12.8) 1.375 (34.9) 0.032 (0.8)
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02740
•
Phone: (508)996-8561
•
Fax: (508)996-3830 www.cde.com
