QS532806AQ datasheet, PDF - EEWORLD Datasheet

QS532806AQ: DescriptionClock Driver, CMOS, PDSO20,; Categorylogic logic; File Size449KB，8 Pages; ManufacturerQuality Semiconductor Inc

Download Datasheet Parametric Compare View All

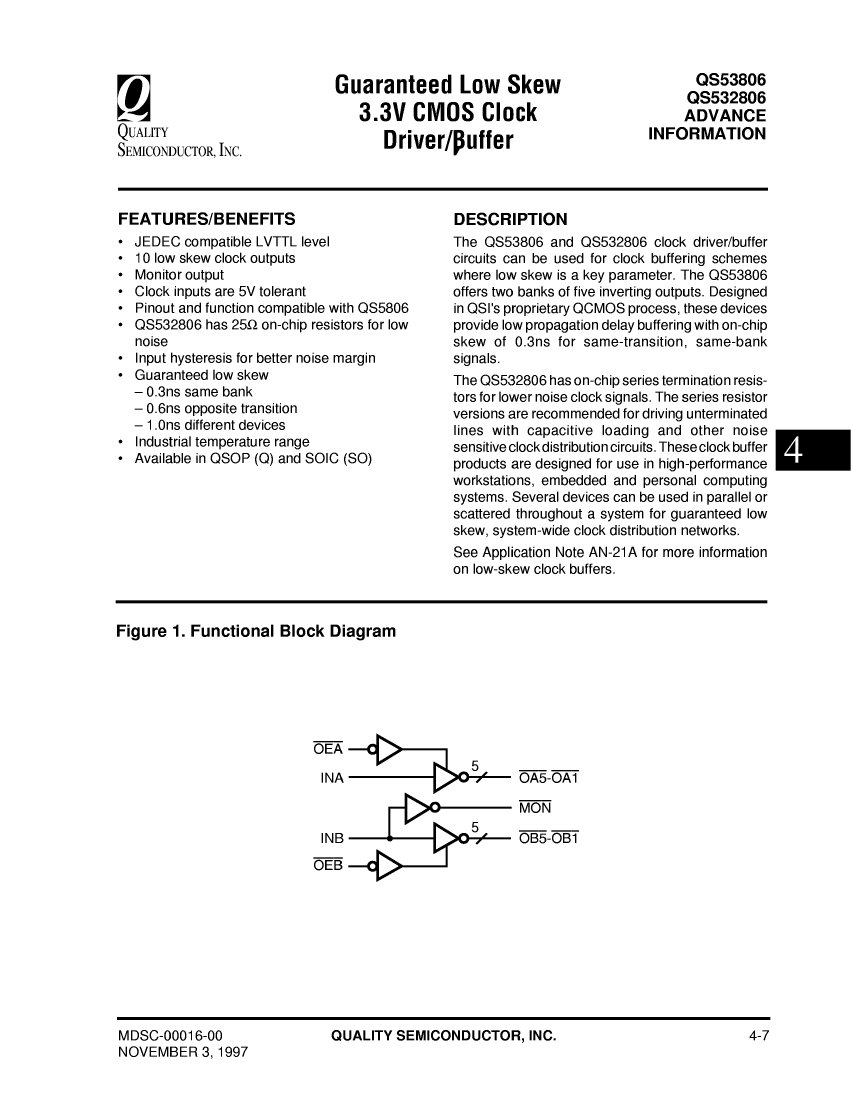

QS532806AQ Overview

Clock Driver, CMOS, PDSO20,

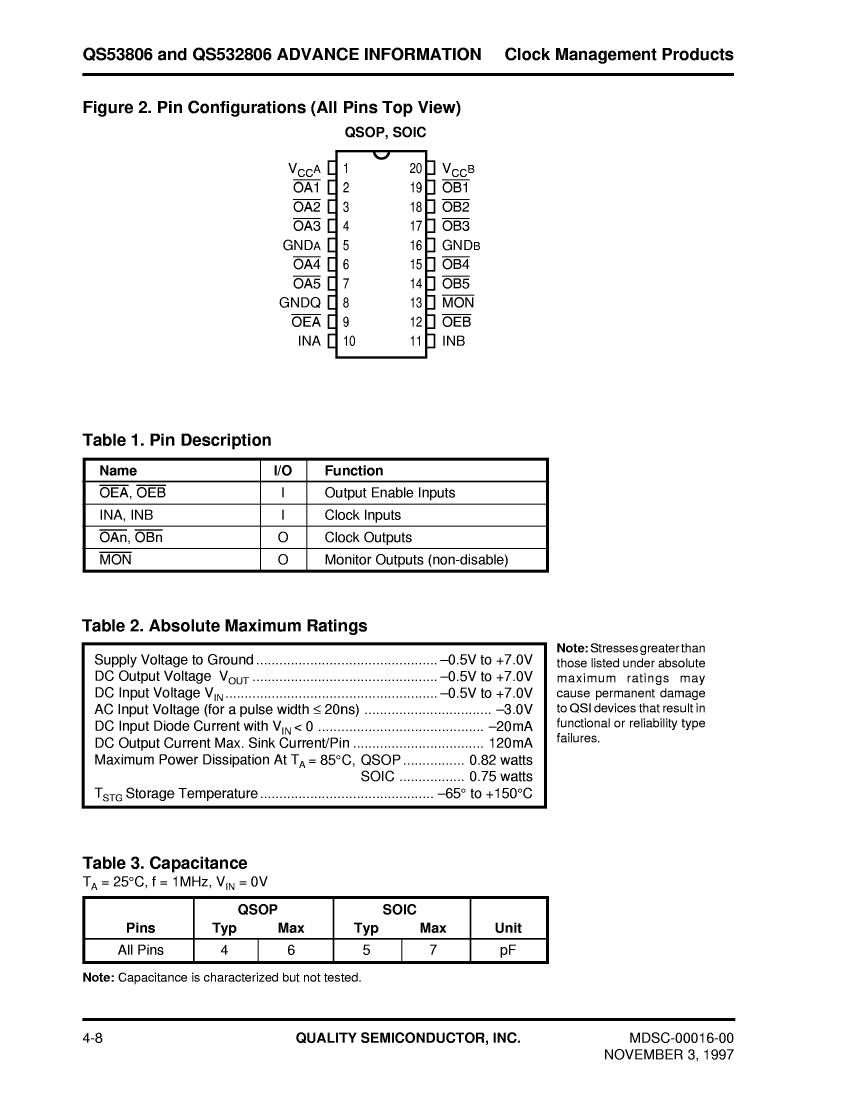

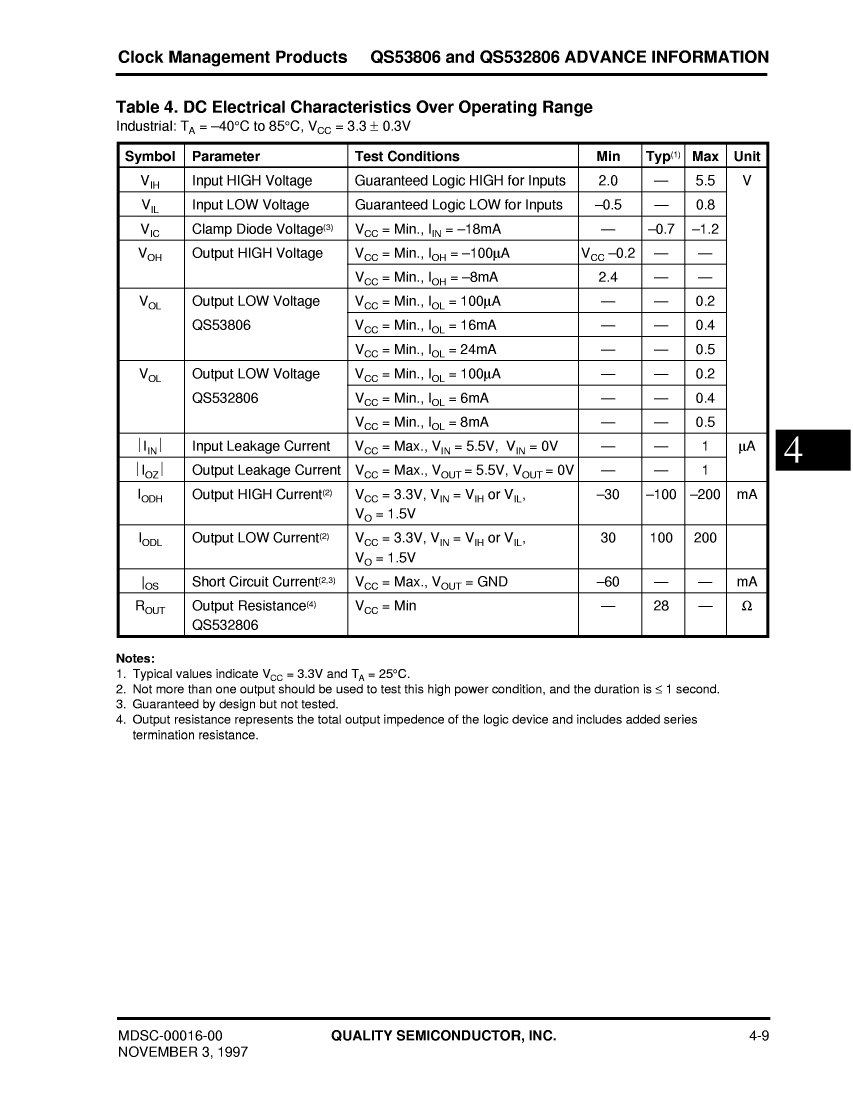

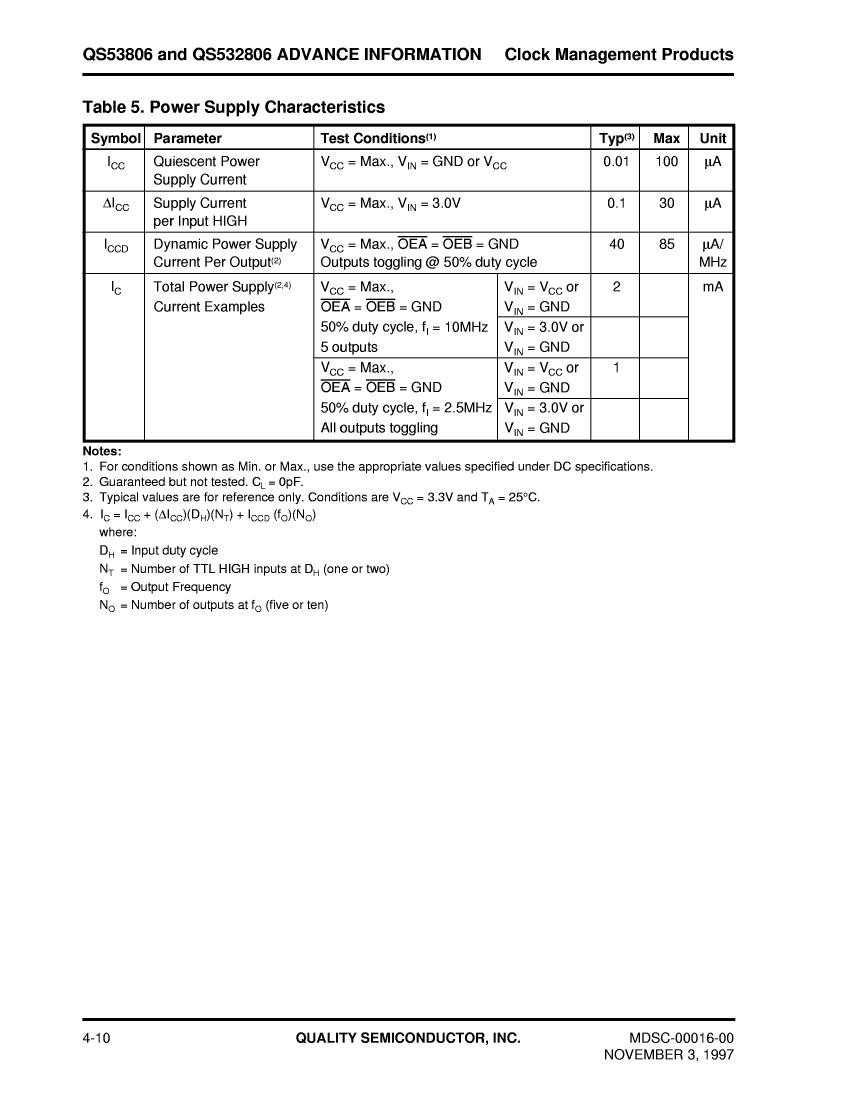

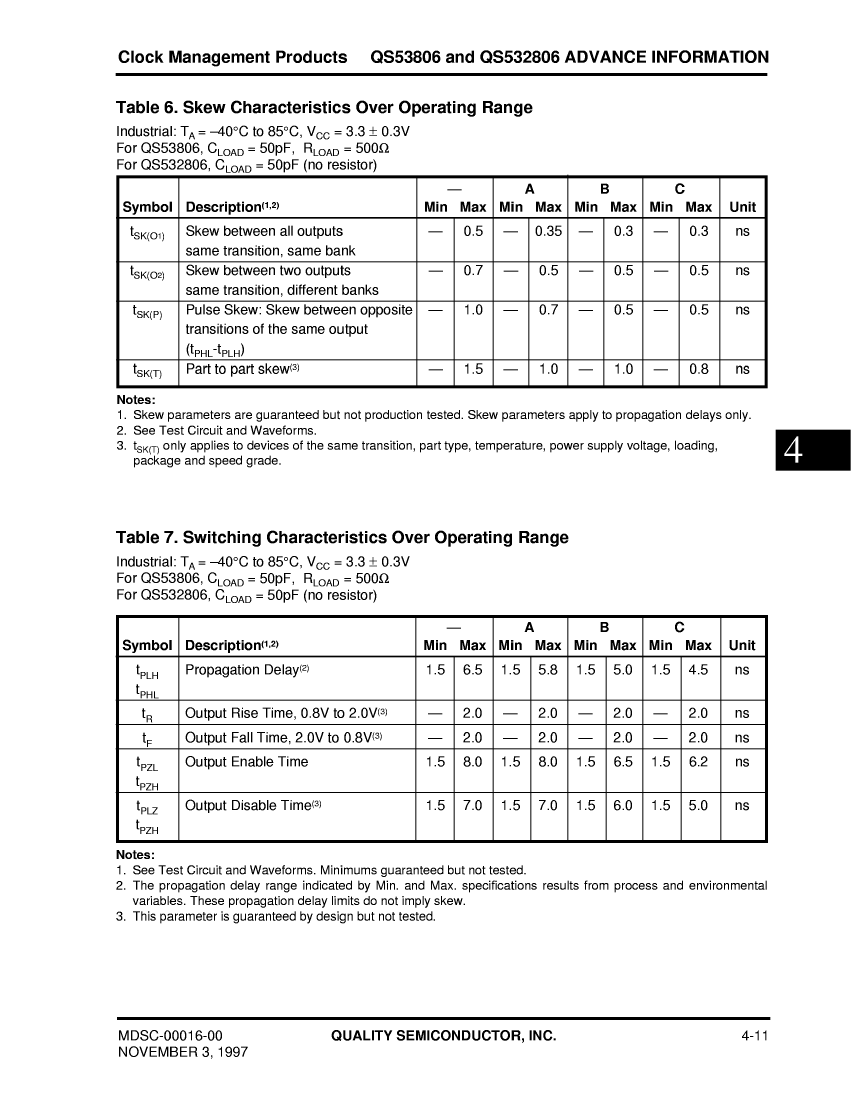

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
MaximumI(ol)	0.008 A
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP20,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
power supply	3.3 V
Prop。Delay @ Nom-Sup	5.8 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Base Number Matches	1

	QS532806AQ	QS532806ASO	QS53806ASO	QS53806AQ
Description	Clock Driver, CMOS, PDSO20,	Clock Driver, CMOS, PDSO20,	Clock Driver, CMOS, PDSO20,	Clock Driver, CMOS, PDSO20,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20
JESD-609 code	e0	e0	e0	e0
MaximumI(ol)	0.008 A	0.008 A	0.024 A	0.024 A
Number of terminals	20	20	20	20
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SOP	SOP	SSOP
Encapsulate equivalent code	SSOP20,.25	SOP20,.4	SOP20,.4	SSOP20,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH
power supply	3.3 V	3.3 V	3.3 V	3.3 V
Prop。Delay @ Nom-Sup	5.8 ns	5.8 ns	5.8 ns	5.8 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	1.27 mm	1.27 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
